YAMAHA XV1600A 2000 Workshop Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
ECA00021

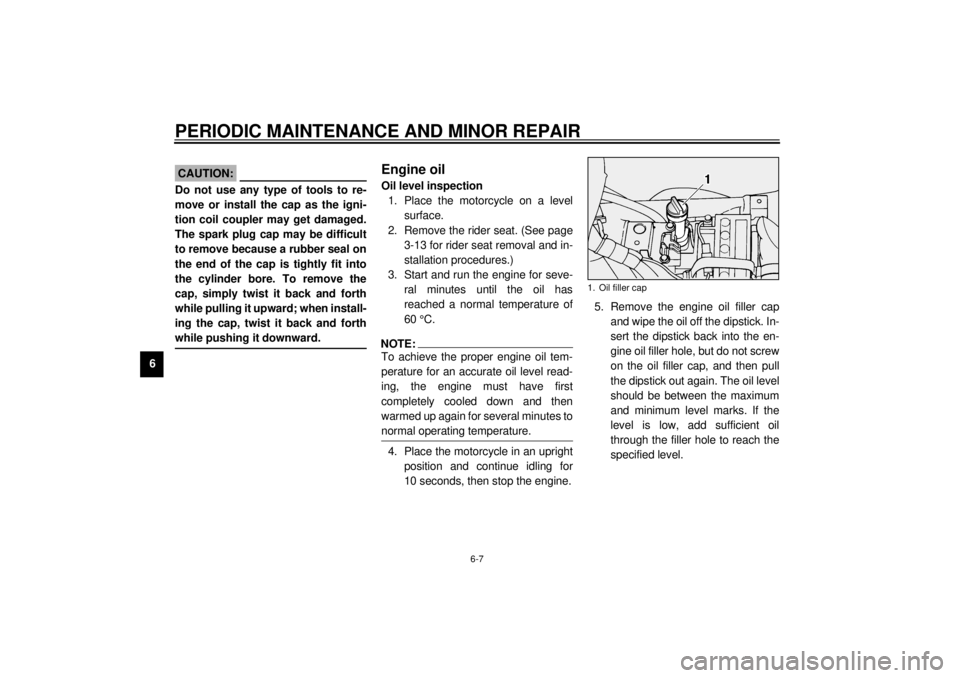

CAUTION:@ Do not use any type of tools to re-
move or install the cap as the igni-
tion coil coupler may get damaged.
The spark plug cap may be difficult
to remove because a rubber seal on
the end of the cap is tightly fit into
the cylinder bore. To remove the
cap, simply twist it back and forth
while pulling it upward; when install-
ing the cap, twist it back and forth
while pushing it downward. @
EAU01827*
Engine oilOil level inspection
1. Place the motorcycle on a level
surface.
2. Remove the rider seat. (See page
3-13 for rider seat removal and in-
stallation procedures.)
3. Start and run the engine for seve-
ral minutes until the oil has
reached a normal temperature of
60 °C.NOTE:@ To achieve the proper engine oil tem-
perature for an accurate oil level read-
ing, the engine must have first
completely cooled down and then
warmed up again for several minutes to
normal operating temperature. @4. Place the motorcycle in an upright
position and continue idling for
10 seconds, then stop the engine.5. Remove the engine oil filler cap
and wipe the oil off the dipstick. In-
sert the dipstick back into the en-
gine oil filler hole, but do not screw
on the oil filler cap, and then pull
the dipstick out again. The oil level
should be between the maximum
and minimum level marks. If the
level is low, add sufficient oil
through the filler hole to reach the
specified level.
1. Oil filler cap
E_5ja_Periodic.fm Page 7 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6

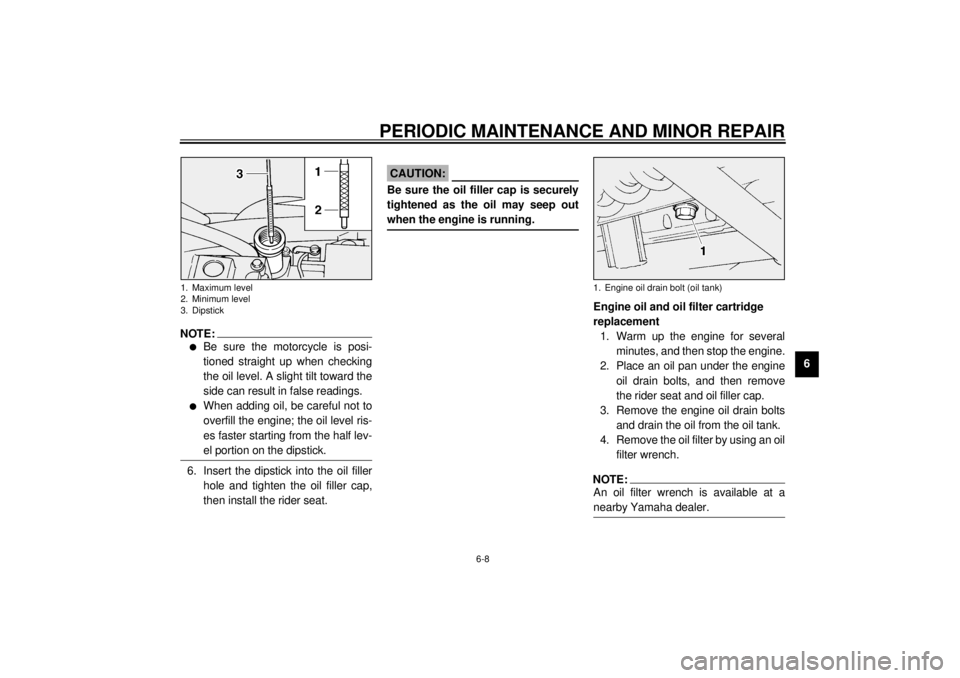

NOTE:@ l
Be sure the motorcycle is posi-
tioned straight up when checking
the oil level. A slight tilt toward the
side can result in false readings.
l
When adding oil, be careful not to
overfill the engine; the oil level ris-
es faster starting from the half lev-
el portion on the dipstick.
@6. Insert the dipstick into the oil filler
hole and tighten the oil filler cap,
then install the rider seat.
ECA00027
CAUTION:@ Be sure the oil filler cap is securely
tightened as the oil may seep out
when the engine is running. @
Engine oil and oil filter cartridge
replacement
1. Warm up the engine for several
minutes, and then stop the engine.
2. Place an oil pan under the engine
oil drain bolts, and then remove
the rider seat and oil filler cap.
3. Remove the engine oil drain bolts
and drain the oil from the oil tank.
4. Remove the oil filter by using an oil
filter wrench.NOTE:@ An oil filter wrench is available at a
nearby Yamaha dealer. @
1. Maximum level
2. Minimum level
3. Dipstick
1. Engine oil drain bolt (oil tank)
E_5ja_Periodic.fm Page 8 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
65. Install the drain bolts and tighten
them to the specified torque.
6. Apply a light coat of engine oil to
the O-ring of the new oil filter.
NOTE:@ Make sure the O-ring is seated proper-
ly. @
7. Install the oil filter and tighten it to
the specified torque with an oil fil-
ter wrench.
8. Pour only 2.5 L of oil into the oil fill-
er hole, then install the oil filler cap
and tighten it.
9. Start the engine and rev it several
times.
10. Stop the engine and remove the
oil filler cap.11. Gradually fill the oil tank with the
remainder of the recommended oil
quantity while checking the level
on the dipstick.
EC000066
CAUTION:@ l
Do not put in any chemical addi-
tives. Engine oil also lubricates
the clutch and additives could
cause clutch slippage.
l
Be sure no foreign material en-
ters the crankcase.
@12. Install the oil filler cap.
1. Engine oil drain bolt (engine)Tightening torque:
Drain bolt (oil tank):
43 Nm (4.3 m·kg)
Drain bolt (engine):
43 Nm (4.3 m·kg)
1. Engine oil filter cartridge
Tightening torque:
Oil filter:
17 Nm (1.7 m·kg)
Recommended oil:
See page 8-1.
Oil quantity:
Total amount:
5.0 L
Periodic oil change:
3.7 L
With oil filter replacement:
4.1 L
E_5ja_Periodic.fm Page 9 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10

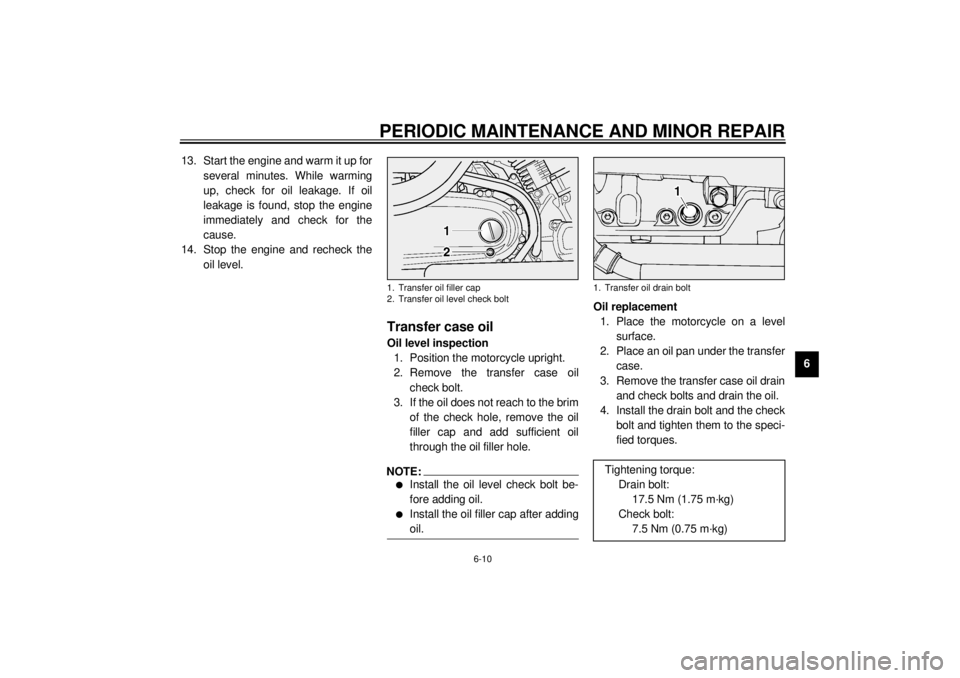

6 13. Start the engine and warm it up for
several minutes. While warming
up, check for oil leakage. If oil
leakage is found, stop the engine
immediately and check for the
cause.
14. Stop the engine and recheck the
oil level.
EAU01828
Transfer case oilOil level inspection
1. Position the motorcycle upright.
2. Remove the transfer case oil
check bolt.
3. If the oil does not reach to the brim
of the check hole, remove the oil
filler cap and add sufficient oil
through the oil filler hole.NOTE:@ l
Install the oil level check bolt be-
fore adding oil.
l
Install the oil filler cap after adding
oil.
@
Oil replacement
1. Place the motorcycle on a level
surface.
2. Place an oil pan under the transfer
case.
3. Remove the transfer case oil drain
and check bolts and drain the oil.
4. Install the drain bolt and the check
bolt and tighten them to the speci-
fied torques.
1. Transfer oil filler cap
2. Transfer oil level check bolt
1. Transfer oil drain boltTightening torque:
Drain bolt:
17.5 Nm (1.75 m·kg)
Check bolt:
7.5 Nm (0.75 m·kg)
E_5ja_Periodic.fm Page 10 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11

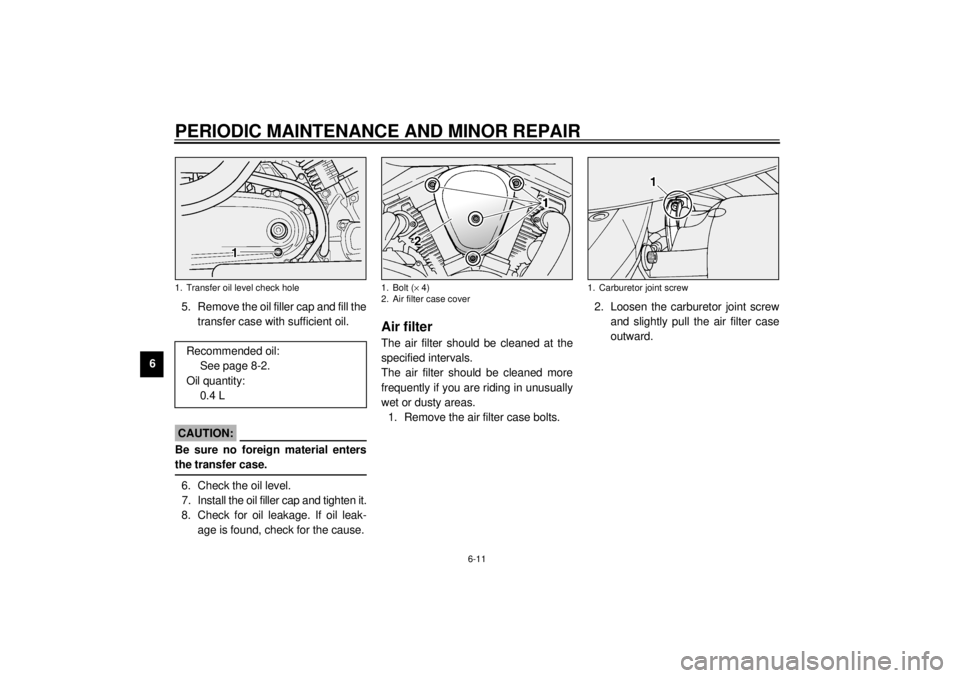

65. Remove the oil filler cap and fill the
transfer case with sufficient oil.
ECA00024
CAUTION:@ Be sure no foreign material enters
the transfer case. @6. Check the oil level.
7. Install the oil filler cap and tighten it.
8. Check for oil leakage. If oil leak-
age is found, check for the cause.
EAU01829
Air filterThe air filter should be cleaned at the
specified intervals.
The air filter should be cleaned more
frequently if you are riding in unusually
wet or dusty areas.
1. Remove the air filter case bolts.2. Loosen the carburetor joint screw
and slightly pull the air filter case
outward.
1. Transfer oil level check holeRecommended oil:
See page 8-2.
Oil quantity:
0.4 L
1. Bolt (´ 4)
2. Air filter case cover
1. Carburetor joint screw
E_5ja_Periodic.fm Page 11 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12

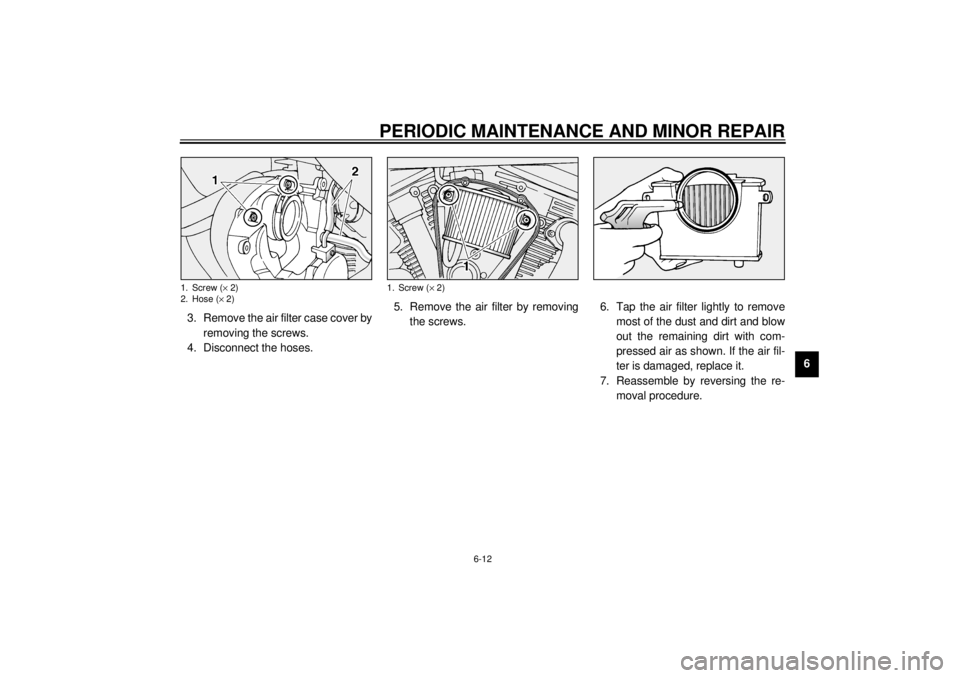

6 3. Remove the air filter case cover by
removing the screws.
4. Disconnect the hoses.5. Remove the air filter by removing
the screws.6. Tap the air filter lightly to remove
most of the dust and dirt and blow
out the remaining dirt with com-
pressed air as shown. If the air fil-
ter is damaged, replace it.
7. Reassemble by reversing the re-
moval procedure.
1. Screw (´ 2)
2. Hose (´ 2)
1. Screw (´ 2)
E_5ja_Periodic.fm Page 12 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
NOTE:@ Be sure to connect the hoses. @
EC000082
CAUTION:@ l
Make sure the air filter is prop-
erly seated in the air filter case.
l
The engine should never be run
without the air filter installed.
Excessive piston and/or cylin-
der wear may result.
@
EAU00629
Carburetor adjustmentThe carburetor is a vital part of the en-
gine and requires very sophisticated
adjustment. Most adjustments should
be left to a Yamaha dealer who has the
professional knowledge and experi-
ence to do so. However, the following
may be serviced by the owner as part
of routine maintenance.
EC000094
CAUTION:@ The carburetor was set at the
Yamaha factory after many tests. If
the settings are changed, poor en-
gine performance and damage may
result. @
EAU01168*
Idle speed adjustmentNOTE:@ A diagnostic tachometer must be used
for this procedure. @1. Attach the tachometer. Start the
engine and warm it up for a few
minutes at approximately 1,000 to
2,000 r/min. Occasionally rev the
engine to 4,000 to 4,400 r/min.
The engine is warm when it quick-
ly responds to the throttle.
1. Hose (´ 2)E_5ja_Periodic.fm Page 13 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14

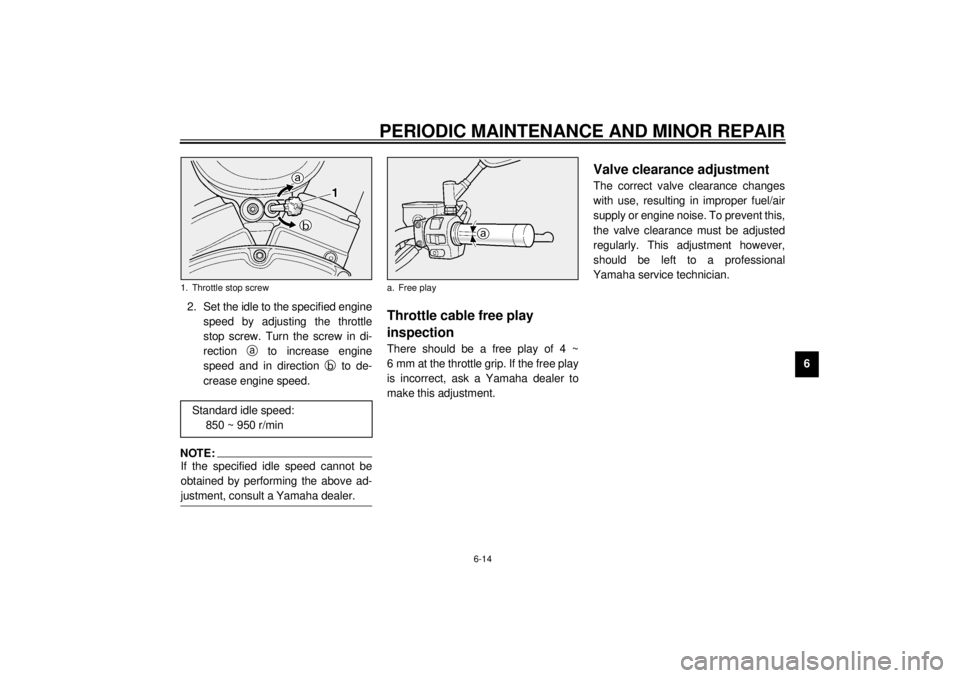

6 2. Set the idle to the specified engine
speed by adjusting the throttle
stop screw. Turn the screw in di-
rection
a to increase engine
speed and in direction
b to de-
crease engine speed.
NOTE:@ If the specified idle speed cannot be
obtained by performing the above ad-
justment, consult a Yamaha dealer. @
EAU00635
Throttle cable free play
inspectionThere should be a free play of 4 ~
6 mm at the throttle grip. If the free play
is incorrect, ask a Yamaha dealer to
make this adjustment.
EAU00637
Valve clearance adjustmentThe correct valve clearance changes
with use, resulting in improper fuel/air
supply or engine noise. To prevent this,
the valve clearance must be adjusted
regularly. This adjustment however,
should be left to a professional
Yamaha service technician.
1. Throttle stop screw
Standard idle speed:
850 ~ 950 r/min
a. Free play
E_5ja_Periodic.fm Page 14 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6
EAU01745*
TiresTo ensure maximum performance,
long service, and safe operation, note
the following:
Tire air pressure
Always check and adjust the tire pres-
sure before operating the motorcycle.
EWA00011
WARNING
@ Tire inflation pressure should be
checked and adjusted when the
temperature of the tire equals the
ambient air temperature. Tire infla-
tion pressure must be adjusted ac-
cording to total weight of cargo,
rider, passenger, and accessories
(windshield, saddlebags, etc. if ap-
proved for this model). @CE-40EEWA00012
WARNING
@ Proper loading of your motorcycle
is important for several characteris-
tics of your motorcycle, such as
handling, braking, performance and
safety. Do not carry loosely packed
items that can shift. Securely pack
your heaviest items close to the
center of the motorcycle, and dis-
tribute the weight evenly from side
to side. Properly adjust the suspen-
sion for your load, and check the
condition and pressure of your tires.
NEVER OVERLOAD YOUR MOTOR-
CYCLE. Make sure the total weight
of the cargo, rider, passenger, and
accessories (windshield, saddle-
bags, etc. if approved for this model)
does not exceed the maximum load
of the motorcycle. Operation of an
overloaded motorcycle could cause
tire damage, an accident, or even in-
jury. @
Maximum load* XV1600A 196 kg
Cold tire pressure Front Rear
Up to 90 kg load*250 kPa
(2.50 kg/cm
2,
2.50 bar)250 kPa
(2.50 kg/cm
2,
2.50 bar)
90 kg load ~
Maximum load*250 kPa
(2.50 kg/cm
2,
2.50 bar)280 kPa
(2.80 kg/cm
2,
2.80 bar)
* Load is the total weight of cargo, rider, passenger,
and accessories.
E_5ja_Periodic.fm Page 15 Saturday, October 16, 1999 10:12 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6 Tire inspection
Always check the tires before operating
the motorcycle. If center tread depth
reaches the limit as shown, if the tire
has a nail or glass fragments in it, or if
the side wall is cracked, contact a
Yamaha dealer immediately and have
the tire replaced.
CE-10E
CE-11ENOTE:@ These limits may be different by regula-
tion from country to country. If so, con-
form to the limits specified by the
regulations of your own country. @
EAU00681
WARNING
@ l
Operating the motorcycle with
excessively worn tires decrease
riding stability and can lead to
loss of control. Have excessive-
ly worn tires replaced by a
Yamaha dealer immediately.
Brakes, tires, and related wheel
parts replacement should be
left to a Yamaha Service Techni-
cian.
l
Patching a punctured tube is
not recommended. If it is abso-
lutely necessary to do so, use
great care and replace the tube
as soon as possible with a good
quality replacement.
@
1. Sidewall
a. Tread depth
FRONT
Manufacturer Size Type
Dunlop 130/90-16 67H D404FL
Bridgestone 130/90-16 67H G703F
REAR
Manufacturer Size Type
Dunlop 150/80B-16 71H D404
Bridgestone 150/80B-16 71H G702
Minimum tire tread
depth (front and rear)1.6 mm
E_5ja_Periodic.fm Page 16 Saturday, October 16, 1999 10:12 AM
