YAMAHA XV1600A 2000 User Guide
Manufacturer: YAMAHA, Model Year: 2000, Model line: XV1600A, Model: YAMAHA XV1600A 2000Pages: 95, PDF Size: 19.02 MB
Page 11 of 95
2-1
2
EAU00026
2-DESCRIPTIONLeft view1. Shift pedal (page 3-7)
2. Starter (choke) knob (page 3-12)
3. Fuel cock (page 3-11)
4. Rider seat (page 3-13)
5. Tool kit (page 6-1)6. Helmet holder (page 3-13)
7. Rear turn signal lights (page 6-31)
8. Tail/brake light (page 6-31)
9. Fuses (page 6-28)
E_5ja_Description.fm Page 1 Saturday, October 16, 1999 10:10 AM
Page 12 of 95
DESCRIPTION
2-2
2
Right view10. Passenger footrest
11. Passenger seat
12. Fuel tank (page 3-9)
13. Fuel tank cap (page 3-9)
14. Headlight (page 6-29)
15. Front turn signal lights (page 6-31)16. Throttle stop screw (page 6-14)
17. Rear brake pedal (page 3-8)
18. Rider footrest
19. Rear shock absorber spring preload
adjusting nut (page 3-14)
20. Muffler
E_5ja_Description.fm Page 2 Saturday, October 16, 1999 10:10 AM
Page 13 of 95
DESCRIPTION
2-3
2
Controls/Instruments1. Clutch lever (page 3-7)
2. Left handlebar switches (page 3-6)
3. Speedometer (page 3-3)
4. Main switch/steering lock (page 3-1)5. Right handlebar switches (page 3-6)
6. Throttle grip (page 6-14)
7. Front brake lever (page 3-8)
E_5ja_Description.fm Page 3 Saturday, October 16, 1999 10:10 AM
Page 14 of 95
3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ...................................... 3-1
Indicator lights ...................................................... 3-2
Speedometer ........................................................ 3-3
Fuel gauge ............................................................ 3-4
Diagnosis device................................................... 3-4
Antitheft alarm (optional) ...................................... 3-4
Digital clock........................................................... 3-5
Handlebar switches .............................................. 3-6
Clutch lever ........................................................... 3-7
Shift pedal ............................................................. 3-7
Front brake lever ................................................... 3-8
Rear brake pedal .................................................. 3-8Fuel tank cap ....................................................... 3-9
Fuel ...................................................................... 3-9
Fuel tank breather hose ..................................... 3-10
Fuel cock ............................................................ 3-11
Starter (choke) knob .......................................... 3-12
Steering lock ...................................................... 3-12
Rider seat........................................................... 3-13
Helmet holder..................................................... 3-13
Adjusting rear shock absorber preload .............. 3-14
Sidestand ........................................................... 3-15
Sidestand/clutch switch operation check............ 3-16
E_5ja_FunctionsTOC.fm Page 1 Saturday, October 16, 1999 10:10 AM
Page 15 of 95
3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029*

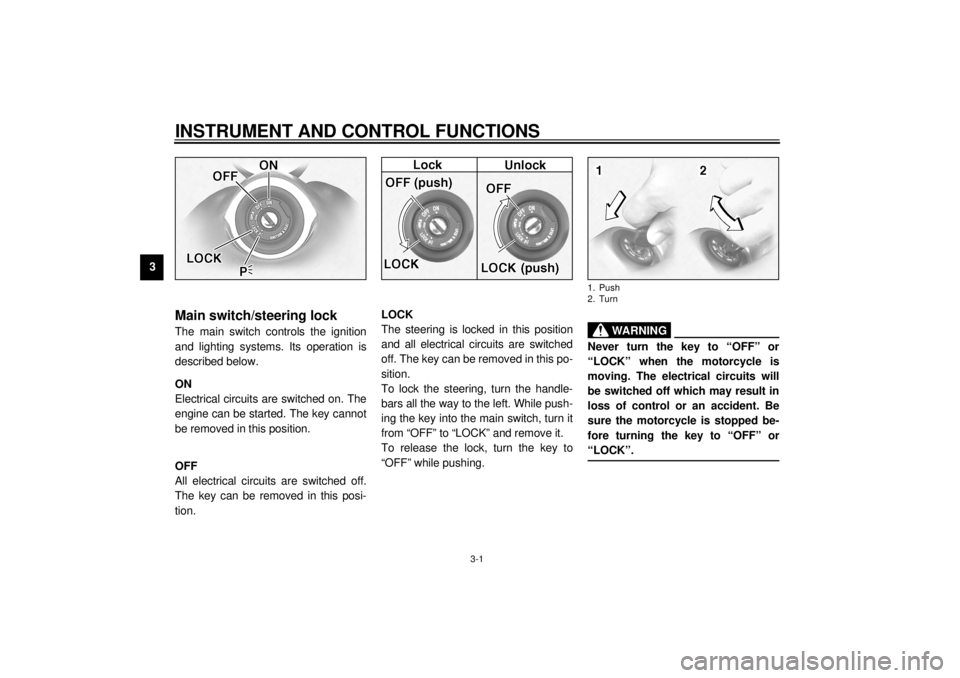

Main switch/steering lockThe main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00040
LOCK
The steering is locked in this position
and all electrical circuits are switched
off. The key can be removed in this po-
sition.
To lock the steering, turn the handle-
bars all the way to the left. While push-
ing the key into the main switch, turn it
from “OFF” to “LOCK” and remove it.
To release the lock, turn the key to
“OFF” while pushing.
EW000016
WARNING
@ Never turn the key to “OFF” or
“LOCK” when the motorcycle is
moving. The electrical circuits will
be switched off which may result in
loss of control or an accident. Be
sure the motorcycle is stopped be-
fore turning the key to “OFF” or
“LOCK”. @1. Push
2. Turn
E_5ja_Functions.fm Page 1 Saturday, October 16, 1999 10:10 AM
Page 16 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU01590
(Parking)
The steering is locked in this position,
and the taillight and auxiliary light come
on but all other circuits are off. The key
can be removed in this position.
To use the parking position, first lock
the steering, then turn the key to “ ”.
Do not use this position for an extend-
ed length of time as the battery may
discharge.
EAU00056

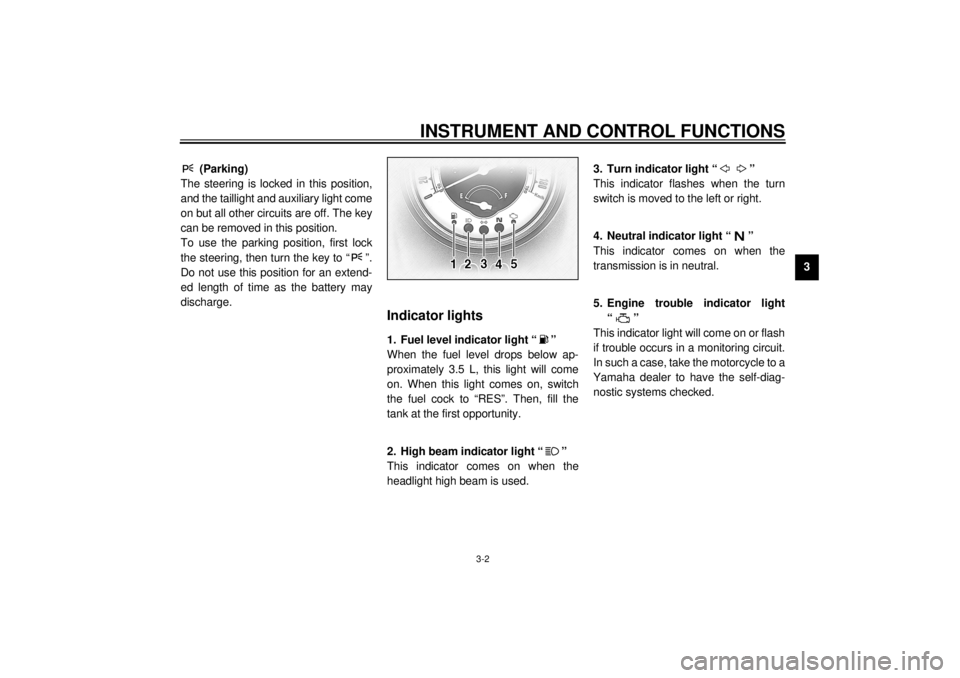

Indicator lights
EAU00079
1. Fuel level indicator light “ ”
When the fuel level drops below ap-
proximately 3.5 L, this light will come
on. When this light comes on, switch
the fuel cock to “RES”. Then, fill the
tank at the first opportunity.
EAU00063
2. High beam indicator light “ ”
This indicator comes on when the
headlight high beam is used.
EAU00057
3. Turn indicator light “ ”
This indicator flashes when the turn
switch is moved to the left or right.
EAU00061
4. Neutral indicator light “ ”
This indicator comes on when the
transmission is in neutral.
EAU00091
5. Engine trouble indicator light
“”
This indicator light will come on or flash
if trouble occurs in a monitoring circuit.
In such a case, take the motorcycle to a
Yamaha dealer to have the self-diag-
nostic systems checked.
E_5ja_Functions.fm Page 2 Saturday, October 16, 1999 10:10 AM
Page 17 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU01734
SpeedometerThis speedometer is equipped with an
odometer and a twin trip meter. Push-
ing the mode button (left) will change
the display from one mode to the other
as follows.In the odometer mode “ODO”, the
motorcycle’s total mileage is displayed.
In the trip meter modes “TRIP A” or
“TRIP B”, the motorcycle’s mileage
since the trip meter was last reset is
displayed. Use the trip meter to esti-
mate how far you can ride on a tank of
fuel. This information will enable you to
plan fuel stops in the future.
To reset the trip meter to 0, push the
mode button (left) until “TRIP A” or
“TRIP B” is displayed, then push the
set button (right) and hold it down for at
least one second.
NOTE:@ This motorcycle does not have a ta-
chometer. However, it is equipped with
an engine revolution limiter, which pre-
vents the engine revolution from ex-
ceeding approximately 4,400 r/min. @
1. Odometer/tripmeter/clock
2. Speedometer
3. Fuel gauge
4. Set button
5. Mode button
ODO TRIP A TRIP B
E_5ja_Functions.fm Page 3 Saturday, October 16, 1999 10:10 AM
Page 18 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00113
Fuel gaugeThe fuel gauge indicates the quantity of
the remaining gasoline in the tank. The
gauge needle moves from “F” (Full) to
“E” (Empty) as the fuel level decreases.
When the needle moves to the “E” po-
sition, add fuel as soon as possible.
EAU01735*
Diagnosis deviceThis model is equipped with a self-di-
agnosis device for the electrical cir-
cuits.
If some trouble should occur in a cir-
cuit, the engine trouble indicator light
will come on or the fuel indicator light
will start flashing.
To prevent engine damage, have your
motorcycle serviced by a Yamaha
dealer as soon as possible if either of
these conditions occur.
EC000004*
CAUTION:@ To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs. @
EAU00109
Antitheft alarm (optional)An antitheft alarm can be equipped to
this motorcycle. Consult your Yamaha
dealer to obtain and install the alarm.
E_5ja_Functions.fm Page 4 Saturday, October 16, 1999 10:10 AM
Page 19 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU01736

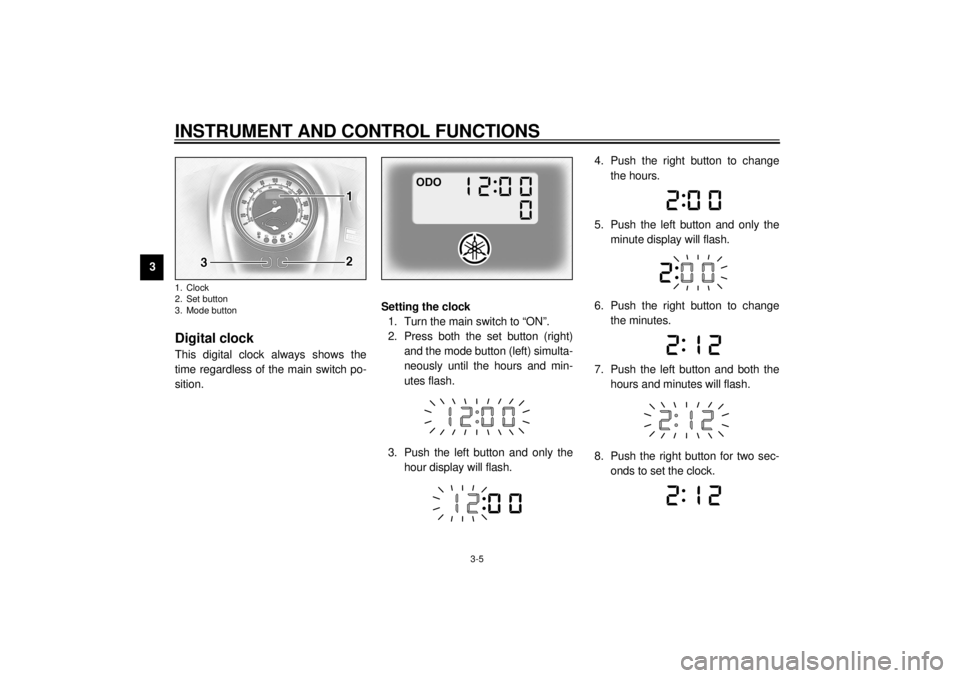

Digital clockThis digital clock always shows the
time regardless of the main switch po-
sition.Setting the clock
1. Turn the main switch to “ON”.
2. Press both the set button (right)
and the mode button (left) simulta-
neously until the hours and min-
utes flash.
3. Push the left button and only the
hour display will flash.4. Push the right button to change
the hours.
5. Push the left button and only the
minute display will flash.
6. Push the right button to change
the minutes.
7. Push the left button and both the
hours and minutes will flash.
8. Push the right button for two sec-
onds to set the clock.1. Clock
2. Set button
3. Mode buttonE_5ja_Functions.fm Page 5 Saturday, October 16, 1999 10:10 AM
Page 20 of 95
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU00118

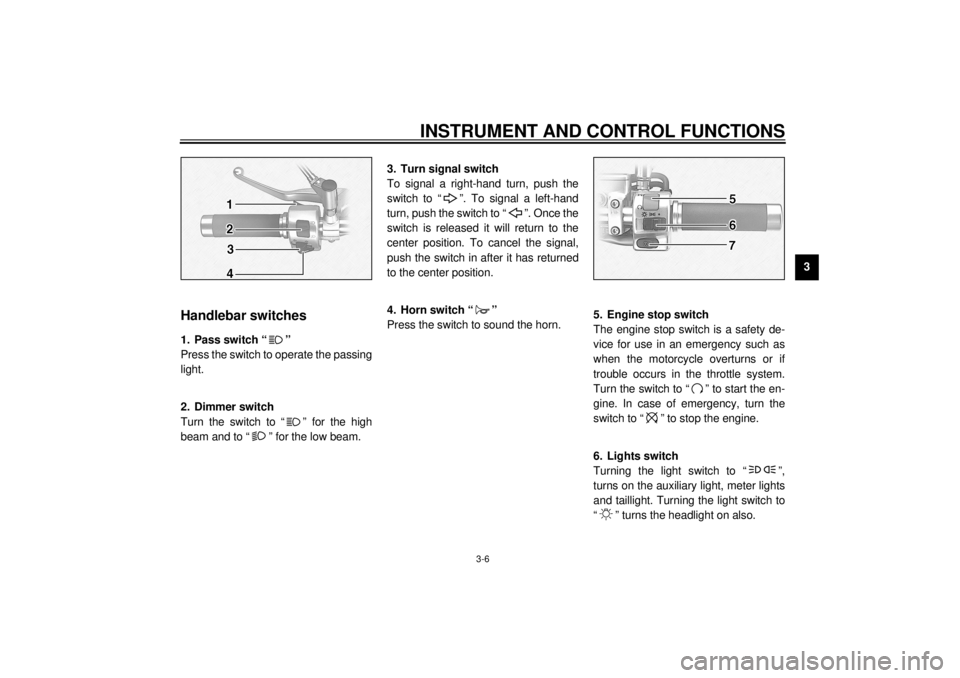

Handlebar switches
EAU00119
1. Pass switch “ ”
Press the switch to operate the passing
light.
EAU00121
2. Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
3. Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once the
switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
4. Horn switch “ ”
Press the switch to sound the horn.
EAU00138
5. Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00134
6. Lights switch
Turning the light switch to “ ”,
turns on the auxiliary light, meter lights
and taillight. Turning the light switch to
“ ” turns the headlight on also.
E_5ja_Functions.fm Page 6 Saturday, October 16, 1999 10:10 AM
