OPERATION AND IMPORTANT RIDING POINTS

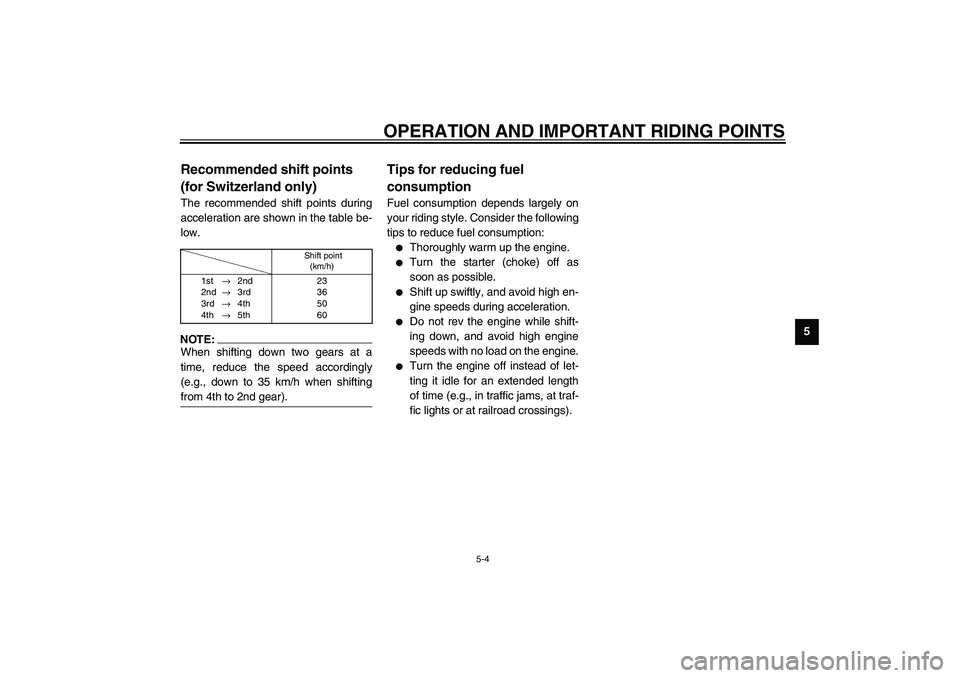

5-4
5
EAU02941
Recommended shift points
(for Switzerland only) The recommended shift points during
acceleration are shown in the table be-
low.CF-01ENOTE:@ When shifting down two gears at a
time, reduce the speed accordingly
(e.g., down to 35 km/h when shifting
from 4th to 2nd gear). @
EAU00424
Tips for reducing fuel
consumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Thoroughly warm up the engine.


Turn the starter (choke) off as
soon as possible.


Shift up swiftly, and avoid high en-
gine speeds during acceleration.


Do not rev the engine while shift-
ing down, and avoid high engine
speeds with no load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
Shift point
(km/h)
1st→2nd
2nd→3rd
3rd→4th
4th→5th23
36
50
60
E_5JA.book Page 4 Saturday, August 18, 2001 3:52 PM

OPERATION AND IMPORTANT RIDING POINTS
5-5
5
EAU01128
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1,600 km. For this rea-
son, you should read the following ma-
terial carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1,600 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full-throttle oper-
ation or any condition that might result
in engine overheating must be avoided.
EAU01740*
0–1,000 km
Avoid prolonged operation above
1/3 throttle.
1,000–1,600 km
Avoid prolonged operation above
1/2 throttle.
ECA00026*
CAUTION:@ After 1,000 km of operation, the en-
gine oil and transfer case oil must
be changed, and the oil filter car-
tridge replaced. @
1,600 km and beyond
The vehicle can now be operated nor-
mally.
EC000049
CAUTION:@ If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle. @
E_5JA.book Page 5 Saturday, August 18, 2001 3:52 PM

OPERATION AND IMPORTANT RIDING POINTS
5-6
5
EAU00457
Parking When parking, stop the engine, re-
move the key from the main switch,
and then turn the fuel cock lever to
“OFF”.
EW000058
WARNING
@

Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on
soft ground, otherwise the
motorcycle may overturn.
@
E_5JA.book Page 6 Saturday, August 18, 2001 3:52 PM

E_5JA.book Page 7 Saturday, August 18, 2001 3:52 PM

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-3
Removing and installing the panel ....................... 6-6
Checking the spark plugs .................................... 6-7
Engine oil and oil filter cartridge .......................... 6-8
Transfer case oil ................................................. 6-12
Cleaning the air filter element ............................ 6-13
Adjusting the carburetor ..................................... 6-16
Adjusting the engine idling speed ...................... 6-16
Adjusting the throttle cable free play .................. 6-17
Adjusting the valve clearance ............................ 6-17
Tires ................................................................... 6-17
Spoke wheels .................................................... 6-20
Adjusting the clutch lever free play .................... 6-21
Adjusting the brake lever free play ..................... 6-22
Adjusting the brake pedal position ..................... 6-22
Adjusting the rear brake light switch .................. 6-23
Checking the front and rear brake pads ............. 6-23
Checking the brake fluid level ............................ 6-25
Changing the brake fluid .................................... 6-26Drive belt slack .................................................. 6-26
Checking and lubricating the cables ................. 6-28
Checking and lubricating the throttle
grip and cable ................................................. 6-29
Checking and lubricating the brake and
shift pedals ...................................................... 6-29
Checking and lubricating the brake and
clutch levers .................................................... 6-30
Checking and lubricating the sidestand ............ 6-30
Checking the front fork ...................................... 6-31
Checking the steering ....................................... 6-31
Checking the wheel bearings ............................ 6-32
Battery ............................................................... 6-33
Replacing the fuses .......................................... 6-35
Replacing the headlight bulb ............................. 6-36
Replacing a turn signal light bulb or the
tail/brake light bulb .......................................... 6-38
Troubleshooting ................................................. 6-38
Troubleshooting chart ........................................ 6-39
E_5JA.book Page 1 Saturday, August 18, 2001 3:52 PM

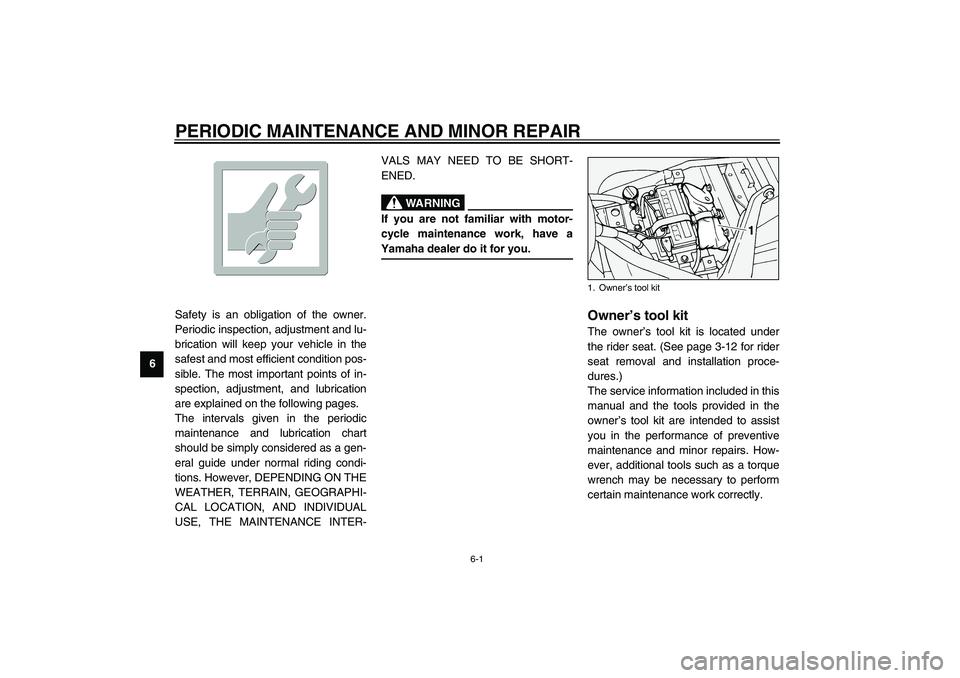

6-1
6
EAU00462
6-PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00464
Safety is an obligation of the owner.
Periodic inspection, adjustment and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-VALS MAY NEED TO BE SHORT-
ENED.
EW000060
WARNING
@ If you are not familiar with motor-
cycle maintenance work, have a
Yamaha dealer do it for you. @
EAU03711
Owner’s tool kit The owner’s tool kit is located under
the rider seat. (See page 3-12 for rider
seat removal and installation proce-
dures.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.1. Owner’s tool kit
E_5JA.book Page 1 Saturday, August 18, 2001 3:52 PM

PERIODIC MAINTENANCE AND MINOR REPAIR

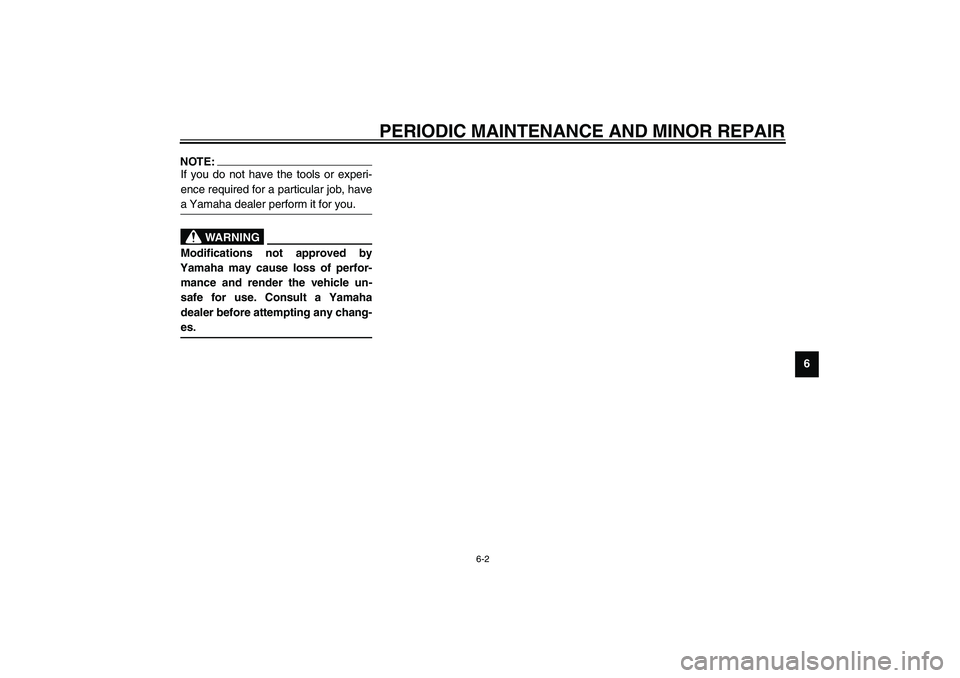

6-2
6
NOTE:_ If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you. _
EW000063
WARNING
_ Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-
es. _
E_5JA.book Page 2 Saturday, August 18, 2001 3:52 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_

The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.


From 50,000 km, repeat the maintenance intervals starting from 10,000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_CP-01ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line• Check fuel hoses for cracks or damage.√√√√ √
2*Fuel filter Check condition.√√
3 Spark plugs Check condition.
 Clean and regap.√√
Replace.√√
4*Valves Check valve clearance.
 Adjust.√√√√
5 Air filter element Clean.√√
Replace.√√
6Clutch Check operation.
 Adjust.√√√√√
7*Front brake Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)√√ √ √ √ √
 Replace brake pads. Whenever worn to the limit
8*Rear brake Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-5.)√√ √ √ √ √
 Replace brake pads. Whenever worn to the limit
E_5JA_Periodic.fm Page 3 Saturday, August 18, 2001 5:37 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
9
*Brake hosesCheck for cracks or damage.√√√√ √
Replace. (See NOTE on page 6-5.) Every 4 years
10*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√√
11*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
12*Wheel bearingsCheck bearing for looseness or damage.√√√√
13*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
14*Drive beltCheck belt tension.
Make sure that the rear wheel is properly aligned.Every 4,000 km
15*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
16*Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.√√√√ √
17 SidestandCheck operation.
Lubricate.√√√√ √
18*Sidestand switchCheck operation.√√√√√ √
19*Front forkCheck operation and for oil leakage.√√√√
20*Shock absorber
assemblyCheck operation and shock absorber for oil leakage.√√√√
21*Rear suspension relay
arm and connecting arm
pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based grease.√√
22*CarburetorCheck starter (choke) operation.
Adjust engine idling speed.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
E_5JA_Periodic.fm Page 4 Saturday, August 18, 2001 5:37 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU03884
NOTE:_

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
_23 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
24 Engine oil filter cartridgeReplace.√√√
25
*Transfer case oilCheck oil level.√√
Change.√√√
26*Front and rear brake
switchesCheck operation.√√√√√ √
27 Moving parts and cablesLubricate.√√√√ √
28*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
