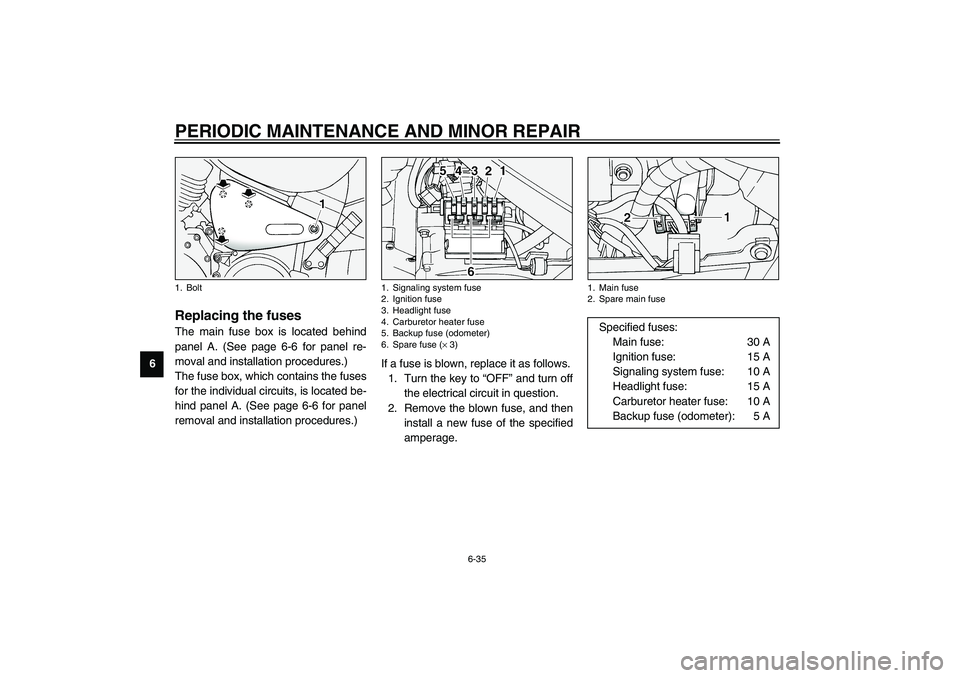

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU04245*
Replacing the fuses The main fuse box is located behind
panel A. (See page 6-6 for panel re-
moval and installation procedures.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel A. (See page 6-6 for panel
removal and installation procedures.)If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Bolt
1. Signaling system fuse
2. Ignition fuse
3. Headlight fuse
4. Carburetor heater fuse
5. Backup fuse (odometer)
6. Spare fuse (× 3)
1. Main fuse
2. Spare main fuse
Specified fuses:
Main fuse: 30 A
Ignition fuse: 15 A
Signaling system fuse: 10 A
Headlight fuse: 15 A
Carburetor heater fuse: 10 A
Backup fuse (odometer): 5 A
