TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Multi-function meter unit .................3-5
Anti-theft alarm (optional) ...............3-9
Handlebar switches ......................3-10
Clutch lever ...................................3-11
Shift pedal .....................................3-11
Brake lever ...................................3-11
Brake pedal ..................................3-12
Fuel tank cap ................................3-12
Fuel ...............................................3-13
Fuel tank breather hose ................3-14
Catalytic converter ........................3-14
Rider seat .....................................3-14
Helmet holder ...............................3-15
Adjusting the shock absorber
assembly ...................................3-16
EXUP system ...............................3-18
Sidestand ......................................3-18
Ignition circuit cut-off system ........3-19
Auxiliary DC connector .................3-21PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Checking the spark plugs ............... 6-5
Engine oil and oil filter cartridge ..... 6-6
Transfer case oil ............................. 6-9
Air filter element ............................. 6-9
Checking the throttle cable
free play .................................... 6-10
Valve clearance ............................ 6-10
Tires ............................................. 6-10
Cast wheels .................................. 6-13
Clutch lever .................................. 6-13
Adjusting the rear brake light
switch ........................................ 6-14
Checking the front and rear
brake pads ................................ 6-14Checking the brake and clutch
fluid levels ................................. 6-15
Changing the brake and clutch
fluids ......................................... 6-16
Drive belt slack ............................ 6-16
Checking and lubricating the
cables ....................................... 6-17
Checking and lubricating the
throttle grip and cable ............... 6-17
Checking and lubricating the
brake and shift pedals .............. 6-18
Checking and lubricating the
brake and clutch levers ............ 6-18
Checking and lubricating the
sidestand .................................. 6-19
Lubricating the rear suspension ... 6-19
Checking the front fork ................. 6-20
Checking the steering .................. 6-20
Checking the wheel bearings ....... 6-21
Battery ......................................... 6-21
Replacing the fuses ..................... 6-23
Replacing a headlight bulb .......... 6-24
Tail/brake light ............................. 6-27
Replacing a turn signal light
bulb ........................................... 6-27
License plate light ........................ 6-28
Replacing an auxiliary light
bulb ........................................... 6-28
Supporting the motorcycle ........... 6-29
Troubleshooting ........................... 6-29
Troubleshooting chart .................. 6-30U5C4E0E0.book Page 1 Monday, March 13, 2006 10:29 AM

DESCRIPTION
2-1
2
EAU10410
Left view1. Headlight (page 6-24)
2. Clutch fluid reservoir (page 6-15)
3. Seat lock (page 3-14)
4. Main fuse (page 6-23)
5. Battery (page 6-21)
6. Owner’s tool kit (page 6-1)
7. License plate light (page 6-28)
8. Tail/brake light (page 6-27)9. Engine oil drain bolt B (crankcase) (page 6-6)
10.Engine oil drain bolt A (crankcase) (page 6-6)
11.Shift pedal (page 3-11)U5C4E0E0.book Page 1 Monday, March 13, 2006 10:29 AM

DESCRIPTION
2-2
2
EAU10420
Right view1. Helmet holder (page 3-15)
2. Fuel injection system fuse (page 6-23)
3. Rear brake fluid reservoir (page 6-15)
4. Fuse box (page 6-23)
5. Engine oil filler cap (page 6-6)
6. Fuel tank cap (page 3-12)
7. Front brake fluid reservoir (page 6-15)
8. Brake pedal (page 3-12)9. Engine oil filter cartridge (page 6-6)
10.Engine oil drain bolt (oil tank) (page 6-6)
11.Shock absorber assembly spring preload adjusting nut (page 3-16)
U5C4E0E0.book Page 2 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU38372

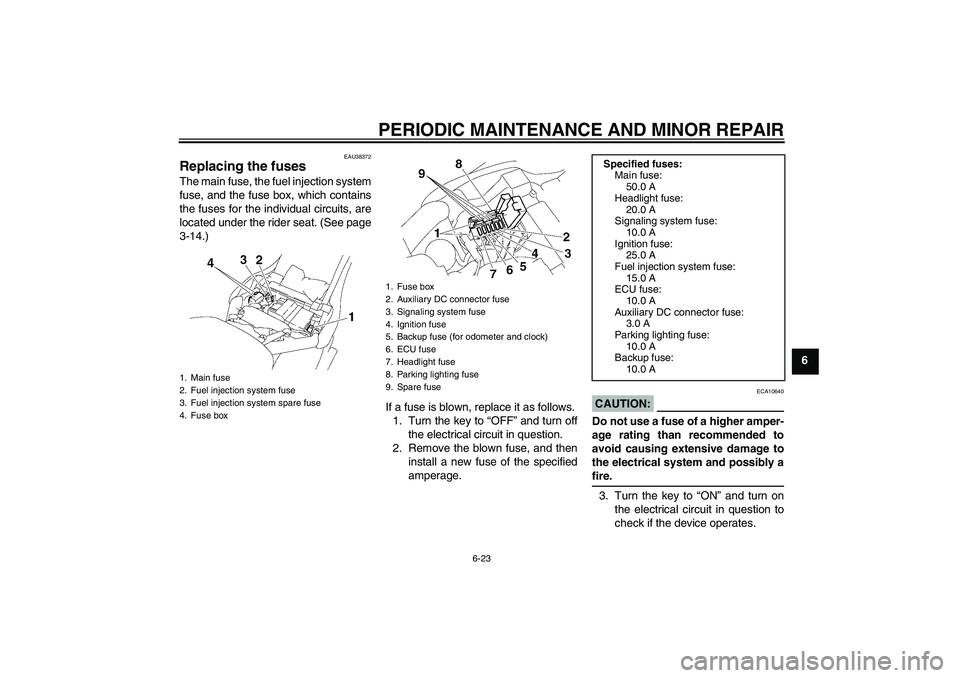

Replacing the fuses The main fuse, the fuel injection system
fuse, and the fuse box, which contains
the fuses for the individual circuits, are
located under the rider seat. (See page
3-14.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
1. Main fuse
2. Fuel injection system fuse
3. Fuel injection system spare fuse
4. Fuse box
1. Fuse box
2. Auxiliary DC connector fuse
3. Signaling system fuse
4. Ignition fuse
5. Backup fuse (for odometer and clock)
6. ECU fuse
7. Headlight fuse
8. Parking lighting fuse
9. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Fuel injection system fuse:
15.0 A
ECU fuse:
10.0 A
Auxiliary DC connector fuse:
3.0 A
Parking lighting fuse:
10.0 A
Backup fuse:
10.0 A
U5C4E0E0.book Page 23 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
64. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU41190

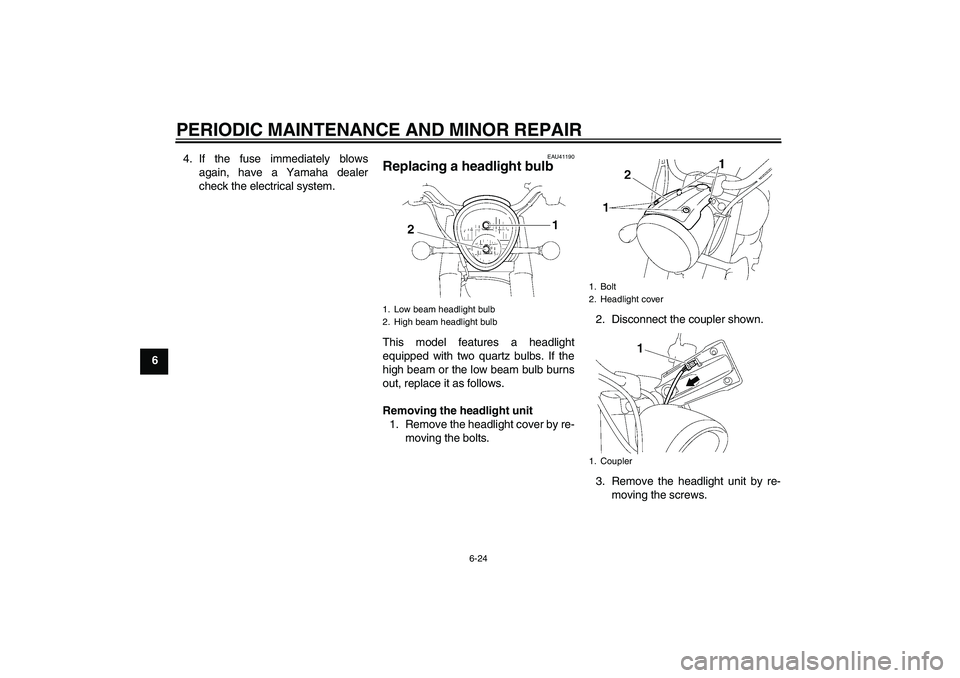

Replacing a headlight bulb This model features a headlight
equipped with two quartz bulbs. If the
high beam or the low beam bulb burns
out, replace it as follows.
Removing the headlight unit
1. Remove the headlight cover by re-
moving the bolts.2. Disconnect the coupler shown.
3. Remove the headlight unit by re-
moving the screws.1. Low beam headlight bulb
2. High beam headlight bulb
1. Bolt
2. Headlight cover
1. Coupler
U5C4E0E0.book Page 24 Monday, March 13, 2006 10:29 AM

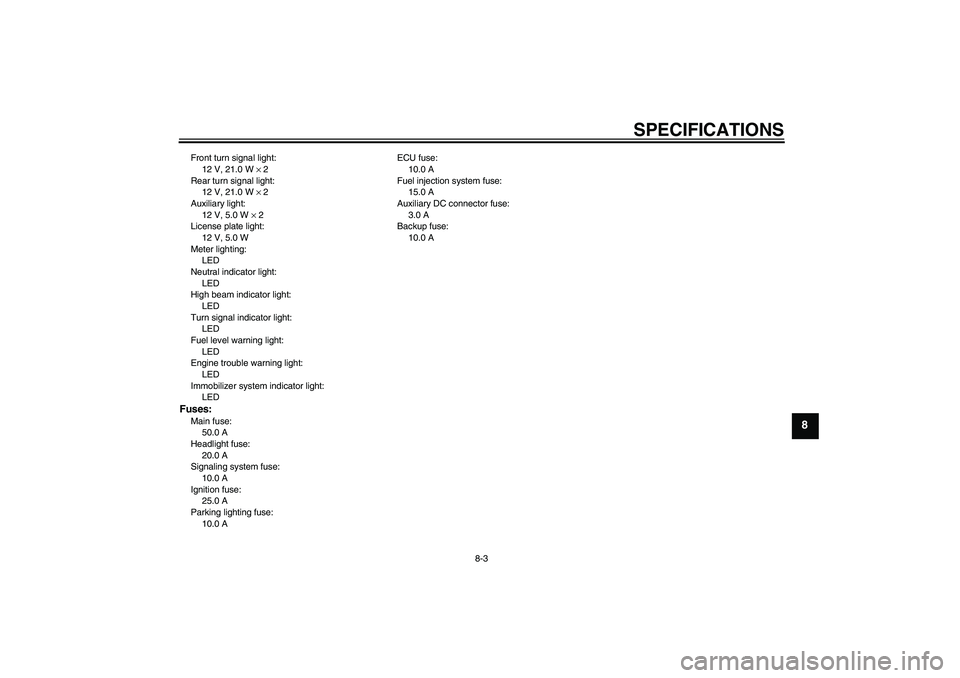

SPECIFICATIONS
8-3
8
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Parking lighting fuse:
10.0 AECU fuse:
10.0 A
Fuel injection system fuse:
15.0 A
Auxiliary DC connector fuse:
3.0 A
Backup fuse:
10.0 A
U5C4E0E0.book Page 3 Monday, March 13, 2006 10:29 AM

INDEXAAir filter element ...................................... 6-9
Anti-theft alarm (optional)........................ 3-9
Auxiliary DC connector ......................... 3-21
Auxiliary light bulb, replacing ................ 6-28BBattery................................................... 6-21
Brake and clutch fluid levels,
checking ............................................. 6-15
Brake and clutch fluids, changing ......... 6-16
Brake and clutch levers,
checking and lubricating ..................... 6-18
Brake and shift pedals,
checking and lubricating ..................... 6-18
Brake lever ............................................ 3-11
Brake pedal ........................................... 3-12CCables, checking and lubricating .......... 6-17
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Clutch lever .................................. 3-11, 6-13DDimmer switch ...................................... 3-10
Drive belt slack...................................... 6-16EEngine break-in ....................................... 5-3
Engine oil and oil filter cartridge .............. 6-6
Engine stop switch ................................ 3-10
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-18FFront and rear brake pads, checking .... 6-14
Front fork, checking .............................. 6-20
Fuel ....................................................... 3-13Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-4
Fuel tank breather hose........................ 3-14
Fuel tank cap ........................................ 3-12
Fuses, replacing ................................... 6-23
HHandlebar switches .............................. 3-10
Hazard switch ....................................... 3-10
Headlight bulb, replacing ...................... 6-24
Helmet holder ....................................... 3-15
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-19
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLicense plate light ................................. 6-28MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2
Multi-function meter unit ......................... 3-5NNeutral indicator light .............................. 3-3PParking ................................................... 5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ..................................................... 6-2
Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-14
Rear suspension, lubricating ................. 6-19
Rider seat .............................................. 3-14SSafety information ................................... 1-1
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-16
Sidestand .............................................. 3-18
Sidestand, checking and lubricating...... 6-19
Spark plugs, checking ............................. 6-5
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-10
Steering, checking................................. 6-20
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-29TTail/brake light ....................................... 6-27
Throttle cable free play, checking ......... 6-10
Throttle grip and cable, checking
and lubricating .................................... 6-17
Tires ...................................................... 6-10
Tool kit..................................................... 6-1
Transfer case oil...................................... 6-9
Troubleshooting .................................... 6-29
Troubleshooting chart ........................... 6-30
Turn signal indicator lights ...................... 3-3
Turn signal light bulb, replacing ............ 6-27
Turn signal switch ................................. 3-10VValve clearance..................................... 6-10
Vehicle identification number .................. 9-1
U5C4E0E0.book Page 1 Monday, March 13, 2006 10:29 AM
