MOTORCYCLE CARE AND STORAGE
7-4
7
StorageShort-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00014
CAUTION:@ l
Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp while it is still
wet will allow water and humidi-
ty to seep in and cause rust.
l
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
@
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-
bers by loosening the drain bolts;
this will prevent fuel deposits from
building up. Pour the drained fuel
into the fuel tank.
3. Only for motorcycles equipped
with a fuel cock which has an
“OFF” position: Turn the fuel cock
to “OFF”.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps and
spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.c. Install the spark plug caps onto the
spark plugs and place the spark
plugs on the cylinder head so that
the electrodes are grounded. (This
will limit sparking during the next
step.)
d. Turn the engine over several times
with the starter. (This will coat the
cylinder walls with oil.)
e. Remove the spark plug caps from
the spark plugs, install the spark
plugs and then the spark plug
caps.
EWA00003
WARNING
@ When turning the engine over, be
sure to ground the spark plug elec-
trodes to prevent damage or injury
from sparking. @6. Lubricate all control cables and
the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
E_5el_Cleaning.fm Page 4 Monday, May 1, 2000 9:46 AM

MOTORCYCLE CARE AND STORAGE
7-5
77. Check and, if necessary, correct
the tire air pressure, then raise the
motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover up the muffler outlets with
plastic bags to prevent moisture
from entering.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and recharge it once a
month. Do not store the battery in
an excessively cold or warm place
(less than 0°C or more than 30°C).
For more information, see “Battery
storage” in the chapter “PERIOD-
IC MAINTENANCE AND MINOR
REPAIRS”.
NOTE:@ Make any necessary repairs before
storing the motorcycle. @E_5el_Cleaning.fm Page 5 Monday, May 1, 2000 9:46 AM

8

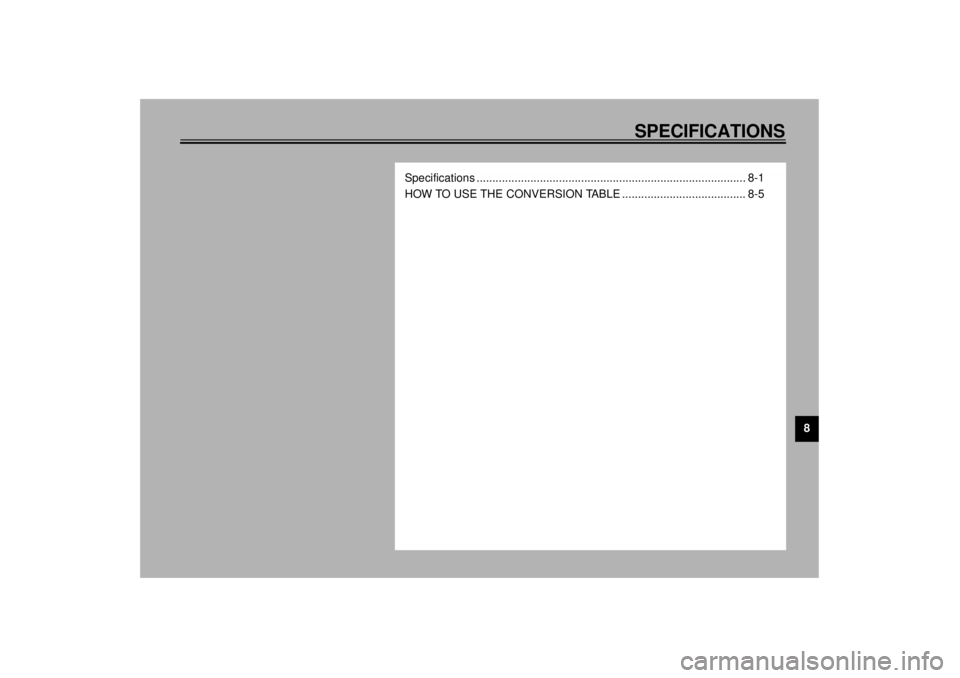

SPECIFICATIONS
Specifications ..................................................................................... 8-1
HOW TO USE THE CONVERSION TABLE ....................................... 8-5
E_5el_SpecTOC.fm Page 1 Monday, May 1, 2000 9:46 AM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications01E
Model XVS1100
Dimensions
Overall length 2,405 mm
Overall width 895 mm
Overall height 1,095 mm
Seat height 690 mm
Wheelbase 1,640 mm
Ground clearance 145 mm
Minimum turning radius 3,200 mm
Basic weight
(with oil and full fuel tank)
274 kg (except for G, A, SF)
275 kg (for G, A, SF)
Engine
Engine type Air-cooled 4-stroke, SOHC
Cylinder arrangement V type 2-cylinder
Displacement 1,063 cm
3
Bore ´ stroke 95.0 ´ 75.0 mm
Compression ratio 8.3:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG type or
higher
Quantity
Periodic oil change 3.0 L
With oil filter replacement 3.1 L
Total amount 3.6 L
-20˚ -10˚ 0˚
10˚20˚ 30˚
40˚50˚C
SAE 10W/30
SAE 15W/40SAE 20W/40SAE 20W/50
SAE 10W/40
CAUTION:Be sure to use motor oils that do not contain anti-fric-
tion modifiers. Passenger car motor oils (often labeled
“Energy Conserving”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage,
resulting in reduced component life and poor engine
performance.
E_5el_Spec.fm Page 1 Monday, May 1, 2000 9:47 AM

SPECIFICATIONS
8-2
8
Final gear oil
Type SAE80API “GL-4” Hypoid Gear
Oil
Quantity 0.2 L
Air filterDry type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 17 L
Reserve amount 4.5 L
Carburetor
Type ´ quantity BSR37 ´ 2
Manufacturer MIKUNI
Spark plug
Type/Manufacturer BPR7ES / NGK or
W22EPR-U / DENSO
Gap 0.7 ~ 0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.660
Secondary reduction system Shaft drive
Secondary reduction ratio 2.875
Transmission type Constant mesh 5-speed
Operation Left foot operationGear ratio
1st 2.353
2nd 1.667
3rd 1.286
4th 1.032
5th 0.853
Chassis
Frame type Double cradle
Caster angle 33°
Trail 136 mm
Tires
Front
Type Tube
Size 110/90-18 61S
Manufacturer/model Bridgestone / L309
Dunlop / K555F
Rear
Type Tube
Size 170/80-15 M/C 77S
Manufacturer/model Bridgestone / G546
Dunlop / K555
Maximum load* 201 kg (except for G, A, SF)
200 kg (for G, A, SF)
E_5el_Spec.fm Page 2 Monday, May 1, 2000 9:47 AM

SPECIFICATIONS
8-3
8
Air pressure (cold tire)
Up to 90 kg load*
Front 200 kPa (2.00 kg/cm
2, 2.00 bar)
Rear 225 kPa (2.25 kg/cm2, 2.25 bar)
90 kg load ~ maximum
load*
Front 225 kPa (2.25 kg/cm2, 2.25 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
* Load is total weight of cargo, rider, passenger and accessories.
Wheels
Front
Type Spoke
Size 18 ´ 2.15
Rear
Type Spoke
Size 15M/C ´ MT4.50
Brakes
Front
Type Dual disc brake
Operation Right hand operation
Fluid DOT 4Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Fr o n t
Ty p e Te l e s c o p i c f o r k
Rear
Type Swingarm (link suspention)
Shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper,
spring preload adjustable
Wheel travel
Front 140 mm
Rear 113 mm
Electrical
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 350 W@ 5,000 r/min
Battery
Type GT14B-4
Voltage, capacity 12 V, 12 AH
E_5el_Spec.fm Page 3 Monday, May 1, 2000 9:47 AM

SPECIFICATIONS
8-4
8
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Auxiliary light 12 V, 4 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Meter light 14 V, 1.4 W ´ 2
Oil level indicator light 12 V, 1.7 W ´ 1
Neutral indicator light 12 V, 1.7 W ´ 1
Turn indicator light 12 V, 1.7 W ´ 1
Engine trouble indicator light 12 V, 1.7 W ´ 1
High beam indicator light 12 V, 1.7 W ´ 1
Fuses
Main fuse 30 A
Signaling system fuse 10 A
Odometer fuse 5 A
Ignition fuse 10 A
Headlight fuse 15 A
Carburetor heater fuse 15 A
E_5el_Spec.fm Page 4 Monday, May 1, 2000 9:47 AM

SPECIFICATIONS
8-5
8
EAU01064
HOW TO USE THE CONVERSION TABLECS-02E All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
Ex.METRIC MULTIPLIER IMPERIAL
**mm´ 0.03937 = **in
2 mm´ 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/hr 0.6214 mph
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume /
Capacitycc (cm3)
cc (cm3)
lt (liter)
lt (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Misc.kg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
E_5el_Spec.fm Page 5 Monday, May 1, 2000 9:47 AM

9
CONSUMER INFORMATION
Identification number records ............................................................. 9-1
Key identification number ................................................................... 9-1
Vehicle identification number.............................................................. 9-1
Model label ......................................................................................... 9-2
E_5el_ConsumerTOC.fm Page 1 Monday, May 1, 2000 9:47 AM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification number recordsRecord the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification numberThe key identification number is
stamped on the key tag. Record this
number in the space provided and use
it for reference when obtaining a new
key.
EAU01043
Vehicle identification numberThe vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your state. @
1. Key identification number
1. Vehicle identification number
