PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU00696

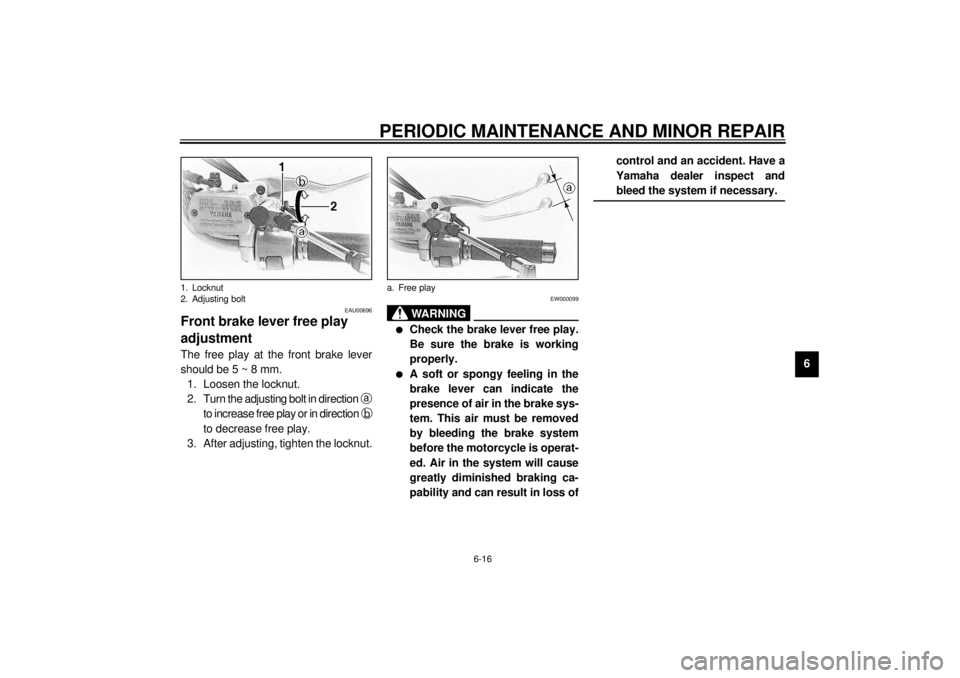

Front brake lever free play
adjustmentThe free play at the front brake lever
should be 5 ~ 8 mm.
1. Loosen the locknut.
2. Turn the adjusting bolt in direction
a
to increase free play or in direction
b
to decrease free play.
3. After adjusting, tighten the locknut.
EW000099
WARNING
@ l
Check the brake lever free play.
Be sure the brake is working
properly.
l
A soft or spongy feeling in the
brake lever can indicate the
presence of air in the brake sys-
tem. This air must be removed
by bleeding the brake system
before the motorcycle is operat-
ed. Air in the system will cause
greatly diminished braking ca-
pability and can result in loss ofcontrol and an accident. Have a
Yamaha dealer inspect and
bleed the system if necessary.
@
1. Locknut
2. Adjusting bolt
a. Free play
E_5el_Periodic.fm Page 16 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU01746
Rear brake pedal height
adjustmentThe top of the brake pedal should be
positioned 82 mm above the top of the
footrest. If not, ask a Yamaha dealer to
adjust it.
EW000109
WARNING
@ A soft or spongy feeling in the brake
pedal can indicate the presence of
air in the brake system. This air
must be removed by bleeding the
brake system before the motorcycle
is operated. Air in the system will
cause greatly diminished braking
capability and can result in loss of
control and an accident. Have a
Yamaha dealer inspect and bleed
the system if necessary. @
EAU00713
Brake light switch adjustmentThe rear brake light switch is activated
by the brake pedal and is properly ad-
justed when the brake light comes on
just before braking takes effect. To ad-
just the rear brake light switch, hold the
switch body so it does not rotate while
turning the adjusting nut.
Turn the adjusting nut in direction
a to
make the brake light come on earlier.
Turn the adjusting nut in direction
b to
make the brake light come on later.
a. Pedal height
1. Brake light switch
2. Adjusting nut
E_5el_Periodic.fm Page 17 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
EAU01314
Checking the front and rear
brake padsEach brake pad is provided with a wear
indicator groove, which allows check-
ing the brake pad for wear without dis-
assembling the brake. Inspect each
wear indicator groove and, as soon as
one of them has almost worn away,
ask a Yamaha dealer to replace the
brake pads as a set.1. Wear indicator groove
1. Wear indicator groove
E_5el_Periodic.fm Page 18 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU00731
Inspecting the brake fluid
levelInsufficient brake fluid may let air enter
the brake system, possibly causing the
brakes to become ineffective.
Before riding, check that the brake fluid
is above the minimum level and replen-
ish when necessary.
Observe these precautions:l
When checking the fluid level,
make sure the top of the master
cylinder is level by turning the han-
dlebars.
l
Use only the designated quality
brake fluid. Otherwise, the rubber
seals may deteriorate, causing
leakage and poor brake perfor-
mance.
l
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor brake performance.
l
Be careful that water does not en-
ter the master cylinder when refill-
ing. Water will significantly lower
the boiling point of the fluid and
may result in vapor lock.
l
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
l
Have a Yamaha dealer check the
cause if the brake fluid level goes
down.
1. Minimum level mark
1. Minimum level mark
Recommended brake fluid: DOT 4
E_5el_Periodic.fm Page 19 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
EAU00742
Brake fluid replacementThe brake fluid should be replaced only
by trained Yamaha service personnel.
Have the Yamaha dealer replace the
following components during periodic
maintenance or when they are dam-
aged or leaking:l
oil seals (every two years)
l
brake hoses (every four years)
EAU02962
Cable inspection and
lubrication
EW000112
WARNING
@ Damage to the outer housing of ca-
bles may lead to internal rusting and
interfere with the cable movement.
Replace damaged cables as soon as
possible to prevent unsafe condi-
tions. @Lubricate the cables and cable ends. If
a cable does not operate smoothly, ask
a Yamaha dealer to replace it.
EAU00773
Throttle cable and grip

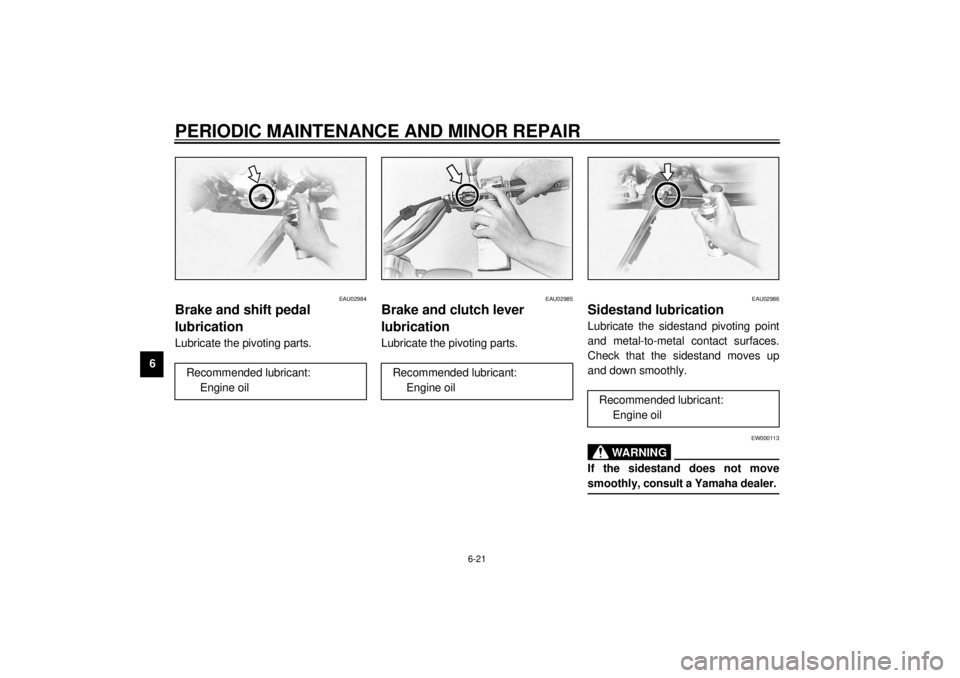

lubricationThe throttle twist grip assembly should
be greased at the time that the cable is
lubricated, since the grip must be re-
moved to get at the end of the throttle
cable. After removing the screws, hold
the end of the cable up in the air and
put in several drops of lubricant. With
the throttle grip disassembled, coat the
metal surface of the grip assembly with
a suitable all-purpose grease.
Recommended lubricant:
Engine oil
E_5el_Periodic.fm Page 20 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU02984
Brake and shift pedal
lubricationLubricate the pivoting parts.
EAU02985
Brake and clutch lever
lubricationLubricate the pivoting parts.
EAU02986
Sidestand lubricationLubricate the sidestand pivoting point
and metal-to-metal contact surfaces.
Check that the sidestand moves up
and down smoothly.
EW000113
WARNING
@ If the sidestand does not move
smoothly, consult a Yamaha dealer. @
Recommended lubricant:
Engine oil
Recommended lubricant:
Engine oil
Recommended lubricant:
Engine oil
E_5el_Periodic.fm Page 21 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
EAU02939
Front fork inspectionVisual check
EW000115
WARNING
@ Securely support the motorcycle so
there is no danger of it falling over. @Check for scratches or damage on the
inner tube and excessive oil leakage
from the front fork.
Operation check
1. Place the motorcycle on a level
place.
2. Hold the motorcycle in an upright
position and apply the front brake.
3. Push down hard on the handle-
bars several times and check if the
fork rebounds smoothly.
EC000098
CAUTION:@ If any damage or unsmooth move-
ment is found with the front fork,
consult a Yamaha dealer. @
EAU00794
Steering inspectionPeriodically inspect the condition of the
steering. Worn out or loose steering
bearings may be dangerous. Place a
stand under the engine to raise the
front wheel off the ground. Hold the
lower end of the front forks and try to
move them forward and backward. If
any free play can be felt, ask a Yamaha
dealer to inspect and adjust the steer-
ing. Inspection is easier if the front
wheel is removed.
EW000115
WARNING
@ Securely support the motorcycle so
there is no danger of it falling over. @
E_5el_Periodic.fm Page 22 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU01144
Wheel bearingsIf there is play in the front or rear wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer in-
spect the wheel bearings.
EAU00800
BatteryThis motorcycle is equipped with a
sealed-type battery. Therefore it is not
necessary to check the electrolyte or fill
the battery with distilled water.l
If the battery seems to have dis-
charged, consult a Yamaha deal-
er.
l
If the motorcycle is equipped with
optional electrical accessories, the
battery tends to discharge more
quickly, so be sure to recharge it
periodically.
EC000101
CAUTION:@ Never try to remove the sealing caps
of the battery cells. The battery will
be damaged. @
EW000116
WARNING
@ Battery electrolyte is poisonous and
dangerous, causing severe burns,
etc. It contains sulfuric acid. Avoid
contact with skin, eyes or clothing.
ANTIDOTE:l
EXTERNAL: Flush with water.
l
INTERNAL: Drink large quanti-
ties of water or milk. Follow with
milk of magnesia, beaten egg,
or vegetable oil. Call a physi-
cian immediately.
l
EYES: Flush with water for
15 minutes and get prompt
medical attention.
Batteries produce explosive gases.
Keep sparks, flame, cigarettes etc.,
away. Ventilate when charging or
using in an enclosed space. Always
shield your eyes when working near
batteries. KEEP OUT OF REACH OF
CHILDREN.
@
E_5el_Periodic.fm Page 23 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6 Battery storage
When the motorcycle is not used for a
month or longer, remove the battery,
fully charge it and store it in a cool, dry
place.
EC000102
CAUTION:@ l
Completely recharge the bat-
tery before storing. Storing a
discharged battery can cause
permanent battery damage.
l
Use a battery charger designed
for a sealed-type (MF) battery.
Using a conventional battery
charger will cause battery dam-
age. If you do not have a sealed-
type battery charger, contact
your Yamaha dealer.
l
Always make sure the connec-
tions are correct when reinstall-
ing the battery.
@
1. Positive terminal
2. Negative terminal
E_5el_Periodic.fm Page 24 Monday, May 1, 2000 9:44 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
EAU01711
Fuse replacementSub fuse box
The sub fuse box is located behind the
storage compartment cover. (See page
3-11 for removal and installation proce-
dures.)Main fuse
The main fuse is located under the rid-
er seat.
1. Remove the rider seat. (See page
3-10 for removal and installation
procedures.)2. Remove each quick fastener by
pushing the center in with a screw-
driver, then pulling the fastener
out.1. Odometer fuse
2. Ignition fuse
3. Headlight fuse
4. Carburetor heater fuse
5. Spare fuse (´ 2)
6. Signaling system fuse
Specified fuses:
Odometer fuse: 5 A
Ignition fuse: 10 A
Headlight fuse: 15 A
Carburetor heater fuse: 15 A
Signaling system fuse: 10 A
1. Quick fastener (´ 3)
