YAMAHA XVS1100A 2003 Owners Manual

SPECIFICATIONS
8-2
8
Final gear oil
Type Hypoid gear oil SAE 80
(API GL4) or multi-grade hypoid
gear oil SAE 80W-90
Quantity 0.2 L
Air filterDry type element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 17 L
Fuel reserve amount 4.5 L
Carburetor
Manufacturer MIKUNI
Model × quantity BSR37 × 2
Spark plug
Manufacturer/model NGK / BPR7ES or
DENSO / W22EPR-U
Gap 0.7–0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.660
Secondary reduction system Shaft drive
Secondary reduction ratio 2.875
Transmission type Constant-mesh 5-speed
Operation Left footGear ratio
1st 2.353
2nd 1.667
3rd 1.286
4th 1.032
5th 0.853
Chassis
Frame type Double cradle
Caster angle 33°
Trail 132 mm
Tires
Front
Type Tube tire
Size 130/90-16 M/C 67S
Manufacturer/
model Dunlop / D404F
Rear
Type Tube tire
Size 170/80-15 M/C 77S
Manufacturer/
model Dunlop / D404G
Maximum load* 197 kg
U5KSE4.book Page 2 Wednesday, September 11, 2002 11:55 AM

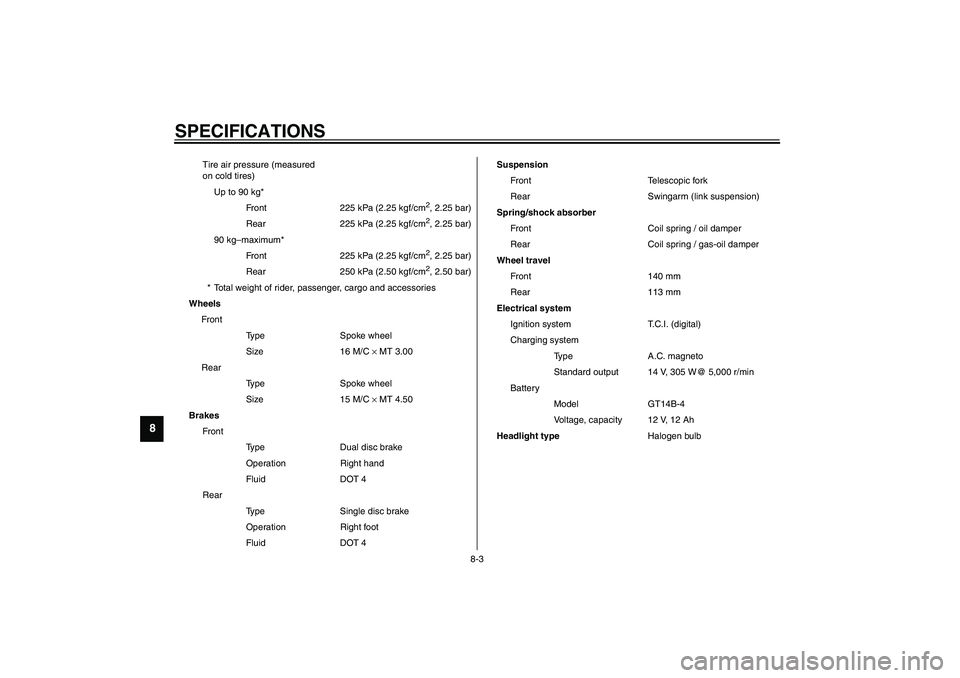

SPECIFICATIONS
8-3
8
Tire air pressure (measured
on cold tires)
Up to 90 kg*
Front 225 kPa (2.25 kgf/cm
2, 2.25 bar)
Rear 225 kPa (2.25 kgf/cm2, 2.25 bar)
90 kg–maximum*
Front 225 kPa (2.25 kgf/cm2, 2.25 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Spoke wheel
Size 16 M/C × MT 3.00
Rear
Type Spoke wheel
Size 15 M/C × MT 4.50
Brakes
Front
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4Suspension
Front Telescopic fork
Rear Swingarm (link suspension)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 140 mm
Rear 113 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 305 W@ 5,000 r/min
Battery
Model GT14B-4
Voltage, capacity 12 V, 12 Ah
Headlight typeHalogen bulb
U5KSE4.book Page 3 Wednesday, September 11, 2002 11:55 AM

SPECIFICATIONS
8-4
8
Bulb voltage, wattage × quantity
Headlight 12 V, 60/55 W × 1
Auxiliary light 12 V, 4 W × 1
Tail/brake light 12 V, 5/21 W × 1
Turn signal light 12 V, 21 W × 4
Meter lighting 14 V, 1.4 W × 2
Oil level warning light 12 V, 1.7 W × 1
Neutral indicator light 12 V, 1.7 W × 1
Turn signal indicator light 12 V, 1.7 W × 1
Engine trouble warning light 12 V, 1.7 W × 1
High beam indicator light 12 V, 1.7 W × 1
Fuses
Main fuse 30 A
Signaling system fuse 10 A
Odometer and immobilizer
system fuse (backup fuse) 10 A
Ignition fuse 10 A
Headlight fuse 15 A
Carburetor heater fuse 15 A
Ignitor unit fuse 5 A
Turn signal light, taillight,
auxiliary light and hazard fuse 10 A
U5KSE4.book Page 4 Wednesday, September 11, 2002 11:55 AM

SPECIFICATIONS
8-5
8
EAU04513
Conversion table CS-04EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lbf
in·lbf
ft·lbf
in·lbf
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lbf/in
2)
°
F
U5KSE4.book Page 5 Wednesday, September 11, 2002 11:55 AM

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:@ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area. @
1. Key identification number
2. Code re-registering key (red bow)
3. Standard key (× 2, black bow)
1. Vehicle identification number
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM

CONSUMER INFORMATION
9-2
9
EAU01804
Model label The model label is affixed to the frame
under the rider seat. (See page 3-13 for
rider seat removal and installation pro-
cedures.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.1. Model label
U5KSE4.book Page 2 Wednesday, September 11, 2002 11:55 AM

10-INDEXAAir filter element, cleaning ...................... 6-11
Anti-theft alarm (optional) .........................3-6BBattery ................................................... 6-25
Brake and clutch levers,
checking and lubricating ...................... 6-22
Brake and shift pedals,
checking and lubricating ...................... 6-21
Brake fluid, changing ............................. 6-20
Brake fluid level, checking...................... 6-19
Brake lever...............................................3-9
Brake lever free play, adjusting .............. 6-17
Brake light switch, adjusting ................... 6-18
Brake pads, checking............................. 6-19
Brake pedal..............................................3-9
Brake pedal position, adjusting .............. 6-18CCables, checking and lubricating............ 6-21
Carburetors, adjusting............................ 6-12
Care.........................................................7-1
Clutch lever ..............................................3-8
Clutch lever free play, adjusting ............. 6-16
Conversion table ......................................8-5DDimmer switch .........................................3-7EEngine break-in........................................5-5
Engine idling speed................................ 6-12
Engine oil .................................................6-7
Engine stop switch ...................................3-7
Engine trouble warning light .................... 3-4FFinal gear oil ............................................ 6-9
Front fork, checking ............................... 6-23
Fuel ....................................................... 3-10
Fuel cock ............................................... 3-11
Fuel consumption, tips for reducing ......... 5-4
Fuel tank cap ........................................... 3-9
Fuses, replacing .................................... 6-27HHandlebar switches ................................. 3-7
Hazard switch .......................................... 3-8
Headlight bulb, replacing ....................... 6-29
Helmet holder ........................................ 3-14
High beam indicator light ......................... 3-5
Horn switch ............................................. 3-7IIdentification numbers ............................. 9-1
Ignition circuit cut-off system.................. 3-19
Immobilizer system .................................. 3-1
Immobilizer system indicator light ............ 3-5
Indicator and warning lights ..................... 3-4KKey identification number ........................ 9-1LLuggage strap holders ........................... 3-18MMain switch/steering lock ......................... 3-2
Model label .............................................. 9-2
NNeutral indicator light ...............................3-4OOil level warning light ...............................3-4PPanel, removing and installing..................6-5
Parking.....................................................5-5
Part locations ...........................................2-1
Pass switch ..............................................3-7
Periodic maintenance and
lubrication chart .....................................6-2
Pre-operation check list ............................4-1SSafety information ....................................1-1
Seats .....................................................3-13
Passenger seat.................................3-13
Rider seat .........................................3-13
Shifting .....................................................5-3
Shift pedal ................................................3-8
Shift points (for Switzerland only) .............5-4
Shock absorber assembly, adjusting ......3-16
Sidestand ...............................................3-19
Sidestand, checking and lubricating .......6-22
Spark plugs, checking ..............................6-6
Specifications ...........................................8-1
Speedometer unit.....................................3-6
Starter (choke) lever...............................3-12
Starting a cold engine ..............................5-1
Starting a warm engine ............................5-3
Start switch ..............................................3-8
Steering, checking..................................6-23
U5KSE4.book Page 1 Wednesday, September 11, 2002 11:55 AM

INDEX
Storage.................................................... 7-4
Storage compartment ............................ 3-15
Supporting the motorcycle ..................... 6-31TThrottle cable free play, adjusting .......... 6-13
Throttle grip and cable,
checking and lubricating ...................... 6-21
Tires ...................................................... 6-13
Tool kit..................................................... 6-1
Troubleshooting..................................... 6-32
Troubleshooting chart ............................ 6-33
Turn signal indicator light ......................... 3-4
Turn signal or tail/brake light bulb,
replacing ............................................. 6-31
Turn signal switch .................................... 3-7VValve clearance, adjusting ..................... 6-13
Vehicle identification number ................... 9-1WWheel bearings, checking...................... 6-24
Wheels .................................................. 6-16
U5KSE4.book Page 2 Wednesday, September 11, 2002 11:55 AM
