YAMAHA XVS1100A 2003 Workshop Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_

The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.


From 50,000 km, repeat the maintenance intervals starting from 10,000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_CP-02ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Fuel filterCheck condition.√√
3 Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
4*ValvesCheck valve clearance.
Adjust.√√√√
5 Air filter elementClean.√√
Replace.√√
6ClutchCheck operation.
Adjust.√√√√√
7*Front brakeCheck operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)√√ √ √ √ √
Replace brake pads. Whenever worn to the limit
U5KSE4.book Page 2 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
8
*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)√√ √ √ √ √
Replace brake pads. Whenever worn to the limit
9*Brake hosesCheck for cracks or damage.√√√√ √
Replace. (See NOTE on page 6-4.) Every 4 years
10*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√√
11*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
12*Wheel bearingsCheck bearing for looseness or damage.√√√√
13*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50,000 km
14*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20,000 km
15*Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.√√√√ √
16 SidestandCheck operation.
Lubricate.√√√√ √
17*Sidestand switchCheck operation.√√√√√ √
18*Front forkCheck operation and for oil leakage.√√√√
19*Shock absorber
assemblyCheck operation and shock absorber for oil leakage.√√√√
20*CarburetorsCheck starter (choke) operation.
Adjust engine idling speed and synchronization.√√√√√ √
21 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1,000 km)
ANNUAL
CHECK
1 10203040
U5KSE4.book Page 3 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU03884
NOTE:_

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
_22
*Engine oil filter elementReplace.√√√
23 Final gear oilCheck oil level and vehicle for oil leakage.√√ √
Change.√√√
24*Front and rear brake
switchesCheck operation.√√√√√ √
25 Moving parts and cablesLubricate.√√√√ √
26*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
27*Muffler and exhaust pipeCheck the screw clamp for looseness.√√√√√
28*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1,000 km)
ANNUAL
CHECK
1 10203040
U5KSE4.book Page 4 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU01777

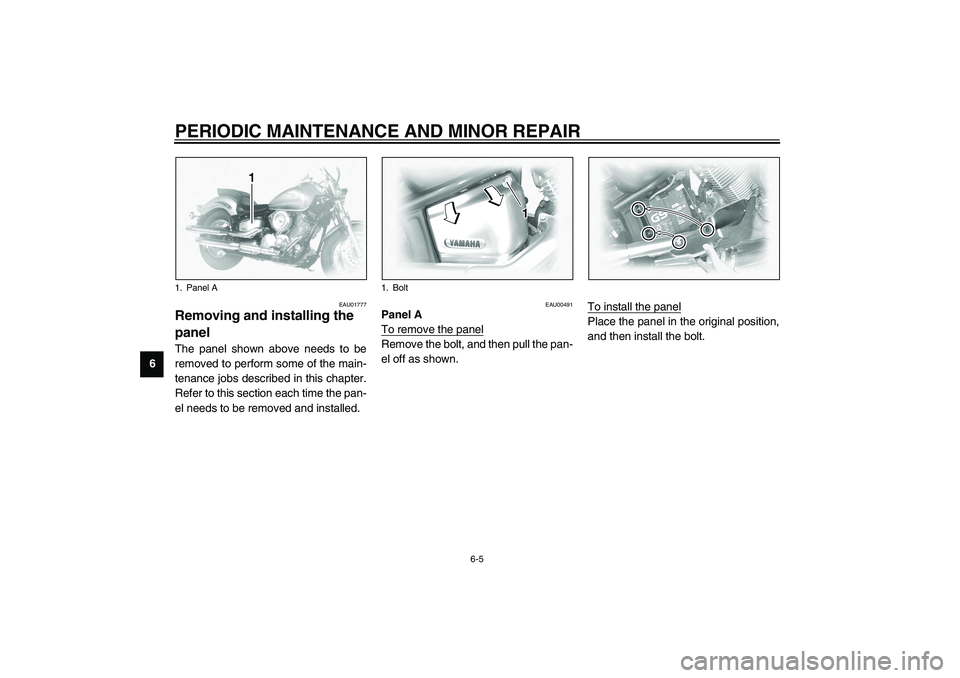

Removing and installing the
panel The panel shown above needs to be
removed to perform some of the main-
tenance jobs described in this chapter.
Refer to this section each time the pan-
el needs to be removed and installed.
EAU00491
Panel A
To remove the panelRemove the bolt, and then pull the pan-
el off as shown.To install the panel
Place the panel in the original position,
and then install the bolt.
1. Panel A
1. Bolt
U5KSE4.book Page 5 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU01673
Checking the spark plugs The spark plugs are important engine
components, which are easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plugs should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
To remove a spark plug
1. Remove the appropriate spark
plug cover (rear right or front left)
by pulling it off as shown.
2. Remove the spark plug cap.3. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
To check the spark plugs
1. Check that the porcelain insulator
around the center electrode on
each spark plug is a medi-
um-to-light tan (the ideal color
when the motorcycle is ridden nor-
mally).
2. Check that all spark plugs installed
in the engine have the same color.
NOTE:@ If any spark plug shows a distinctly dif-
ferent color, the engine could be defec-
tive. Do not attempt to diagnose such
problems yourself. Instead, have a
Yamaha dealer check the motorcycle. @3. Check each spark plug for elec-
trode erosion and excessive car-
bon or other deposits, and replace
it if necessary.
1. Spark plug cover
1. Spark plug wrench
Specified spark plug:
BPR7ES (NGK) or
W22EPR-U (DENSO)
U5KSE4.book Page 6 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6To install a spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
NOTE:@ If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible. @4. Install the spark plug cap.
5. Place the spark plug cover in the
original position.
EAU04618
Engine oil The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position.NOTE:_ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. _2. Start the engine, warm it up for
several minutes, and then turn it
off.
a. Spark plug gapSpark plug gap:
0.7–0.8 mm
Tightening torque:
Spark plug:
20 Nm (2.0 m·kgf)
U5KSE4.book Page 7 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6 3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.
NOTE:_ The engine oil should be between the
minimum and maximum level marks. _4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.4. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
5. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
1. Engine oil filler cap
1. Engine oil drain boltTightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf)
U5KSE4.book Page 8 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
ECA00133
CAUTION:_

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.


Make sure that no foreign mate-
rial enters the crankcase.
_
6. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.NOTE:_ After the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient. _
EC000067
CAUTION:_ If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha deal-
er check the vehicle. _7. Turn the engine off, and then
check the oil level and correct it if
necessary.NOTE:_ Have a Yamaha dealer replace the oil
filter element when necessary. _
EAU04083
Final gear oil The final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the final gear oil level must be
checked and the oil changed as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
EW000066
WARNING
_

Make sure that no foreign mate-
rial enters the final gear case.


Make sure that no oil gets on
the tire or wheel.
_
Recommended engine oil:
See page 8-1.
Oil quantity:
Periodic oil change:
3.0 L
Total amount (dry engine):
3.6 L
U5KSE4.book Page 9 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 To check the final gear oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position.
NOTE:_

The final gear oil level must be
checked on a cold engine.


Make sure that the motorcycle is
positioned straight up when check-
ing the oil level. A slight tilt to the
side can result in a false reading.
_2. Remove the oil filler bolt, and then
check the oil level in the final gear
case.
NOTE:_ The oil level should be at the brim of
the filler hole. _3. If the oil is below the brim of the fill-
er hole, add sufficient oil of the rec-
ommended type to raise it to the
correct level.
To change the final gear oil
1. Place an oil pan under the final
gear case to collect the used oil.
2. Remove the oil filler bolt and drain
bolt to drain the oil from the final
gear case.
3. Install the final gear oil drain bolt,
and then tighten it to the specified
torque.
4. Add the recommended final gear
oil to the brim of the filler hole.
NOTE:_ GL4 is a quality rating. Hypoid gear oils
rated GL5 or GL6 may also be used. _5. Install and tighten the oil filler bolt.
6. Check the final gear case for oil
leakage. If oil is leaking, check for
the cause.
1. Final gear oil drain bolt
2. Final gear oil filler bolt
3. Correct oil level
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf)
Recommended final gear oil:
Hypoid gear oil SAE 80
(API GL4)
or multi-grade hypoid gear oil
SAE 80W-90
Oil quantity:
0.2 L
U5KSE4.book Page 10 Wednesday, September 11, 2002 11:55 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
EAU03195*
Cleaning the air filter element The air filter element should be cleaned
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart. Clean the air filter element
more frequently if you are riding in un-
usually wet or dusty areas.
1. Remove the air filter case cover by
removing the screws.
2. Pull the air filter element out.3. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.4. Insert the air filter element into the
air filter case as shown.
EC000082*
CAUTION:@

Make sure that the air filter ele-
ment is properly seated in the
air filter case.


The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
pistons and/or cylinders may
become excessively worn.
@5. Install the air filter case cover by
installing the screws.
1. Air filter case cover
2. Screw (× 3)
1. Air filter element
2. Projection
3. Slot
U5KSE4.book Page 11 Wednesday, September 11, 2002 11:55 AM
