Safety information
1-4
1
tents, can create unstable han-
dling or a slow steering re-
sponse.
 This vehicle is not desi gne d to
pull a trailer or to be attached to
a si decar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail- able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and ac-
cessories or offer other modifications
for Yamaha vehicles. Yamaha is not in
a position to test the products that
these aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer. Aftermarket Parts, Accessories, an
d
Mo difications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifications
performed to your vehicle that change
any of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or
death. You are responsible for injuries
related to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.  Never install accessories or carry
cargo that would impair the per-
formance of your motorcycle.
Carefully inspect the accessory
before using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension travel, steering travel or control opera-
tion, or obscure lights or reflec-
tors.
• Accessories fitted to the han- dlebar or the front fork area can
create instability due to improp-
er weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
• Bulky or large accessories may seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become
unstable in cross winds. These
accessories may also cause in-
stability when passing or being
passed by large vehicles.
• Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
U2SSE2E0.book Page 4 Monday, July 20, 2015 2:28 PM

Safety information
1-5
1operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
 Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the motorcycle’s electrical sys-
tem, an electric failure could re-
sult, which could cause a
dangerous loss of lights or engine
power.
Aftermarket Tires an d Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of han-
dling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to page
6-15 for tire specifications and more in-
formation on replacing your tires.
Transportin g the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.  Remove all loose items from the
motorcycle. 
Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
 Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
 Shift the transmission in gear (for
models with a manual transmis-
sion).
 Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the mo-
torcycle, such as the frame or up-
per front fork triple clamp (and not,
for example, to rubber-mounted
handlebars or turn signals, or
parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.
 The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the mo-
torcycle will not bounce exces-
sively during transport.
U2SSE2E0.book Page 5 Monday, July 20, 2015 2:28 PM

Description
2-1
2
EAU10411
Left view
2
3
4
1
7
8
65
1. Spark plug (page 6-8)
2. Seat lock (page 3-14)
3. Fuses (page 6-28)
4. Helmet holder (page 3-15)
5. Engine oil drain bolt (page 6-10)
6. Engine oil level check window (page 6-10)
7. Shift pedal (page 3-10)
8. Engine oil filler cap (page 6-10)
U2SSE2E0.book Page 1 Monday, July 20, 2015 2:28 PM

Description
2-2
2
EAU10421
Right view
2,3
4
6
7
5
1
11
9
10
8
1. Rear brake fluid reservoir (page 6-20)
2. Owner’s tool kit (page 6-2)
3. Battery (page 6-27)
4. Shock absorber assembly spring preload adjusting ring (page 3-15)
5. Spark plug (page 6-8)
6. Fuel tank cap (page 3-11)
7. Air filter element (page 6-14)
8. Rear brake light switch (page 6-19) 9. Engine oil filter cartridge (page 6-10)
10.Brake pedal (page 3-10)
11.Coolant reservoir (page 6-13)U2SSE2E0.book Page 2 Monday, July 20, 2015 2:28 PM

Description
2-3
2
EAU10431
Controls and instruments
1
2
3
4
6
5
8
7
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-8)
3. Multi-function meter unit (page 3-4)
4. Main switch/steering lock (page 3-1)
5. Front brake fluid reservoir (page 6-20)
6. Right handlebar switches (page 3-8)
7. Throttle grip (page 6-15)
8. Brake lever (page 3-10)
U2SSE2E0.book Page 3 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-1
3
EAU10462
Main switch/steerin g lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU48421
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate lights and auxiliary light
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlight comes on automatically
when the engine is started and stays
on until the key is turned to “OFF”,
even if the engine stalls.
EAU10662
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is movin g.
Otherwise the electrical systems will
b e switche d off, which may result in
loss of control or an acci dent.
EAU10686
LOCK
The steering is locked and all electrical
systems are off. The key can be re-
moved. To lock the steering
1. Turn the handlebars all the way to
the left.
2. With the key in the “OFF” position, push the key in and turn it to
“LOCK”.
3. Remove the key.TIPIf the steering will not lock, try turning
the handlebars back to the right slight-
ly.1. Push.
2. Turn.12
U2SSE2E0.book Page 1 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-2
3
To unlock the steering
1. Insert the key.
2. With the key in the “LOCK” posi-
tion, push the key in and turn it to
“OFF”.
EAU59680
(Parkin g)
The hazard lights and turn signal lights
can be turned on, but all other electri-
cal systems are off. The key can be re-
moved.
The steering must be locked before the
key can be turned to “ ”.
NOTICE
ECA20760
Usin g the hazar d or turn si gnal lig hts
for an exten ded len gth of time may
cause the b attery to discharge.
EAU49398
In dicator li ghts an d warnin g
lig hts
EAU11022
Turn si gnal in dicator li ght “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral in dicator li ght “ ”
This indicator light comes on when the
transmission is in the neutral position.
1. Push.
2. Turn.12
1. Engine trouble warning light “ ”
2. Coolant temperature warning light “ ”
3. Neutral indicator light “ ”
4. High beam indicator light “ ”
5. Turn signal indicator light “ ”
6. Oil level warning light “ ”
7. Fuel level warning light “ ”
4567
321
U2SSE2E0.book Page 2 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-3
3
EAU11081
Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11256
Oil level warnin g li ght “ ”
This warning light comes on if the en-
gine oil level is low.
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on after
confirming that the oil level is correct
(see page 6-10), have a Yamaha dealer
check the vehicle.TIP Even if the oil level is sufficient, the
warning light may flicker when rid-
ing on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction. 
This model is equipped with a self-
diagnosis device for the oil level
detection circuit. If a problem is
detected in the oil level detection
circuit, the oil level warning light
will flash repeatedly. If this occurs,
have a Yamaha dealer check the
vehicle.
EAU50783
Fuel level warnin g li ght “ ”
This warning light comes on when the
fuel level has dropped to a very low lev-
el. (See page 3-6.) When this occurs,
refuel as soon as possible.
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on after
refueling, have a Yamaha dealer check
the vehicle.TIPThis model is equipped with a self-di-
agnosis device for the fuel level detec-
tion circuit. If a problem is detected in the fuel level detection circuit, the fuel
level warning light will flash repeatedly.
If this occurs, have a Yamaha dealer
check the vehicle.
EAU11447
Coolant temperature warnin
g
li g ht “ ”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.NOTICE
ECA10022
Do not continue to operate the en-
g ine if it is overheatin g.
U2SSE2E0.book Page 3 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-4
3
TIP For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
 If the engine overheats, see page
6-35 for further instructions.
EAU42775
Engine trou ble warnin g li ght “ ”
This warning light comes on if a prob-
lem is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-7 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU50696
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g
settin gs while ri din g can distract the
operator an d increase the risk of an
acci dent.The multi-function meter unit is
equipped with the following:
 speedometer
 multi-function display
TIPExcept when entering the brightness
control mode, turn the key to “ON” be-
fore using the “SELECT” and “RESET”
switches.
1. Speedometer
2. Multi-function display
2
1
1. “SELECT” switch
2. “RESET” switch
1
2
U2SSE2E0.book Page 4 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-5
3 Speed
ometer
The speedometer shows the vehicle’s
traveling speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then re-
turn to zero in order to test the electri-
cal circuit. Multi-function
display
The multi-function display is equipped
with the following:  odometer
 two tripmeters
 fuel reserve tripmeter
 fuel meter
 clock
 self-diagnosis mode
 brightness control mode
Navi gatin g the multi-function d is-
play
Push the “SELECT” switch to change
the display between the odometer
“Odo”, tripmeters “Trip 1” and “Trip 2”,
the fuel meter, and the clock in the fol-
lowing order: Odo
→ Trip 1 → Trip 2 → Fuel meter →
Clock → Odo
TIPThe fuel reserve tripmeter and the self-
diagnosis mode come on automatical-
ly, while the brightness control mode is
accessed separately.Odometer an d tripmeters
The odometer shows the total distance
traveled by the vehicle.
The tripmeters show the distance trav-
eled since they were last reset.
To reset a tripmeter, select it by push-
ing the “SELECT” switch, and then
push the “RESET” switch for one se-
cond.TIP The odometer will lock at 999999.
 The tripmeters will reset and con-
tinue counting after 9999.9 is
reached.Fuel reserve tripmeter
When the fuel level becomes low, the
fuel level warning light will come on
(see page 3-2) and the display will

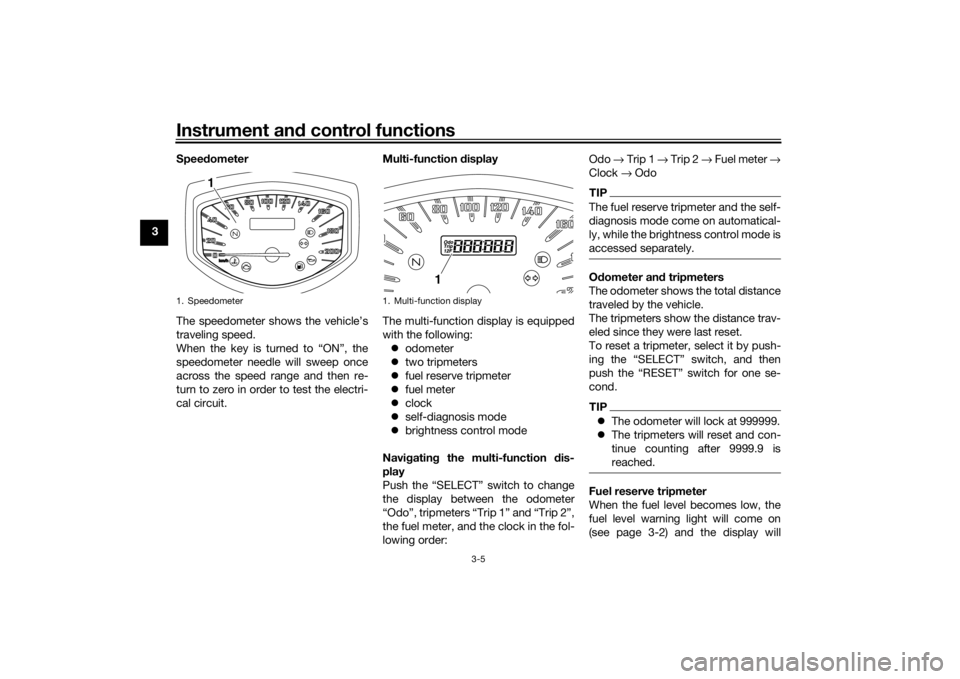

1. Speedometer
1
1. Multi-function display
1
U2SSE2E0.book Page 5 Monday, July 20, 2015 2:28 PM
