YAMAHA XVS1300CU 2016 Owner's Manual

Instrument and control functions
3-6
3
change to the fuel reserve tripmeter
“Trip F” and start counting the distance
traveled from that point. In this case,
push the “SELECT” switch to change
the display in the following order:
Trip F
→ Trip 1 → Trip 2 → Fuel meter
→ Clock → Odo → Trip F
TIPYou can manually reset the fuel reserve
tripmeter, or after refueling and travel-
ing 5 km (3 mi), it will reset automatical-
ly and disappear from the display.Fuel meter The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full) towards “E” (empty) as the fuel
level decreases.
When the fuel meter changes from two
segments to only one segment, ap-
proximately 4.1 L (1.08 US gal,
0.90 Imp.gal) of fuel remains in the fuel
tank. Be sure to refuel as soon as pos-
sible.
Clock
The clock uses a 12-hour time system. To set the clock
1. Push the “SELECT” switch to
change the display to the clock
mode.
2. Push the “SELECT” and “RESET” switches together for three sec-
onds. The hour digits will start
flashing.
3. Push the “SELECT” switch to set the hours.
4. Push the “RESET” switch, and the minute digits will start flashing.
5. Push the “SELECT” switch to set the minutes.
6. Push the “RESET” switch and then release it to start the clock.
1. Fuel meter
2. Segment
1
2
1. Clock
1
U2SSE2E0.book Page 6 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-7
3 Self-d
iagnosis mo de
This model is equipped with a self-di-
agnosis function for various electrical
circuits.
If a problem is detected in any of those
circuits, the engine trouble warning
light will come on and the display will
indicate an error code.
If the display indicates any error codes,
note the code number and have a
Yamaha dealer check the vehicle.
NOTICE
ECA11591
If the display in dicates an error co-
d e, the vehicle shoul d b e checked as
soon as possi ble in or der to avoi d
en gine damag e.Brightness control mo de
This function allows you to adjust the
brightness of the multi-function meter
unit panel.
To set the brightness1. Turn the key to “OFF”.
2. Push and hold the “SELECT” switch. 3. Turn the key to “ON”, and then re-
lease the “SELECT” switch after
five seconds.
4. Adjust the multi-function meter unit panel brightness level by
pushing the “SELECT” switch.
5. Push the “RESET” switch to exit the brightness control mode.
1. Engine trouble warning light “ ”
2. Error code display
1
2
1. Brightness level display
1
U2SSE2E0.book Page 7 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-8
3
EAU1234H
Han dle bar switchesLeft Ri
ght
EAU12351
Pass switch “ ”
Press this switch to flash the headlight.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen- ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12661
En
gine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12713
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41701
The engine trouble warning light will
come on when the key is turned to
“ON” and the start switch is pushed,
but this does not indicate a malfunc-
tion.
1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
3
4 12
1. Engine stop switch “ / ”
2. “SELECT” switch
3. “RESET” switch
4. Start switch “ ”
5. Hazard switch “ ”
1
5 2
3
4
U2SSE2E0.book Page 8 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-9
3
EAU12735
Hazar d switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10062
Do not use the hazard lights for an
exten ded len gth of time with the en-
g ine not runnin g, otherwise the bat-
tery may dischar ge.
EAU44603
“SELECT” switch
This switch is used to perform selec-
tions in the odometer and tripmeters,
to set the clock and to set the bright-
ness control mode of the multi-func-
tion meter unit.
See “Multi-function meter unit” on
page 3-4 for detailed information.
EAU42536
“RESET” switch
This switch is used to reset the tripme-
ters, to set the clock and to set the
brightness control mode of the multi-
function meter unit.
See “Multi-function meter unit” on
page 3-4 for detailed information.
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-17.)1. Clutch lever
1
U2SSE2E0.book Page 9 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-10
3
EAU12872

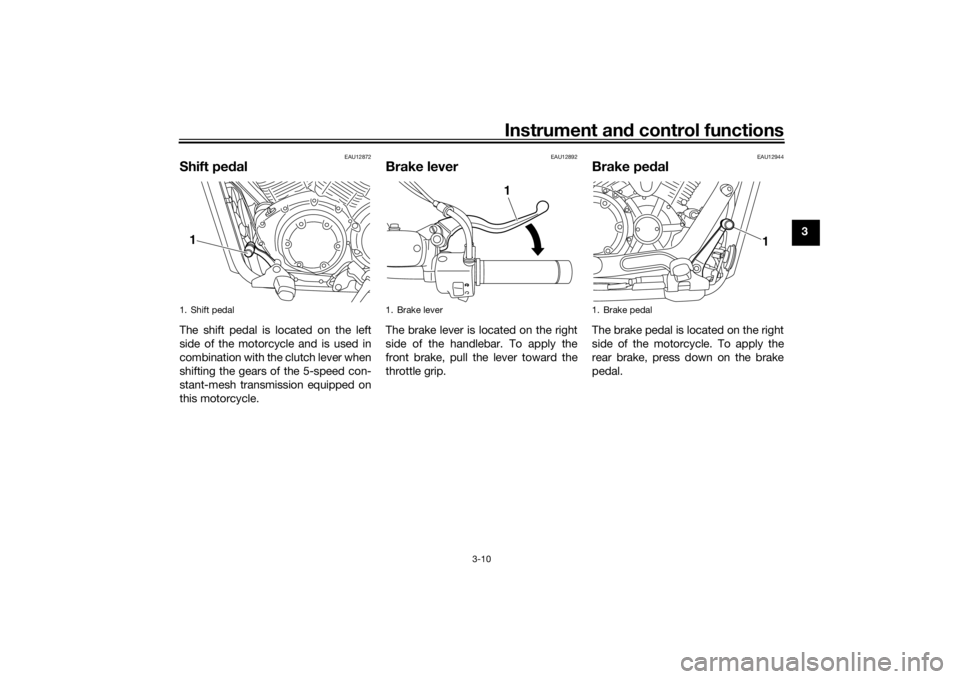

Shift pe dalThe shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12892
Brake leverThe brake lever is located on the right
side of the handlebar. To apply the
front brake, pull the lever toward the
throttle grip.
EAU12944
Brake pe dalThe brake pedal is located on the right
side of the motorcycle. To apply the
rear brake, press down on the brake
pedal.
1. Shift pedal1
1. Brake lever
1
1. Brake pedal
1
U2SSE2E0.book Page 10 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-11
3
EAU13125
Fuel tank capTo remove the fuel tank cap
Slide the fuel tank cap lock cover open,
insert the key into the lock, and then
turn it 1/4 turn clockwise. The lock will
be released and the fuel tank cap can
be removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the tank opening with the key inserted
in the lock and with the “ ” mark
facing forward. 2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addi-
tion, the key cannot be removed if the
cap is not properly installed and
locked.
WARNING
EWA10132
Make sure that the fuel tank cap is
properly installe d before ri din g.
Leakin g fuel is a fire hazar d.
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d g asoline vapors are
extremely flamma ble. To avoi d fires
an d explosions an d to re duce the
risk of injury when refuelin g, follow
these instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
1. Fuel tank cap lock cover
2. “ ” mark
3. Lock.
4. Unlock.
1 2
3
4
U2SSE2E0.book Page 11 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-12
3
3. Wipe up any spilled fuel immedi- ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painte d surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can cau-
se injury or death. Han dle gasoline
with care. Never siphon gasoline by
mouth. If you shoul d swallow some
g asoline or inhale a lot of gasoline
vapor, or get some g asoline in your
eyes, see your d octor immediately. If g
asoline spills on your skin, wash
with soap an d water. If gasoline
spills on your clothin g, chan ge your
clothes.
EAU59821
NOTICE
ECA11401
Use only unlea ded g asoline. The use
of lead ed g asoline will cause severe
d amag e to internal en gine parts,
such as the valves an d piston rin gs,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging)
occurs, use a gasoline of a different brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
1. Fuel tank filler tube
2. Maximum fuel level1
2
Recommen
ded fuel:
Regular unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity:
15 L (4.0 US gal, 3.3 Imp.gal)
Fuel reserve amount (when only one
se gment of the fuel meter remains):
4.1 L (1.08 US gal, 0.90 Imp.gal)
U2SSE2E0.book Page 12 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-13
3
EAU39453

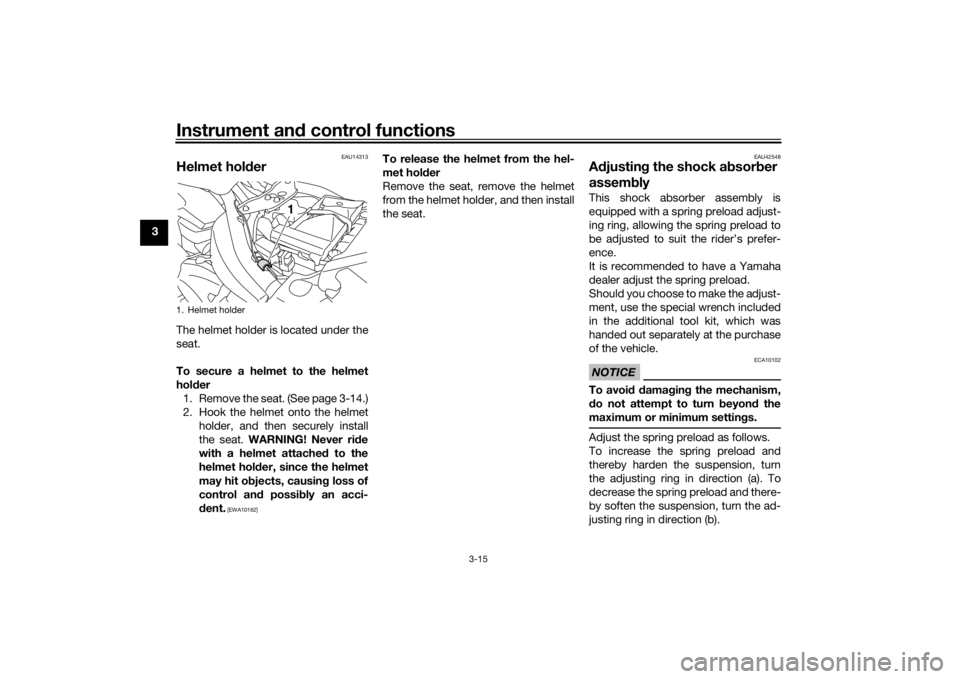

Fuel tank breather/overflow
hoseBefore operating the motorcycle:
 Check the fuel tank breather/over-
flow hose connection.
 Check the fuel tank breather/over-
flow hose for cracks or damage,
and replace it if necessary.
 Make sure that the end of the fuel
tank breather/overflow hose is not
blocked, and clean it if necessary.
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazard s such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where ped estrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the en gine to i dle
more than a few minutes. Lon g
i d lin g can cause a b uild-up of
heat.
NOTICE
ECA10702
Use only unlea ded g asoline. The use
of lead ed g asoline will cause unre-
pairab le damag e to the catalytic
converter.
1. Fuel tank breather/overflow hose
1
U2SSE2E0.book Page 13 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-14
3
EAU50681
SeatTo remove the seat
1. Insert the key into the seat lock, turn it counterclockwise, and then
lift the front of the seat up.
2. Pull the seat forward as shown to unhook it from the center seat
holder. 3. Pull the seat rearward to unhook it
from the rear seat holder, and then
pull it off.
To install the seat 1. Insert the projection on the rear of the seat into the rear seat holder. 2. Slide the seat rearward to fit the
slot in its bottom over the center
seat holder.
3. Push the front of the seat down to lock it in place.
4. Remove the key.
TIPMake sure that the seat is properly se-
cured before riding.
1. Seat lock
2. Unlock.
2
1
1. Center seat holder
1. Rear seat holder1
1
1. Projection
2. Rear seat holder
3. Slot
4. Center seat holder12
3
4
U2SSE2E0.book Page 14 Monday, July 20, 2015 2:28 PM

Instrument and control functions
3-15
3
EAU14313
Helmet hol derThe helmet holder is located under the
seat.
To secure a helmet to the helmet
hol der
1. Remove the seat. (See page 3-14.)
2. Hook the helmet onto the helmet holder, and then securely install
the seat. WARNING! Never ri de
with a helmet attached to the
helmet hol der, since the helmet
may hit o bjects, causin g loss of
control an d possi bly an acci-
d ent.
[EWA10162]
To release the helmet from the hel-
met hol der
Remove the seat, remove the helmet
from the helmet holder, and then install
the seat.
EAU42548
A djustin g the shock a bsorb er
assem blyThis shock absorber assembly is
equipped with a spring preload adjust-
ing ring, allowing the spring preload to
be adjusted to suit the rider’s prefer-
ence.
It is recommended to have a Yamaha
dealer adjust the spring preload.
Should you choose to make the adjust-
ment, use the special wrench included
in the additional tool kit, which was
handed out separately at the purchase
of the vehicle.NOTICE
ECA10102
To avoi d d amag ing the mechanism,
d o not attempt to turn b eyond the
maximum or minimum settin gs.Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To
decrease the spring preload and there-
by soften the suspension, turn the ad-
justing ring in direction (b).
1. Helmet holder
1
U2SSE2E0.book Page 15 Monday, July 20, 2015 2:28 PM
