3-1
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
EAU00029
Main switch/Steering lock
The main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00040
LOCK
The steering is locked in this position
and all electrical circuits are switched off.
The key can be removed in this posi-
tion. To lock the steering, turn the han-
dlebars all the way to the left. While
pushing the key into the main switch,
turn it from “OFF” to “LOCK” and re-
move it. To release the lock, turn the
key to “OFF” while pushing.
EW000016
WARNING

Never turn the key to “OFF” or
“LOCK” when the motorcycle is
moving. The electrical circuits will
be switched off which may result in
loss of control or an accident. Be
sure the motorcycle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
1. Push
2. Turn
EAU00044
(Parking)
The steering is locked in this position
and the taillight comes on, but all other
circuits are off. The key can be re-
moved in this position.
To use the parking position, first lock
the steering, then turn the key to “ ”.
Do not use this position for an extend-
ed length of time as the battery may
discharge.
EAU00027

3-4
INSTRUMENT AND CONTROL FUNCTIONS
1
2
3
4
5
6
7
8
9

1. Start switch “ ”
2. Engine stop switch
3. Lights switch
EAU00143
Start switch “ ”
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:
See starting instructions prior to

starting the engine.
EAU00138
Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00134
Lights switch
Turning the light switch to “ ”,
turns on the auxiliary light, meter lights
and taillight. Turning the light switch to
“ ”, turns the headlight on also.

3-16
INSTRUMENT AND CONTROL FUNCTIONS
1
23
4
5
6
7
8
9
EAU00331
Sidestand/clutch switch
operation checkCheck the operation of the sidestand
switch and clutch switch against the in-
formation below.COPY CD-11ECD-11ETURN THE MAIN SWITCH TO “ON”
AND THE ENGINE STOP SWITCH TO
“”.TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP.PULL IN CLUTCH LEVER AND
PUSH THE START SWITCH.ENGINE WILL START.CLUTCH SWITCH IS OK.
CD-11E
EW000045
WARNING
If improper operation is noted, con-sult a Yamaha dealer immediately.SIDESTAND IS DOWN.ENGINE WILL STALL.SIDESTAND SWITCH IS OK.

5-2
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
4
5
6
7
8
9
COPY CF-28ECF-28E
TURN THE MAIN SWITCH TO “ON” AND THE
ENGINE STOP SWITCH TO “ ”.
IF TRANSMISSION IS IN NEUTRAL AND
SIDESTAND IS DOWN,PUSH START SWITCH.
ENGINE WILL START.RETRACT SIDESTAND AND PUT
TRANSMISSION IN GEAR.
IF TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP,PULL IN CLUTCH LEVER AND PUSH START
SWITCH. ENGINE WILL START.
MOTORCYCLE CAN BE RIDDEN.
MOTORCYCLE CAN BE RIDDEN.

5-3
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
4
5
6
7
8
9

1. Turn the fuel cock to “ON”.
2. Turn the main switch to “ON” and
the engine stop switch to “ ”.
3. Shift transmission into neutral.
NOTE:

When the transmission is in neutral,
the neutral indicator light should be on.
If the light does not come on, ask a
Yamaha dealer to inspect it.
4. Turn on the starter (choke) and
completely close the throttle grip.
5. Start the engine by pushing the
start switch.
NOTE:

If the engine fails to start, release the
start switch, wait a few seconds, then
try again. Each attempt should be as
short as possible to preserve the bat-
tery. Do not crank the engine more
than 10 seconds on any one attempt.
6. After starting the engine, move
the starter (choke) to the halfway
position.
NOTE:

For maximum engine life, never accel-
erate hard with a cold engine!7. After warming up the engine, turn
off the starter (choke) completely.
NOTE:

The engine is warm when it responds
normally to the throttle with the starter
(choke) turned off.

6-11
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
5
6
7
8
9

1. O-ring
2. Oil filter element
EC000066
CAUTION:

l
Do not put in any chemical ad-
ditives. Engine oil also lubri-
cates the clutch and additives
could cause clutch slippage.
l
Be sure no foreign material en-
ters the crankcase.
10. Start the engine and warm it up
for a few minutes. While warming
up, check for oil leakage. If oil
leakage is found, stop the engine
immediately and check for the
cause.
1. Final gear oil drain bolt
2. Final gear oil filler bolt
3. Proper level
EAU02943*
Final gear oil
EW000066
WARNING

Do not let foreign material enter the
final gear case. Be sure oil does not
get on the tire or wheel.
Oil level inspection
1. Place the motorcycle on a level
place and hold it in an upright po-
sition. The engine should be cool
at ambient temperature.2. Remove the oil filler bolt and
check the oil level. The oil level
should be at the brim of the filler
hole. Add the recommended oil if
necessary.
Oil replacement
1. Place an oil pan under the final
gear case.
2. Remove the oil filler bolt and drain
bolt to drain the oil.
3. Install and tighten the drain bolt to
the specified torque.
4. Fill the gear case to the brim of the
filler hole with the recommended
oil. Tightening torque:
Drain bolt:
23 Nm (2.3 m·kg)

6-14
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU01168
Idle speed adjustmentNOTE:A diagnostic tachometer must be usedfor this procedure.
1. Attach the tachometer. Start the
engine and warm it up for a few
minutes at approximately 1,000 to
2,000 r/min. Occasionally rev the
engine to 4,000 to 5,000 r/min.
The engine is warm when it quick-
ly responds to the throttle.
1. Throttle stop screw2. Set the idle to the specified en-
gine speed by adjusting the throt-
tle stop screw. Turn the screw in
direction a to increase engine
speed and in direction b to de-
crease engine speed.NOTE:If the specified idle speed cannot be
obtained by performing the above ad-justment, consult a Yamaha dealer.Standard idle speed:
1,150 ~ 1,250 r/min

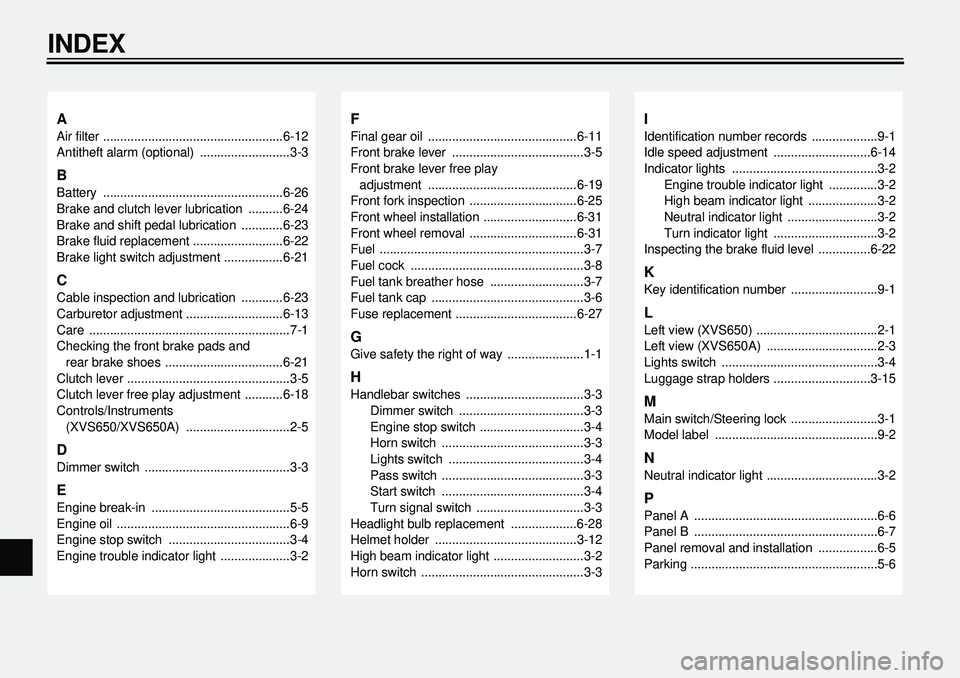

INDEX
