YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
EAU21382
Checking the throttle cable
free play The throttle cable free play should mea-
sure 4.0–6.0 mm (0.16–0.24 in) at the
throttle grip. Periodicall

Page 52 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6

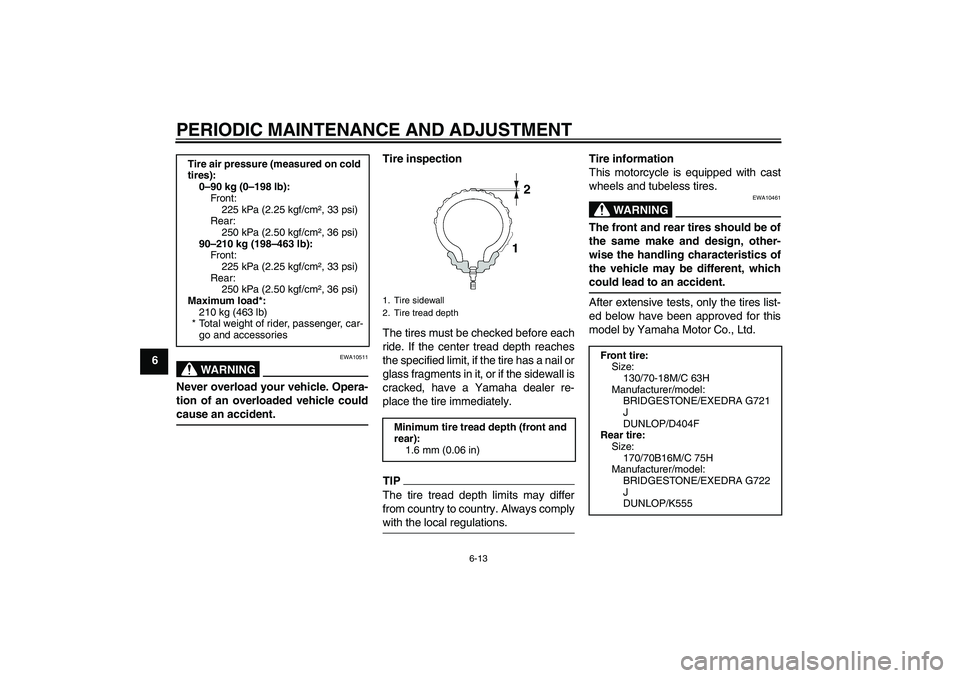

WARNING
EWA10511
Never overload your vehicle. Opera-
tion of an overloaded vehicle could
cause an accident.
Tire inspection
The tires must be checked before

Page 53 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
WARNING
EWA10470

Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases

Page 54 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-15

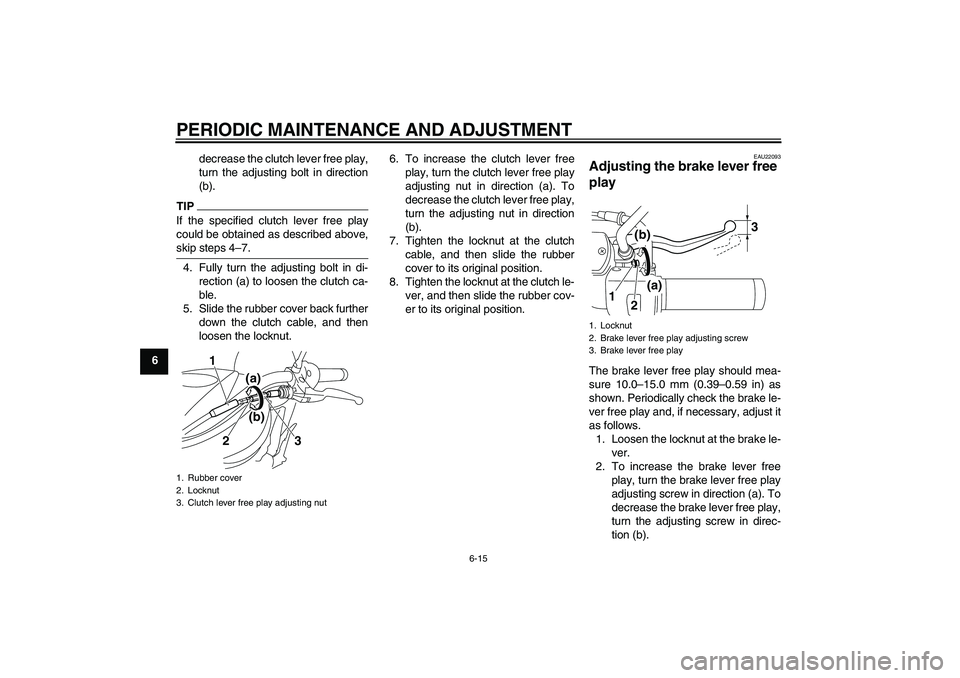

6decrease the clutch lever free play,
turn the adjusting bolt in direction
(b).
TIPIf the specified clutch lever free play
could be obtained as described above

Page 55 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6 3. Tighten the locknut.
WARNING
EWA10630

After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.


Page 56 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6indicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.

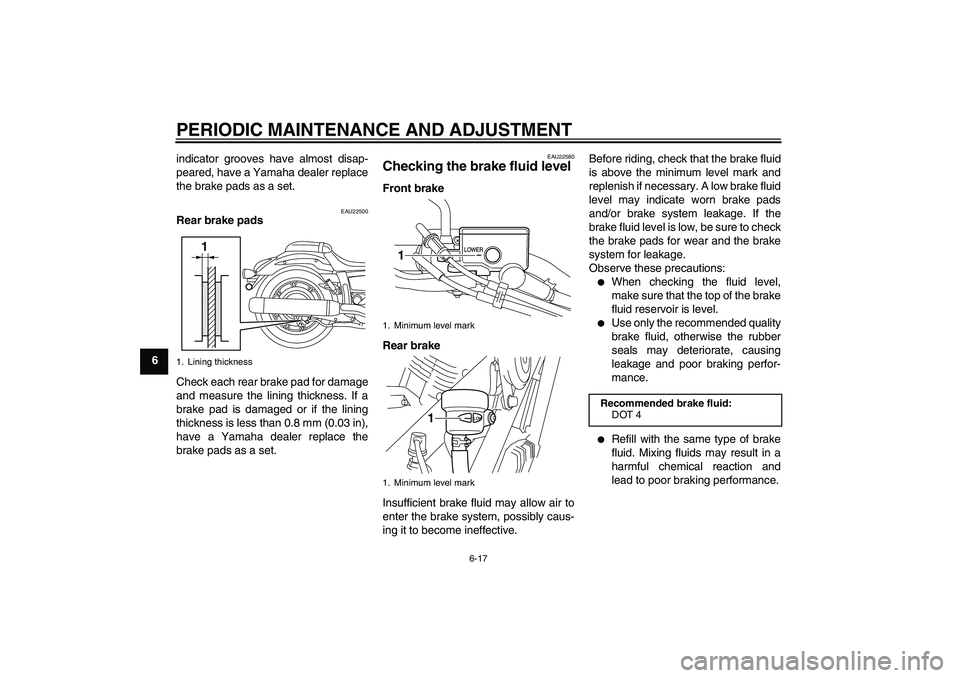

EAU22500
Rear brake pads
Check each rear brake pad for dama

Page 57 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
6

Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may resu

Page 58 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-19

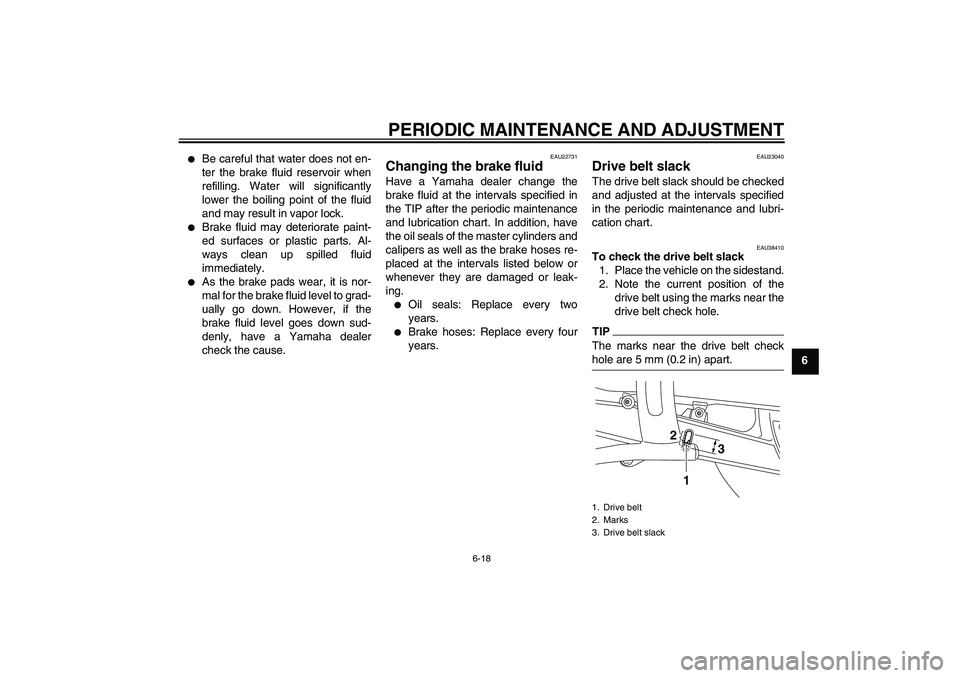

63. Note the position of the drive belt
with a force of 45 N (4.5 kgf, 10 lbf)
applied to the belt with a belt ten-
sion gauge as shown.
TIPA belt tension gaug

Page 59 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
EAU44272

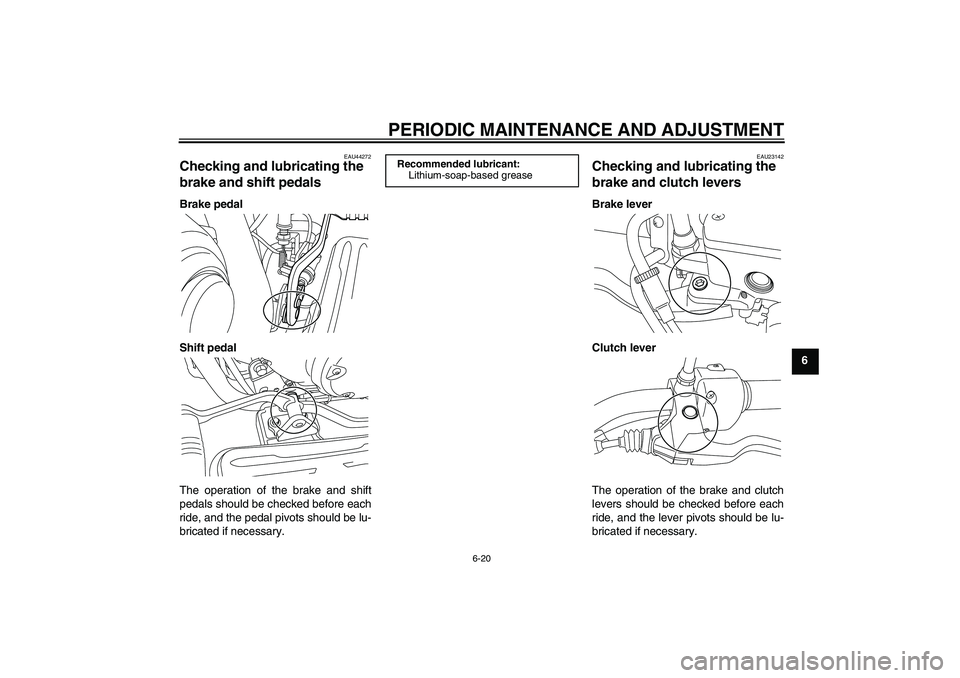

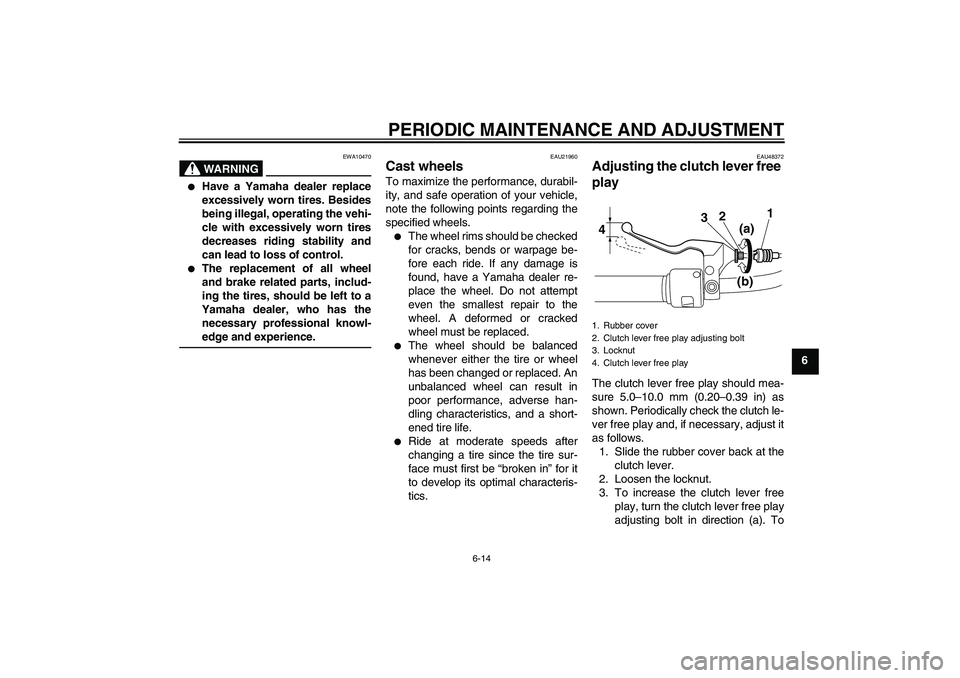

Checking and lubricating the
brake and shift pedals Brake pedal
Shift pedal
The operation of the brake and shift
pedals should be checked before ea

Page 60 of 84

YAMAHA XVS950 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6

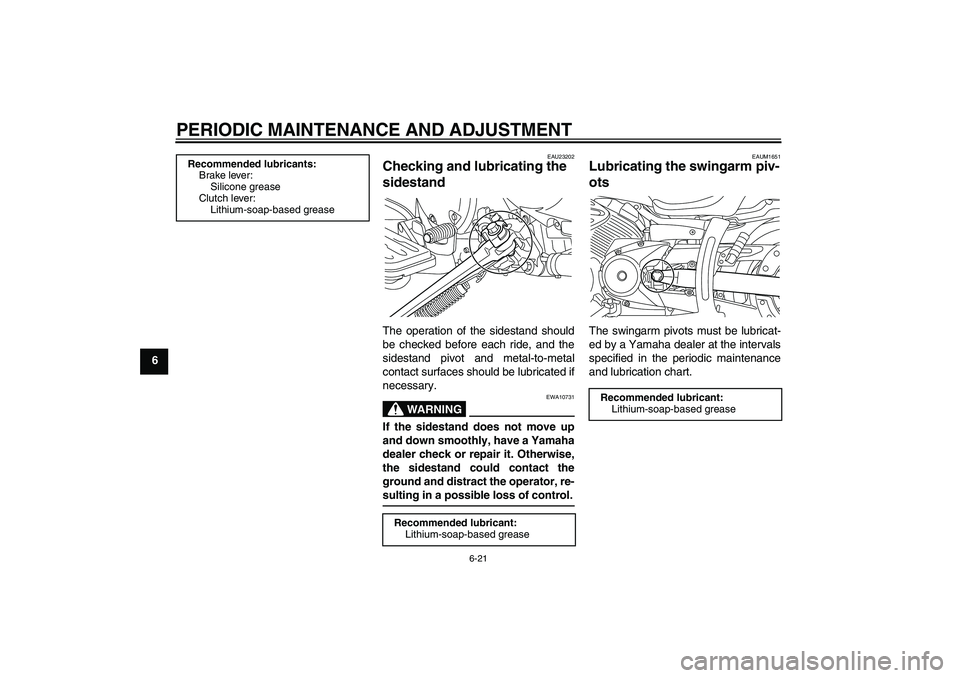

EAU23202
Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-meta
