PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6
EAU23251

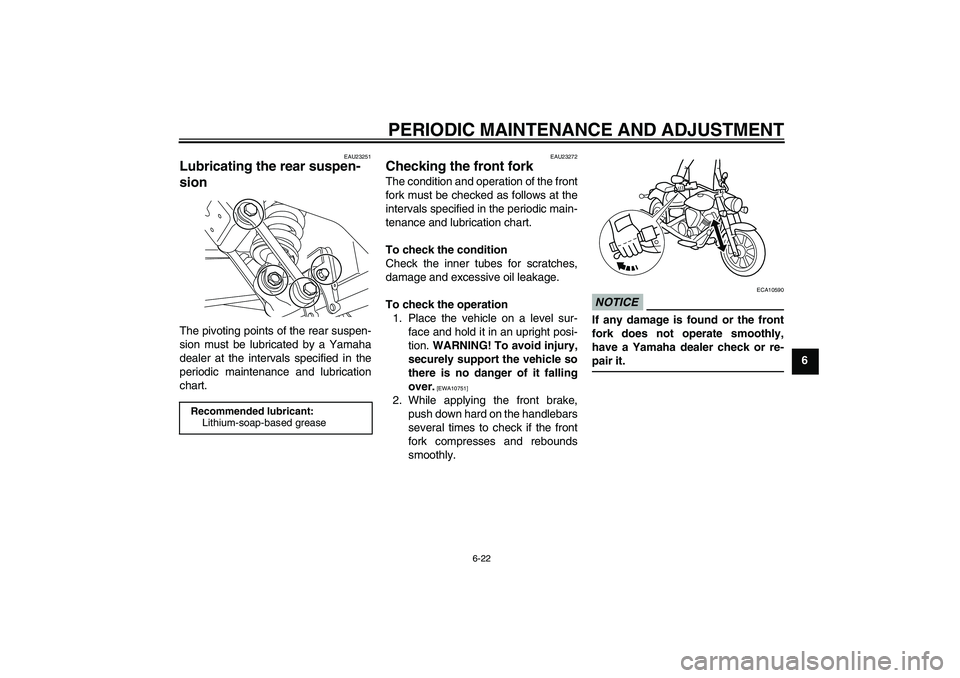

Lubricating the rear suspen-
sion The pivoting points of the rear suspen-
sion must be lubricated by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
EAU23272
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
NOTICE
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
Recommended lubricant:
Lithium-soap-based grease
U26PE1E0.book Page 22 Thursday, July 16, 2009 8:21 AM
Page 62 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
6
EAU23283
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground. (See page 6-30 for more
information.) WARNING! To
avoid injury, securely support
the vehicle so there is no danger
of it falling over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23291
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU33654
Battery This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWA10760
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
1. Positive battery lead (red)
2. Battery
3. Negative battery lead (black)
21
3
U26PE1E0.book Page 23 Thursday, July 16, 2009 8:21 AM
Page 63 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6 working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have a
Yamaha dealer charge your battery.To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16302]
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
U26PE1E0.book Page 24 Thursday, July 16, 2009 8:21 AM
Page 64 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
EAU47133
Replacing the fuses The main fuse, the fuel injection system
fuse, and the fuse box, which contains
the fuses for the individual circuits, are
located under the rider seat. (See page
3-14.)TIPTo access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
1. Starter relay cover
2. Main fuse
3. Fuse box
1
2
3
1. Starter relay cover
2. Spare fuse
3. Fuel injection system fuse
1. Ignition fuse
2. Signaling system fuse
3. Parking lighting fuse
4. Backup fuse (for clock and immobilizer sys-
tem)
5. Headlight fuse
6. Spare fuse
3 2
1
1
2
3
4
5 6
Specified fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Parking lighting fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
U26PE1E0.book Page 25 Thursday, July 16, 2009 8:21 AM
Page 65 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6 4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU48511
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Remove the headlight unit by re-
moving the screws.
2. Disconnect the headlight coupler,
and then remove the bulb cover.1. Do not touch the glass part of the bulb.
1. Screw
1
U26PE1E0.book Page 26 Thursday, July 16, 2009 8:21 AM
Page 66 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
63. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.5. Install the headlight bulb cover,
and then connect the coupler.
TIPWhen installing the headlight bulb cov-
er, make sure the “TOP” mark faces up-
wards.6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24133
Replacing the tail/brake light
bulb 1. Remove the tail/brake light lens by
removing the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
1
2
1
1.“TOP” mark
TOP
1
1. Screw
1
U26PE1E0.book Page 27 Thursday, July 16, 2009 8:21 AM
Page 67 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6 3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]EAU24212
Replacing a turn signal light
bulb 1. Remove the turn signal lens by re-
moving the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]
1. Tail/brake light bulb
1
1. Screw
1. Turn signal light lens
2. Turn signal light bulb
2
1
U26PE1E0.book Page 28 Thursday, July 16, 2009 8:21 AM
Page 68 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU24324

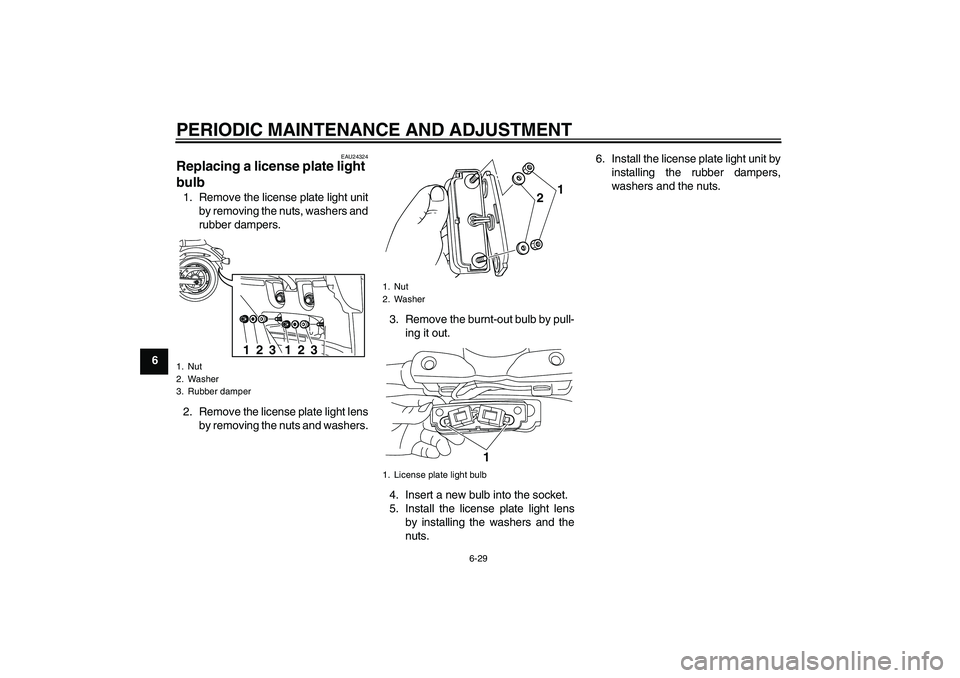

Replacing a license plate light
bulb 1. Remove the license plate light unit
by removing the nuts, washers and
rubber dampers.
2. Remove the license plate light lens
by removing the nuts and washers.3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the license plate light lens
by installing the washers and the
nuts.6. Install the license plate light unit by
installing the rubber dampers,
washers and the nuts.1. Nut
2. Washer
3. Rubber damper
123
123
1. Nut
2. Washer
1. License plate light bulb
1
2
1
U26PE1E0.book Page 29 Thursday, July 16, 2009 8:21 AM
Page 69 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU45222
Replacing an auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 6-26.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the burnt-out bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the headlight unit.
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
1. Auxiliary light bulb socket
1
1. Auxiliary light bulb
1
U26PE1E0.book Page 30 Thursday, July 16, 2009 8:21 AM
Page 70 of 84

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU25851
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from waterheaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
U26PE1E0.book Page 31 Thursday, July 16, 2009 8:21 AM
