YAMAHA XVS950CR 2016 Owner's Manual

Instrument and control functions
3-6
3

a clock
 a self-diagnosis device
TIPBe sure to turn the key to “ON” be-
fore using the “SELECT” switch.
 For the UK only: To switch the
speedometer and odometer/trip-
meter displays between kilome-
ters and miles, select the
odometer mode, and then push
the “SELECT” switch for at least 5
seconds.Spee dometer
The speedometer shows the vehicle’s
traveling speed. O
dometer, tripmeters, fuel reserve
tripmeter an d clock
The odometer shows the total distance
traveled.
The tripmeters show the distance trav-
eled since they last reset.
The fuel reserve tripmeter shows the
distance traveled since the fuel level
warning light came on.
The clock displays time in 12-hour for-
mat.
TIP The odometer will lock at 999999.
 The tripmeters will reset and con-
tinue counting after 999.9 is
reached.
In normal operation, push the “SE-
LECT” switch to change the display
between the odometer “ODO”, tripme-
ters “TRIP 1” and “TRIP 2”, and the
clock in the following order:
ODO → TRIP 1 → TRIP 2 → clock →
ODO
If the fuel level warning light comes on
(see page 3-3), the display automati-
cally changes to the fuel reserve trip-
meter “TRIP F” and starts counting the
distance traveled from that point. In
this case, push the “SELECT” switch
to change the display between the var-
ious tripmeters and the odometer in
the following order:
TRIP F → TRIP 1 → TRIP 2 → clock →
ODO → TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” switch, and then
push the “SELECT” switch for one se-
cond. If you do not reset the fuel re-
serve tripmeter manually, after
refueling and traveling 5 km (3 mi) it will
reset automatically and disappear from
the display.
1. “SELECT” switch
1
1. Odometer/tripmeter/fuel reserve tripme- ter/clock
1
UB33E1E0.book Page 6 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-7
3 To set the clock
1. Push the “SELECT” switch for 5
seconds. The hour digits will start
flashing.
2. Push the “SELECT” switch to set the hours.
3. Push the “SELECT” switch for one second and the minute digits will
start flashing.
4. Push the “SELECT” switch to set the minutes.
5. Push the “SELECT” switch for one second to start the clock. Self-
dia gnosis device
This model is equipped with a self-di-
agnosis device for various electrical
circuits.
If a problem is detected in any of those
circuits, the engine trouble warning
light will come on and the display will
indicate an error code.
If the display indicates any error codes,
note the code number and have a
Yamaha dealer check the vehicle.
NOTICE
ECA11591
If the display in dicates an error co-
d e, the vehicle shoul d b e checked as
soon as possi ble in or der to avoi d
en gine damag e.The self-diagnosis device also detects
problems in the immobilizer system
circuits.
If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash and the
display will indicate an error code.TIPIf the display indicates error code
52, this could be caused by tran-
sponder interference.
 If this error code appears, try the
following.1. Make sure there are no other im-
mobilizer keys close to the main
switch and do not keep more than
one immobilizer key on the same
key ring! Other immobilizer system
keys may cause interference and
prevent the engine from starting.
1. Clock
1
1. Error code display
2. Engine trouble warning light “ ”
3. Immobilizer system indicator light “ ”
123
UB33E1E0.book Page 7 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-8
3
2. Use the code re-registering key to
start the engine.
3. If the engine starts, turn it off and try starting the engine with the
standard keys.
4. If one or both of the standard keys do not start the engine, take the
vehicle and all three keys to a
Yamaha dealer to have them re- registered.
EAU1234H
Han dle bar switchesLeft Ri
ght
EAU12352
Pass switch “ ”
Press this switch to flash the headlight.TIPWhen the dimmer switch is set
to “ ”, the passing switch has no ef-
fect.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
1234
1. Start/Engine stop switch “ / / ”
2. “SELECT” switch
3. Hazard switch “ ”
213
UB33E1E0.book Page 8 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-9
3
EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU68270
Start/En gine stop switch “ / / ”
To crank the engine with the starter,
set this switch to “ ”, and then slide
the switch toward “ ”. See page 5-1
for starting instructions prior to starting
the engine.
Set this switch to “ ” to stop the en-
gine in case of an emergency, such as
when the vehicle overturns or when the
throttle cable is stuck.
EAU41701
The engine trouble warning light will
come on when the key is turned to
“ON” and the start switch is pushed,
but this does not indicate a malfunc-
tion.
EAU12735
Hazar d switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10062
Do not use the hazard lights for an
exten ded len gth of time with the en-
g ine not runnin g, otherwise the bat-
tery may dischar ge.
EAU55701
“SELECT” switch
This switch is used to perform selec-
tions in the odometer and tripmeters
and to set the clock of the multi-func-
tion meter unit. See “Multi-function meter unit” on
page 3-5 for detailed information.
UB33E1E0.book Page 9 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-10
3
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-18.)
EAU12872
Shift pe dalThe shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12892
Brake leverThe brake lever is located on the right
side of the handlebar. To apply the
front brake, pull the lever toward the
throttle grip.
1. Clutch lever
1
1. Shift pedal
2. Neutral position
1
2
5
4
3
2
N 1 5
4
3
2
N 1
1. Brake lever
1
UB33E1E0.book Page 10 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-11
3
EAU12944
Brake ped alThe brake pedal is located on the right
side of the motorcycle. To apply the
rear brake, press down on the brake
pedal.
EAU63040
ABSThe Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently.
Operate the brakes with ABS as you
would conventional brakes. If the ABS
is activated, a pulsating sensation may
be felt at the brake lever or brake ped-
al. In this situation, continue to apply
the brakes and let the ABS work; do
not “pump” the brakes as this will re-
duce braking effectiveness.
WARNING
EWA16051
Always keep a sufficient d istance
from the vehicle ahea d to match the
ri din g spee d even with ABS.
 The ABS performs best with
lon g b rakin g d istances.
 On certain surfaces, such as
rou gh or g ravel roa ds, the b rak-
in g d istance may b e longer with
the ABS than without.The ABS is monitored by an ECU,
which will revert the system to conven-
tional braking if a malfunction occurs.
TIP The ABS performs a self-diagno-
sis test each time the vehicle first
starts off after the key is turned to
“ON” and the vehicle has traveled
at a speed of 10 km/h (6 mi/h) or
higher. During this test, a “click-
ing” noise can be heard from the
hydraulic control unit, and if the
brake lever or brake pedal is even
slightly applied, a vibration can be
felt at the lever and pedal, but
these do not indicate a malfunc-
tion.
 This ABS has a test mode which
allows the owner to experience
the pulsation at the brake lever or
brake pedal when the ABS is op-
erating. However, special tools are
required, so please consult your
Yamaha dealer.NOTICE
ECA20100
Be careful not to d amage the wheel
sensor or wheel sensor rotor; other-
wise, improper performance of the
ABS will result.
1. Brake pedal
1
UB33E1E0.book Page 11 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-12
3
EAU13125
Fuel tank capTo remove the fuel tank cap
Slide the fuel tank cap lock cover open,
insert the key into the lock, and then
turn it 1/4 turn clockwise. The lock will
be released and the fuel tank cap can
be removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the tank opening with the key inserted
in the lock and with the “ ” mark
facing forward. 2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addi-
tion, the key cannot be removed if the
cap is not properly installed and
locked.
WARNING
EWA10132
Make sure that the fuel tank cap is
properly installe d before ri din g.
Leakin g fuel is a fire hazar d.
1. Front wheel sensor rotor
2. Front wheel sensor
1. Rear wheel sensor rotor
2. Rear wheel sensor1
21
2
1. Fuel tank cap lock cover
2. “ ” mark
3. Lock.
4. Unlock.1
2 4
3
UB33E1E0.book Page 12 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-13
3
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d g asoline vapors are
extremely flammab le. To avoid fires
an d explosions an d to re duce the
risk of injury when refuelin g, follow
these instructions.1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painted surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can cau-
se injury or death. Han dle gasoline
with care. Never siphon gasoline by
mouth. If you shoul d swallow some
g asoline or inhale a lot of g asoline
vapor, or g et some gasoline in your
eyes, see your d octor immediately. If g
asoline spills on your skin, wash
with soap an d water. If gasoline
spills on your clothin g, chan ge your
clothes.
EAU57691
NOTICE
ECA11401
Use only unlea ded g asoline. The use
of lea ded g asoline will cause severe
d amag e to internal en gine parts,
such as the valves an d piston rin gs,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging)
occurs, use a gasoline of a different
1. Fuel tank filler tube
2. Maximum fuel level
2
1
Recommen ded fuel:
Regular unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity:
12 L (3.2 US gal, 2.6 Imp.gal)
Fuel reserve amount (when the fuel
level warnin g lig ht comes on):
2.8 L (0.74 US gal, 0.62 Imp.gal)
UB33E1E0.book Page 13 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-14
3
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
EAUB1302
Fuel tank
breather/overflow
hoseBefore operating the motorcycle:
 Check the fuel tank breather/over-
flow hose connection.
 Check the fuel tank breather/over-
flow hose for cracks or damage,
and replace it if necessary.
 Make sure that the end of the fuel
tank breather/overflow hose is not
blocked, and clean it if necessary.
 Make sure that the fuel tank
breather/overflow hose is routed
through the clamp.
EAU13434
Catalytic converterThis model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazar ds such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where pe destrians or child ren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the en gine to i dle
more than a few minutes. Lon g
i d lin g can cause a b uild-up of
heat.

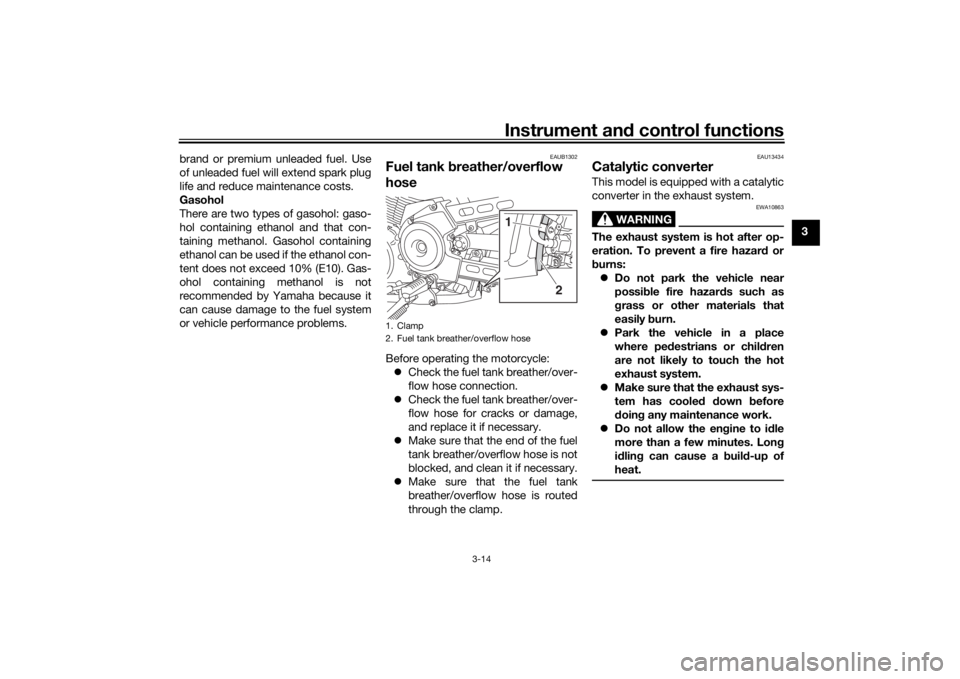

1. Clamp
2. Fuel tank brea ther/overflow hose
1
2
UB33E1E0.book Page 14 Wednesday, September 9, 2015 2:55 PM

Instrument and control functions
3-15
3
NOTICE
ECA10702
Use only unlea ded g asoline. The use
of lead ed g asoline will cause unre-
pairab le damag e to the catalytic
converter.
EAU55663
Steerin g lockThe steering lock is located on the right
side of the vehicle between the upper
and lower steering brackets.
To lock the steerin g
1. Turn the handlebar all the way to the left.
2. Insert the key into the steering lock and turn it 1/2 turn clockwise.
3. Remove the key from the lock.TIPIf the steering lock is difficult to en-
gage, try turning the handlebars back
to the right slightly.
To unlock the steerin g
1. Insert the key into the steering lock.
2. Turn the key 1/2 turn counter- clockwise.
3. Remove the key.
1. Steering lock
2. Lock.
LOCKUNLOCK
1
2
1. Unlock.
LOCKUNLOCK
1
UB33E1E0.book Page 15 Wednesday, September 9, 2015 2:55 PM
