Periodic maintenance an d a djustment
6-19
6
fluid level goes down suddenly, have a
Yamaha dealer check the cause before further riding.
EAU22733
Chan gin g the brake flui dHave a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the oil seals
of the master cylinders and calipers as
well as the brake hoses replaced at the
intervals listed below or whenever they
are damaged or leaking.
 Oil seals: Replace every two
years.
 Brake hoses: Replace every four
years.
EAU23041
Drive belt slackThe drive belt slack should be checked
and adjusted at the intervals specified
in the periodic maintenance and lubri-
cation chart.
EAU55773
To check the drive belt slack
1. Place the vehicle on the side- stand.
2. Note the current position of the drive belt using the marks near the
drive belt check hole.
3. Note the position of the drive belt w it h a fo r c e o f 4 5 N ( 4.5 kg f , 10 l bf )
applied to the belt with a belt ten-

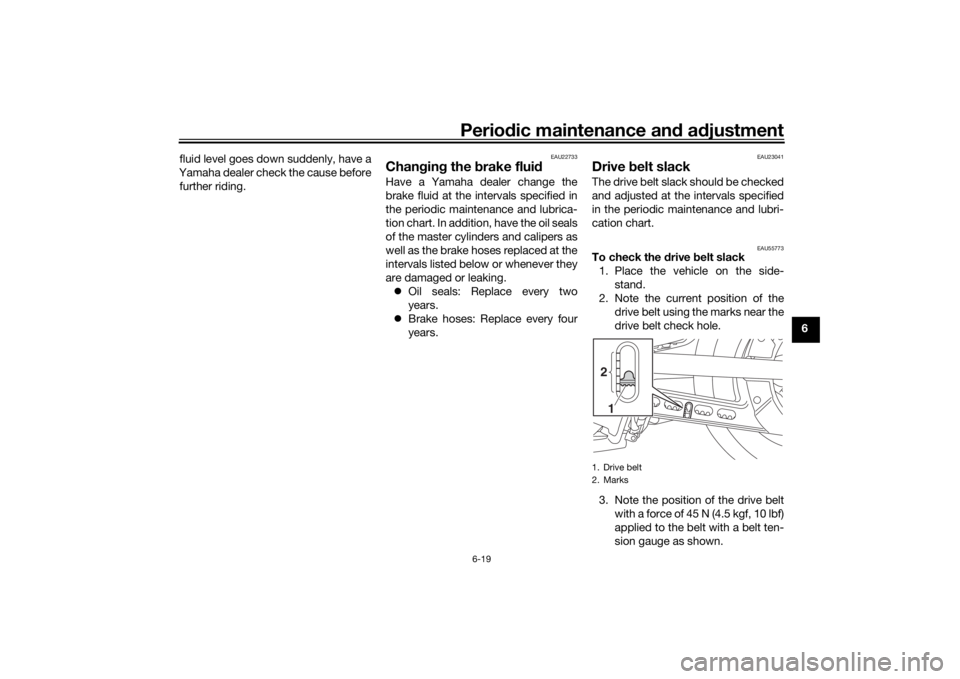

sion gauge as shown.1. Drive belt
2. Marks2
1
UB33E1E0.book Page 19 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-20
6
TIPA belt tension gauge is available at a
Yamaha dealer.4. Calculate the drive belt slack by subtracting the measurement not-
ed in step 2 from the measure-
ment noted in step 3.
5. If the drive belt slack is incorrect, have a Yamaha dealer adjust it.
EAU23098
Checkin g an d lu bricatin g the
cab lesThe operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or re-
place it. WARNING! Dama ge to the
outer housin g of cab les may result
in internal rustin g an d cause inter-
ference with cab le movement. Re-
place damag ed cab les as soon as
possi ble to prevent unsafe con di-
tions.
[EWA10712] EAU23115
Checkin
g an d lu bricatin g the
throttle grip an d ca bleThe operation of the throttle grip
should be checked before each ride. In
addition, the cable should be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from wa-
ter entry. Therefore, use care not to
pour water directly onto the cover or
cable when washing the vehicle. If the
cable or cover becomes dirty, wipe
clean with a moist cloth.
1. Belt tension gauge
2. Drive belt slackDrive belt slack:
6.0–8.0 mm (0.24–0.31 in)
6 8 10 12 14
1
2
Recommen ded lu bricant:
Yamaha cable lubricant or other
suitable cable lubricant
UB33E1E0.book Page 20 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-21
6
EAU44276
Checkin g an d lu bricatin g the
b rake an d shift pe dalsThe operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
Brake pe dal
Shift pe dal
EAU23144
Checkin g an d lu bricatin g the
b rake an d clutch leversThe operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Brake lever
Clutch lever
Recommen ded lu bricant:
Lithium-soap-based grease
UB33E1E0.book Page 21 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-22
6
EAU23203
Checkin g an d lu bricatin g the
si destan dThe operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
WARNING
EWA10732
If the si destan d d oes not move up
an d d own smoothly, have a Yamaha
d ealer check or repair it. Otherwise,
the si destan d coul d contact the
g roun d an d d istract the operator, re-
sultin g in a possi ble loss of control.
EAUM1653
Lub ricatin g the swin garm piv-
otsThe swingarm pivots must be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommen ded lu bricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
Recommen ded lu bricant:
Lithium-soap-based grease
Recommen ded lu bricant:
Lithium-soap-based grease
UB33E1E0.book Page 22 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-23
6
EAU51951
Checkin g the front forkThe condition and operation of the
front fork must be checked as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the con dition
Check the front fork for damage and
excessive oil leakage.
To check the operation 1. Place the vehicle on a level surfa- ce and hold it in an upright posi-
tion. WARNING! To avoi d injury,
securely support the vehicle so
there is no dan ger of it fallin g
over.
[EWA10752]
2. While applying the front brake, push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
NOTICE
ECA10591
If any damag e is foun d or the front
fork does not operate smoothly,
have a Yamaha d ealer check or re-
pair it.
EAU23285
Checkin g the steerin gWorn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Raise the front wheel off the ground. (See page 6-30.)
WARNING! To avoid injury, se-
curely support the vehicle so
there is no d anger of it fallin g
over.
[EWA10752]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
UB33E1E0.book Page 23 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-24
6
EAU23292
Checkin g the wheel b earingsThe front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
EAU50291
BatteryThe battery is located under the seat.
(See page 3-16.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to
be checked and, if necessary, tight-
ened.
WARNING
EWA10761
 Electrolyte is poisonous an d
d an gerous since it contains sul-
furic aci d, which causes severe b
urns. Avoi d any contact with
skin, eyes or clothin g an d al-
ways shiel d your eyes when
workin g near b atteries. In case
of contact, ad minister the fol-
lowin g FIRST AID.
EXTERNAL: Flush with plenty of water.
INTERNAL: Drink lar ge quan-
tities of water or milk an d im-
me diately call a physician.
EYES: Flush with water for 15 minutes an d seek prompt
me dical attention.
 Batteries pro duce explosive hy-
d ro gen gas. Therefore, keep
sparks, flames, ci garettes, etc.,
away from the battery an d pro-
vi de sufficient ventilation when
char gin g it in an enclose d
space.
 KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To char ge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
ha v e di s c ha r g e d. Ke e p in m in d t ha t t he
1. Positive battery lead (red)
2. Battery
3. Negative battery lead (black)
1
2
3
UB33E1E0.book Page 24 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-25
6
battery tends to discharge more quick-
ly if the vehicle is equipped with op-
tional electrical accessories.
NOTICE
ECA16522
To char
ge a VRLA (Valve Re gulate d
Lea d Aci d) battery, a special (con-
stant-voltag e) battery char ger is re-
quire d. Usin g a conventional b attery
char ger will d amage the battery.To store the battery
1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removin g the
b attery, be sure the key is
turne d to “OFF”, then discon-
nect the neg ative lead b efore
d isconnectin g the positive lea d.
[ECA16303]
2. If the battery will be stored for
more than two months, check it at
least once a month and fully char-
ge it if necessary.
3. Fully charge the battery before installation. NOTICE: When in-
stallin g the battery, be sure the key is turne
d to “OFF”, then
connect the positive lea d b efore
connectin g the ne gative lea d.
[ECA16841]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16531
Always keep the b attery charged .
Storin g a dischar ged battery can
cause permanent b attery damag e.
EAU57711
Replacin g the fusesThe main fuse, the ABS motor fuse,
and the fuse boxes, which contain the
fuses for the individual circuits, are lo-
cated under the owner’s tool box be-
hind panel A. (See page 6-8.)1. Fuse box
2. Main fuse
3. ABS motor fuse
4. ABS motor spare fuse
3
2
4
1
UB33E1E0.book Page 25 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-26
6
TIPTo access the ABS motor fuse, remove
the starter relay cover by pulling it up-
ward.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
1. Ignition fuse
2. ABS control unit fuse
3. Signaling system fuse
4. Parking lighting fuse
5. Backup fuse (for clock and immobilizer sys-tem)
6. Headlight fuse
7. Spare fuse
8. Fuel injection system fuse
9. ABS solenoid fuse
2 1
4
5
6
7
789
3
1. Starter relay cover
2. ABS motor fuse
3. ABS motor spare fuse
2
1
3
Specifie d fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse: 7.5 A
Ignition fuse: 15.0 A
Parking lighting fuse:
15.0 A
ABS motor fuse: 30.0 A
Fuel injection system fuse: 10.0 A
ABS solenoid fuse:
15.0 A
ABS control unit fuse: 7.5 A
Backup fuse: 7.5 A
UB33E1E0.book Page 26 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-27
6
EAU63180
Replacin g the hea dlig ht bul bThis model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10661
Do not touch the g lass part of the
hea dlig ht bul b to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the b ulb,
an d the bul b life will be ad versely af-
fected . Thorou ghly clean off any d irt
an d fin gerprints on the head light
b ul b using a cloth moistene d with al-
cohol or thinner.1. Remove the headlight unit by re- moving the screws. 2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
3. Unhook the headlight bulb holder, and then remove the burnt-out
bulb. 4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
5. Install the bulb cover, and then connect the coupler.
TIPWhen installing the headlight bulb cov-
er, make sure the “TOP” mark faces
upwards.
1. Do not touch the glass part of the bulb.
1. Screw
1. Headlight bulb cover
2. Headlight coupler
1
1
2
1. Headlight bulb holder
1
UB33E1E0.book Page 27 Wednesday, September 9, 2015 2:55 PM

Periodic maintenance an d a djustment
6-28
6 6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the headlight beam if necessary.
EAU45226
Replacin g the auxiliary li ght
b ul b If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See page 6-27.)
2. Remove the auxiliary light bulb socket (together with the bulb) by
pulling it out.
3. Remove the burnt-out bulb by pulling it out. 4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the headlight unit.
1. “TOP” mark
1
1. Auxiliary light bulb socket
1
1. Auxiliary light bulb
1
UB33E1E0.book Page 28 Wednesday, September 9, 2015 2:55 PM
