2-1
2
EAU00026
2-DESCRIPTIONLeft view1. Shift pedal (page 3-6)
2. Starter (choke) knob (page 3-9)
3. Fuel cock (page 3-8)
4. Steering lock (page 3-9)
5. Tool kit (page 6-1)6. Seat lock (page 3-10)
7. Rear turn signal lights (page 6-28)
8. Tail/brake light (page 6-28)
9. Mufflers
10. Fuses (page 6-25)
E_4YP_Description.fm Page 1 Wednesday, October 6, 1999 10:03 AM
Page 12 of 91

DESCRIPTION
2-2
2
Right view11. Passenger footrest
12. Main switch (page 3-1)
13. Passenger seat
14. Helmet holders (page 3-11)
15. Rider seat (page 3-10)
16. Fuel tank (page 3-7)
17. Fuel tank cap (page 3-7)18. Headlight (page 6-27)
19. Front turn signal light (page 6-28)
20. Rear brake pedal (page 3-6)
21. Rider footrest
22. Rear shock absorber spring
preload adjusting nut (page 3-13)
E_4YP_Description.fm Page 2 Wednesday, October 6, 1999 10:03 AM
Page 13 of 91

DESCRIPTION
2-3
2
Controls/Instruments1. Clutch lever (page 3-5)
2. Left handlebar switches (page 3-4)
3. Speedometer (page 3-3)4. Right handlebar switches (page 3-5)
5. Throttle grip (page 6-12)
6. Front brake lever (page 3-6)
E_4YP_Description.fm Page 3 Wednesday, October 6, 1999 10:03 AM
Page 14 of 91

3

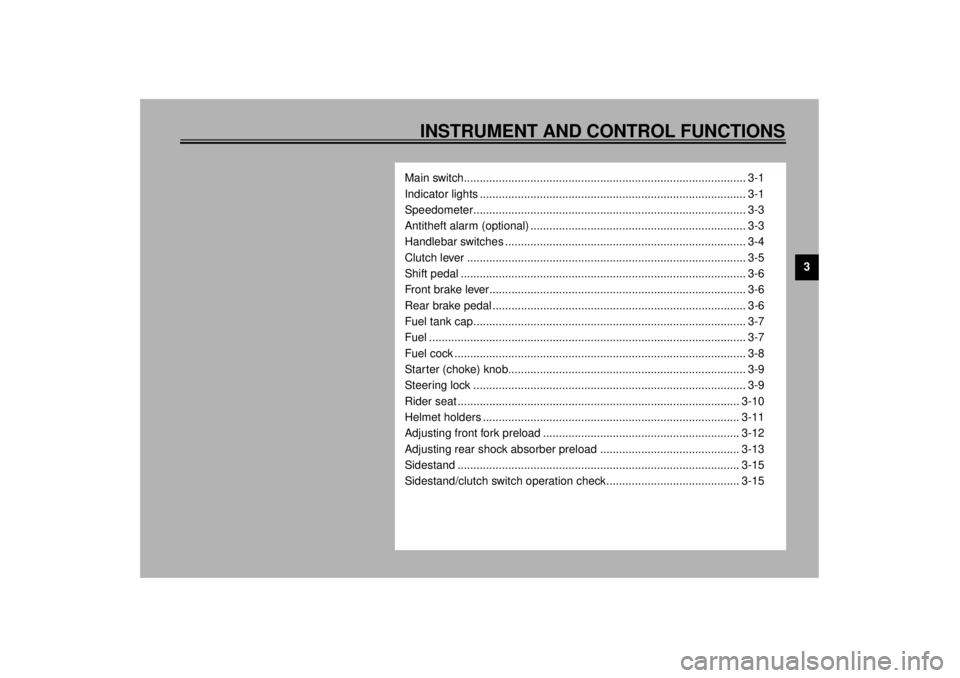

INSTRUMENT AND CONTROL FUNCTIONS
Main switch......................................................................................... 3-1
Indicator lights .................................................................................... 3-1
Speedometer...................................................................................... 3-3
Antitheft alarm (optional) .................................................................... 3-3
Handlebar switches ............................................................................ 3-4
Clutch lever ........................................................................................ 3-5
Shift pedal .......................................................................................... 3-6
Front brake lever................................................................................. 3-6
Rear brake pedal ................................................................................ 3-6
Fuel tank cap...................................................................................... 3-7
Fuel .................................................................................................... 3-7
Fuel cock ............................................................................................ 3-8
Starter (choke) knob........................................................................... 3-9
Steering lock ...................................................................................... 3-9
Rider seat ......................................................................................... 3-10
Helmet holders ................................................................................. 3-11
Adjusting front fork preload .............................................................. 3-12
Adjusting rear shock absorber preload ............................................ 3-13
Sidestand ......................................................................................... 3-15
Sidestand/clutch switch operation check.......................................... 3-15
E_4YP_FunctionsTOC.fm Page 1 Wednesday, October 6, 1999 10:03 AM
Page 15 of 91

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00028

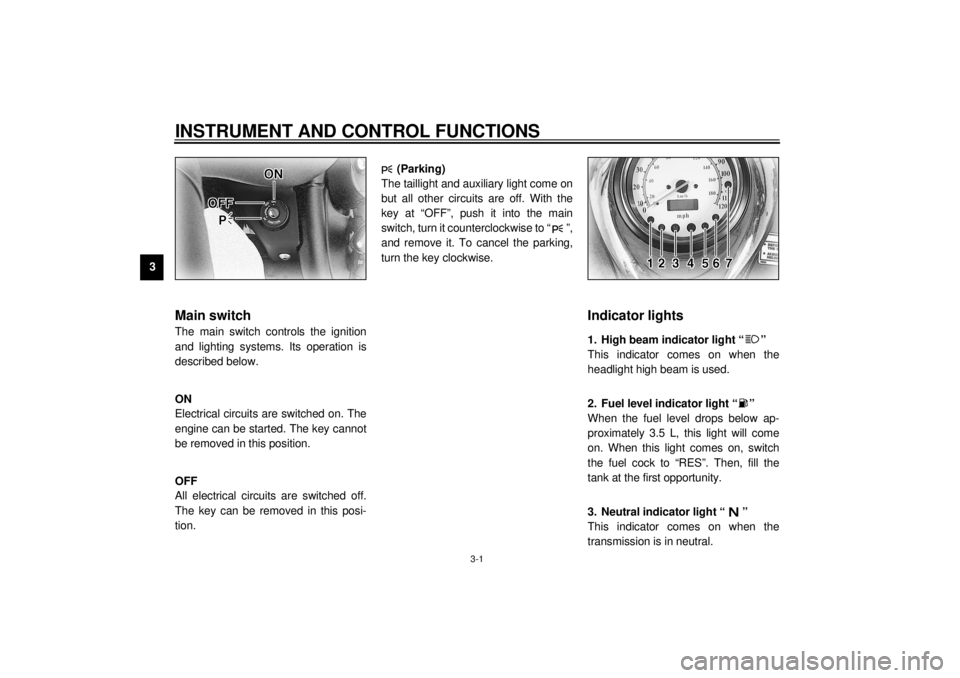

Main switchThe main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00054*
(Parking)
The taillight and auxiliary light come on
but all other circuits are off. With the
key at “OFF”, push it into the main
switch, turn it counterclockwise to “ ”,
and remove it. To cancel the parking,
turn the key clockwise.
EAU00056
Indicator lights
EAU00063
1. High beam indicator light “ ”
This indicator comes on when the
headlight high beam is used.
EAU00079
2. Fuel level indicator light “ ”
When the fuel level drops below ap-
proximately 3.5 L, this light will come
on. When this light comes on, switch
the fuel cock to “RES”. Then, fill the
tank at the first opportunity.
EAU00061
3. Neutral indicator light “ ”
This indicator comes on when the
transmission is in neutral.
E_4YP_Functions.fm Page 1 Wednesday, October 6, 1999 10:03 AM
Page 16 of 91

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU00057

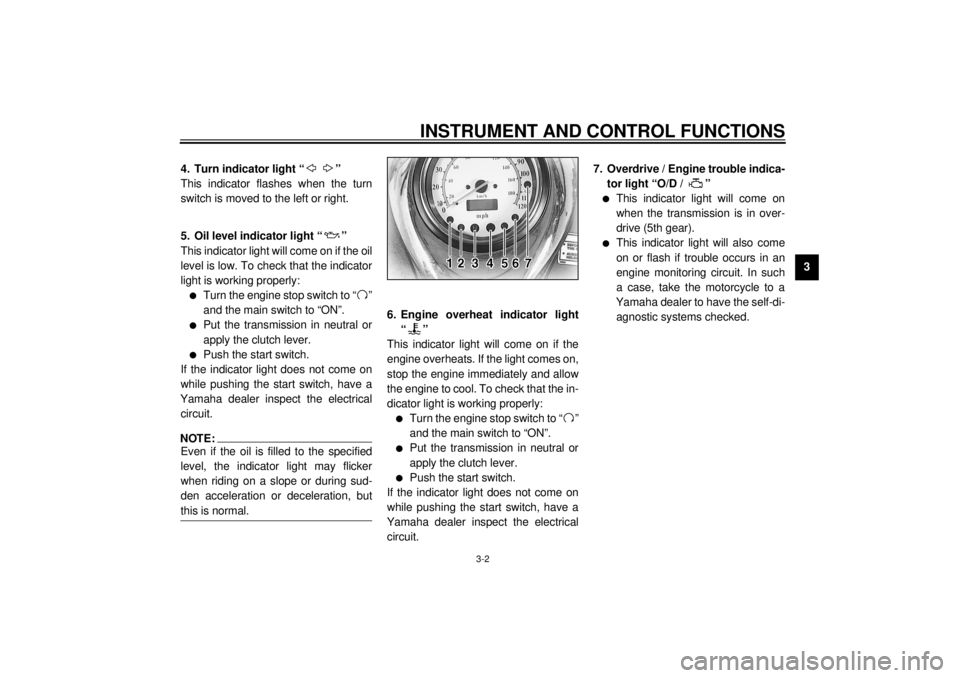

4. Turn indicator light “ ”
This indicator flashes when the turn
switch is moved to the left or right.
EAU01209
5. Oil level indicator light “ ”
This indicator light will come on if the oil
level is low. To check that the indicator
light is working properly:l
Turn the engine stop switch to “ ”
and the main switch to “ON”.
l
Put the transmission in neutral or
apply the clutch lever.
l
Push the start switch.
If the indicator light does not come on
while pushing the start switch, have a
Yamaha dealer inspect the electrical
circuit.
NOTE:@ Even if the oil is filled to the specified
level, the indicator light may flicker
when riding on a slope or during sud-
den acceleration or deceleration, but
this is normal. @
EAU01257
6. Engine overheat indicator light
“”
This indicator light will come on if the
engine overheats. If the light comes on,
stop the engine immediately and allow
the engine to cool. To check that the in-
dicator light is working properly:l
Turn the engine stop switch to “ ”
and the main switch to “ON”.
l
Put the transmission in neutral or
apply the clutch lever.
l
Push the start switch.
If the indicator light does not come on
while pushing the start switch, have a
Yamaha dealer inspect the electrical
circuit.
EAU01272
7. Overdrive / Engine trouble indica-
tor light “O/D / ”l
This indicator light will come on
when the transmission is in over-
drive (5th gear).
l
This indicator light will also come
on or flash if trouble occurs in an
engine monitoring circuit. In such
a case, take the motorcycle to a
Yamaha dealer to have the self-di-
agnostic systems checked.
E_4YP_Functions.fm Page 2 Wednesday, October 6, 1999 10:03 AM
Page 17 of 91

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU01202
SpeedometerThis speedometer is equipped with an
odometer and a trip meter. Pushing the
“TRIP” button will change the display
from one to the other. When set to
“ODO”, it indicates the motorcycle’s to-
tal mileage. When set to “TRIP”, it indi-
cates the motorcycle’s mileage since
the trip meter was last reset. Use the
trip meter to estimate how far you can
ride on a tank of fuel. This information
will enable you to plan fuel stops in the
future.To reset the trip meter to “0”, push the
“TRIP” button until it displays “TRIP”,
then push it once again and hold it
down for at least one second.
NOTE:@ This motorcycle does not have a ta-
chometer. However, it is equipped with
an engine speed limiter, which pre-
vents the engine speed from exceed-
ing approximately 6,000 r/min and the
vehicle from exceeding a top riding
speed of approximately 180 km/h. @
EAU00109
Antitheft alarm (optional)An antitheft alarm can be equipped to
this motorcycle. Consult your Yamaha
dealer to obtain and install the alarm.
1. “TRIP” button
2. Odometer/Trip meterE_4YP_Functions.fm Page 3 Wednesday, October 6, 1999 10:03 AM
Page 18 of 91

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00118
Handlebar switches
EAU00119
1. Pass switch “ ”
Press the switch to operate the passing
light.
EAU00121
2. Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
3. Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once the
switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
4. Horn switch “ ”
Press the switch to sound the horn.
E_4YP_Functions.fm Page 4 Wednesday, October 6, 1999 10:03 AM
Page 19 of 91

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU00138

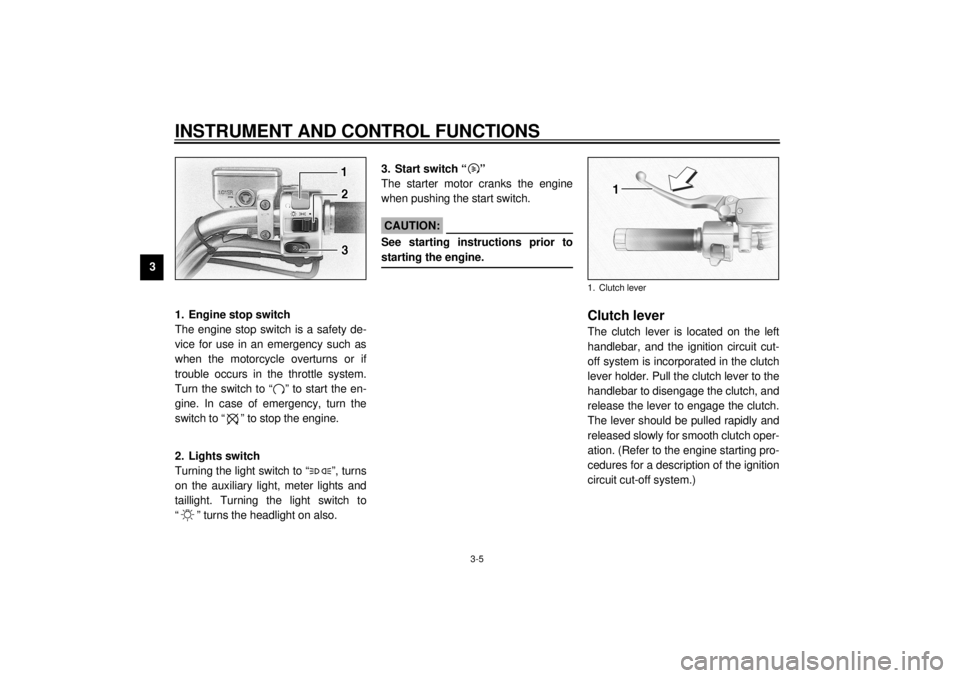

1. Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00134
2. Lights switch
Turning the light switch to “ ”, turns
on the auxiliary light, meter lights and
taillight. Turning the light switch to
“ ” turns the headlight on also.
EAU00143
3. Start switch “ ”
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:@ See starting instructions prior to
starting the engine. @
EAU00152
Clutch leverThe clutch lever is located on the left
handlebar, and the ignition circuit cut-
off system is incorporated in the clutch
lever holder. Pull the clutch lever to the
handlebar to disengage the clutch, and
release the lever to engage the clutch.
The lever should be pulled rapidly and
released slowly for smooth clutch oper-
ation. (Refer to the engine starting pro-
cedures for a description of the ignition
circuit cut-off system.)1. Clutch lever
E_4YP_Functions.fm Page 5 Wednesday, October 6, 1999 10:03 AM
Page 20 of 91

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU01215

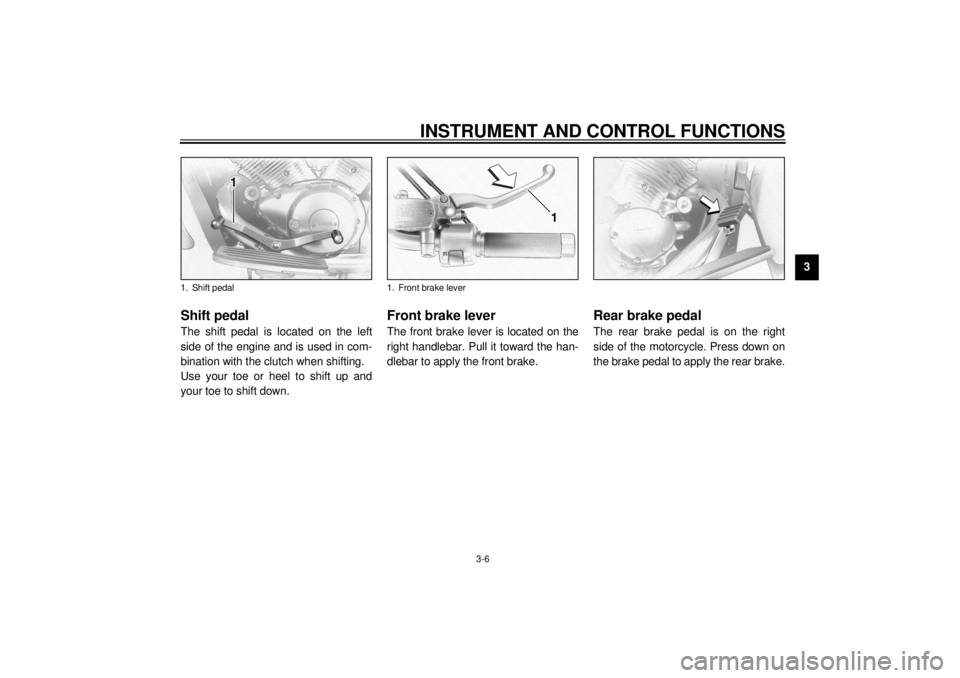

Shift pedalThe shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
Use your toe or heel to shift up and
your toe to shift down.
EAU00158
Front brake leverThe front brake lever is located on the
right handlebar. Pull it toward the han-
dlebar to apply the front brake.
EAU00162
Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.
1. Shift pedal
1. Front brake lever
E_4YP_Functions.fm Page 6 Wednesday, October 6, 1999 10:03 AM
