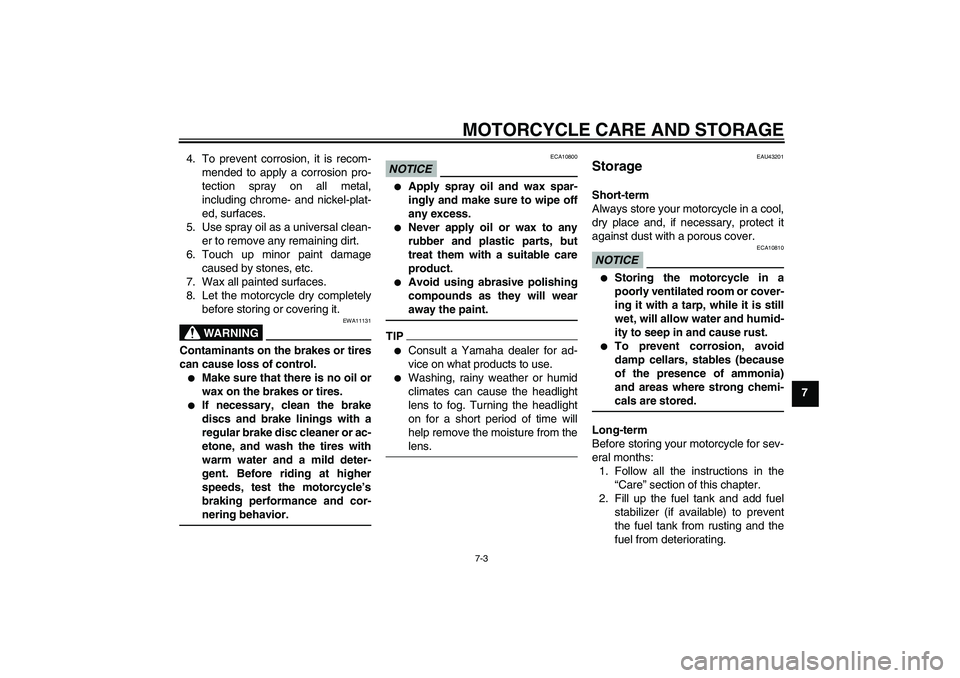

MOTORCYCLE CARE AND STORAGE
7-3
7 4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA11131
Contaminants on the brakes or tires
can cause loss of control.

Make sure that there is no oil or
wax on the brakes or tires.


If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-
nering behavior.
NOTICE
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP

Consult a Yamaha dealer for ad-
vice on what products to use.


Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
EAU43201
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.NOTICE
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
U51DE0E0.book Page 3 Monday, November 2, 2009 10:34 AM

MOTORCYCLE CARE AND STORAGE
7-4
73. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10951]
4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-26.
TIPMake any necessary repairs before
storing the motorcycle.
U51DE0E0.book Page 4 Monday, November 2, 2009 10:34 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
1985 mm (78.1 in)
Overall width:
745 mm (29.3 in)
Overall height:
1080 mm (42.5 in)
Seat height:
780 mm (30.7 in)
Wheelbase:
1290 mm (50.8 in)
Ground clearance:
160 mm (6.30 in)
Minimum turning radius:
2270 mm (89.4 in)Weight:With oil and fuel:
125 kg (276 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
123 cm³
Bore × stroke:
54.0 × 54.0 mm (2.13 × 2.13 in)
Compression ratio:
10.00 :1
Starting system:
Electric starter and kickstarter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Periodic oil change:
1.00 L (1.06 US qt, 0.88 Imp.qt)Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
13.0 L (3.43 US gal, 2.86 Imp.gal)
Fuel reserve amount:
3.4 L (0.90 US gal, 0.75 Imp.gal)
Fuel injection:Throttle body:
ID mark:
51D1 00Spark plug(s):Manufacturer/model:
NGK/CR6HSA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
68/20 (3.400)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
45/14 (3.214)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
37/14 (2.643)
2nd:
32/18 (1.778)
3rd:
25/19 (1.316)
4th:
23/22 (1.045)
–20 –10 0
1020 30 40 50 C 10 30 50 70 90 110 0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM

SPECIFICATIONS
8-2
8
5th:
21/24 (0.875)
Chassis:Frame type:
Diamond
Caster angle:
26.33 °
Trail:
92.0 mm (3.62 in)Front tire:Type:
Tubeless
Size:
2.75-18 42P
Manufacturer/model:
CHENG SHIN/C-910Rear tire:Type:
Tubeless
Size:
90/90-18 57P
Manufacturer/model:
CHENG SHIN/C-905Loading:Maximum load:
153 kg (337 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
175 kPa (1.75 kgf/cm², 25 psi)Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Loading condition:
90–153 kg (198–337 lb)
Front:
175 kPa (1.75 kgf/cm², 25 psi)
Rear:
280 kPa (2.80 kgf/cm², 41 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
J18M/C x MT1.85Rear wheel:Wheel type:
Cast wheel
Rim size:
J18M/C x MT1.85Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 3 or 4Rear brake:Type:
Drum brake
Operation:
Right foot operationFront suspension:Type:
Telescopic forkSpring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
YTX7L-BS
Voltage, capacity:
12 V, 6.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
U51DE0E0.book Page 2 Monday, November 2, 2009 10:34 AM

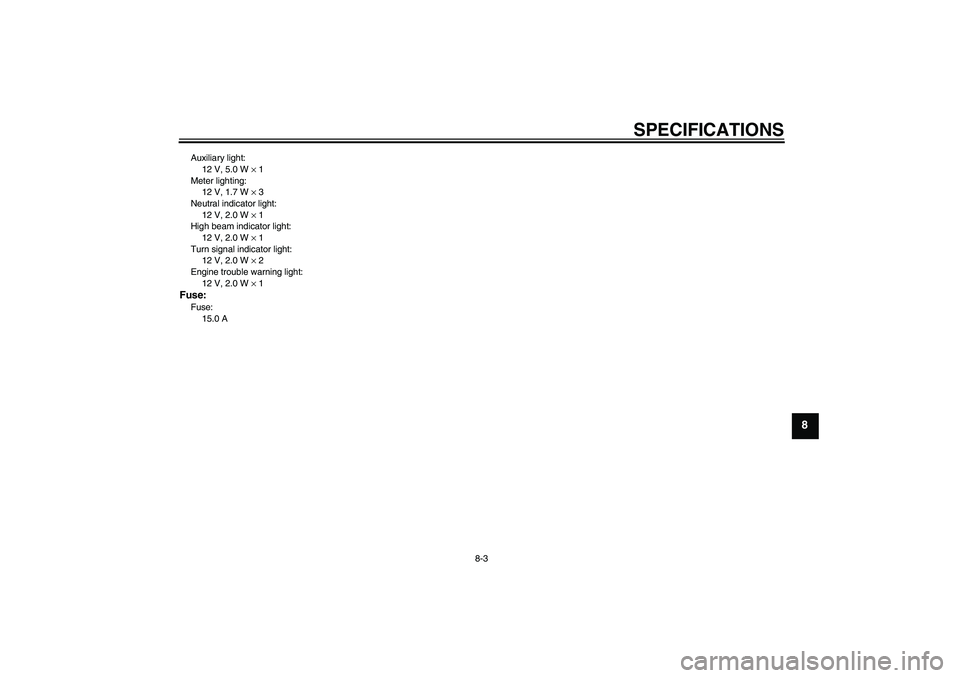

SPECIFICATIONS
8-3
8
Auxiliary light:
12 V, 5.0 W × 1
Meter lighting:
12 V, 1.7 W × 3
Neutral indicator light:
12 V, 2.0 W × 1
High beam indicator light:
12 V, 2.0 W × 1
Turn signal indicator light:
12 V, 2.0 W × 2
Engine trouble warning light:
12 V, 2.0 W × 1Fuse:Fuse:
15.0 A
U51DE0E0.book Page 3 Monday, November 2, 2009 10:34 AM

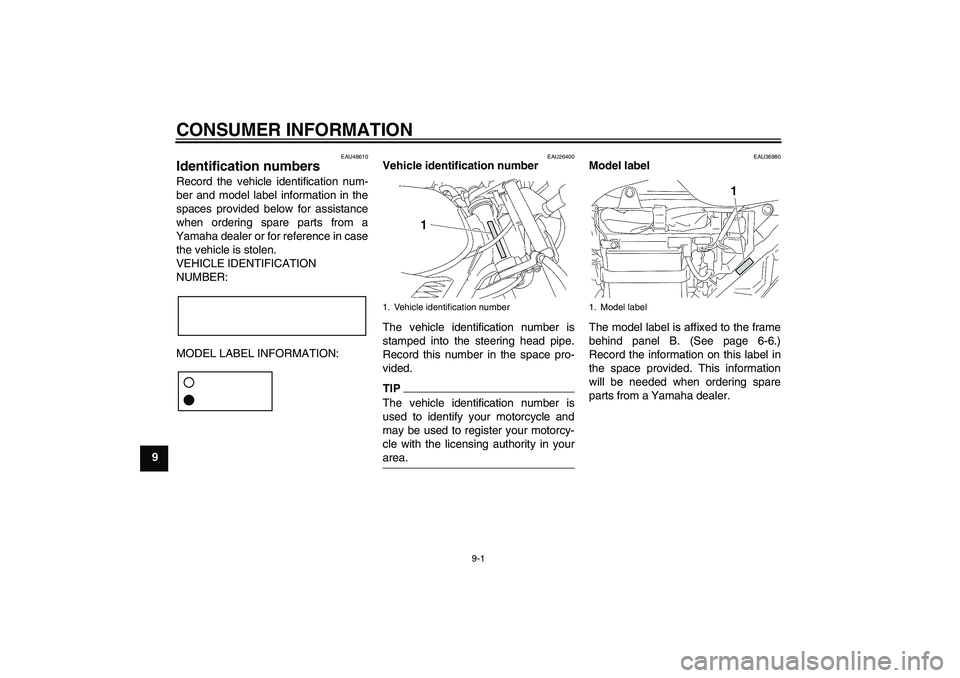

CONSUMER INFORMATION
9-1
9
EAU48610
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU36980
Model label
The model label is affixed to the frame
behind panel B. (See page 6-6.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM

INDEX
AAir filter element, cleaning .................... 6-10
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-26
Brake and clutch levers, checking and
lubricating ........................................... 6-23
Brake fluid, changing ............................ 6-20
Brake fluid level, checking .................... 6-19
Brake lever ............................................. 3-5
Brake light switches .............................. 6-17
Brake pads and shoes, checking.......... 6-18
Brake pedal ............................................ 3-6
Brake pedal, checking and
lubricating ........................................... 6-24
Brake pedal free play, adjusting ........... 6-16CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Carrier................................................... 3-10
Catalytic converters ................................ 3-8
Centerstand and sidestand, checking
and lubricating .................................... 6-24
Clutch lever............................................. 3-5
Clutch lever free play, adjusting ........... 6-15DDimmer switch ........................................ 3-4
Drive chain, cleaning and lubricating .... 6-22
Drive chain slack .................................. 6-20EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-12
Engine oil ................................................ 6-9
Engine trouble warning light ................... 3-2
FFront brake lever free play, checking .... 6-16
Front fork, checking...............................6-25
Fuel ......................................................... 3-7
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-4
Fuel tank cap........................................... 3-6
Fuse, replacing...................................... 6-28HHandlebar switches ................................. 3-4
Headlight bulb, replacing....................... 6-29
High beam indicator light......................... 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-11
Indicator and warning lights .................... 3-2KKickstarter ............................................... 3-9MMain switch/steering lock ........................ 3-1
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Matte color, caution .................................7-1
Model label .............................................. 9-1NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-6
Parking ....................................................5-4
Part locations .......................................... 2-1SSafety information ...................................1-1
Self-diagnosis device .............................. 3-3Shifting .................................................... 5-2
Shift pedal ............................................... 3-5
Shift pedal, checking............................. 6-17
Shock absorber assemblies, adjusting ... 3-9
Sidestand .............................................. 3-10
Spark plug, checking .............................. 6-7
Specifications.......................................... 8-1
Speedometer unit ................................... 3-3
Starting the engine.................................. 5-1
Start switch ............................................. 3-4
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Swingarm pivots, lubricating ................. 6-25
TTachometer............................................. 3-3
Tail/brake light bulb, replacing .............. 6-30
Throttle cable free play, checking ......... 6-12
Throttle grip and cable, checking and
lubricating ........................................... 6-23
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-35
Troubleshooting chart ........................... 6-36
Turn signal indicator lights ...................... 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-4VValve clearance .................................... 6-13
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-26
Wheel (front) ......................................... 6-32
Wheel (rear) .......................................... 6-33
Wheels .................................................. 6-15
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM

A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM

A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM

YAMAHA MOTOR CO., LTD.
PRINTED IN CHINA
2009.11-0.3×1 CR
(E)
DIC183
