YAMAHA YBR125 2010 Repair Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU23783
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Remove the headlight unit by re-
moving the screws.
2. Disconnect the headlight coupler,
and then remove the bulb cover.3. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the burnt-out bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.1. Do not touch the glass part of the bulb.
1. Screw
1
1. Headlight coupler
2. Bulb cover
1. Headlight bulb holder1
2
1
U51DE0E0.book Page 29 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
65. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24133
Replacing the tail/brake light
bulb 1. Remove the tail/brake light lens by
removing the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]
1. Screw
1. Tail/brake light bulb
U51DE0E0.book Page 30 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU45222
Replacing an auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 6-29.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the burnt-out bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the headlight unit.
1. Screw
1
1. Auxiliary light bulb socket
1
1. Auxiliary light bulb
1
U51DE0E0.book Page 31 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
EAU24360
Front wheel
EAU47720
To remove the front wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Place the motorcycle on the cen-
terstand.
2. Disconnect the speedometer ca-
ble from the front wheel.
3. Remove the rubber cap, and then
the axle nut and the washer.4. Pull the wheel axle out, and then
remove the wheel. NOTICE: Do
not apply the brake after the
wheel has been removed to-
gether with the brake disc, oth-
erwise the brake pads will be
forced shut.
[ECA11071]EAU49100
To install the front wheel
1. Install the speedometer gear unit
into the wheel hub so that the pro-
jections mesh with the slots.
2. Lift the wheel up between the fork
legs.
1. Speedometer cable
1. Rubber cap
2. Axle nut
3. Washer
1. Wheel axle
1. Speedometer gear unit
1
U51DE0E0.book Page 32 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

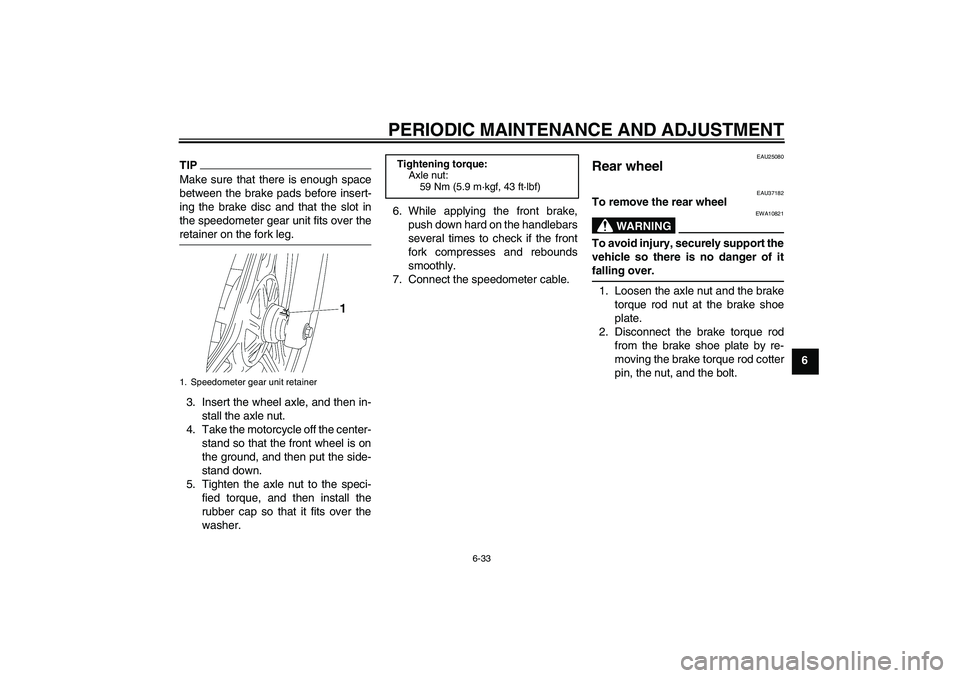

6-33
6
TIPMake sure that there is enough space
between the brake pads before insert-
ing the brake disc and that the slot in
the speedometer gear unit fits over the
retainer on the fork leg.3. Insert the wheel axle, and then in-
stall the axle nut.
4. Take the motorcycle off the center-
stand so that the front wheel is on
the ground, and then put the side-
stand down.
5. Tighten the axle nut to the speci-
fied torque, and then install the
rubber cap so that it fits over the
washer.6. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
7. Connect the speedometer cable.
EAU25080
Rear wheel
EAU37182
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Loosen the axle nut and the brake
torque rod nut at the brake shoe
plate.
2. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the brake torque rod cotter
pin, the nut, and the bolt.
1. Speedometer gear unit retainer
Tightening torque:
Axle nut:
59 Nm (5.9 m·kgf, 43 ft·lbf)
U51DE0E0.book Page 33 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT

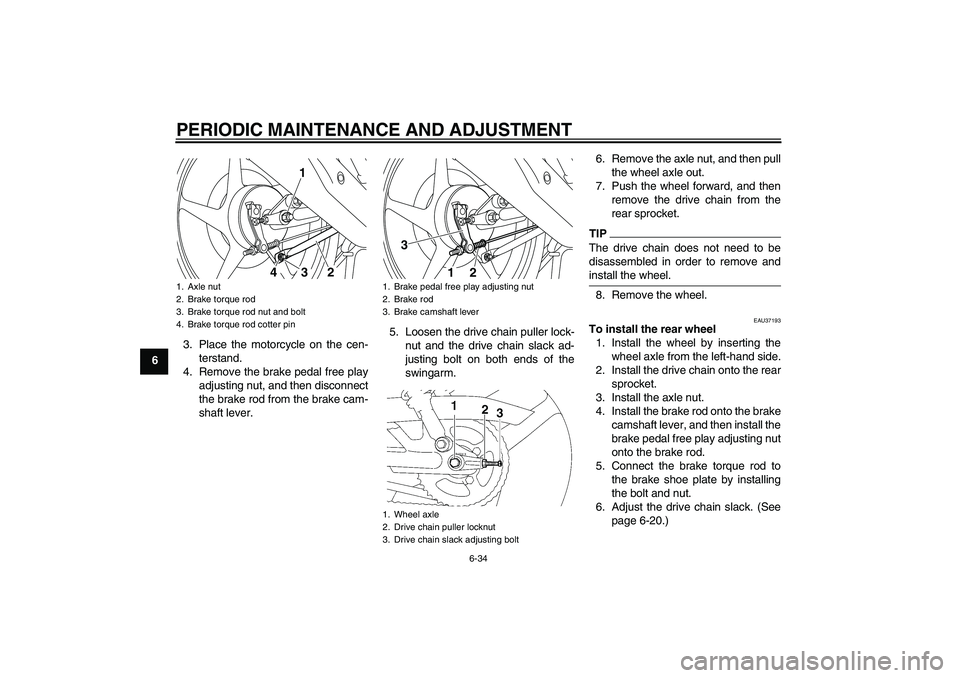

6-34
63. Place the motorcycle on the cen-
terstand.
4. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod from the brake cam-
shaft lever.5. Loosen the drive chain puller lock-
nut and the drive chain slack ad-
justing bolt on both ends of the
swingarm.6. Remove the axle nut, and then pull
the wheel axle out.
7. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
TIPThe drive chain does not need to be
disassembled in order to remove and
install the wheel.8. Remove the wheel.
EAU37193
To install the rear wheel
1. Install the wheel by inserting the
wheel axle from the left-hand side.
2. Install the drive chain onto the rear
sprocket.
3. Install the axle nut.
4. Install the brake rod onto the brake
camshaft lever, and then install the
brake pedal free play adjusting nut
onto the brake rod.
5. Connect the brake torque rod to
the brake shoe plate by installing
the bolt and nut.
6. Adjust the drive chain slack. (See
page 6-20.)
1. Axle nut
2. Brake torque rod
3. Brake torque rod nut and bolt
4. Brake torque rod cotter pin
13
2
4
1. Brake pedal free play adjusting nut
2. Brake rod
3. Brake camshaft lever
1. Wheel axle
2. Drive chain puller locknut
3. Drive chain slack adjusting bolt
3
1
2
U51DE0E0.book Page 34 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6 7. Take the motorcycle off the center-
stand so that the rear wheel is on
the ground, and then put the side-
stand down.
8. Tighten the brake torque rod nut
and axle nut to the specified
torques.
9. Insert a new cotter pin.
10. Adjust the brake pedal free play.
(See page 6-16.)
WARNING
EWA10660
After adjusting the brake pedal free
play, check the operation of the
brake light.
EAU25851
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from waterheaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
Tightening torques:
Brake torque rod nut:
19 Nm (1.9 m·kgf, 14 ft·lbf)
Axle nut:
80 Nm (8.0 m·kgf, 58 ft·lbf)
U51DE0E0.book Page 35 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
EAU45731
Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter
or the kickstarter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter
or the kickstarter.
U51DE0E0.book Page 36 Monday, November 2, 2009 10:34 AM

MOTORCYCLE CARE AND STORAGE
7-1
7
EAU37833
Matte color caution NOTICE
ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-
ished parts.
EAU26004
Care While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA10772


Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.


Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM

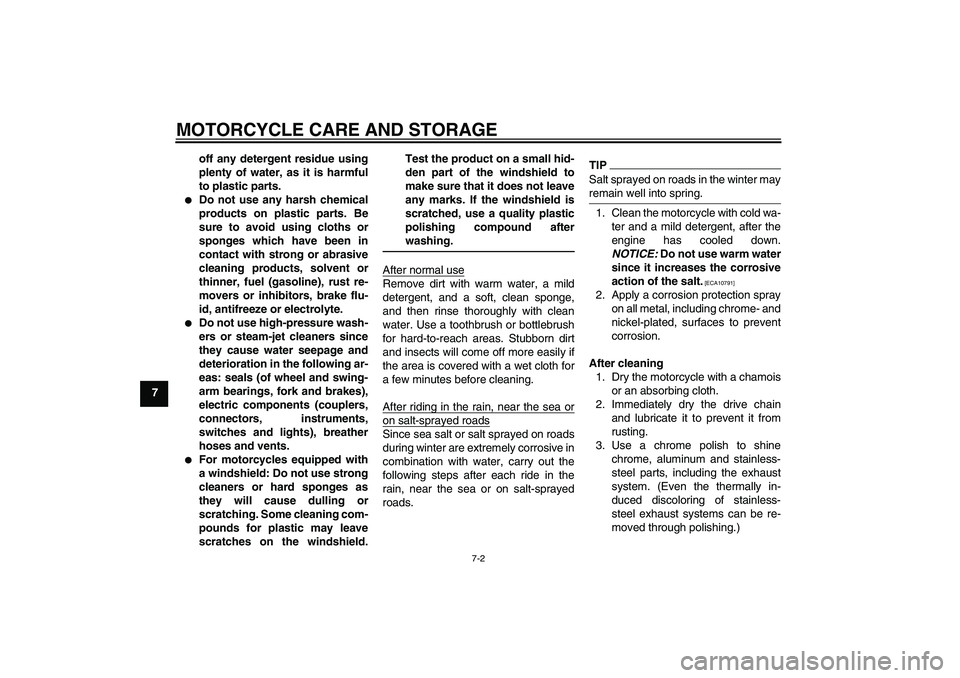

MOTORCYCLE CARE AND STORAGE
7-2
7off any detergent residue using
plenty of water, as it is harmful
to plastic parts.


Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.
TIPSalt sprayed on roads in the winter may
remain well into spring.1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
NOTICE: Do not use warm water
since it increases the corrosive
action of the salt.
[ECA10791]
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
U51DE0E0.book Page 2 Monday, November 2, 2009 10:34 AM
