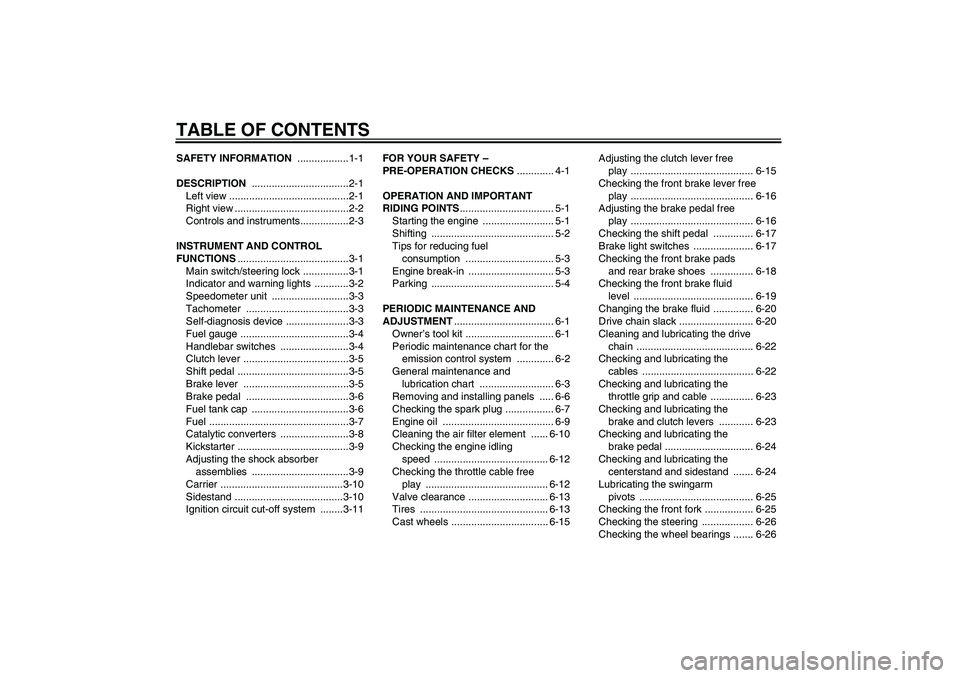

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator and warning lights ............3-2
Speedometer unit ...........................3-3
Tachometer ....................................3-3
Self-diagnosis device ......................3-3
Fuel gauge ......................................3-4
Handlebar switches ........................3-4
Clutch lever .....................................3-5
Shift pedal .......................................3-5
Brake lever .....................................3-5
Brake pedal ....................................3-6
Fuel tank cap ..................................3-6
Fuel .................................................3-7
Catalytic converters ........................3-8
Kickstarter .......................................3-9
Adjusting the shock absorber
assemblies ..................................3-9
Carrier ...........................................3-10
Sidestand ......................................3-10
Ignition circuit cut-off system ........3-11FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance chart for the
emission control system ............. 6-2
General maintenance and
lubrication chart .......................... 6-3
Removing and installing panels ..... 6-6
Checking the spark plug ................. 6-7
Engine oil ....................................... 6-9
Cleaning the air filter element ...... 6-10
Checking the engine idling
speed ........................................ 6-12
Checking the throttle cable free
play ........................................... 6-12
Valve clearance ............................ 6-13
Tires ............................................. 6-13
Cast wheels .................................. 6-15Adjusting the clutch lever free
play ........................................... 6-15
Checking the front brake lever free
play ........................................... 6-16
Adjusting the brake pedal free
play ........................................... 6-16
Checking the shift pedal .............. 6-17
Brake light switches ..................... 6-17
Checking the front brake pads
and rear brake shoes ............... 6-18
Checking the front brake fluid
level .......................................... 6-19
Changing the brake fluid .............. 6-20
Drive chain slack .......................... 6-20
Cleaning and lubricating the drive
chain ......................................... 6-22
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the
throttle grip and cable ............... 6-23
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
brake pedal ............................... 6-24
Checking and lubricating the
centerstand and sidestand ....... 6-24
Lubricating the swingarm
pivots ........................................ 6-25
Checking the front fork ................. 6-25
Checking the steering .................. 6-26
Checking the wheel bearings ....... 6-26U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM
Page 16 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3To unlock the steering
Insert the key and turn it to “OFF”.
EAU11004

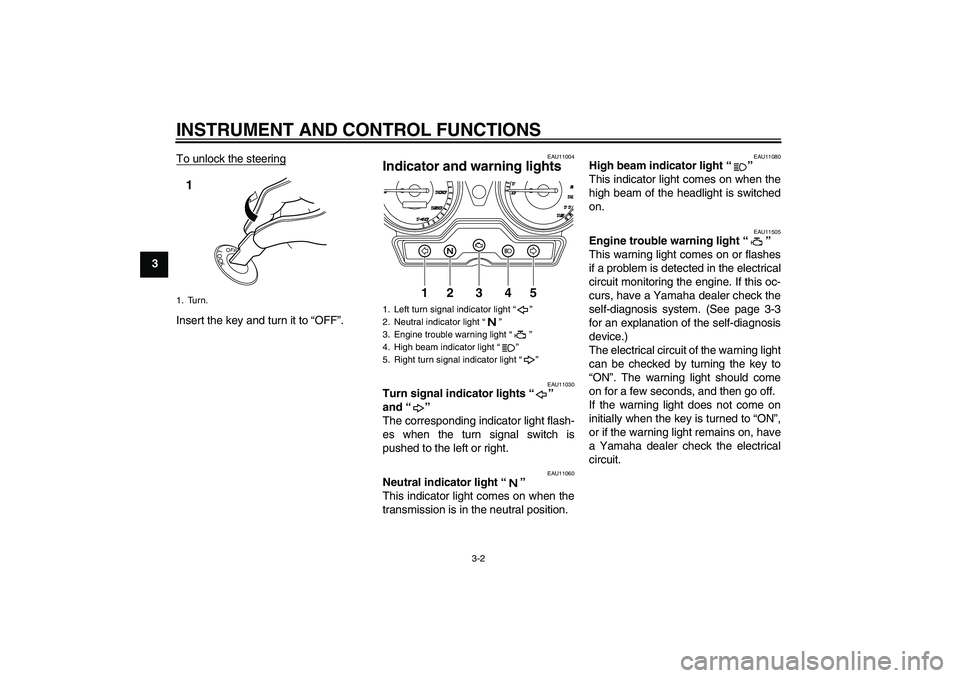

Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11505
Engine trouble warning light“”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-3
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
1. Turn.
LOCKOFF
1
1. Left turn signal indicator light“”
2. Neutral indicator light“”
3. Engine trouble warning light“”
4. High beam indicator light“”
5. Right turn signal indicator light“”
5
4
3
2
1
U51DE0E0.book Page 2 Monday, November 2, 2009 10:34 AM
Page 17 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU11630

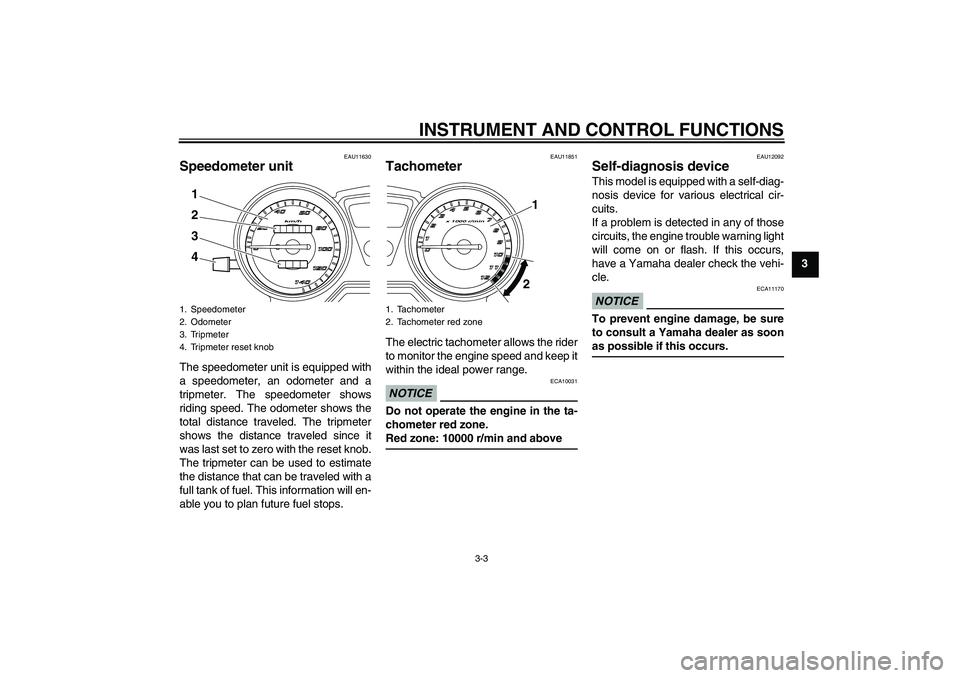

Speedometer unit The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
EAU11851
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 10000 r/min and above
EAU12092
Self-diagnosis device This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on or flash. If this occurs,
have a Yamaha dealer check the vehi-
cle.NOTICE
ECA11170
To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs.
1. Speedometer
2. Odometer
3. Tripmeter
4. Tripmeter reset knob
km/h
1234
1. Tachometer
2. Tachometer red zone
x 1000 r/min
1
2
U51DE0E0.book Page 3 Monday, November 2, 2009 10:34 AM
Page 29 of 80
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU45310
TIPThis model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. To start the engine after a
turnover, be sure to turn the main
switch to “OFF” and then to “ON”. Fail-
ing to do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
EAU43185

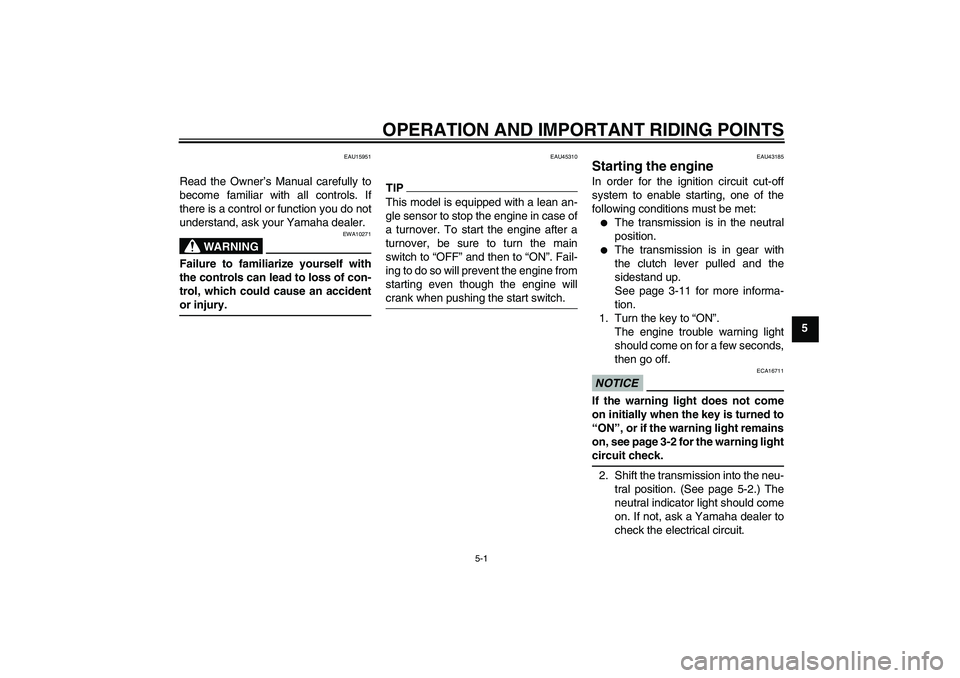

Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-11 for more informa-
tion.
1. Turn the key to “ON”.
The engine trouble warning light
should come on for a few seconds,
then go off.
NOTICE
ECA16711
If the warning light does not come
on initially when the key is turned to
“ON”, or if the warning light remains
on, see page 3-2 for the warning light
circuit check.2. Shift the transmission into the neu-
tral position. (See page 5-2.) The
neutral indicator light should come
on. If not, ask a Yamaha dealer to
check the electrical circuit.
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM
Page 31 of 80
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16810
Tips for reducing fuel con-
sumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:
Shift up swiftly, and avoid high en-
gine speeds during acceleration.
Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16830

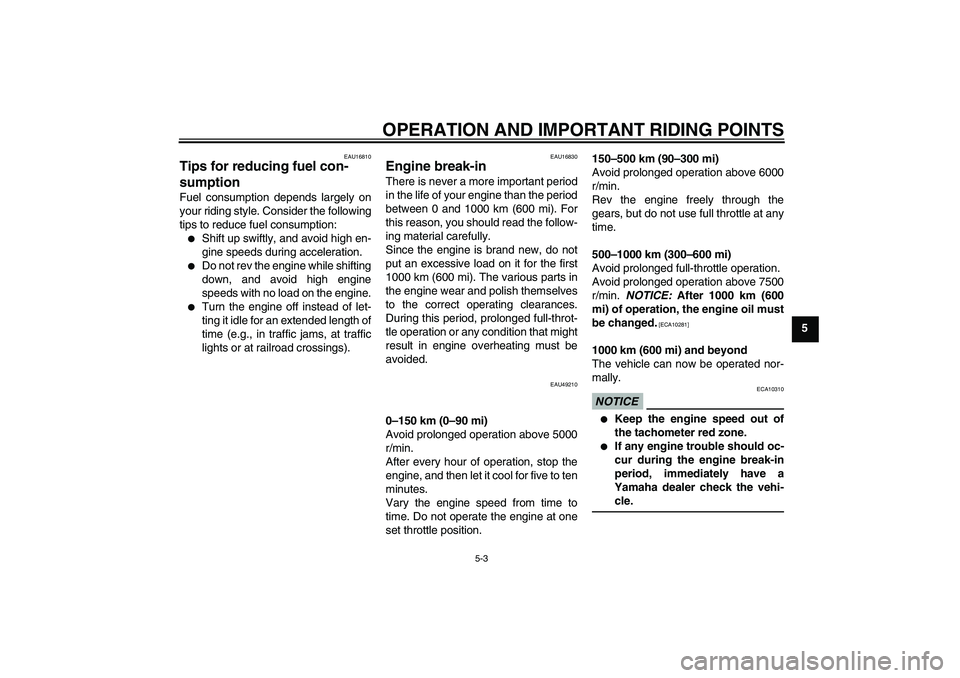

Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1000 km (600 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU49210
0–150 km (0–90 mi)
Avoid prolonged operation above 5000
r/min.
After every hour of operation, stop the
engine, and then let it cool for five to ten
minutes.
Vary the engine speed from time to
time. Do not operate the engine at one
set throttle position.150–500 km (90–300 mi)
Avoid prolonged operation above 6000
r/min.
Rev the engine freely through the
gears, but do not use full throttle at any
time.
500–1000 km (300–600 mi)
Avoid prolonged full-throttle operation.
Avoid prolonged operation above 7500
r/min. NOTICE: After 1000 km (600
mi) of operation, the engine oil must
be changed.
[ECA10281]
1000 km (600 mi) and beyond
The vehicle can now be operated nor-
mally.NOTICE
ECA10310
Keep the engine speed out of
the tachometer red zone.
If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-
cle.
U51DE0E0.book Page 3 Monday, November 2, 2009 10:34 AM
Page 37 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU18660
TIP
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.

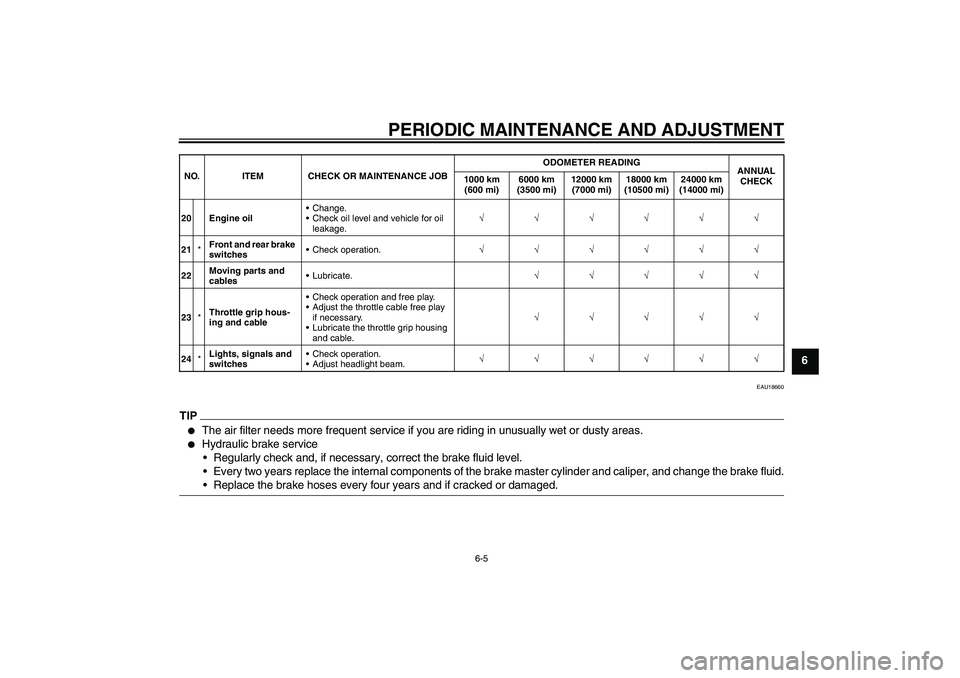

20 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
21*Front and rear brake
switchesCheck operation.√√√√√√
22Moving parts and
cablesLubricate.√√√√√
23*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
24*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U51DE0E0.book Page 5 Monday, November 2, 2009 10:34 AM
Page 40 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-8

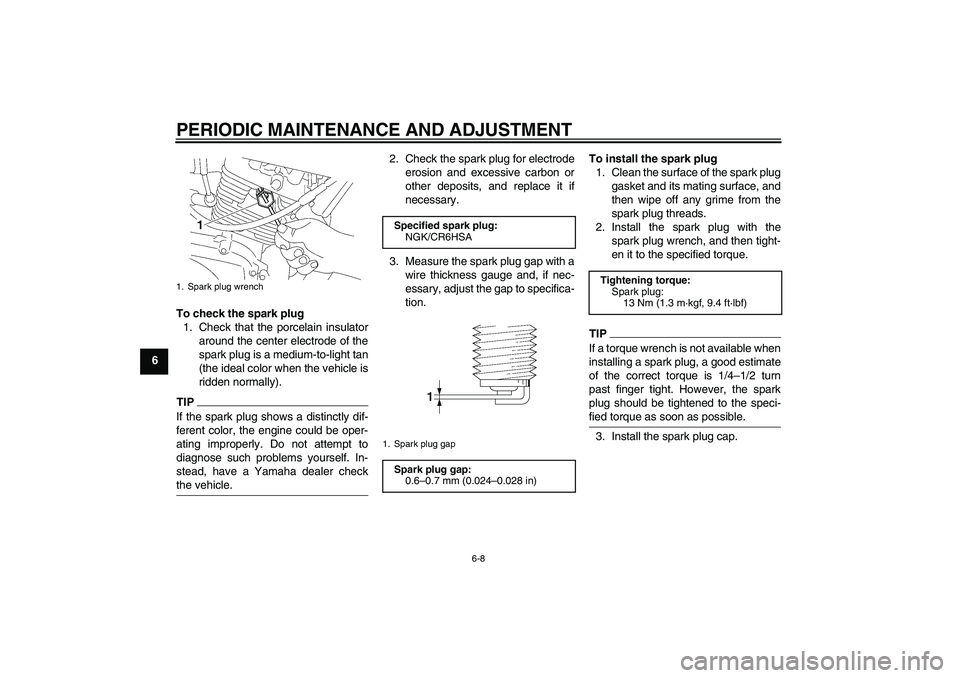

6To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.
2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
3. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.To install the spark plug
1. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
2. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.3. Install the spark plug cap.
1. Spark plug wrench
Specified spark plug:
NGK/CR6HSA1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
U51DE0E0.book Page 8 Monday, November 2, 2009 10:34 AM
Page 41 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
EAU37173
Engine oil The engine oil level should be checked
before each ride. In addition, the oil
must be changed at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center-
stand. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.
TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the engine oil
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap,
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
1. Engine oil filler cap
1. Engine oil dipstick
2. Maximum level mark
3. Minimum level mark
U51DE0E0.book Page 9 Monday, November 2, 2009 10:34 AM
Page 43 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11

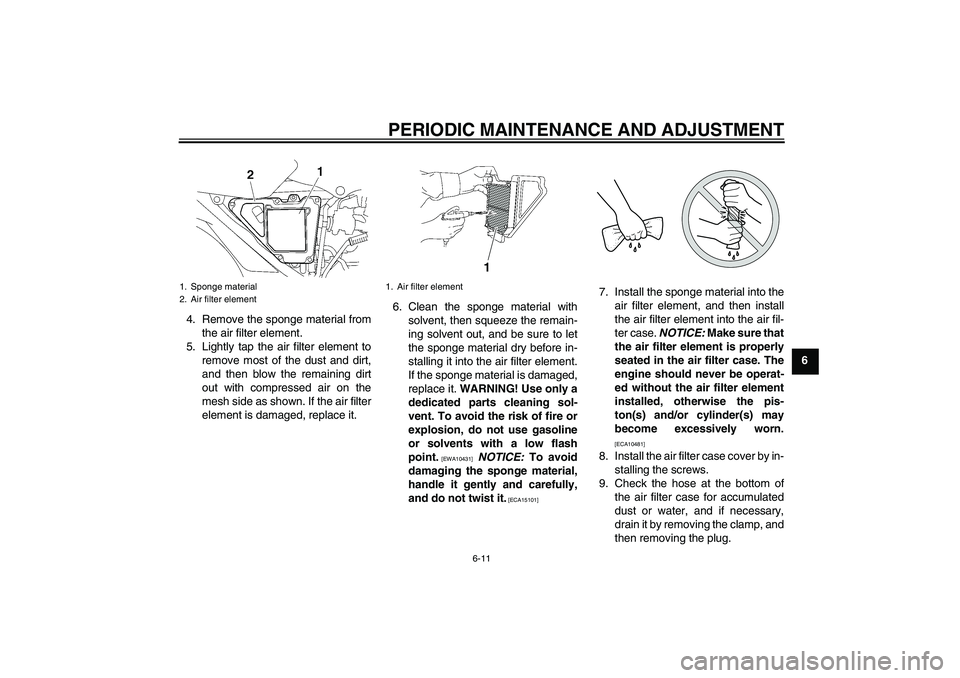

6 4. Remove the sponge material from
the air filter element.
5. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air on the
mesh side as shown. If the air filter
element is damaged, replace it.6. Clean the sponge material with
solvent, then squeeze the remain-
ing solvent out, and be sure to let
the sponge material dry before in-
stalling it into the air filter element.
If the sponge material is damaged,
replace it. WARNING! Use only a
dedicated parts cleaning sol-
vent. To avoid the risk of fire or
explosion, do not use gasoline
or solvents with a low flash
point.
[EWA10431]
NOTICE: To avoid
damaging the sponge material,
handle it gently and carefully,
and do not twist it.
[ECA15101]
7. Install the sponge material into the
air filter element, and then install
the air filter element into the air fil-
ter case. NOTICE: Make sure that
the air filter element is properly
seated in the air filter case. The
engine should never be operat-
ed without the air filter element
installed, otherwise the pis-
ton(s) and/or cylinder(s) may
become excessively worn.
[ECA10481]
8. Install the air filter case cover by in-
stalling the screws.
9. Check the hose at the bottom of
the air filter case for accumulated
dust or water, and if necessary,
drain it by removing the clamp, and
then removing the plug.
1. Sponge material
2. Air filter element
1. Air filter element
1
U51DE0E0.book Page 11 Monday, November 2, 2009 10:34 AM
Page 77 of 80
INDEX
AAir filter element, cleaning .................... 6-10
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-26
Brake and clutch levers, checking and
lubricating ........................................... 6-23
Brake fluid, changing ............................ 6-20
Brake fluid level, checking .................... 6-19
Brake lever ............................................. 3-5
Brake light switches .............................. 6-17
Brake pads and shoes, checking.......... 6-18
Brake pedal ............................................ 3-6
Brake pedal, checking and
lubricating ........................................... 6-24
Brake pedal free play, adjusting ........... 6-16CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Carrier................................................... 3-10
Catalytic converters ................................ 3-8
Centerstand and sidestand, checking
and lubricating .................................... 6-24
Clutch lever............................................. 3-5
Clutch lever free play, adjusting ........... 6-15DDimmer switch ........................................ 3-4
Drive chain, cleaning and lubricating .... 6-22
Drive chain slack .................................. 6-20EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-12
Engine oil ................................................ 6-9
Engine trouble warning light ................... 3-2
FFront brake lever free play, checking .... 6-16
Front fork, checking...............................6-25
Fuel ......................................................... 3-7
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-4
Fuel tank cap........................................... 3-6
Fuse, replacing...................................... 6-28HHandlebar switches ................................. 3-4
Headlight bulb, replacing....................... 6-29
High beam indicator light......................... 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-11
Indicator and warning lights .................... 3-2KKickstarter ............................................... 3-9MMain switch/steering lock ........................ 3-1
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Matte color, caution .................................7-1
Model label .............................................. 9-1NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-6
Parking ....................................................5-4
Part locations .......................................... 2-1SSafety information ...................................1-1
Self-diagnosis device .............................. 3-3Shifting .................................................... 5-2
Shift pedal ............................................... 3-5
Shift pedal, checking............................. 6-17
Shock absorber assemblies, adjusting ... 3-9
Sidestand .............................................. 3-10
Spark plug, checking .............................. 6-7
Specifications.......................................... 8-1
Speedometer unit ................................... 3-3
Starting the engine.................................. 5-1
Start switch ............................................. 3-4
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Swingarm pivots, lubricating ................. 6-25
TTachometer............................................. 3-3
Tail/brake light bulb, replacing .............. 6-30
Throttle cable free play, checking ......... 6-12
Throttle grip and cable, checking and
lubricating ........................................... 6-23
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-35
Troubleshooting chart ........................... 6-36
Turn signal indicator lights ...................... 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-4VValve clearance .................................... 6-13
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-26
Wheel (front) ......................................... 6-32
Wheel (rear) .......................................... 6-33
Wheels .................................................. 6-15
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM
