INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13002
Fuel tank cap To remove the fuel tank cap
Insert the key into the lock and turn it
1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be re-
moved.
To install the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, and then re-
move it.
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
WARNING
EWA11141
Make sure that the fuel tank cap is
properly installed before riding.
Leaking fuel is a fire hazard.
1. Brake pedal
1
1. Unlock.
1
U51DE0E0.book Page 6 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU36961
Panel B
To remove the panel1. Slide the panel lock cover open, in-
sert the key into the lock, and then
turn it 1/4 turn clockwise.
2. Pull the front of the panel out with
the key inserted in the lock, and
then slide the panel forward to re-
lease it in the rear.To install the panel
1. Secure the rear of the panel, and
then push the front of the panel in
with the key inserted in the lock.
2. While pushing the panel inward,
turn the key counterclockwise to
the original position, remove it, and
then close the panel lock cover.
EAU19604
Checking the spark plug The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.
1. Panel lock cover
2. Unlock.
1
2
1. Spark plug cap
U51DE0E0.book Page 7 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU23783

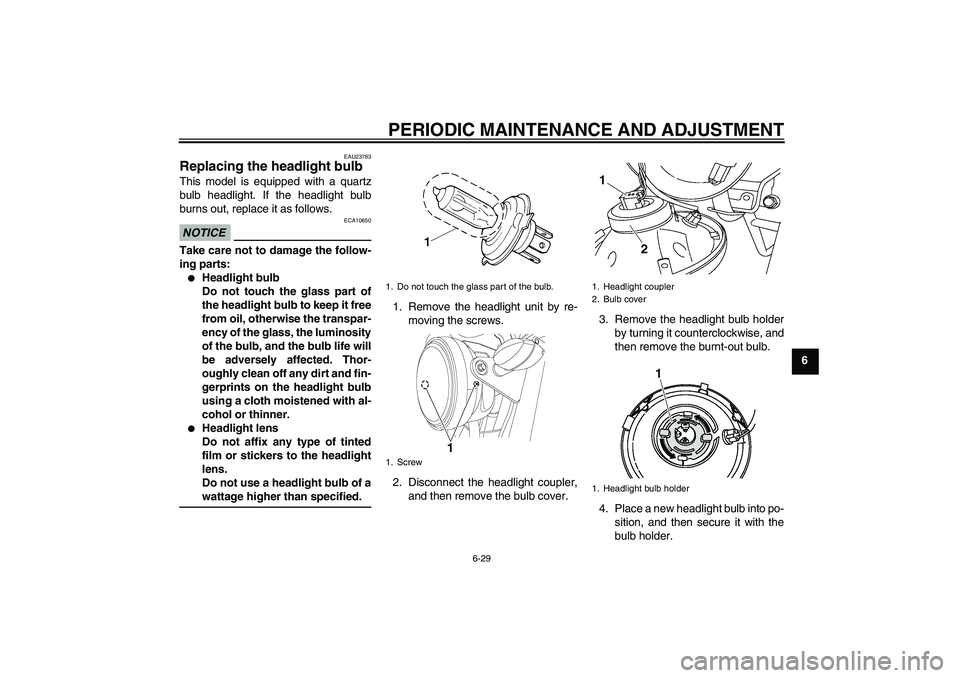

Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Remove the headlight unit by re-
moving the screws.
2. Disconnect the headlight coupler,
and then remove the bulb cover.3. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the burnt-out bulb.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.1. Do not touch the glass part of the bulb.
1. Screw
1
1. Headlight coupler
2. Bulb cover
1. Headlight bulb holder1
2
1
U51DE0E0.book Page 29 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30

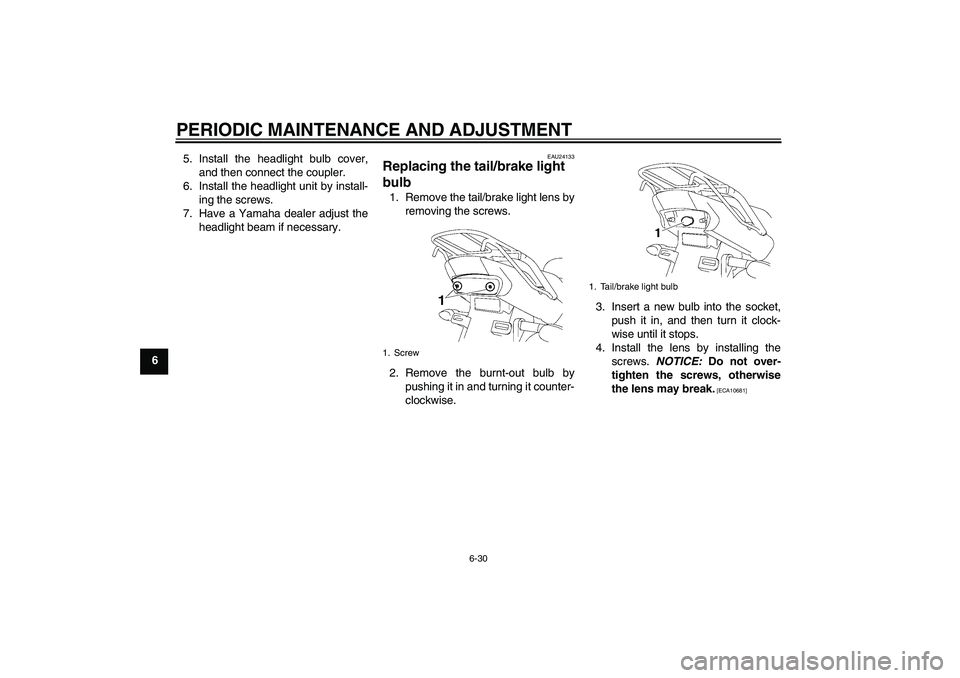

65. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24133
Replacing the tail/brake light
bulb 1. Remove the tail/brake light lens by
removing the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]
1. Screw
1. Tail/brake light bulb
U51DE0E0.book Page 30 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU24204

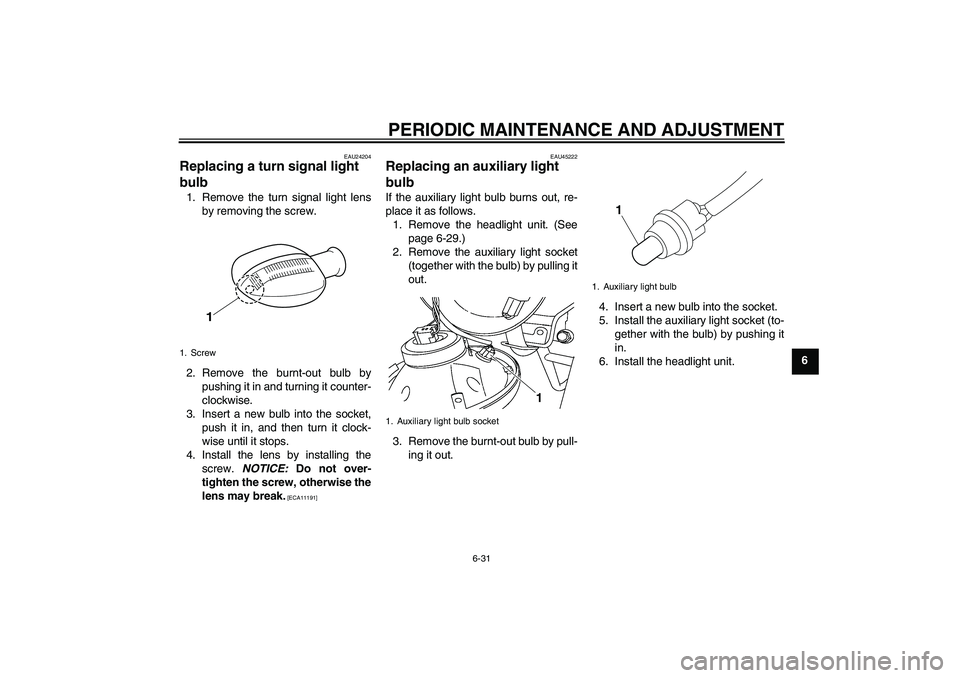

Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU45222
Replacing an auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit. (See
page 6-29.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling it
out.
3. Remove the burnt-out bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the headlight unit.
1. Screw
1
1. Auxiliary light bulb socket
1
1. Auxiliary light bulb
1
