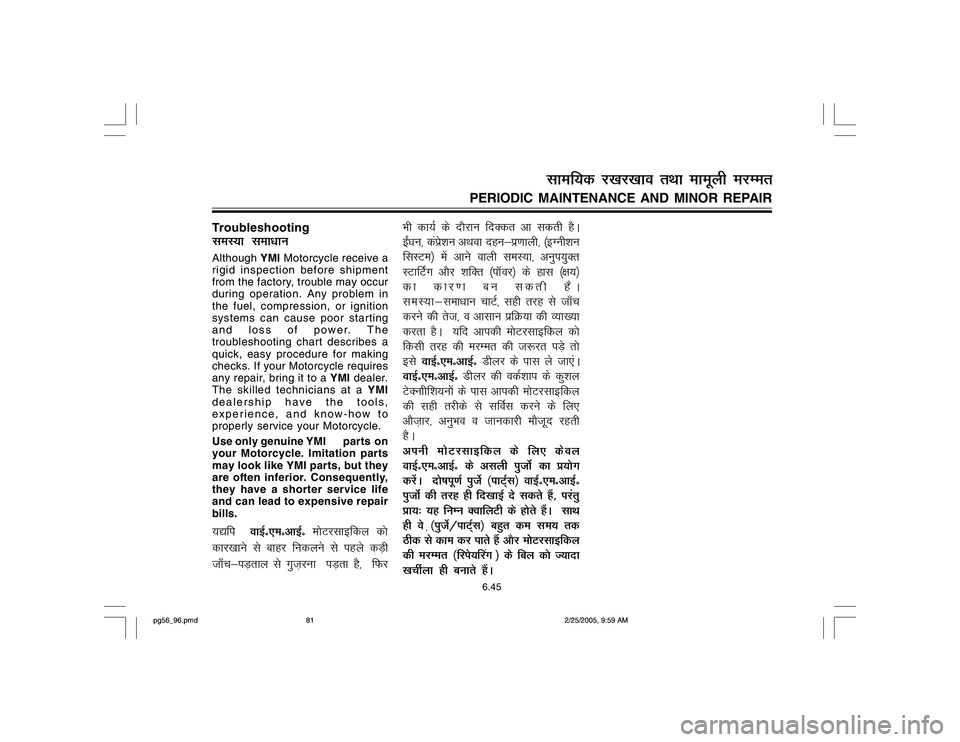

TroubleshootingleL;k lek/kkuAlthough YMI Motorcycle receive a
rigid inspection before shipment
from the factory, trouble may occur
during operation. Any problem in
the fuel, compression, or ignition
systems can cause poor starting
and loss of power. The
troubleshooting chart describes a
quick, easy procedure for making
checks. If your Motorcycle requires
any repair, bring it to a YMI dealer.
The skilled technicians at a YMI
dealership have the tools,
experience, and know-how to
properly service your Motorcycle.
Use only genuine YMI parts on
your Motorcycle. Imitation parts
may look like YMI parts, but they
are often inferior. Consequently,
they have a shorter service life
and can lead to expensive repair
bills.;|fi okbZñ,eñvkbZñ eksVjlkbfdy dks
dkj[kkus ls ckgj fudyus ls igys dM+h
tk¡p&iM+rky ls xqt+juk iM+rk gS] fQjHkh dk;Z ds nkSjku fnDdr vk ldrh gSA
b±/ku] daizs'ku vFkok ngu&iz.kkyh] ¼bXuh'ku
flLVe½ esa vkus okyh leL;k] vuqi;qDr
LVk²Vx vkSj 'kfDr ¼ikWoj½ ds àkl ¼{k;½
dk dkj.k cu ldrh gSA
leL;k&lek/kku pkVZ] lgh rjg ls tk¡p
djus dh rst] o vklku izfØ;k dh O;k[;k
djrk gSA ;fn vkidh eksVjlkbfdy dks
fdlh rjg dh ejEer dh t:jr iMs+ rks
bls okbZñ,eñvkbZñ Mhyj ds ikl ys tk,aA
okbZñ,eñvkbZñ Mhyj dh odZ'kki ds dq'ky
VsDukhf'k;uksa ds ikl vkidh eksVjlkbfdy
dh lgh rjhds ls l£ol djus ds fy,
vkSt+kj] vuqHko o tkudkjh ekStwn jgrh
gSA
viuh eksVjlkbfdy ds fy, dsoy
okbZñ,eñvkbZñ ds vlyh iqtksZa dk iz;ksx
djsaA nks"kiw.kZ iqtsZ ¼ikV~Zl½ okbZñ,eñvkbZñ
iqtksZa dh rjg gh fn[kkbZ ns ldrs gSa] ijarq
izk;% ;g fuEu DokfyVh ds gksrs gSaA lkFk
gh os +¼iqtsZ@ikV~Zl½ cgqr de le; rd
Bhd ls dke dj ikrs gSa vkSj ekssVjlkbfdy
dh ejEer ¼fjis;¯jx ½ ds fcy dks T;knk
[kphZyk gh cukrs gSaA
6.45
PERIODIC MAINTENANCE AND MINOR REPAIR
lkef;d j[kj[kko rFkk ekewyh ejEer
pg56_96.pmd2/25/2005, 9:59 AM 81

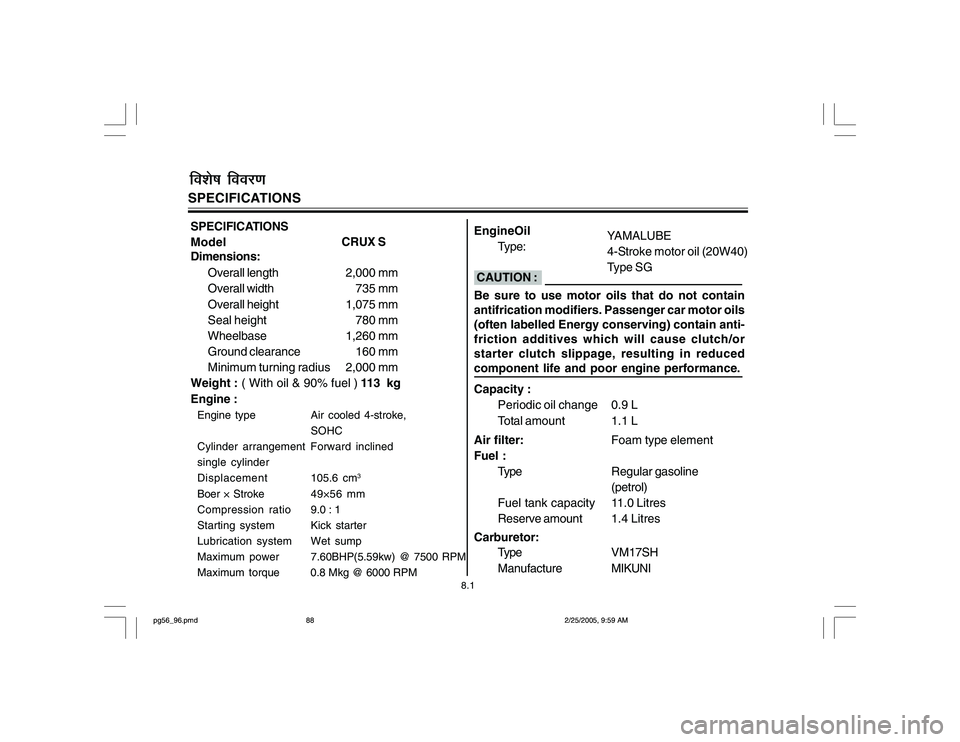

SPECIFICATIONS
ModelCRUX S
Dimensions:
Overall length2,000 mm
Overall width 735 mm
Overall height1,075 mm
Seal height 780 mm
Wheelbase1,260 mm
Ground clearance160 mm
Minimum turning radius 2,000 mm
Weight : ( With oil & 90% fuel ) 113 kg
Engine :Engine type Air cooled 4-stroke,
SOHC
Cylinder arrangement Forward inclined
single cylinder
Displacement105.6 cm
3
Boer × Stroke49×56 mm
Compression ratio9.0 : 1
Starting systemKick starter
Lubrication systemWet sump
Maximum power7.60BHP(5.59kw) @ 7500 RPM
Maximum torque 0.8 Mkg @ 6000 RPM
EngineOil
Type:
CAUTION :
Be sure to use motor oils that do not contain
antifrication modifiers. Passenger car motor oils
(often labelled Energy conserving) contain anti-
friction additives which will cause clutch/or
starter clutch slippage, resulting in reduced
component life and poor engine performance.
Capacity :
Periodic oil change 0.9 L
Total amount 1.1 L
Air filter:Foam type element
Fuel :
Type Regular gasoline
(petrol)
Fuel tank capacity 11.0 Litres
Reserve amount1.4 Litres
Carburetor:
Type VM17SH
ManufactureMIKUNI
SPECIFICATIONSfo'ks"k fooj.k
8.1
YAMALUBE
4-Stroke motor oil (20W40)
Type SG
pg56_96.pmd2/25/2005, 9:59 AM 88

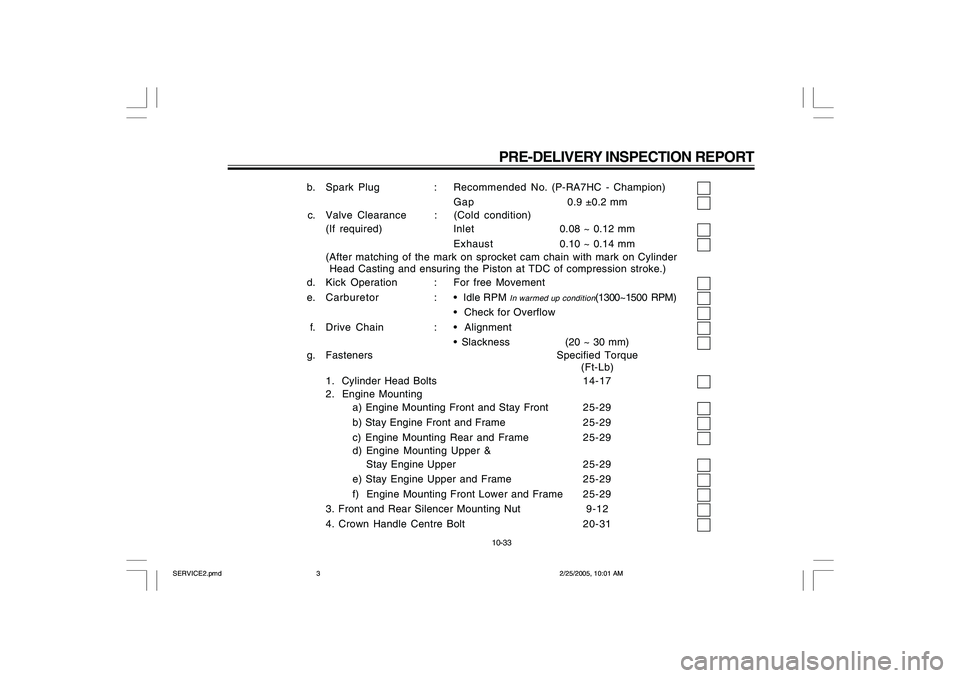

b. Spark Plug :Recommended No. (P-RA7HC - Champion)
Gap 0.9 ±0.2 mm
c. Valve Clearance : (Cold condition)
(If required)Inlet0.08 ~ 0.12 mm
Exhaust0.10 ~ 0.14 mm
(After matching of the mark on sprocket cam chain with mark on Cylinder
Head Casting and ensuring the Piston at TDC of compression stroke.)
d. Kick Operation :For free Movement
e. Carburetor :  Idle RPM
In warmed up condition
(1300~1500 RPM)
 Check for Overflow
f. Drive Chain :  Alignment
 Slackness (20 ~ 30 mm)
g. Fasteners Specified Torque
(Ft-Lb)
1. Cylinder Head Bolts14-17
2. Engine Mounting
a) Engine Mounting Front and Stay Front25-29
b) Stay Engine Front and Frame25-29c) Engine Mounting Rear and Frame25-29d) Engine Mounting Upper &
Stay Engine Upper25-29e) Stay Engine Upper and Frame25-29f) Engine Mounting Front Lower and Frame25-29
3. Front and Rear Silencer Mounting Nut9-124. Crown Handle Centre Bolt20-31
PRE-DELIVERY INSPECTION REPORT10-33
