YAMAHA YD110 2007 Owners Manual

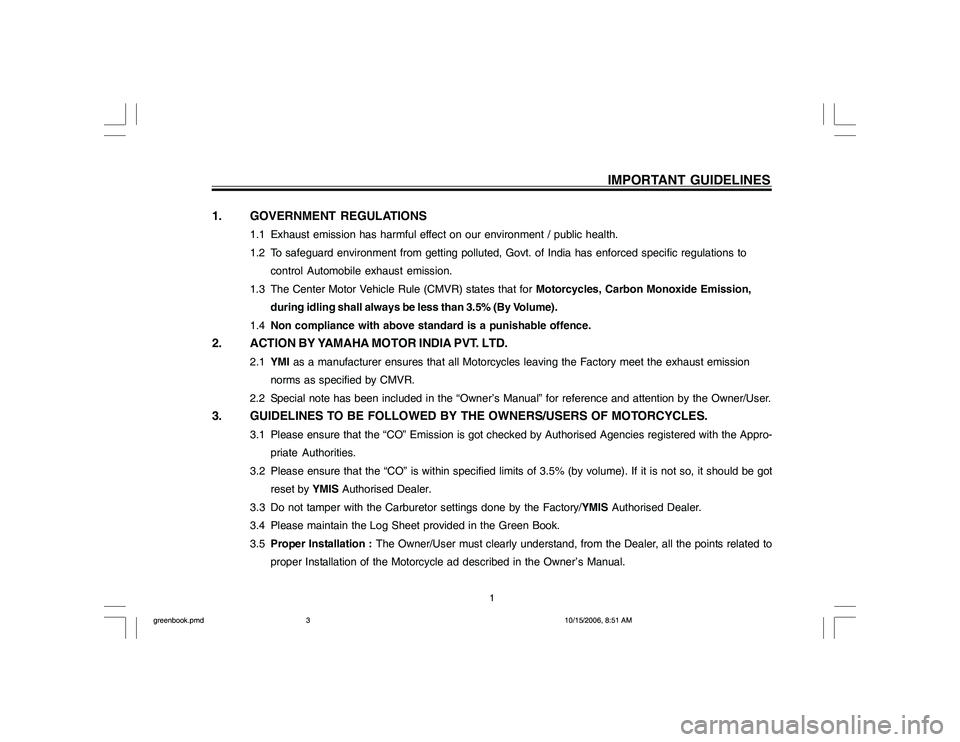

IMPORTANT GUIDELINES
1. GOVERNMENT REGULATIONS
1.1 Exhaust emission has harmful effect on our environment / public health.
1.2 To safeguard environment from getting polluted, Govt. of India has enforced specific regulations to
control Automobile exhaust emission.
1.3 The Center Motor Vehicle Rule (CMVR) states that for Motorcycles, Carbon Monoxide Emission,
during idling shall always be less than 3.5% (By Volume).
1.4Non compliance with above standard is a punishable offence.
2. ACTION BY YAMAHA MOTOR INDIA PVT. LTD.
2.1YMI as a manufacturer ensures that all Motorcycles leaving the Factory meet the exhaust emission
norms as specified by CMVR.
2.2 Special note has been included in the “Owner’s Manual” for reference and attention by the Owner/User.
3. GUIDELINES TO BE FOLLOWED BY THE OWNERS/USERS OF MOTORCYCLES.
3.1 Please ensure that the “CO” Emission is got checked by Authorised Agencies registered with the Appro-
priate Authorities.
3.2 Please ensure that the “CO” is within specified limits of 3.5% (by volume). If it is not so, it should be got
reset by YMIS Authorised Dealer.
3.3 Do not tamper with the Carburetor settings done by the Factory/YMIS Authorised Dealer.
3.4 Please maintain the Log Sheet provided in the Green Book.
3.5Proper Installation : The Owner/User must clearly understand, from the Dealer, all the points related to
proper Installation of the Motorcycle ad described in the Owner’s Manual.
1
greenbook.pmd10/15/2006, 8:51 AM 3

3.6 KEEP OUR ENVIRONMENT CLEAN.
Please follow simple steps
DO’S ()

1Always use genuine ‘spare parts’ purchased from YMIS Authorised Dealers.

2Always use only genuine oils
• 4T - 20W/40 SG grade - YAMALUBE 4T

3 Always keep your engine well turned. Save environment and also improve Fuel Efficiency

4 • ALWAYS GET YOUR MOTORCYCLE REPAIRED AND MAINTAINED ONLY AT YMIS AUTHORISED
DEALER.
• YMIS serves you through a wide network of Authorised Dealers.

5.Check the Following at every scheduled service:-
a) Spark Plug : Check/Reset Gap/Replace as per the recommendations
in this Owner’s Manual (page no 6-7)
b) Carburetor :Cleaning/Adjustment Every 4500 kmsc) Air Filter : Clean every 2000 kms as per the environment conditions.
d) Piston/Rings/Cylinder : Check / Clean / Replace if necessary
e) Exhaust System : Check / Replace if necessary
f) Valve Timing : Check / Adjust every 4500 kms
g) Compression pressure : Check / Diagnose.

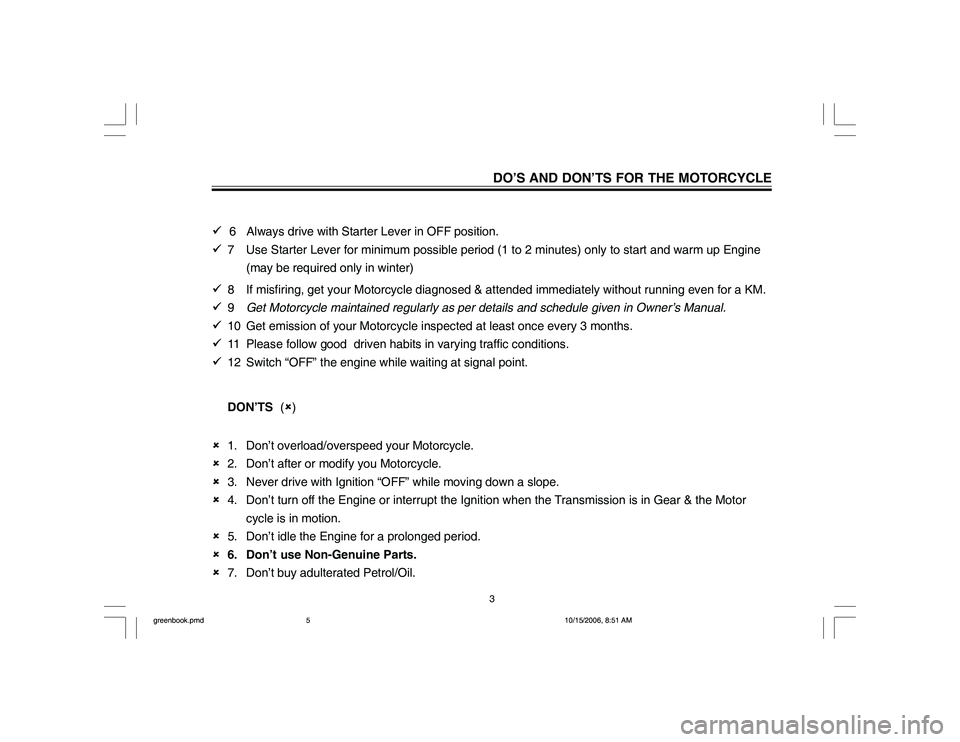

DO’S AND DON’TS FOR THE MOTORCYCLE
2
greenbook.pmd10/15/2006, 8:51 AM 4

DO’S AND DON’TS FOR THE MOTORCYCLE
6 Always drive with Starter Lever in OFF position.
7 Use Starter Lever for minimum possible period (1 to 2 minutes) only to start and warm up Engine
(may be required only in winter)
8 If misfiring, get your Motorcycle diagnosed & attended immediately without running even for a KM.
9Get Motorcycle maintained regularly as per details and schedule given in Owner’s Manual.
10 Get emission of your Motorcycle inspected at least once every 3 months.
11 Please follow good driven habits in varying traffic conditions.
12 Switch “OFF” the engine while waiting at signal point.
DON’TS ()
1. Don’t overload/overspeed your Motorcycle.
2. Don’t after or modify you Motorcycle.
3. Never drive with Ignition “OFF” while moving down a slope.
4. Don’t turn off the Engine or interrupt the Ignition when the Transmission is in Gear & the Motor
cycle is in motion.
5. Don’t idle the Engine for a prolonged period.
6. Don’t use Non-Genuine Parts.
7. Don’t buy adulterated Petrol/Oil.
3
greenbook.pmd10/15/2006, 8:51 AM 5

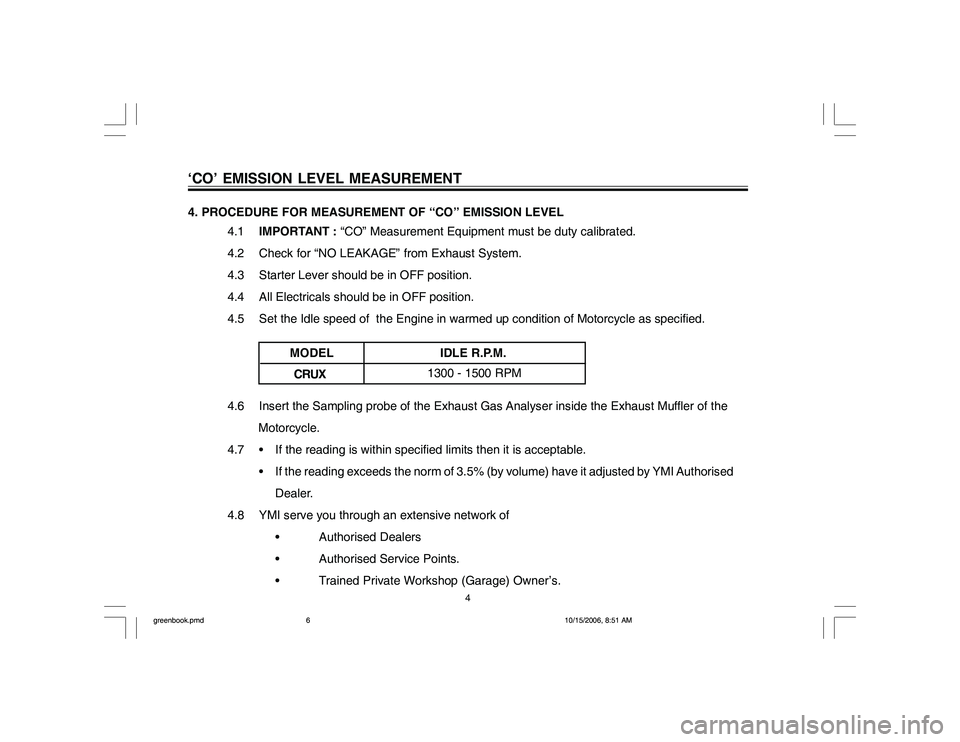

4. PROCEDURE FOR MEASUREMENT OF “CO” EMISSION LEVEL
4.1IMPORTANT : “CO” Measurement Equipment must be duty calibrated.
4.2 Check for “NO LEAKAGE” from Exhaust System.
4.3 Starter Lever should be in OFF position.
4.4 All Electricals should be in OFF position.
4.5 Set the Idle speed of the Engine in warmed up condition of Motorcycle as specified.
4.6 Insert the Sampling probe of the Exhaust Gas Analyser inside the Exhaust Muffler of the
Motorcycle.
4.7 • If the reading is within specified limits then it is acceptable.
• If the reading exceeds the norm of 3.5% (by volume) have it adjusted by YMI Authorised
Dealer.
4.8 YMI serve you through an extensive network of
• Authorised Dealers
• Authorised Service Points.
• Trained Private Workshop (Garage) Owner’s.‘CO’ EMISSION LEVEL MEASUREMENT
4
MODELIDLE R.P.M.
1300 - 1500 RPM
CRUX
greenbook.pmd10/15/2006, 8:51 AM 6

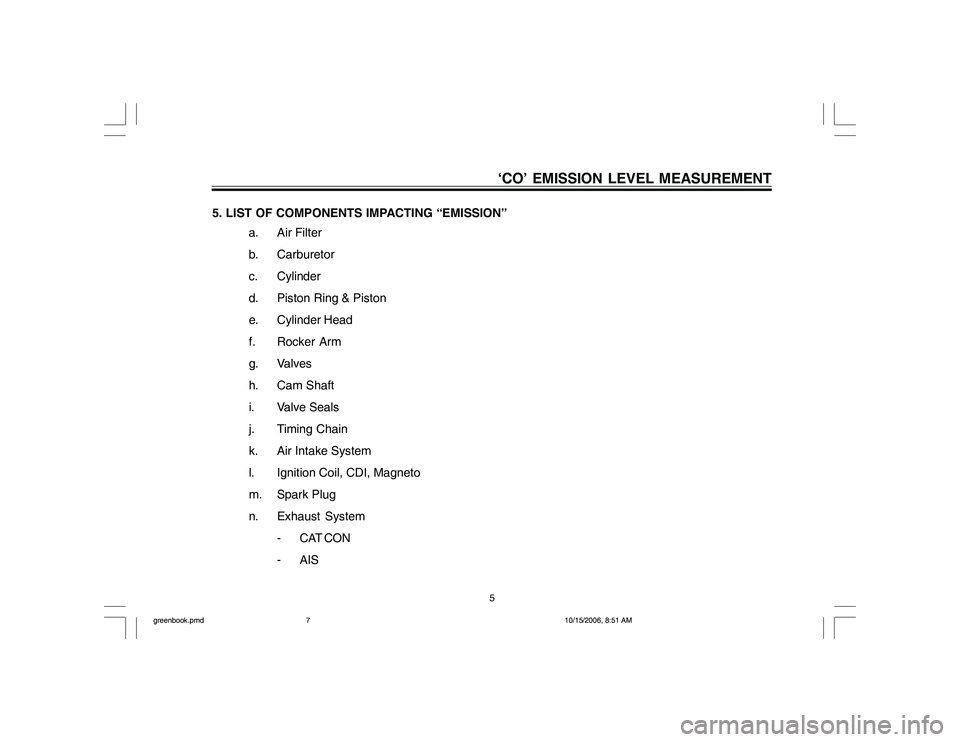

5. LIST OF COMPONENTS IMPACTING “EMISSION”
a. Air Filter
b. Carburetor
c. Cylinder
d. Piston Ring & Piston
e. Cylinder Head
f. Rocker Arm
g. Valves
h. Cam Shaft
i. Valve Seals
j. Timing Chain
k. Air Intake System
l. Ignition Coil, CDI, Magneto
m. Spark Plug
n. Exhaust System
- C AT C O N
- AIS
‘CO’ EMISSION LEVEL MEASUREMENT5
greenbook.pmd10/15/2006, 8:51 AM 7

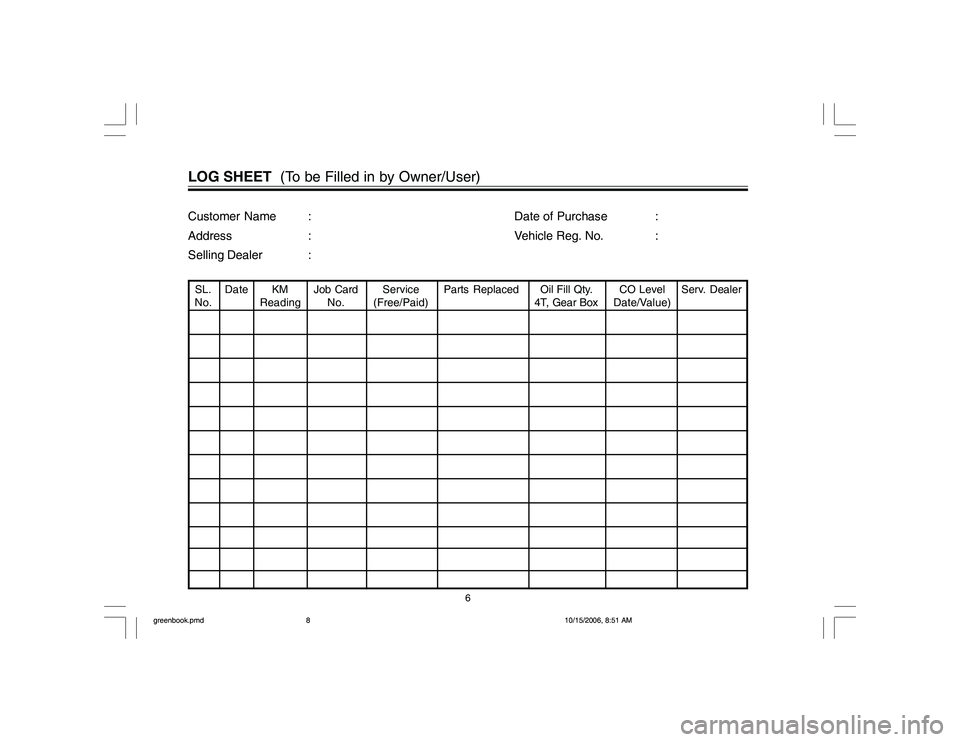

Customer Name : Date of Purchase :
Address : Vehicle Reg. No. :
Selling Dealer :SL.
No.Date KM
ReadingJob Card
No.Service
(Free/Paid)Parts Replaced Oil Fill Qty.
4T, Gear BoxCO Level
Date/Value)Serv. DealerLOG SHEET (To be Filled in by Owner/User)
6
greenbook.pmd10/15/2006, 8:51 AM 8

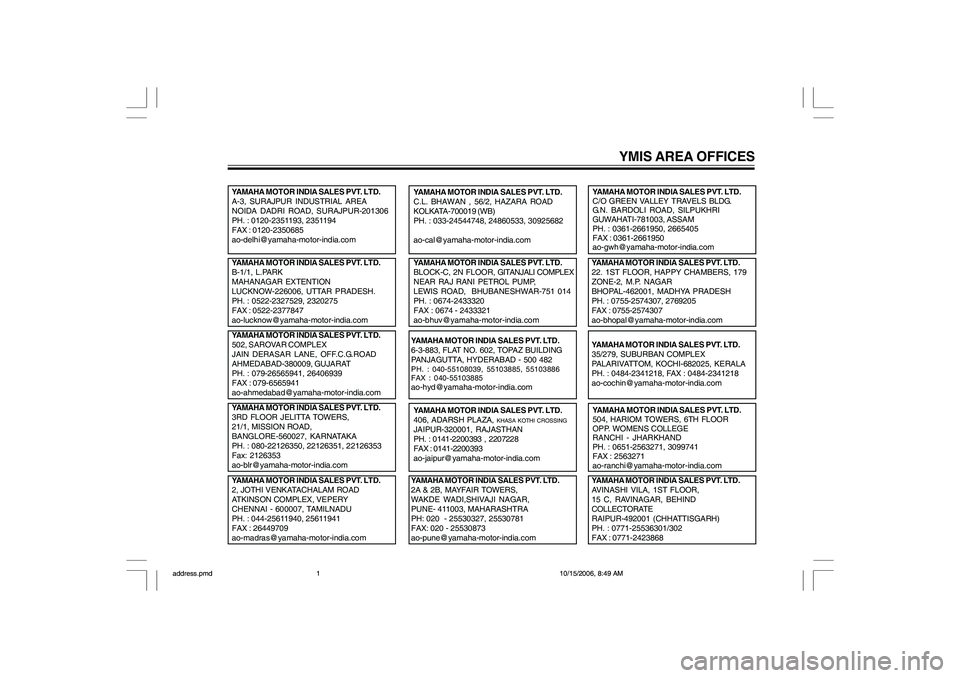

YMIS AREA OFFICES
