YAMAHA YFM250R 2013 Owners Manual
Manufacturer: YAMAHA, Model Year: 2013, Model line: YFM250R, Model: YAMAHA YFM250R 2013Pages: 136, PDF Size: 3.44 MB
Page 91 of 136

8-12
8
6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
To change the engine oil (with or without oil fil-
ter element replacement) 1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min- utes, and then turn it off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap, and then re- move the engine oil drain bolt and its gasket to
drain the oil from the crankcase.
TIPSkip steps 5–7 if the oil filter element is not being
replaced.5. Remove the oil filter element cover by remov-ing the bolts, and then remove the oil filter el-
ement and the O-rings.

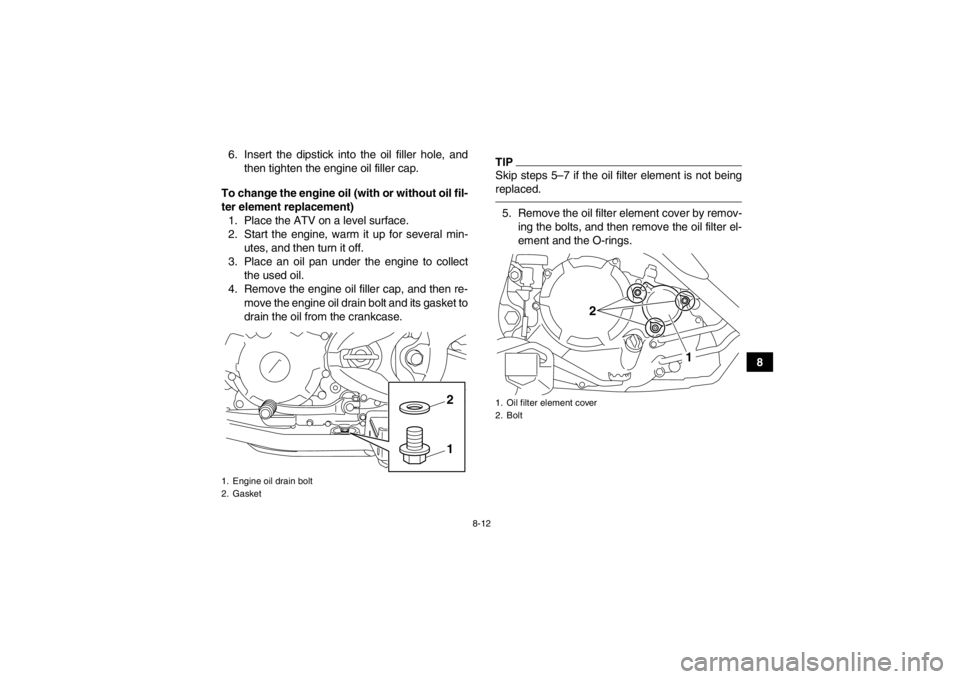

1. Engine oil drain bolt
2. Gasket
12
1. Oil filter element cover
2. Bolt
1
2
U1BT63E0.book Page 12 Friday, March 9, 2012 11:22 AM
Page 92 of 136

8-13
86. Install a new oil filter element and new O-
rings.
TIPMake sure that the O-rings are properly seated.7. Install the oil filter element cover by installingthe bolts, and then tighten them to the speci-
fied torque. 8. Install the engine oil drain bolt and its new
gasket, and then tighten the bolt to the speci-
fied torque.
9. Refill with the specified amount of the recom- mended engine oil, and then install and tight-
en the engine oil filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.

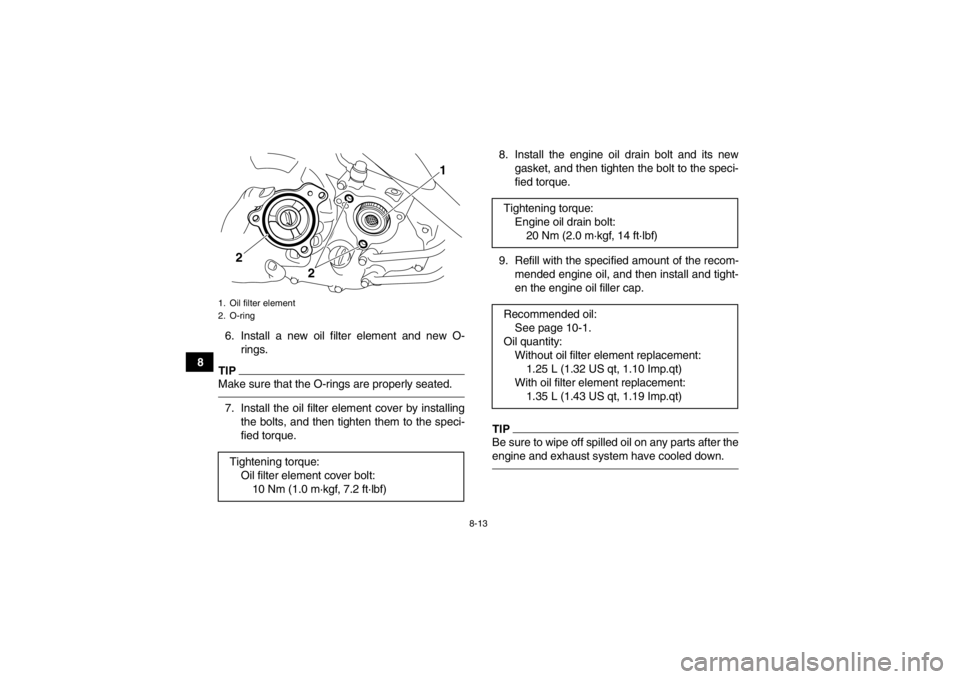

1. Oil filter element
2. O-ringTightening torque:Oil filter element cover bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
2 2
Tightening torque:Engine oil drain bolt:20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended oil: See page 10-1.
Oil quantity: Without oil filter element replacement:1.25 L (1.32 US qt, 1.10 Imp.qt)
With oil filter element replacement: 1.35 L (1.43 US qt, 1.19 Imp.qt)
U1BT63E0.book Page 13 Friday, March 9, 2012 11:22 AM
Page 93 of 136

8-14
8
NOTICEECB00300●In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.●Make sure that no foreign material enters the
crankcase.10. Start the engine, and then let it idle for severalminutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
11. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.EBU23707Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.
TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-11.)

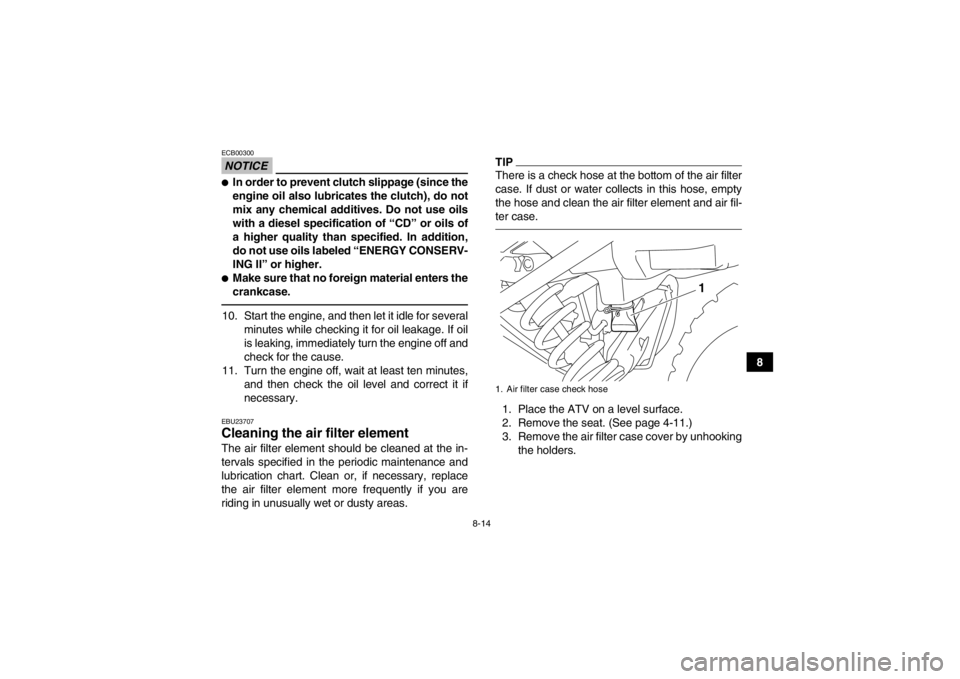

3. Remove the air filter case cover by unhookingthe holders.1. Air filter case check hose
1
U1BT63E0.book Page 14 Friday, March 9, 2012 11:22 AM
Page 94 of 136

8-15
84. Loosen the wing bolt.
5. Remove the air filter element together with the
wing bolt and washer. 6. Remove the wing bolt and washer from the air
filter element.
7. Remove the sponge material from the air filter element frame.

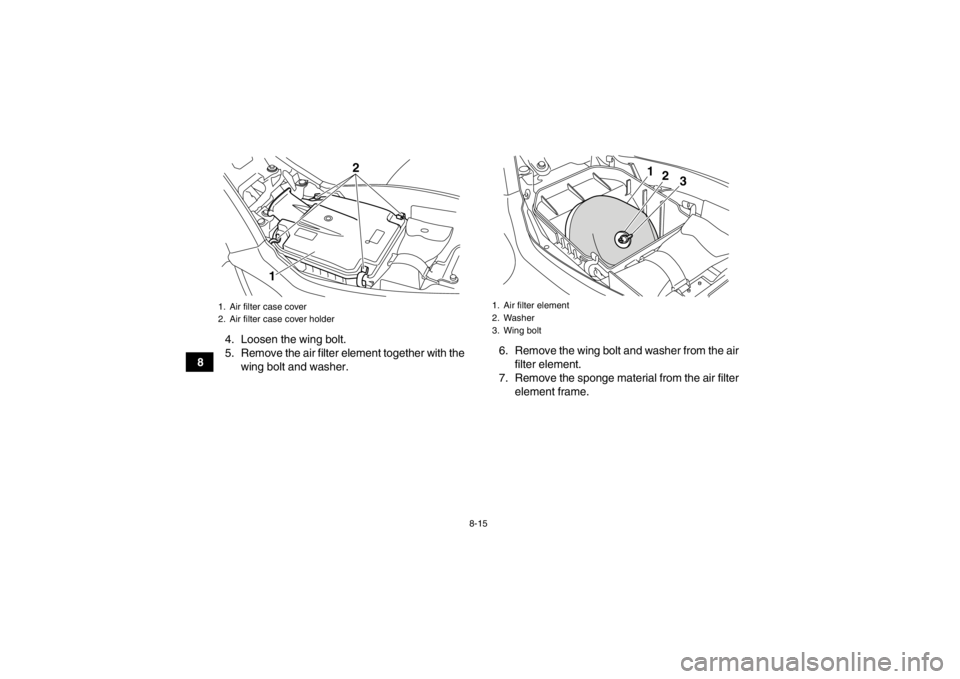

1. Air filter case cover
2. Air filter case cover holder
1 2
1. Air filter element
2. Washer
3. Wing bolt
3
1
2
U1BT63E0.book Page 15 Friday, March 9, 2012 11:22 AM
Page 95 of 136

8-16
8
8. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01941]
9. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do not twist
the sponge material when squeezing it.
[ECB00441]
10. Check the sponge material and replace it if damaged.
11. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.TIPThe sponge material should be wet but not drip-
ping.12. Pull the sponge material over the air filter ele-ment frame.
13. Apply all-purpose grease to the air filter ele- ment seat.

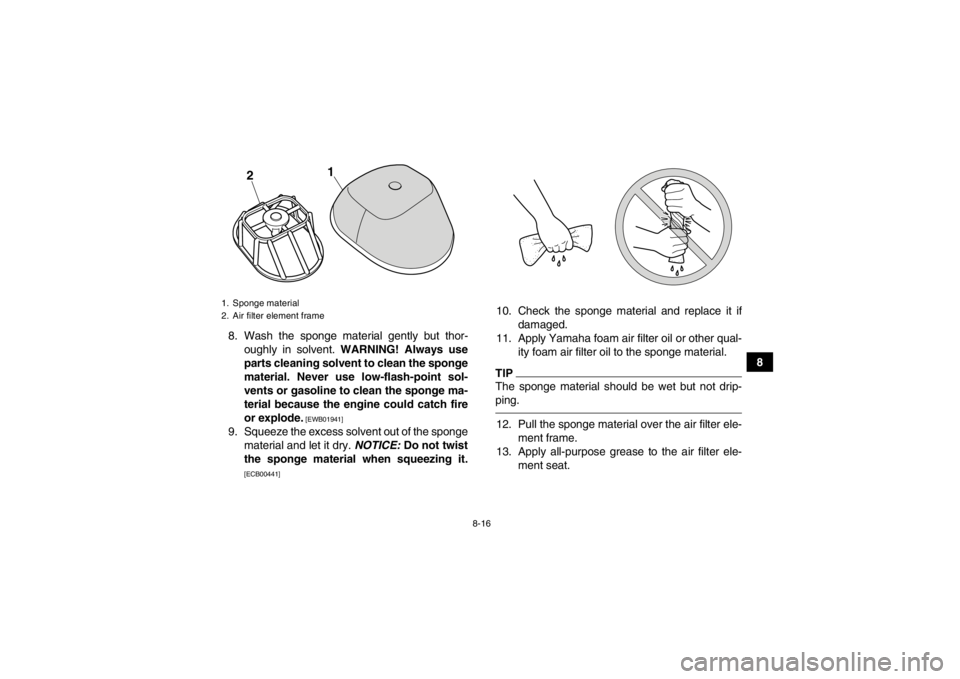

1. Sponge material
2. Air filter element frame
1
2
U1BT63E0.book Page 16 Friday, March 9, 2012 11:22 AM
Page 96 of 136

8-17
814. Install the washer onto the air filter element
frame, and then insert the wing bolt into the
hole in the air filter element frame. NOTICE:
Be sure to install the washer with its
curved side facing outward as shown.
[ECB00453]
15. Insert the air filter element into the air filtercase, and then tighten the wing bolt. NOTICE:
Make sure that the air filter element is
properly seated in the air filter case. Never
operate the engine with the air filter ele-
ment removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addi-
tionally, operation without the air filter ele-
ment will affect carburetor jetting with
subsequent poor performance and possi-
ble engine overheating.
[ECB00461]
16. Install the air filter case cover by hooking the holders onto the air filter case.

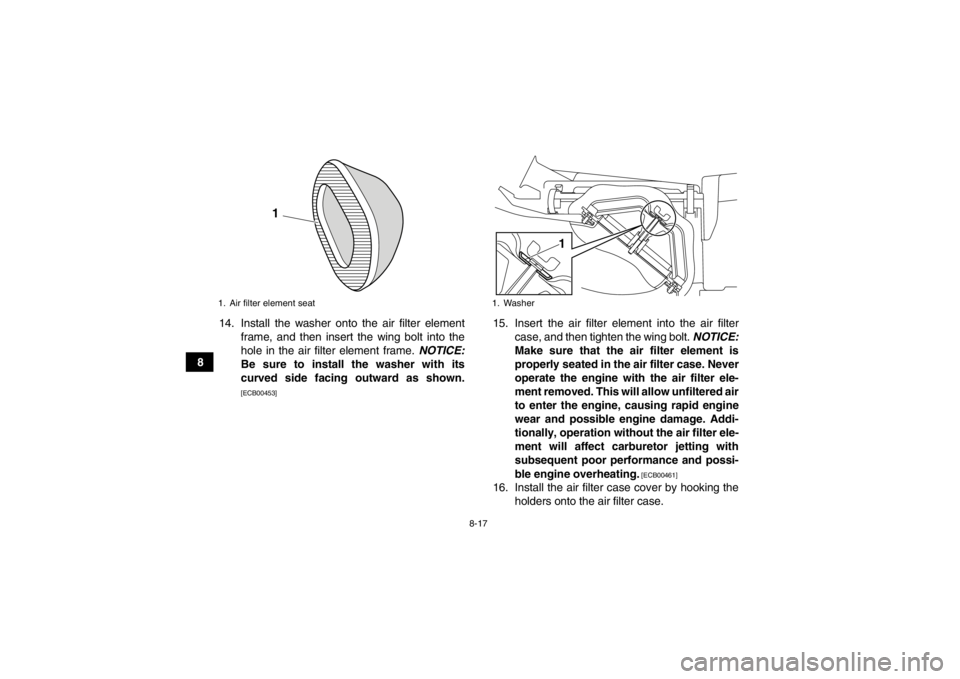

1. Air filter element seat
1
1. Washer
1
U1BT63E0.book Page 17 Friday, March 9, 2012 11:22 AM
Page 97 of 136

8-18
8
17. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfiltered
air entering the engine.EBU28903Cleaning the spark arrester Be sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the tailpipe bolts. 2. Remove the tailpipe by pulling it out of the
muffler, and then remove the gasket.
3. Tap the tailpipe lightly, and then use a wire brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.
1. Tailpipe bolt
2. Tailpipe
2
1 1
U1BT63E0.book Page 18 Friday, March 9, 2012 11:22 AM
Page 98 of 136

8-19
84. Check the gasket for damage, and replace it if
necessary.
5. Make sure the gasket is properly positioned, then insert the tailpipe into the muffler and
align the bolt holes. 6. Install the bolts and tighten them to the speci-
fied torque.
WARNING
EWB02340Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
1. Tailpipe
2. Spark arrester
21
1. Gasket
2. Tailpipe
3. Tailpipe boltTightening torque:Tailpipe bolt:11 Nm (1.1 m·kgf, 8.0 ft·lbf)
1
2
3 3
U1BT63E0.book Page 19 Friday, March 9, 2012 11:22 AM
Page 99 of 136

8-20
8
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior to
touching exhaust components.
EBU23940Adjusting the carburetor The carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. Therefore,
most carburetor adjustments should be left to a
Yamaha dealer, who has the necessary profes- sional knowledge and experience. The adjustment
described in the following section, however, may
be performed by the owner as part of routine main-
tenance.NOTICEECB00480The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowl-
edge may result in poor performance of or
damage to the engine.
EBU24000Adjusting the engine idling speed The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.TIPA diagnostic tachometer is needed to make this
adjustment.1. Start the engine and warm it up.TIPThe engine is warm when it quickly responds to the
throttle.2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces- sary, adjust it to specification by turning the
throttle stop screw at the carburetor. To in-
crease the engine idling speed, turn the throt-
tle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).
U1BT63E0.book Page 20 Friday, March 9, 2012 11:22 AM
Page 100 of 136

8-21
8
TIPIf the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make the
adjustment.EBU24047Adjusting the throttle lever free play The throttle lever free play should be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.The throttle lever free play should measure 2.0–
4.0 mm (0.08–0.16 in) as shown. Periodically
check the throttle lever free play and, if necessary,
adjust it as follows.
TIPThe engine idling speed must be checked, and ad-
justed if necessary, before adjusting the throttle le-
ver free play.1. Slide the rubber cover back.
2. Loosen the locknut.
3. To increase the throttle lever free play, turn
the throttle lever free play adjusting bolt in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting bolt in direction (b).
1. Throttle stop screwEngine idling speed:1500–1600 r/min
1
(a)
(b)
U1BT63E0.book Page 21 Friday, March 9, 2012 11:22 AM
