8-6
8
10*Swingarm pivots• Check operation and for excessive play, and re-
place bearings if necessary.
 Lubricate with lithium-soap-based grease.√√√
11*Upper and lower
arm pivots Lubricate with lithium-soap-based grease.√√√
12 Drive chain Check chain slack and adjust if necessary.
 Check rear wheel alignment and correct if neces-
sary.
 Clean and lubricate.√√√√√
13*Drive chain rollers Check for wear and replace if necessary.√√√
14*Chassis fasteners Make sure that all nuts, bolts, and screws are
properly tightened.√√√√√
15*Shock absorber as-
semblies Check operation and correct if necessary.
 Check for oil leakage and replace if necessary.√√√
16*Steering shaft Lubricate with lithium-soap-based grease.√√√
17*Steering system Check operation and repair or replace if damaged.
 Check toe-in and adjust if necessary.√√√√√
18*Engine mount Check for cracks or other damage, and replace if
necessary.√√√
19 Engine oil Change.
 Check ATV for oil leakage, and correct if neces-
sary.√ √√√
20Engine oil filter ele-
ment Replace.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U33B70E0.book Page 6 Wednesday, June 11, 2008 5:44 PM

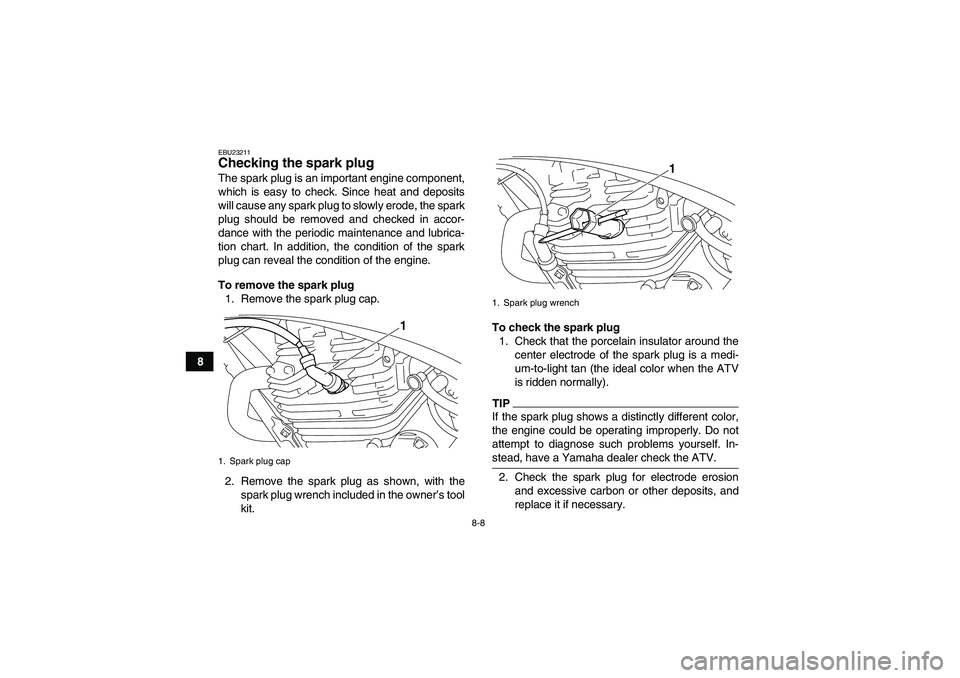

8-8
8
EBU23211Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
1. Spark plug cap
1
1. Spark plug wrench
1
U33B70E0.book Page 8 Wednesday, June 11, 2008 1:38 PM

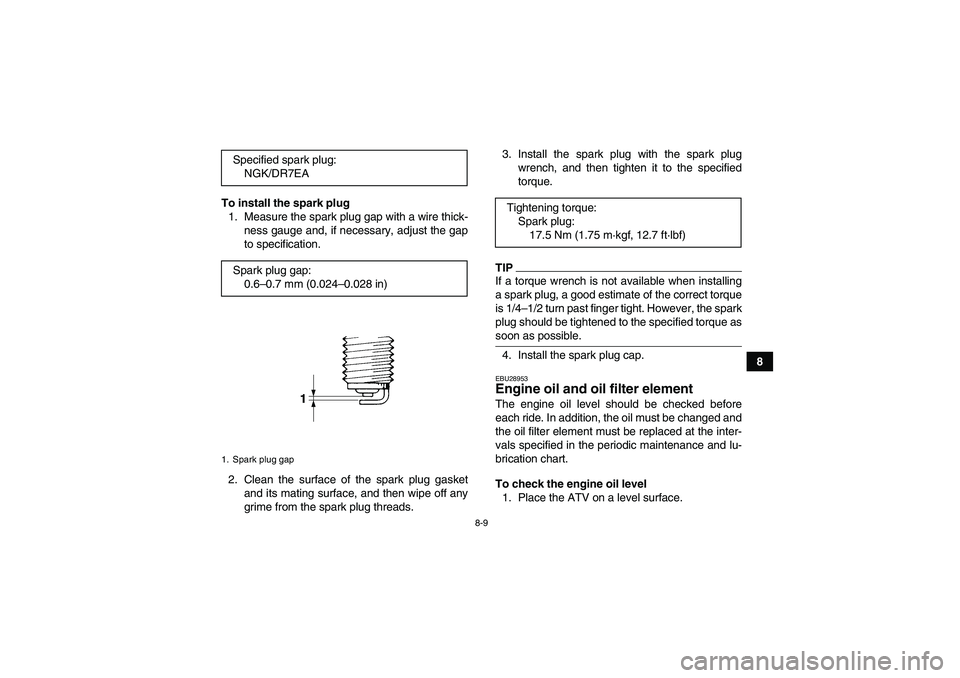

8-9
8 To install the spark plug
1. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
2. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque.
TIPIf a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.EBU28953Engine oil and oil filter element The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element must be replaced at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
To check the engine oil level
1. Place the ATV on a level surface. Specified spark plug:
NGK/DR7EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
1. Spark plug gap
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U33B70E0.book Page 9 Wednesday, June 11, 2008 1:38 PM

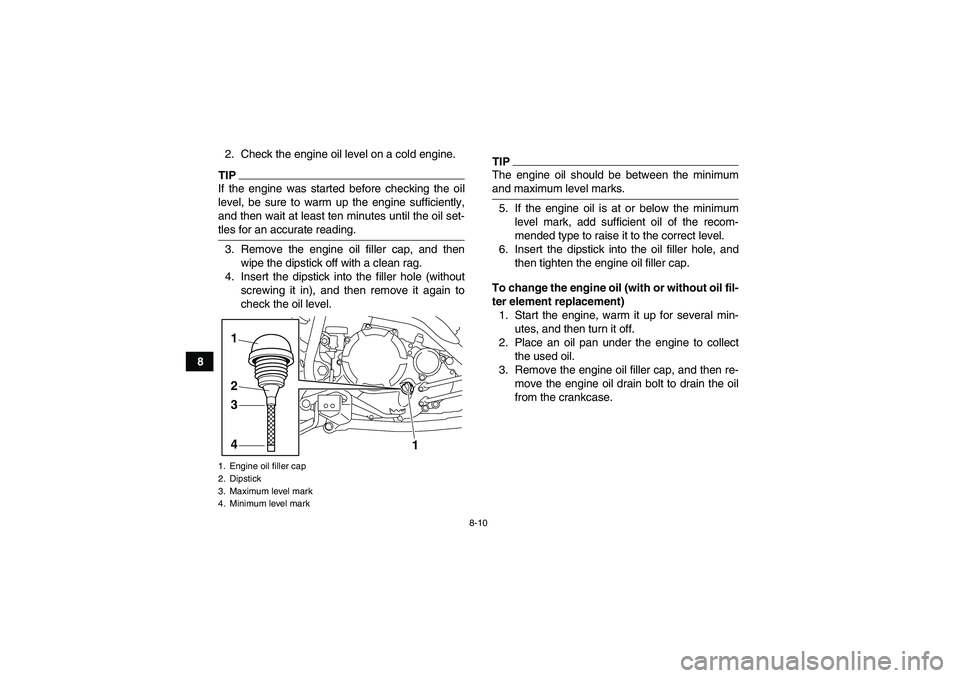

8-10
82. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-tles for an accurate reading.
3. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag.
4. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.
TIPThe engine oil should be between the minimumand maximum level marks.
5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.
To change the engine oil (with or without oil fil-
ter element replacement)
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place an oil pan under the engine to collect
the used oil.
3. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase.
1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
1
2
3
4 1
U33B70E0.book Page 10 Wednesday, June 11, 2008 1:38 PM

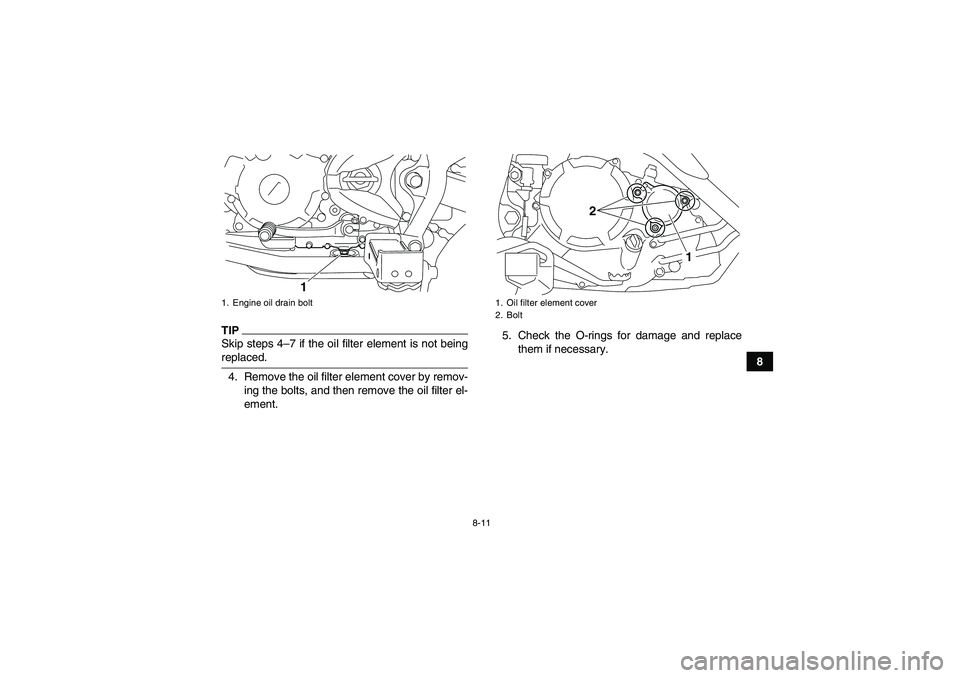

8-11
8
TIPSkip steps 4–7 if the oil filter element is not beingreplaced.
4. Remove the oil filter element cover by remov-
ing the bolts, and then remove the oil filter el-
ement.5. Check the O-rings for damage and replace
them if necessary.1. Engine oil drain bolt
1
1. Oil filter element cover
2. Bolt
1 2
U33B70E0.book Page 11 Wednesday, June 11, 2008 1:38 PM

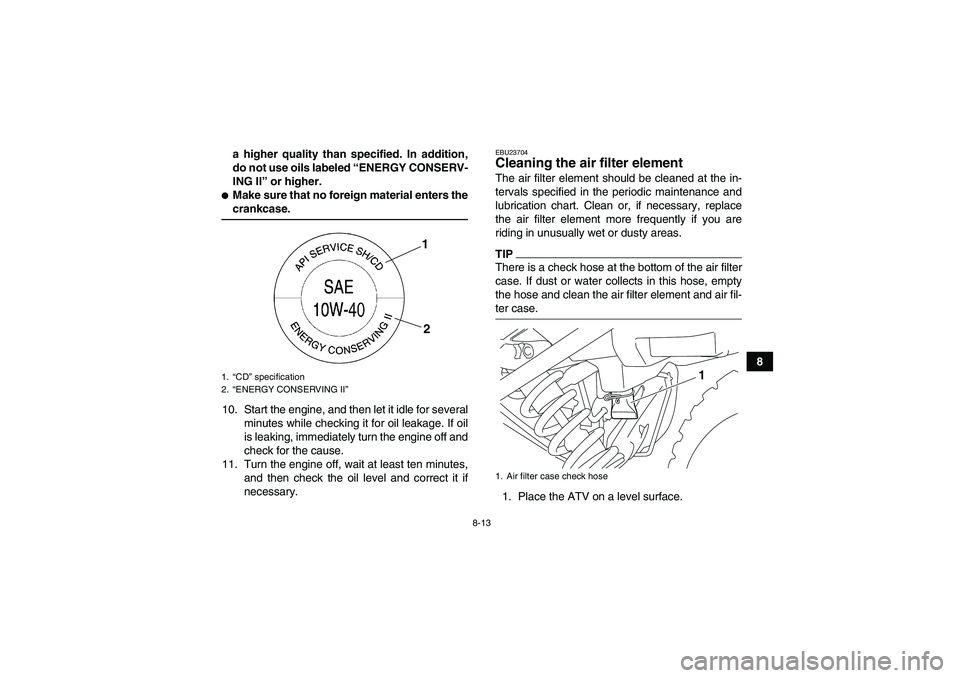

8-13
8 a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.

Make sure that no foreign material enters thecrankcase.
10. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
11. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.
EBU23704Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-ter case.
1. Place the ATV on a level surface.
1.“CD” specification
2.“ENERGY CONSERVING II”
1
2
1. Air filter case check hose
1
U33B70E0.book Page 13 Wednesday, June 11, 2008 1:38 PM

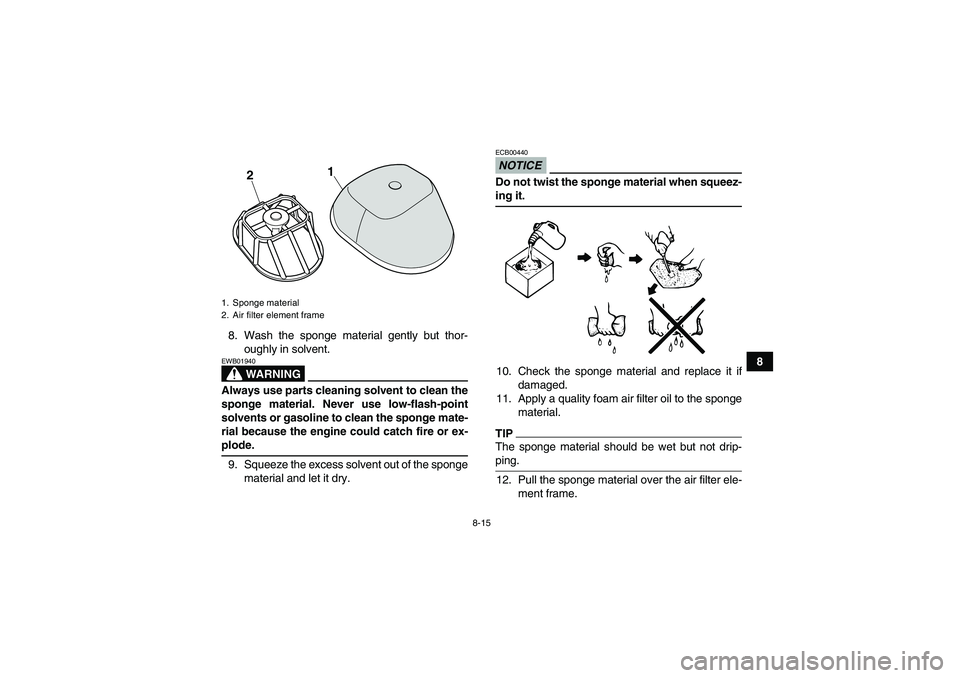

8-15
8 8. Wash the sponge material gently but thor-
oughly in solvent.
WARNING
EWB01940Always use parts cleaning solvent to clean the
sponge material. Never use low-flash-point
solvents or gasoline to clean the sponge mate-
rial because the engine could catch fire or ex-plode.
9. Squeeze the excess solvent out of the sponge
material and let it dry.
NOTICEECB00440Do not twist the sponge material when squeez-ing it.
10. Check the sponge material and replace it if
damaged.
11. Apply a quality foam air filter oil to the sponge
material.TIPThe sponge material should be wet but not drip-ping.
12. Pull the sponge material over the air filter ele-
ment frame.
1. Sponge material
2. Air filter element frame
1
2
U33B70E0.book Page 15 Wednesday, June 11, 2008 1:38 PM

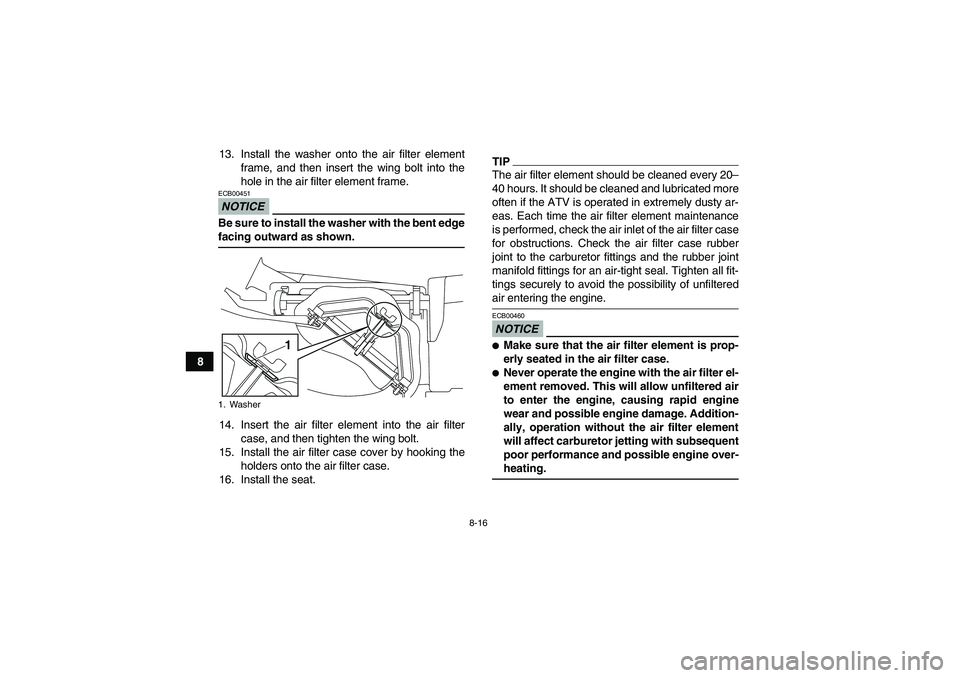

8-16
813. Install the washer onto the air filter element
frame, and then insert the wing bolt into the
hole in the air filter element frame.
NOTICEECB00451Be sure to install the washer with the bent edgefacing outward as shown.
14. Insert the air filter element into the air filter
case, and then tighten the wing bolt.
15. Install the air filter case cover by hooking the
holders onto the air filter case.
16. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfilteredair entering the engine.NOTICEECB00460
Make sure that the air filter element is prop-
erly seated in the air filter case.
Never operate the engine with the air filter el-
ement removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addition-
ally, operation without the air filter element
will affect carburetor jetting with subsequent
poor performance and possible engine over-heating.
1. Washer
1
U33B70E0.book Page 16 Wednesday, June 11, 2008 1:38 PM

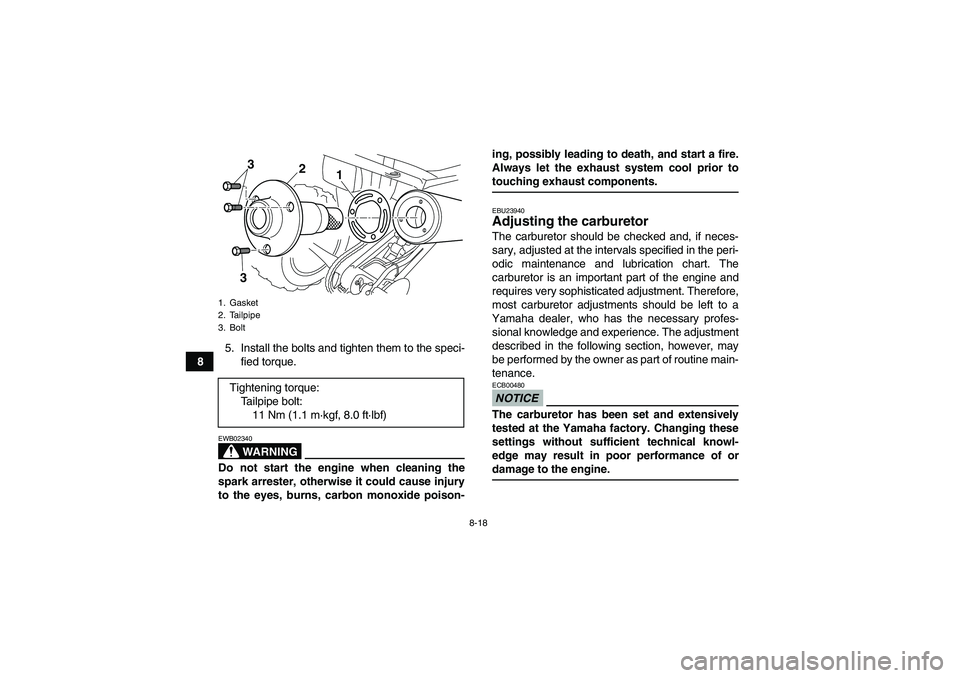

8-18
85. Install the bolts and tighten them to the speci-
fied torque.
WARNING
EWB02340Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior to
touching exhaust components.EBU23940Adjusting the carburetor The carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. Therefore,
most carburetor adjustments should be left to a
Yamaha dealer, who has the necessary profes-
sional knowledge and experience. The adjustment
described in the following section, however, may
be performed by the owner as part of routine main-
tenance.NOTICEECB00480The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowl-
edge may result in poor performance of ordamage to the engine.
1. Gasket
2. Tailpipe
3. BoltTightening torque:
Tailpipe bolt:
11 Nm (1.1 m·kgf, 8.0 ft·lbf)
1 2
33
U33B70E0.book Page 18 Wednesday, June 11, 2008 1:38 PM

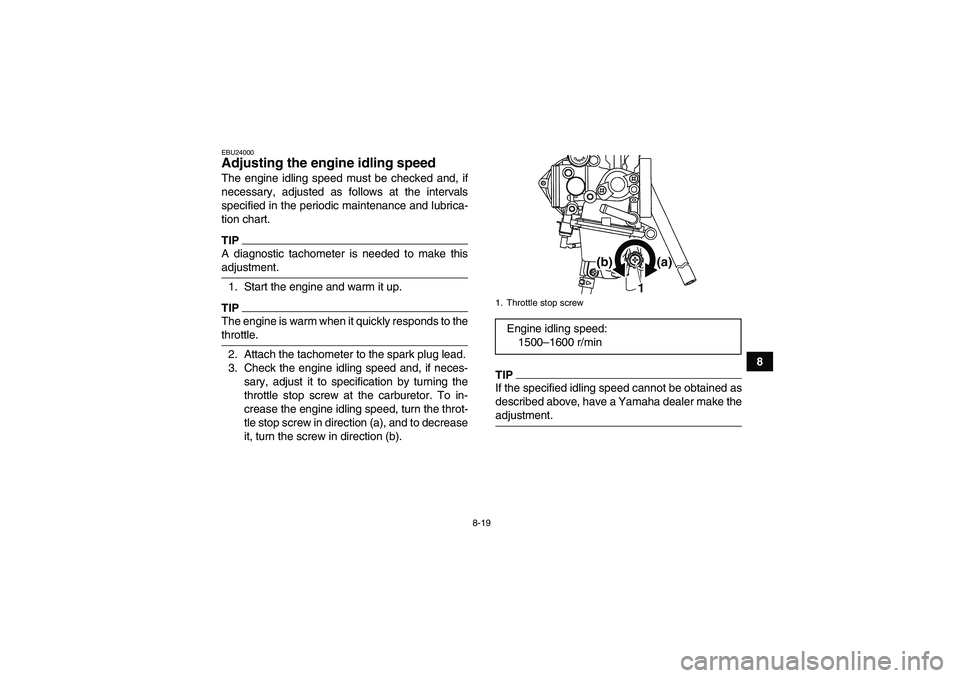

8-19
8
EBU24000Adjusting the engine idling speed The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.TIPA diagnostic tachometer is needed to make thisadjustment.
1. Start the engine and warm it up.TIPThe engine is warm when it quickly responds to thethrottle.
2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces-
sary, adjust it to specification by turning the
throttle stop screw at the carburetor. To in-
crease the engine idling speed, turn the throt-
tle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).
TIPIf the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make theadjustment.1. Throttle stop screwEngine idling speed:
1500–1600 r/min
1
(a)
(b)
U33B70E0.book Page 19 Wednesday, June 11, 2008 1:38 PM
