width YAMAHA YFM250R-W 2011 Owners Manual

10-1
10
EBU25960

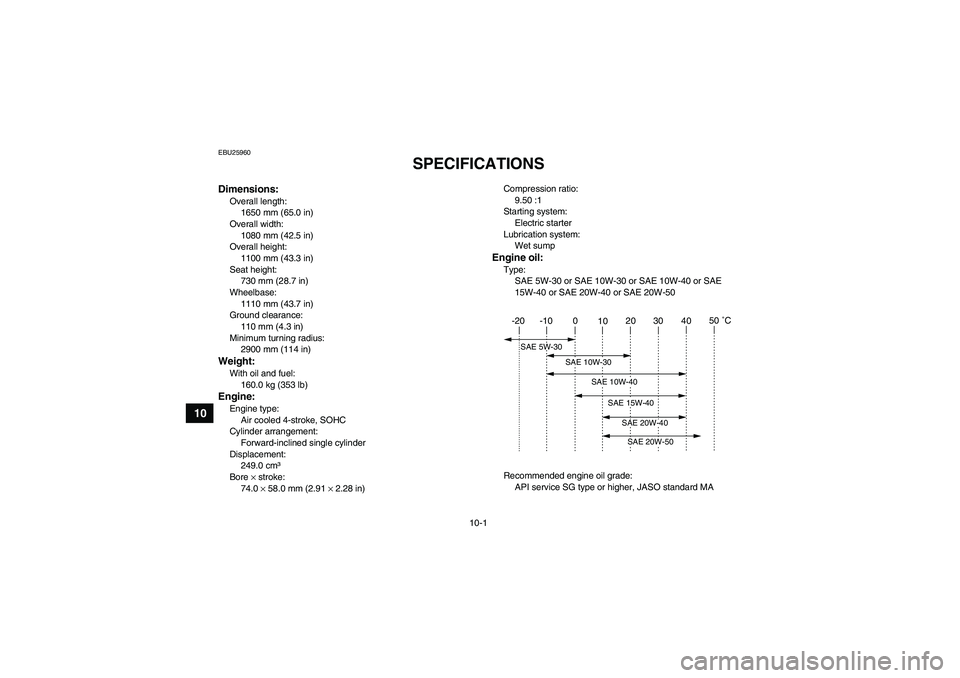

SPECIFICATIONS
Dimensions:Overall length:
1650 mm (65.0 in)
Overall width:
1080 mm (42.5 in)
Overall height:
1100 mm (43.3 in)
Seat height:
730 mm (28.7 in)
Wheelbase:
1110 mm (43.7 in)
Ground clearance:
110 mm (4.3 in)
Minimum turning radius:
2900 mm (114 in)Weight:With oil and fuel:
160.0 kg (353 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
249.0 cm³
Bore × stroke:
74.0 × 58.0 mm (2.91 × 2.28 in)Compression ratio:
9.50 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 5W-30 or SAE 10W-30 or SAE 10W-40 or SAE
15W-40 or SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA-20 -10 0
1020 304050 ˚C
SAE 15W-40
SAE 20W-40SAE 20W-50
SAE 10W-40
SAE 5W-30
SAE 10W-30
