tow bar YAMAHA YFM350R 2005 Owners Manual

4-13 1. Clutch lever
1. Levier d’embrayage
1. Palanca de embrague
1. Brake lever
1. Levier de frein
1. Palanca del freno
EBU00069
Clutch lever
The clutch lever is located on the left handlebar
and the ignition circuit cut-off system is incorporat-
ed in the clutch lever holder. Pull the clutch lever to
the handlebar to disengage the clutch, and release
the lever to engage the clutch. The lever should be
pulled rapidly and released slowly for smooth
clutch operation. (Refer to “Starting a cold engine”
for a description of the ignition circuit cut-off sys-
tem.)
EBU00988
Brake lever
The brake lever is located on the right handlebar.
Pull it toward the handlebar to apply the front
brake.
U5YT61.book Page 13 Wednesday, April 7, 2004 3:59 PM

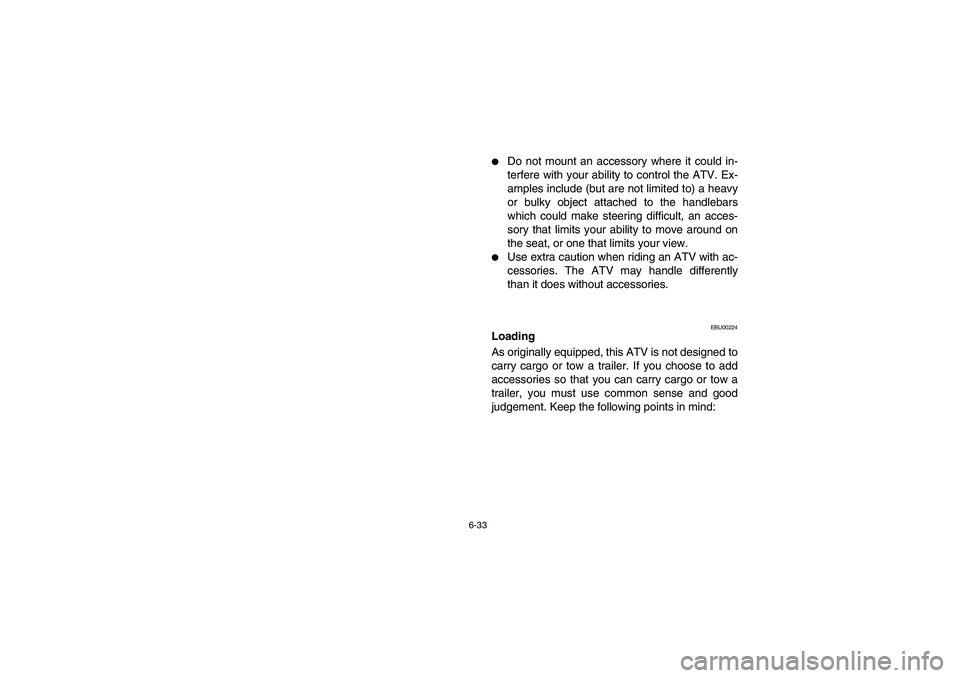

6-33

Do not mount an accessory where it could in-
terfere with your ability to control the ATV. Ex-
amples include (but are not limited to) a heavy
or bulky object attached to the handlebars
which could make steering difficult, an acces-
sory that limits your ability to move around on
the seat, or one that limits your view.


Use extra caution when riding an ATV with ac-
cessories. The ATV may handle differently
than it does without accessories.
EBU00224
Loading
As originally equipped, this ATV is not designed to
carry cargo or tow a trailer. If you choose to add
accessories so that you can carry cargo or tow a
trailer, you must use common sense and good
judgement. Keep the following points in mind:
U5YT61.book Page 33 Wednesday, April 7, 2004 3:59 PM

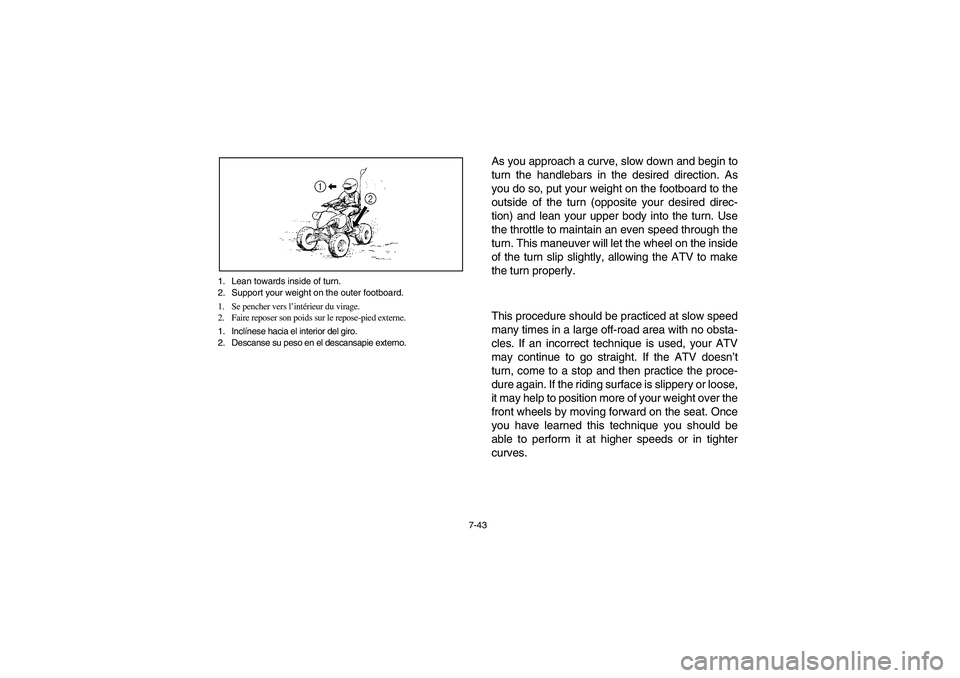

7-43 1. Lean towards inside of turn.
2. Support your weight on the outer footboard.
1. Se pencher vers l’intérieur du virage.
2. Faire reposer son poids sur le repose-pied externe.
1. Inclínese hacia el interior del giro.
2. Descanse su peso en el descansapie externo.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As
you do so, put your weight on the footboard to the
outside of the turn (opposite your desired direc-
tion) and lean your upper body into the turn. Use
the throttle to maintain an even speed through the
turn. This maneuver will let the wheel on the inside
of the turn slip slightly, allowing the ATV to make
the turn properly.
This procedure should be practiced at slow speed
many times in a large off-road area with no obsta-
cles. If an incorrect technique is used, your ATV
may continue to go straight. If the ATV doesn’t
turn, come to a stop and then practice the proce-
dure again. If the riding surface is slippery or loose,
it may help to position more of your weight over the
front wheels by moving forward on the seat. Once
you have learned this technique you should be
able to perform it at higher speeds or in tighter
curves.
U5YT61.book Page 43 Wednesday, April 7, 2004 3:59 PM
