YAMAHA YFM350R 2008 Owners Manual

8-43
8 4. Remove the wheel.
EBU25660Installing a wheel 1. Install the wheel and the nuts.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.EBU25720Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting chart represents a
quick and easy procedure for checking these vital
systems yourself. However, should your ATV re-quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-lot lights from water heaters or furnaces. Tightening torques:
Front wheel nut:
45 Nm (4.5 m·kgf, 32 ft·lbf)
Rear wheel nut:
45 Nm (4.5 m·kgf, 32 ft·lbf)
U5YT64E0.book Page 43 Monday, April 9, 2007 1:03 PM

8-44
8

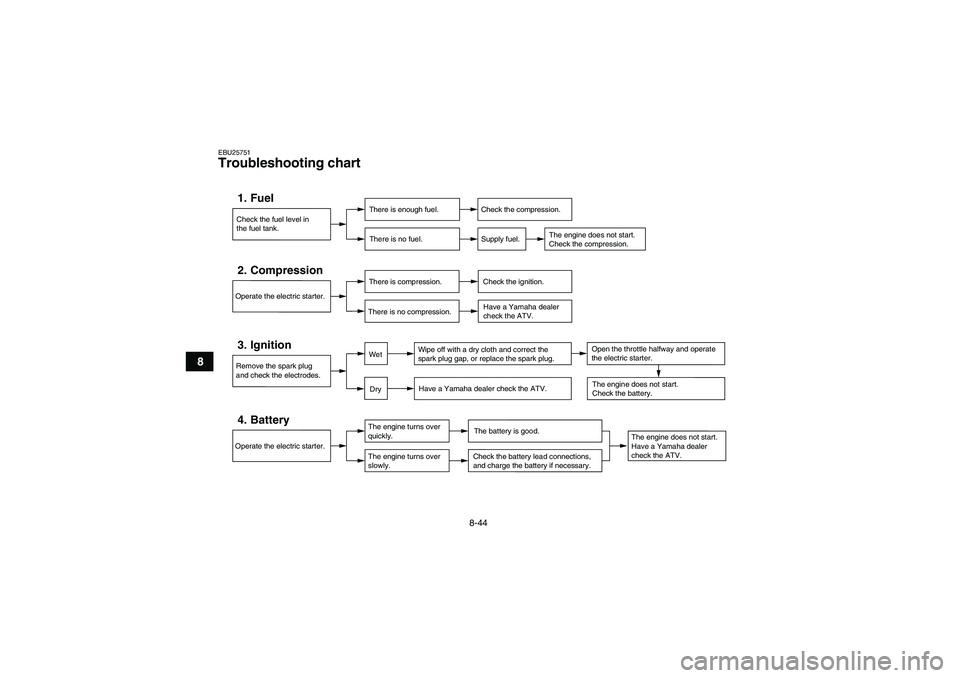

EBU25751Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Have a Yamaha dealer
check the ATV.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U5YT64E0.book Page 44 Monday, April 9, 2007 1:03 PM

9-1
9
EBU25860

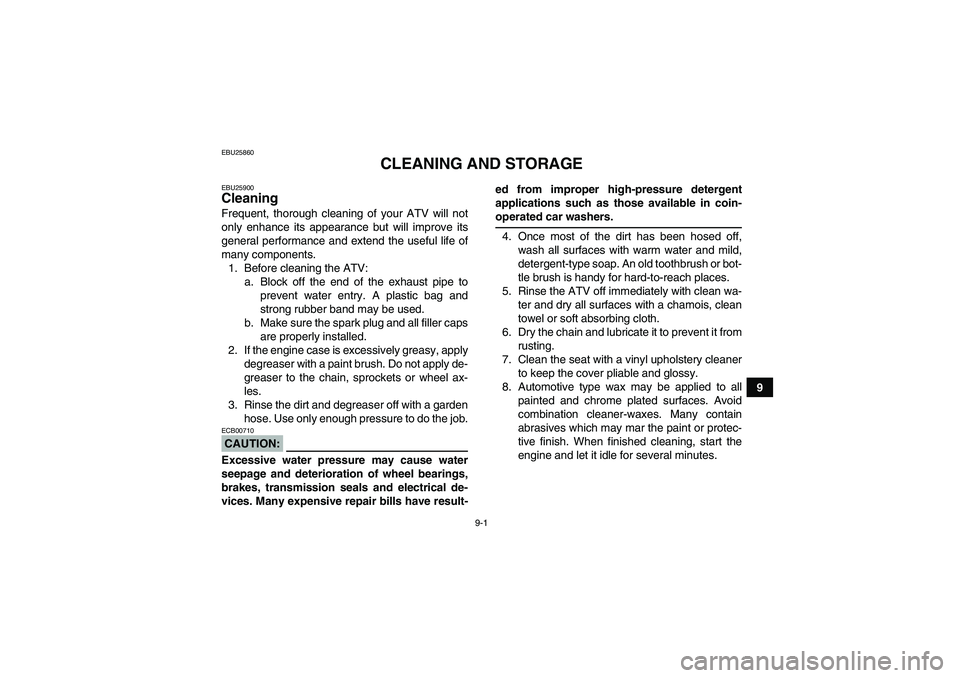

CLEANING AND STORAGE
EBU25900Cleaning Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.
1. Before cleaning the ATV:
a. Block off the end of the exhaust pipe to
prevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, apply
degreaser with a paint brush. Do not apply de-
greaser to the chain, sprockets or wheel ax-
les.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the job.CAUTION:ECB00710Excessive water pressure may cause water
seepage and deterioration of wheel bearings,
brakes, transmission seals and electrical de-
vices. Many expensive repair bills have result-ed from improper high-pressure detergent
applications such as those available in coin-
operated car washers.
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or bot-
tle brush is handy for hard-to-reach places.
5. Rinse the ATV off immediately with clean wa-
ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Dry the chain and lubricate it to prevent it from
rusting.
7. Clean the seat with a vinyl upholstery cleaner
to keep the cover pliable and glossy.
8. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM

9-2
9

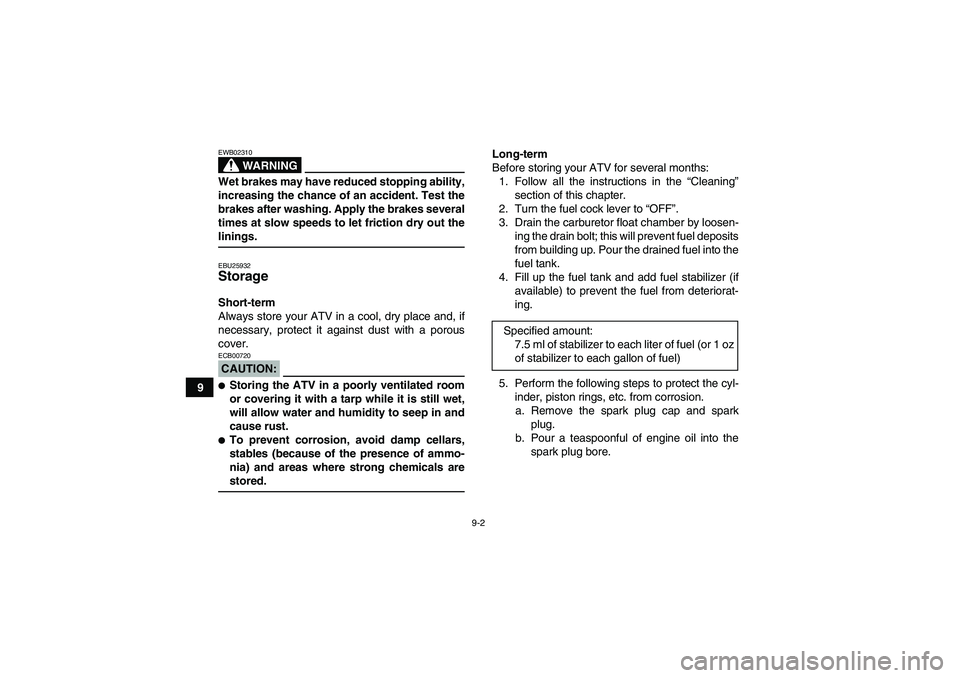

WARNING
EWB02310Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out thelinings.EBU25932Storage Short-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover.CAUTION:ECB00720
Storing the ATV in a poorly ventilated room
or covering it with a tarp while it is still wet,
will allow water and humidity to seep in and
cause rust.
To prevent corrosion, avoid damp cellars,
stables (because of the presence of ammo-
nia) and areas where strong chemicals arestored.Long-term
Before storing your ATV for several months:
1. Follow all the instructions in the “Cleaning”
section of this chapter.
2. Turn the fuel cock lever to “OFF”.
3. Drain the carburetor float chamber by loosen-
ing the drain bolt; this will prevent fuel deposits
from building up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel stabilizer (if
available) to prevent the fuel from deteriorat-
ing.
5. Perform the following steps to protect the cyl-
inder, piston rings, etc. from corrosion.
a. Remove the spark plug cap and spark
plug.
b. Pour a teaspoonful of engine oil into the
spark plug bore. Specified amount:
7.5 ml of stabilizer to each liter of fuel (or 1 oz
of stabilizer to each gallon of fuel)
U5YT64E0.book Page 2 Monday, April 9, 2007 1:03 PM

9-3
9 c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
9. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-37.
NOTE:Make any necessary repairs before storing theATV.
U5YT64E0.book Page 3 Monday, April 9, 2007 1:03 PM

10-1
10
EBU25960
SPECIFICATIONS
Dimensions:Overall length:
1780 mm (70.1 in)
Overall width:
1095 mm (43.1 in)
Overall height:
1080 mm (42.5 in)
Seat height:
820 mm (32.3 in)
Wheelbase:
1210 mm (47.6 in)
Ground clearance:
115 mm (4.5 in)
Minimum turning radius:
3100 mm (122 in)Weight:With oil and fuel:
180.0 kg (397 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
349.0 cm³
Bore × stroke:
83.0 × 64.5 mm (3.27 × 2.54 in)Compression ratio:
9.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE5W30 or SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM

10-2
10

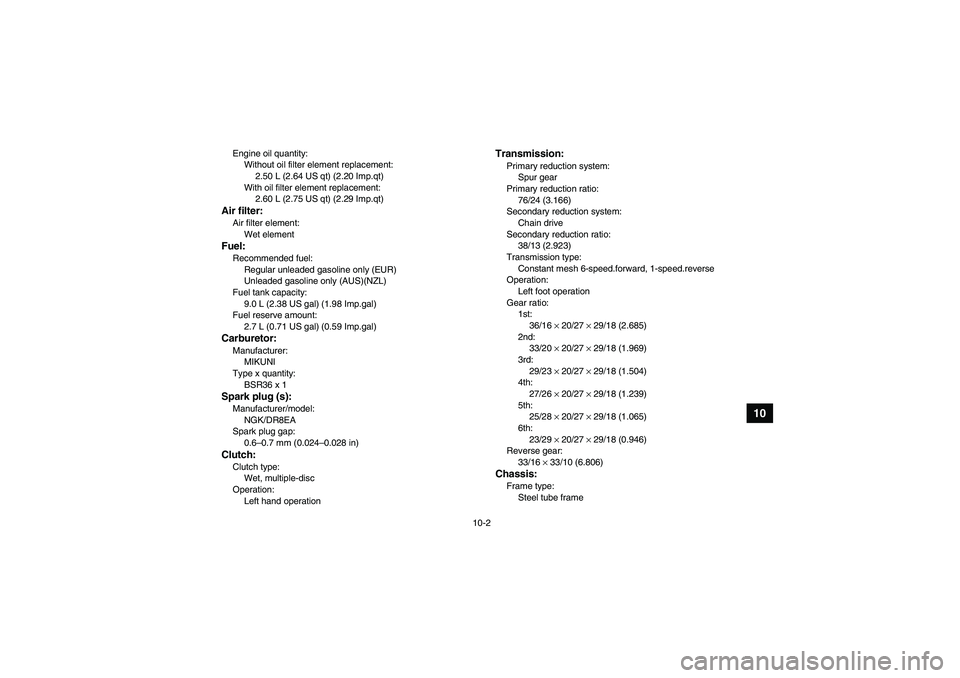

Engine oil quantity:
Without oil filter element replacement:
2.50 L (2.64 US qt) (2.20 Imp.qt)
With oil filter element replacement:
2.60 L (2.75 US qt) (2.29 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only (EUR)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
9.0 L (2.38 US gal) (1.98 Imp.gal)
Fuel reserve amount:
2.7 L (0.71 US gal) (0.59 Imp.gal)Carburetor:Manufacturer:
MIKUNI
Type x quantity:
BSR36 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-disc
Operation:
Left hand operation
Transmission:Primary reduction system:
Spur gear
Primary reduction ratio:
76/24 (3.166)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
38/13 (2.923)
Transmission type:
Constant mesh 6-speed.forward, 1-speed.reverse
Operation:
Left foot operation
Gear ratio:
1st:
36/16 × 20/27 × 29/18 (2.685)
2nd:
33/20 × 20/27 × 29/18 (1.969)
3rd:
29/23 × 20/27 × 29/18 (1.504)
4th:
27/26 × 20/27 × 29/18 (1.239)
5th:
25/28 × 20/27 × 29/18 (1.065)
6th:
23/29 × 20/27 × 29/18 (0.946)
Reverse gear:
33/16 × 33/10 (6.806)Chassis:Frame type:
Steel tube frame
U5YT64E0.book Page 2 Monday, April 9, 2007 1:03 PM

10-3
10
Caster angle:
6.0 °
Trail:
26.0 mm (1.02 in)Front tire:Type:
Tubeless
Size:
AT21 x 7-10
Manufacturer/model:
DUNLOP/KT851BRear tire:Type:
Tubeless
Size:
AT20 x 10-9
Manufacturer/model:
DUNLOP/KT877ALoading:Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
25.0 kPa (3.6 psi) (0.250 kgf/cm²)
Rear:
25.0 kPa (3.6 psi) (0.250 kgf/cm²)
Minimum:
Front:
22.0 kPa (3.2 psi) (0.220 kgf/cm²)Rear:
22.0 kPa (3.2 psi) (0.220 kgf/cm²)
Maximum:
Front:
28.0 kPa (4.1 psi) (0.280 kgf/cm²)
Rear:
28.0 kPa (4.1 psi) (0.280 kgf/cm²)
Front wheel:Wheel type:
Panel wheel
Rim size:
10 x 5.5ATRear wheel:Wheel type:
Panel wheel
Rim size:
9 x 8.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
U5YT64E0.book Page 3 Monday, April 9, 2007 1:03 PM

10-4
10
Front suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
200 mm (7.9 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
210 mm (8.3 in)Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 AhHeadlight:Bulb type:
Krypton bulbBulb voltage, wattage x quantity:Headlight:
12 V, 30.0/30.0 W × 2Tail/brake light:
12 V, 5.0/21.0 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Reverse indicator light:
12 V, 1.7 W × 1
Fuse:Fuse:
15.0 A
U5YT64E0.book Page 4 Monday, April 9, 2007 1:03 PM

11-1
11
EBU26000

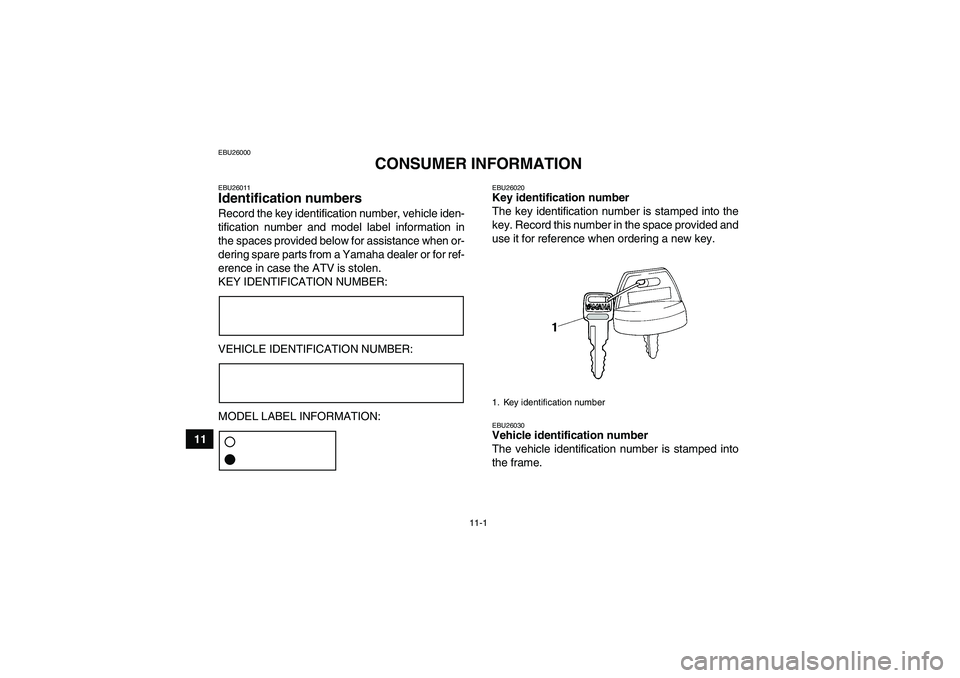

CONSUMER INFORMATION
EBU26011Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26030Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM
