YAMAHA YFM350R 2011 Owners Manual

8-31
8
TIPThere are alignment marks on both drive chain
pullers and an alignment mark on each side of the
swingarm. Make sure to align the same alignment
mark on both drive chain pullers with the alignment
mark on either side of the swingarm for proper
wheel alignment.4. Tighten the locknuts and the axle holding bolts
to the specified torques.
EBU24882Lubricating the drive chain The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.NOTICEECB00561The drive chain must be lubricated after wash-
ing the ATV or riding in the rain or wet areas.1. Clean the drive chain with kerosene and a
small soft brush. NOTICE: To prevent dam-
aging the O-rings, do not clean the drive
chain with steam cleaners, high-pressure
washers or inappropriate solvents.
[ECB00571]
1. Locknut
2. Drive chain slack adjusting bolt
3. Alignment marks
Tightening torques:
Locknut:
16 Nm (1.6 m·kgf, 12 ft·lbf)
Axle holding bolt (upper):
120 Nm (12 m·kgf, 87 ft·lbf)
Axle holding bolt (lower):
73 Nm (7.3 m·kgf, 53 ft·lbf)
U1BS61E0.book Page 31 Tuesday, April 13, 2010 10:25 AM

8-32
82. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant. NOTICE: Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00581]
EBU24901
Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02581
Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could
restrict the operation of controls and lead to
an accident or injury.
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision.EBU24922Checking and lubricating the brake and
clutch levers The operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
1. O-ring
Recommended lubricant:
Engine oil
U1BS61E0.book Page 32 Tuesday, April 13, 2010 10:25 AM

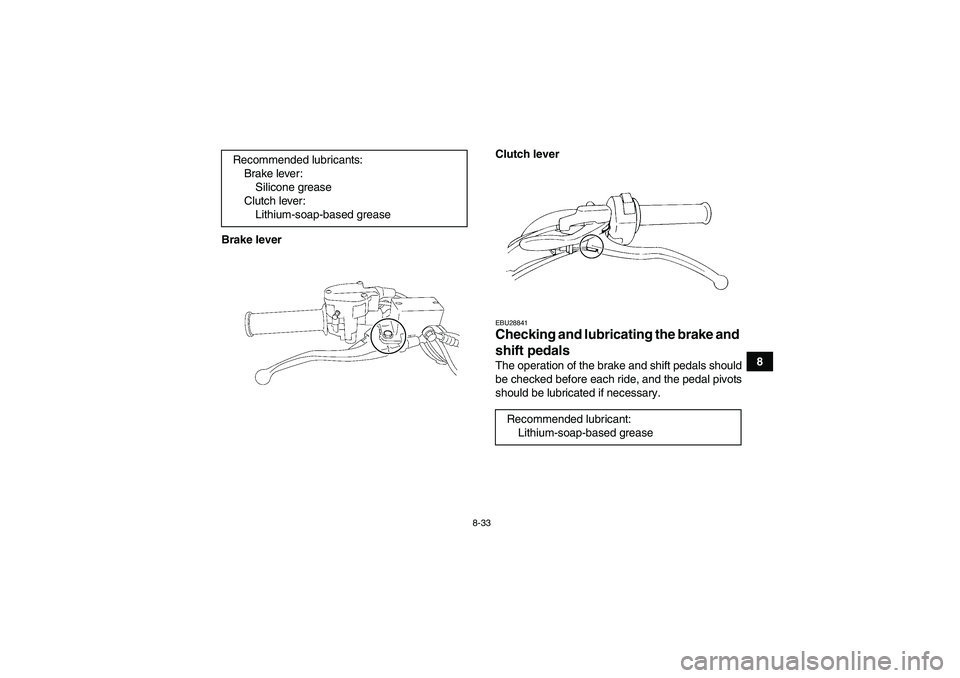

8-33
8 Brake leverClutch lever
EBU28841Checking and lubricating the brake and
shift pedals The operation of the brake and shift pedals should
be checked before each ride, and the pedal pivots
should be lubricated if necessary. Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based greaseRecommended lubricant:
Lithium-soap-based grease
U1BS61E0.book Page 33 Tuesday, April 13, 2010 10:25 AM

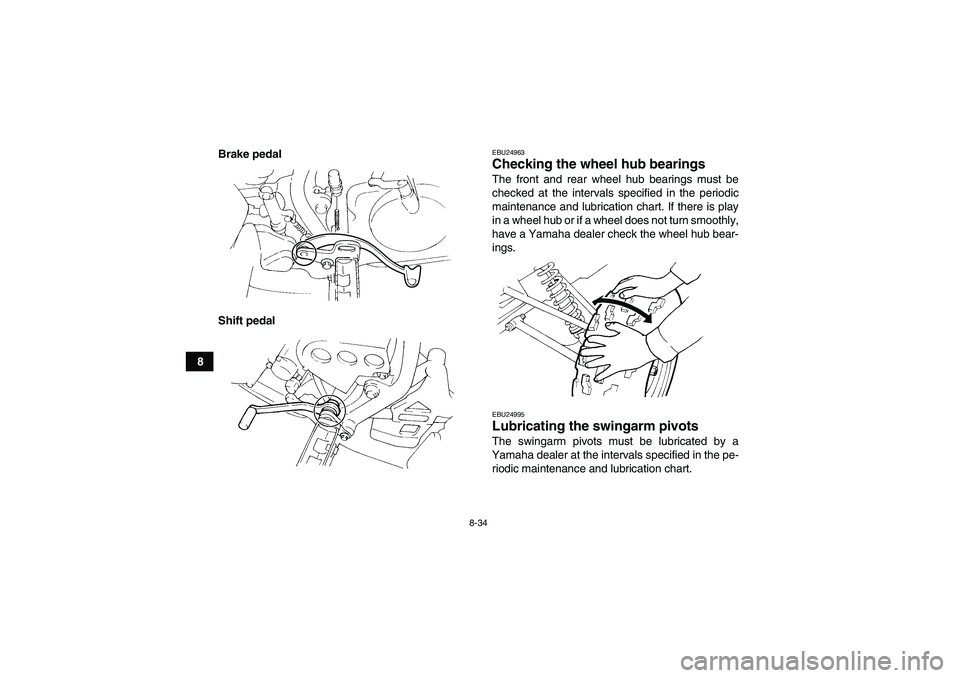

8-34
8Brake pedal
Shift pedal
EBU24963Checking the wheel hub bearings The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.EBU24995Lubricating the swingarm pivots The swingarm pivots must be lubricated by a
Yamaha dealer at the intervals specified in the pe-
riodic maintenance and lubrication chart.
U1BS61E0.book Page 34 Tuesday, April 13, 2010 10:25 AM

8-35
8
EBU25004Lubricating the rear suspension relay
arm and connecting arm pivoting
points The rear suspension relay arm and connecting
arm pivoting points must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
1. Grease nipple
1. Grease nipple
U1BS61E0.book Page 35 Tuesday, April 13, 2010 10:25 AM

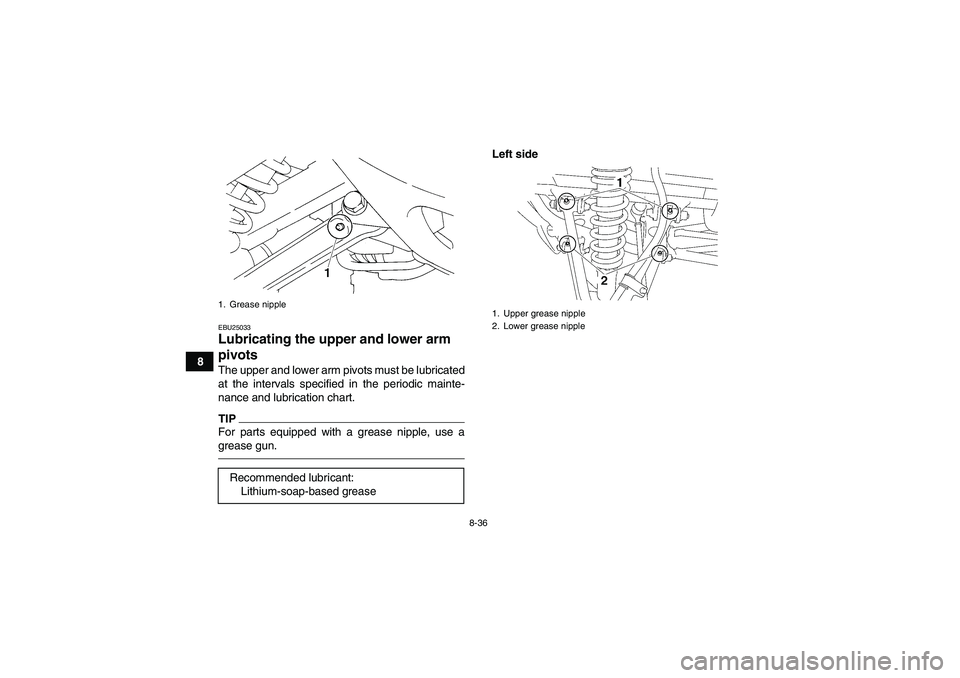

8-36
8
EBU25033Lubricating the upper and lower arm
pivots The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
Left side
1. Grease nippleRecommended lubricant:
Lithium-soap-based grease
1. Upper grease nipple
2. Lower grease nipple
U1BS61E0.book Page 36 Tuesday, April 13, 2010 10:25 AM

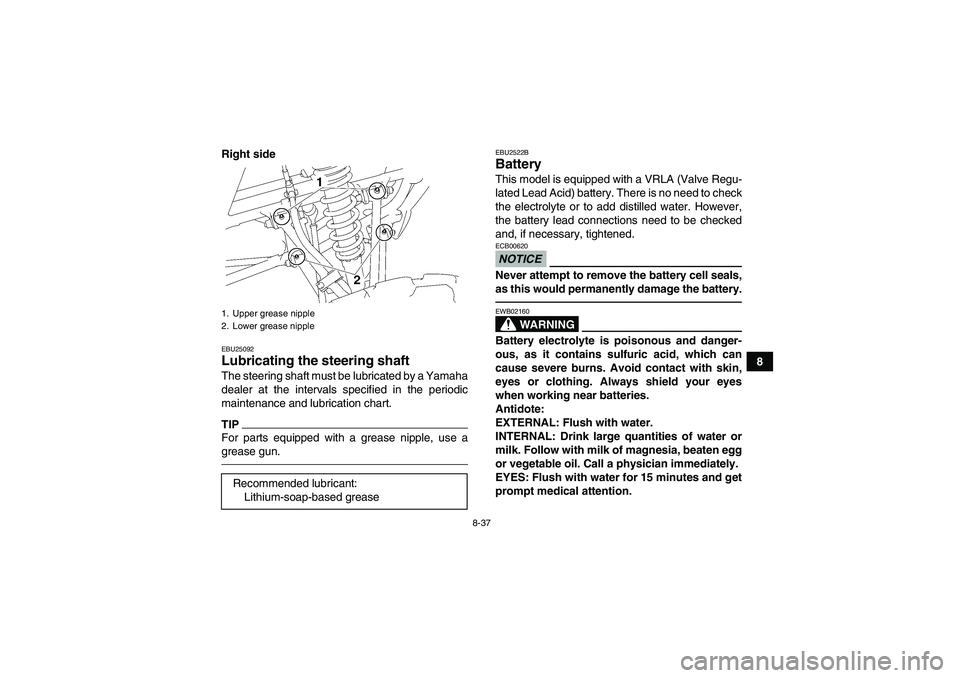

8-37
8 Right side
EBU25092Lubricating the steering shaft The steering shaft must be lubricated by a Yamaha
dealer at the intervals specified in the periodic
maintenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
EBU2522BBattery This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to check
the electrolyte or to add distilled water. However,
the battery lead connections need to be checked
and, if necessary, tightened.NOTICEECB00620Never attempt to remove the battery cell seals,
as this would permanently damage the battery.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
1. Upper grease nipple
2. Lower grease nippleRecommended lubricant:
Lithium-soap-based grease
U1BS61E0.book Page 37 Tuesday, April 13, 2010 10:25 AM

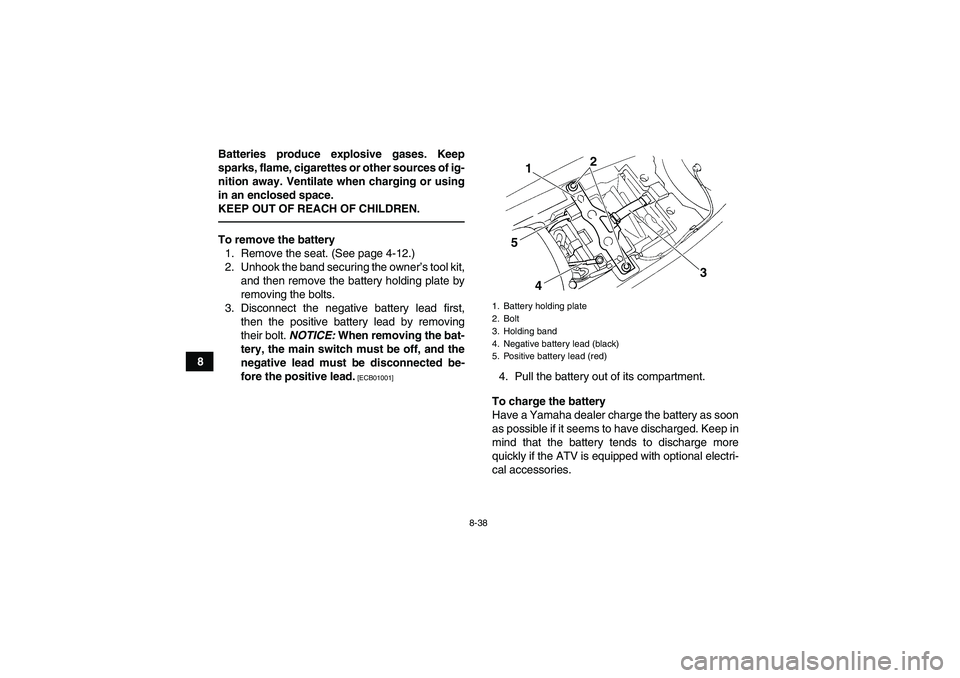

8-38
8Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN.
To remove the battery
1. Remove the seat. (See page 4-12.)
2. Unhook the band securing the owner’s tool kit,
and then remove the battery holding plate by
removing the bolts.
3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01001]
4. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.1. Battery holding plate
2. Bolt
3. Holding band
4. Negative battery lead (black)
5. Positive battery lead (red)
4
3
5
1
2
U1BS61E0.book Page 38 Tuesday, April 13, 2010 10:25 AM

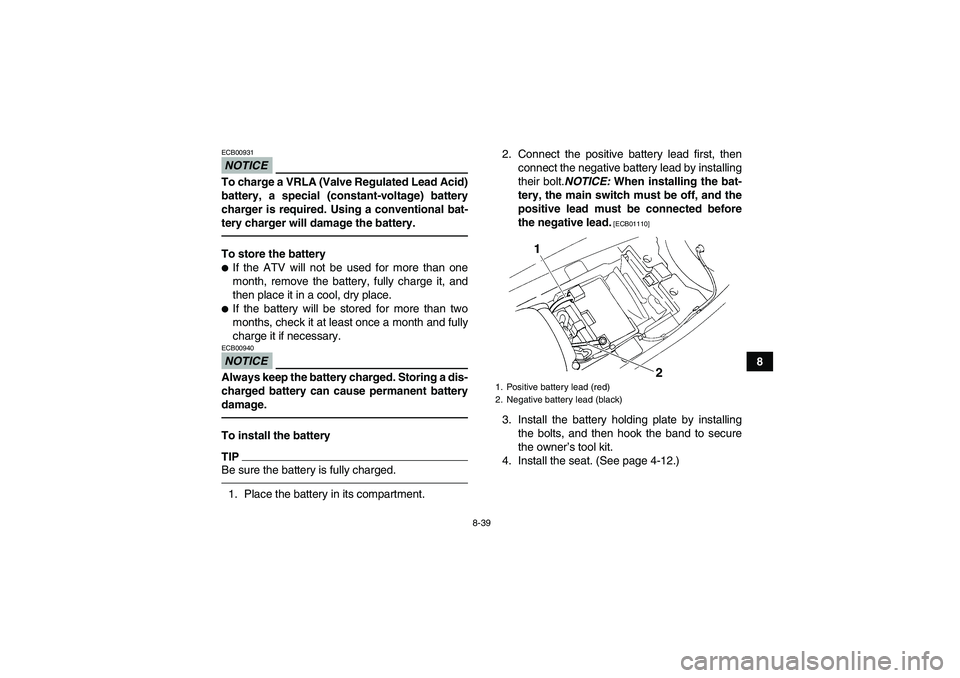

8-39
8
NOTICEECB00931To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery.To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00940Always keep the battery charged. Storing a dis-
charged battery can cause permanent battery
damage.To install the batteryTIPBe sure the battery is fully charged.1. Place the battery in its compartment.2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt.NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01110]
3. Install the battery holding plate by installing
the bolts, and then hook the band to secure
the owner’s tool kit.
4. Install the seat. (See page 4-12.)1. Positive battery lead (red)
2. Negative battery lead (black)
2
U1BS61E0.book Page 39 Tuesday, April 13, 2010 10:25 AM

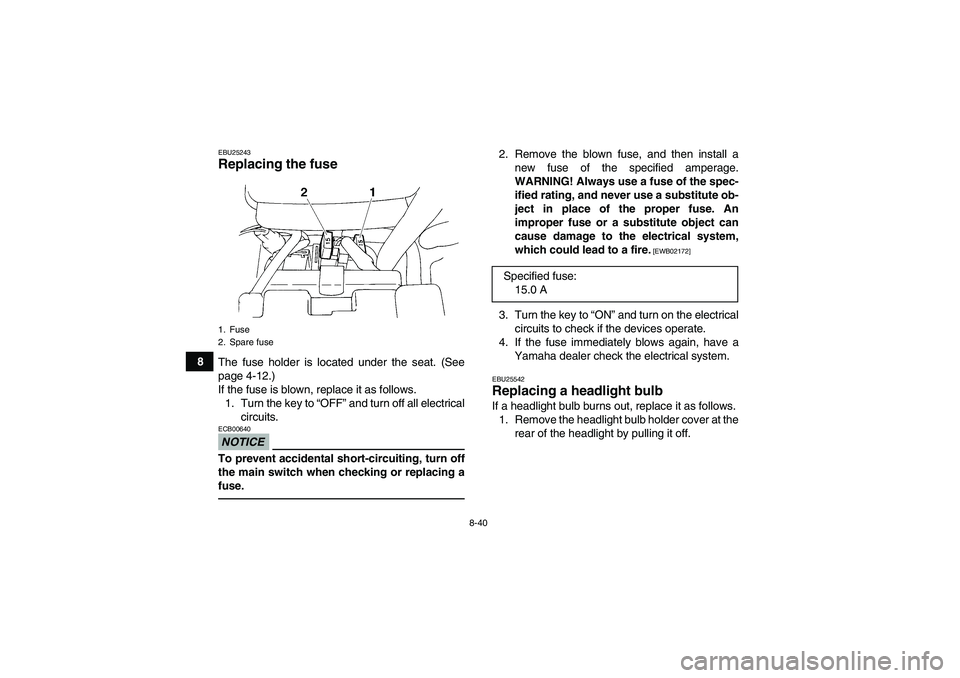

8-40
8
EBU25243Replacing the fuse The fuse holder is located under the seat. (See
page 4-12.)
If the fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02172]
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.EBU25542Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the headlight bulb holder cover at the
rear of the headlight by pulling it off.
1. Fuse
2. Spare fuse
Specified fuse:
15.0 A
U1BS61E0.book Page 40 Tuesday, April 13, 2010 10:25 AM
