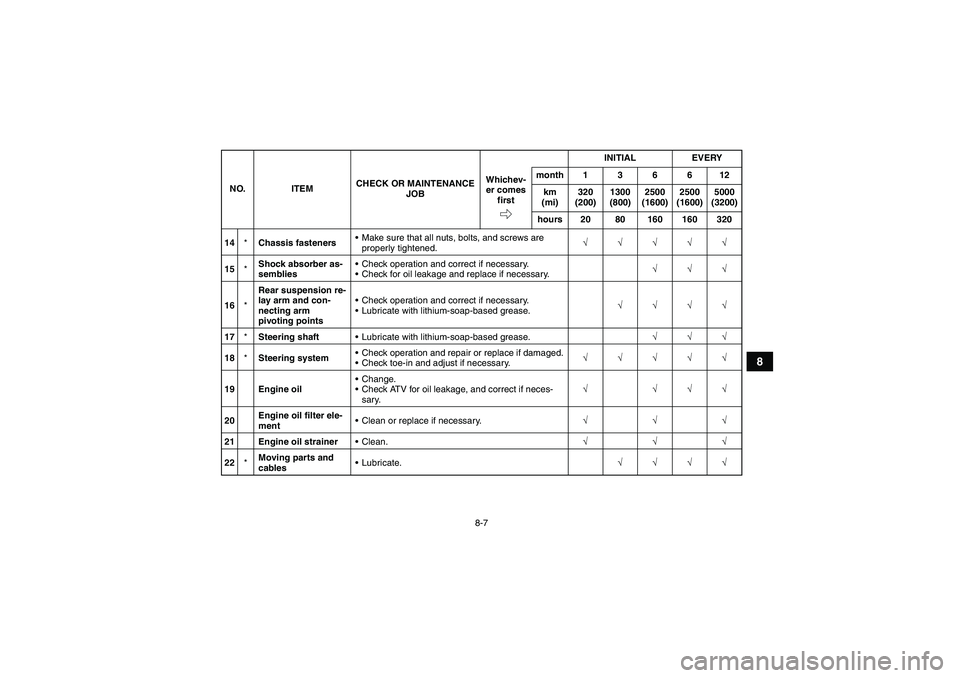

14*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
15*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
16*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation and correct if necessary.
Lubricate with lithium-soap-based grease.√√√√
17*Steering shaftLubricate with lithium-soap-based grease.√√√
18*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
19 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
20Engine oil filter ele-
mentClean or replace if necessary.√√√
21 Engine oil strainerClean.√√√
22*Moving parts and
cablesLubricate.√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U1BS61E0.book Page 7 Tuesday, April 13, 2010 10:25 AM

8-9
8

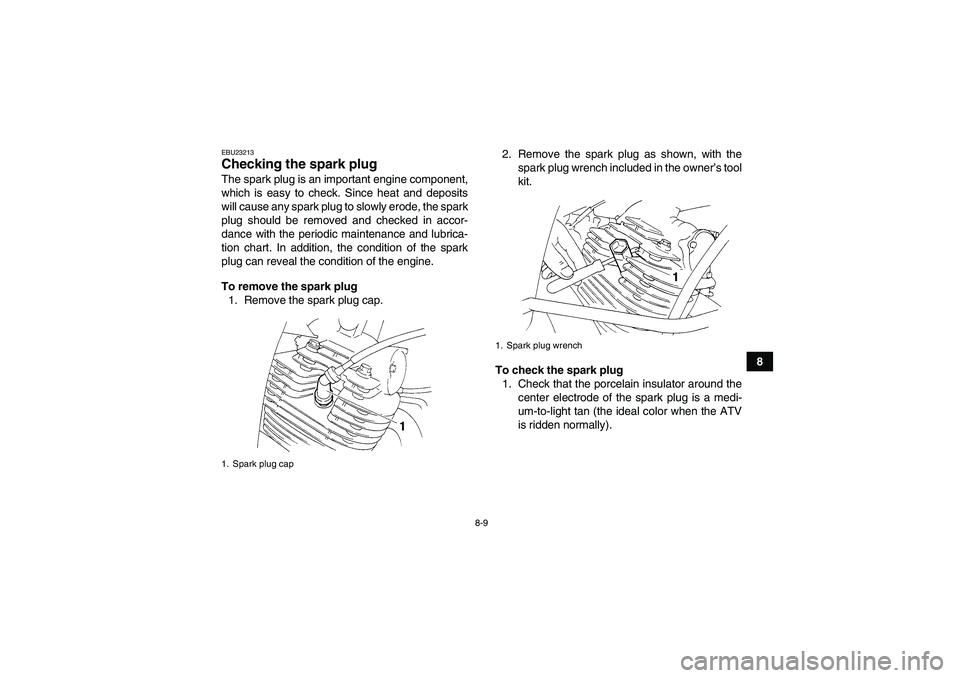

EBU23213Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap
1. Spark plug wrench
U1BS61E0.book Page 9 Tuesday, April 13, 2010 10:25 AM

8-10
8

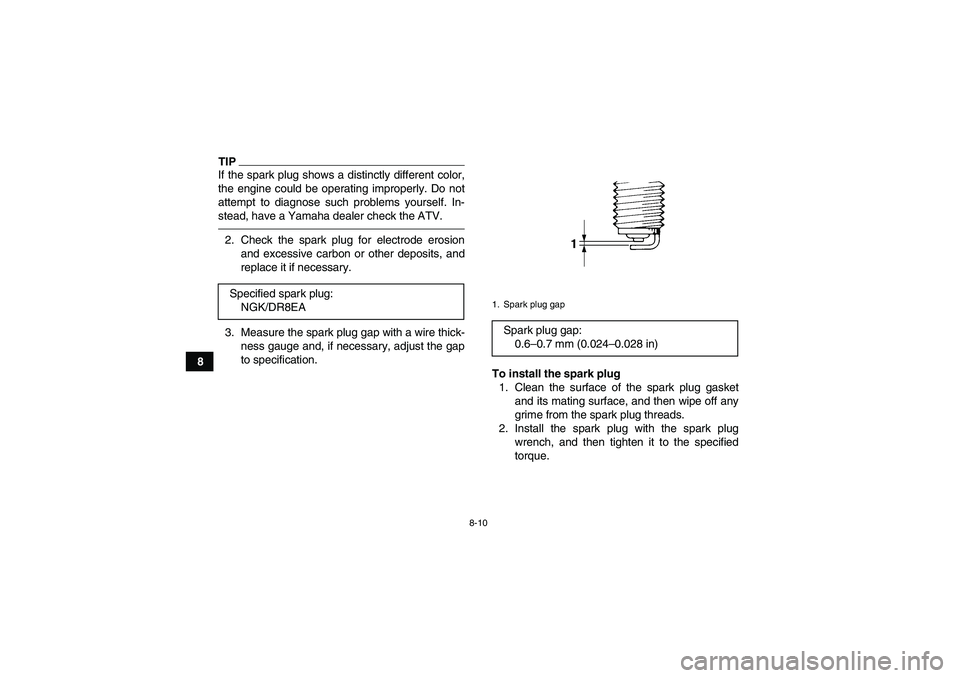

TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug
1. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque. Specified spark plug:
NGK/DR8EA
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
U1BS61E0.book Page 10 Tuesday, April 13, 2010 10:25 AM

8-11
8

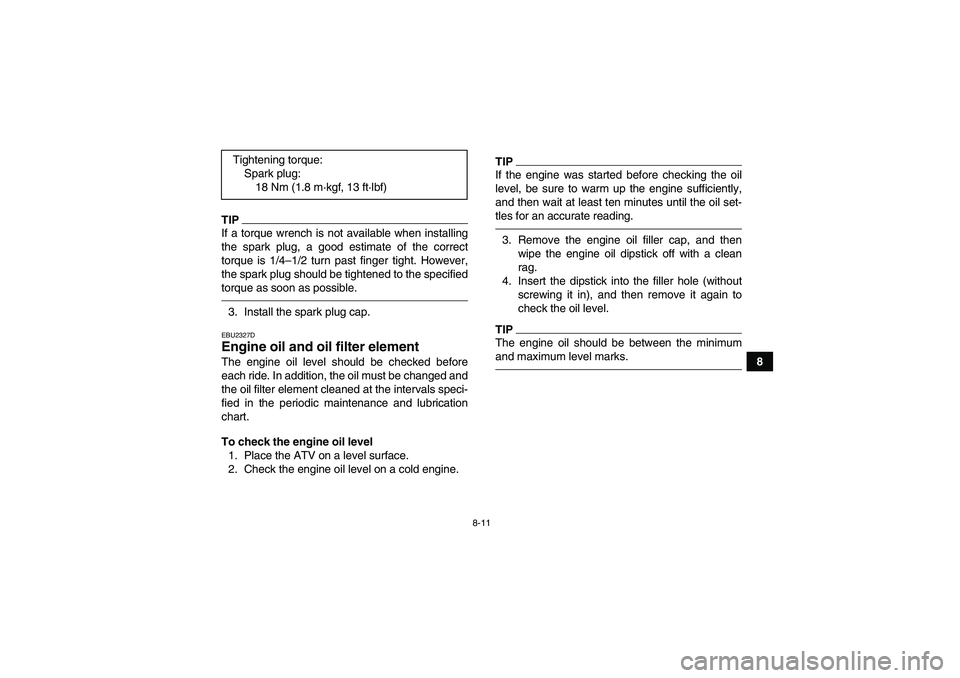

TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.3. Install the spark plug cap.EBU2327DEngine oil and oil filter element The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element cleaned at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading.3. Remove the engine oil filler cap, and then
wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.TIPThe engine oil should be between the minimum
and maximum level marks.
Tightening torque:
Spark plug:
18 Nm (1.8 m·kgf, 13 ft·lbf)
U1BS61E0.book Page 11 Tuesday, April 13, 2010 10:25 AM

8-15
8 11. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
12. Turn the engine off, wait at least ten minutes,
and then check the oil level and correct it if
necessary.

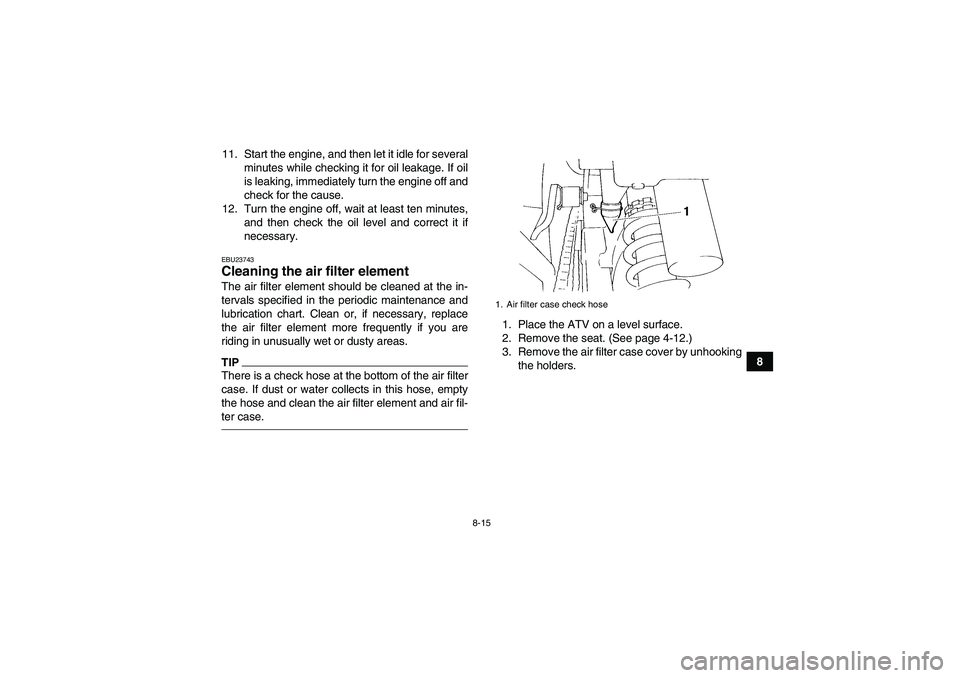

EBU23743Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
1. Place the ATV on a level surface.
2. Remove the seat. (See page 4-12.)
3. Remove the air filter case cover by unhooking
the holders.1. Air filter case check hose
U1BS61E0.book Page 15 Tuesday, April 13, 2010 10:25 AM

8-17
8

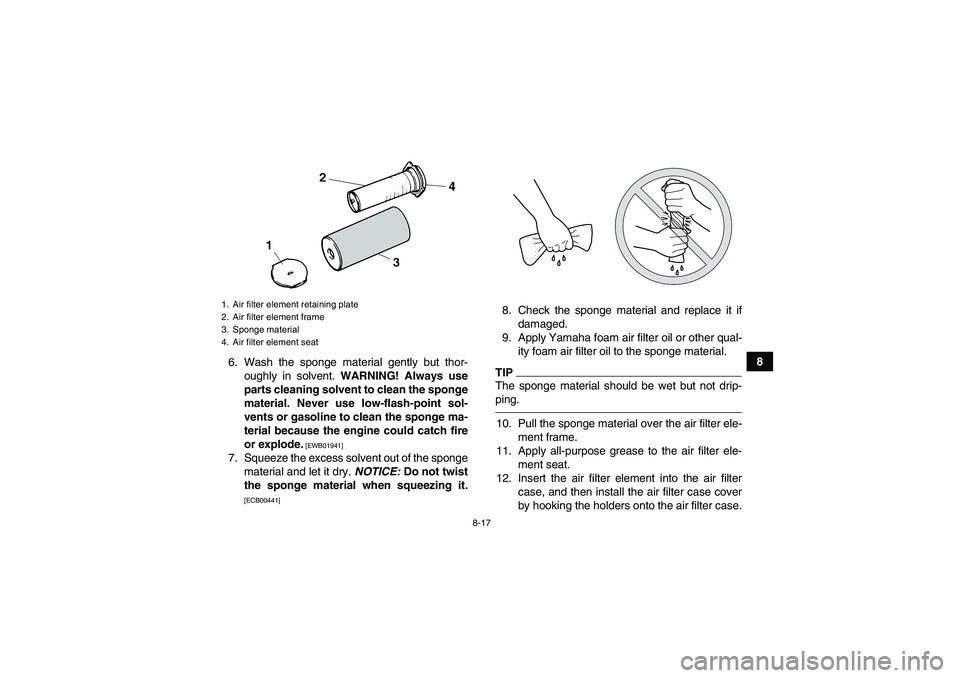

6. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01941]
7. Squeeze the excess solvent out of the sponge
material and let it dry. NOTICE: Do not twist
the sponge material when squeezing it.
[ECB00441]
8. Check the sponge material and replace it if
damaged.
9. Apply Yamaha foam air filter oil or other qual-
ity foam air filter oil to the sponge material.TIPThe sponge material should be wet but not drip-
ping.10. Pull the sponge material over the air filter ele-
ment frame.
11. Apply all-purpose grease to the air filter ele-
ment seat.
12. Insert the air filter element into the air filter
case, and then install the air filter case cover
by hooking the holders onto the air filter case.
1. Air filter element retaining plate
2. Air filter element frame
3. Sponge material
4. Air filter element seatU1BS61E0.book Page 17 Tuesday, April 13, 2010 10:25 AM

8-18
8NOTICE: Make sure that the air filter ele-
ment is properly seated in the air filter
case. Never operate the engine with the air
filter element removed. This will allow un-
filtered air to enter the engine, causing rap-
id engine wear and possible engine
damage. Additionally, operation without
the air filter element will affect carburetor
jetting with subsequent poor performance
and possible engine overheating.
[ECB00461]
13. Install the seat.TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfiltered
air entering the engine.

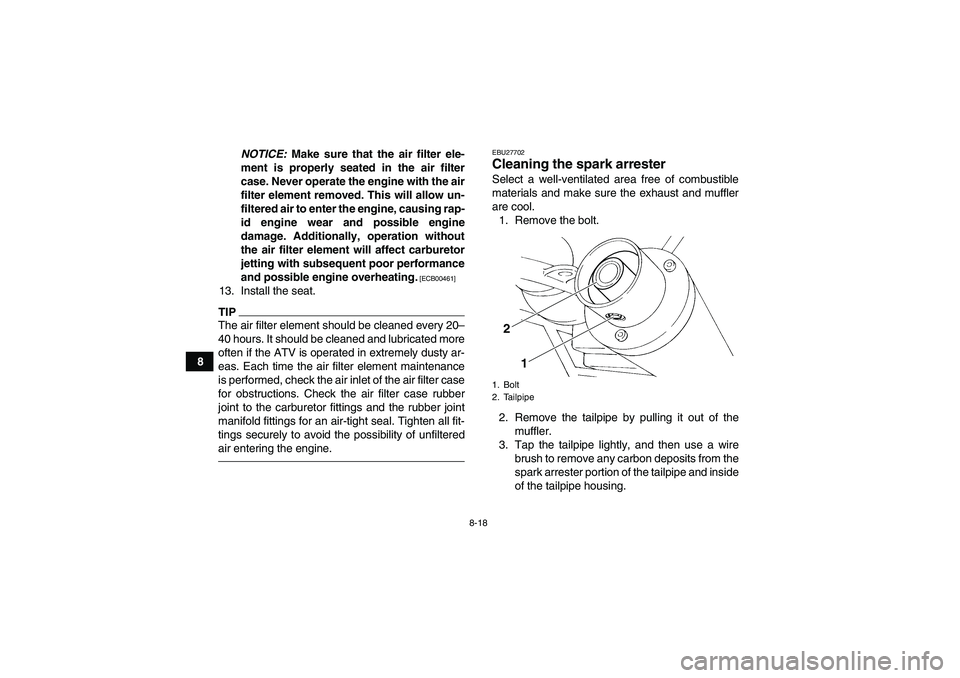

EBU27702Cleaning the spark arrester Select a well-ventilated area free of combustible
materials and make sure the exhaust and muffler
are cool.
1. Remove the bolt.
2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.1. Bolt
2. Tailpipe
1
2
U1BS61E0.book Page 18 Tuesday, April 13, 2010 10:25 AM

8-19
8 4. Insert the tailpipe into the muffler and align the
bolt holes.
5. Install the bolt and tighten it to the specified
torque.
6. Remove the purging bolt and the gasket.7. Start the engine and rev it up approximately
twenty times while momentarily creating ex-
haust system back pressure by blocking the
end of the muffler with a shop towel.
8. Stop the engine and allow the exhaust pipe to
cool.
9. Check the gasket for damage, and replace it if
necessary.
10. Install the gasket and the purging bolt, and
then tighten the bolt to the specified torque.
1. Tailpipe
2. Spark arresterTightening torque:
Tailpipe bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1. Purging bolt
2. Gasket
12
U1BS61E0.book Page 19 Tuesday, April 13, 2010 10:25 AM

8-20
8

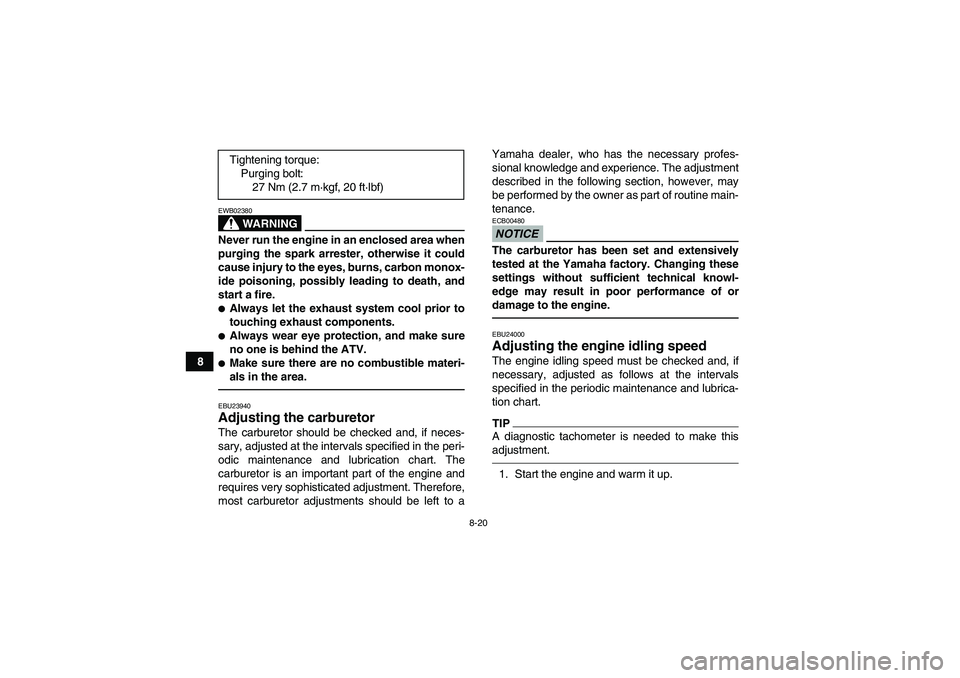

WARNING
EWB02380Never run the engine in an enclosed area when
purging the spark arrester, otherwise it could
cause injury to the eyes, burns, carbon monox-
ide poisoning, possibly leading to death, and
start a fire.
Always let the exhaust system cool prior to
touching exhaust components.
Always wear eye protection, and make sure
no one is behind the ATV.
Make sure there are no combustible materi-
als in the area.EBU23940Adjusting the carburetor The carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. Therefore,
most carburetor adjustments should be left to aYamaha dealer, who has the necessary profes-
sional knowledge and experience. The adjustment
described in the following section, however, may
be performed by the owner as part of routine main-
tenance.
NOTICEECB00480The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowl-
edge may result in poor performance of or
damage to the engine.EBU24000Adjusting the engine idling speed The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.TIPA diagnostic tachometer is needed to make this
adjustment.1. Start the engine and warm it up. Tightening torque:
Purging bolt:
27 Nm (2.7 m·kgf, 20 ft·lbf)
U1BS61E0.book Page 20 Tuesday, April 13, 2010 10:25 AM

8-21
8

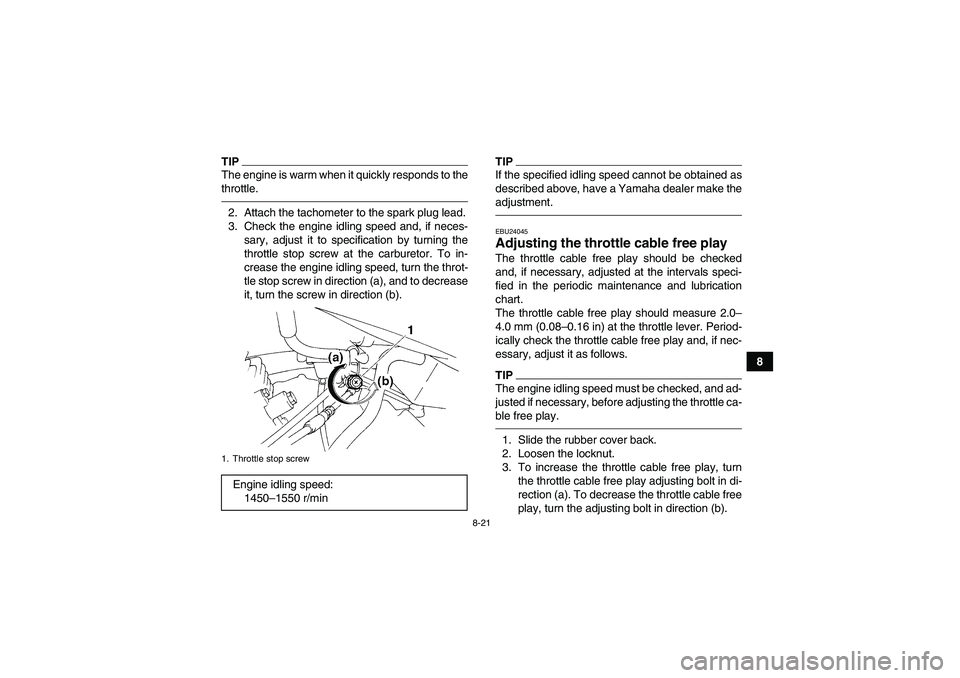

TIPThe engine is warm when it quickly responds to the
throttle.2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces-
sary, adjust it to specification by turning the
throttle stop screw at the carburetor. To in-
crease the engine idling speed, turn the throt-
tle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).
TIPIf the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make the
adjustment.EBU24045Adjusting the throttle cable free play The throttle cable free play should be checked
and, if necessary, adjusted at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
The throttle cable free play should measure 2.0–
4.0 mm (0.08–0.16 in) at the throttle lever. Period-
ically check the throttle cable free play and, if nec-
essary, adjust it as follows.TIPThe engine idling speed must be checked, and ad-
justed if necessary, before adjusting the throttle ca-
ble free play.1. Slide the rubber cover back.
2. Loosen the locknut.
3. To increase the throttle cable free play, turn
the throttle cable free play adjusting bolt in di-
rection (a). To decrease the throttle cable free
play, turn the adjusting bolt in direction (b).
1. Throttle stop screwEngine idling speed:
1450–1550 r/min
