YAMAHA YFM350R 2012 Owners Manual

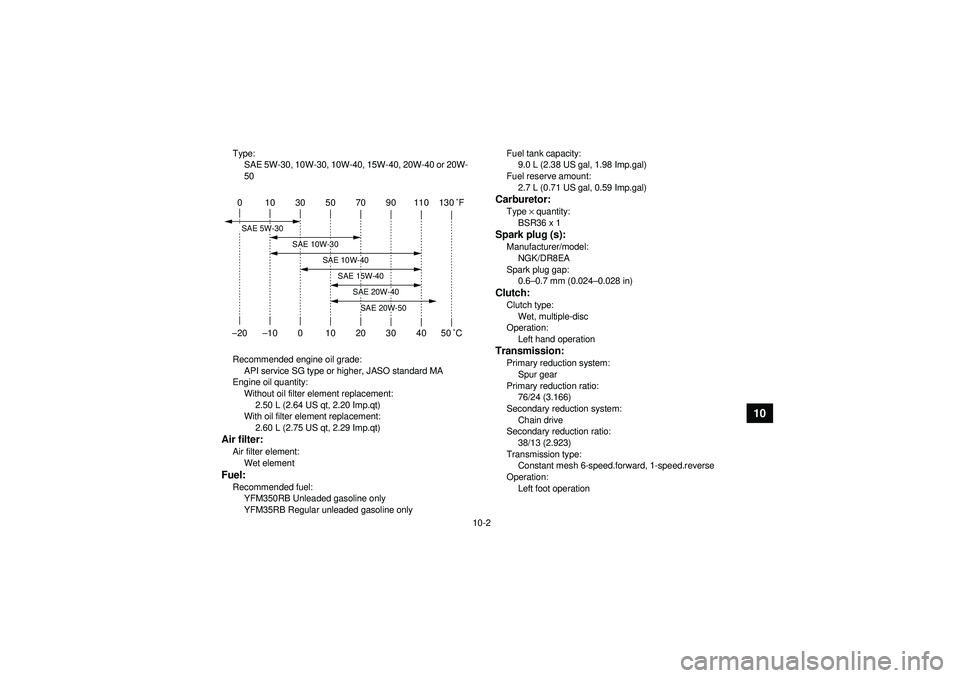

10-2
10
Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter element replacement:
2.50 L (2.64 US qt, 2.20 Imp.qt)
With oil filter element replacement: 2.60 L (2.75 US qt, 2.29 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:YFM350RB Unleaded gasoline only
YFM35RB Regular unleaded gasoline only Fuel tank capacity:
9.0 L (2.38 US gal, 1.98 Imp.gal)
Fuel reserve amount: 2.7 L (0.71 US gal, 0.59 Imp.gal)
Carburetor:Type × quantity:
BSR36 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap: 0.6 –0.7 mm (0.024 –0.028 in)Clutch:Clutch type:
Wet, multiple-disc
Operation: Left hand operationTransmission:Primary reduction system:
Spur gear
Primary reduction ratio: 76/24 (3.166)
Secondary reduction system: Chain drive
Secondary reduction ratio:
38/13 (2.923)
Transmission type: Constant mesh 6-speed.forward, 1-speed.reverse
Operation: Left foot operation
0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U1BS62E0.book Page 2 Monday, April 18, 2011 6:43 PM

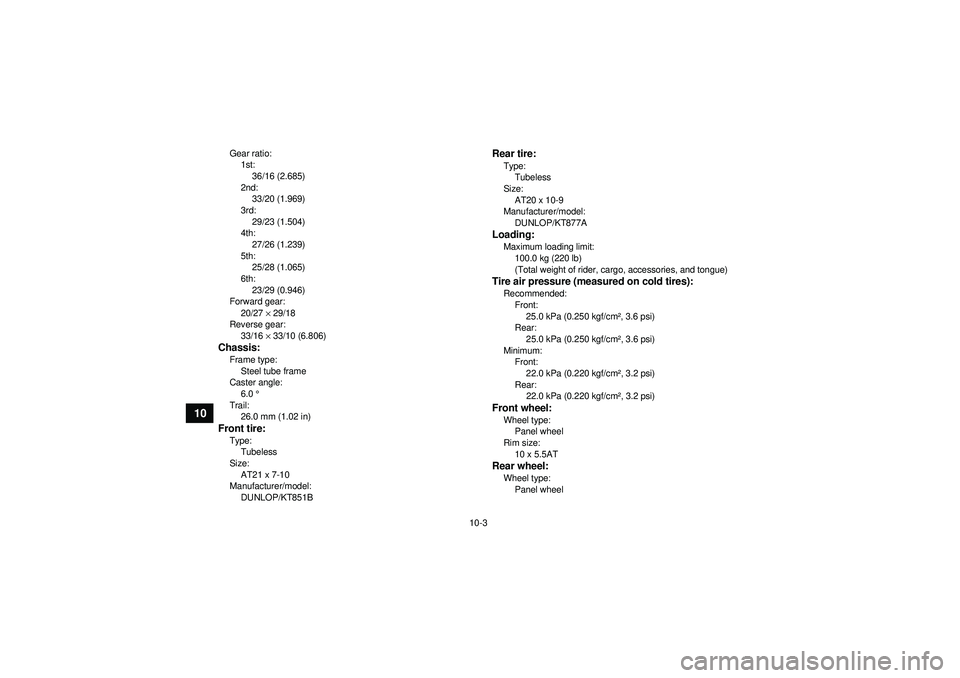

10-3
10
Gear ratio:1st:
36/16 (2.685)
2nd: 33/20 (1.969)
3rd: 29/23 (1.504)
4th:
27/26 (1.239)
5th: 25/28 (1.065)
6th: 23/29 (0.946)
Forward gear:
20/27 × 29/18
Reverse gear: 33/16 × 33/10 (6.806)Chassis:Frame type:
Steel tube frame
Caster angle: 6.0 °
Trail: 26.0 mm (1.02 in)Front tire:Type:Tubeless
Size: AT21 x 7-10
Manufacturer/model:
DUNLOP/KT851B
Rear tire:Type:Tubeless
Size:
AT20 x 10-9
Manufacturer/model: DUNLOP/KT877ALoading:Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:Front:
25.0 kPa (0.250 kgf/cm ², 3.6 psi)
Rear: 25.0 kPa (0.250 kgf/cm ², 3.6 psi)
Minimum: Front: 22.0 kPa (0.220 kgf/cm ², 3.2 psi)
Rear: 22.0 kPa (0.220 kgf/cm ², 3.2 psi)Front wheel:Wheel type:
Panel wheel
Rim size: 10 x 5.5ATRear wheel:Wheel type:Panel wheel
U1BS62E0.book Page 3 Monday, April 18, 2011 6:43 PM

10-4
10
Rim size:9 x 8.0ATFront brake:Type:
Disc brake
Operation: Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:Disc brake
Operation: Right foot operation
Specified brake fluid:
DOT 4Front suspension:Type:Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 200 mm (7.9 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 210 mm (8.3 in)
Electrical system:Ignition system:DC CDI
Charging system:
AC magnetoBattery:Model:YTZ10S
Voltage, capacity:
12 V, 8.6 AhHeadlight:Bulb type:Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light: 12 V, 5.0/21.0 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Reverse indicator light: 12 V, 1.7 W × 1Fuse:Fuse:
15.0 A
U1BS62E0.book Page 4 Monday, April 18, 2011 6:43 PM

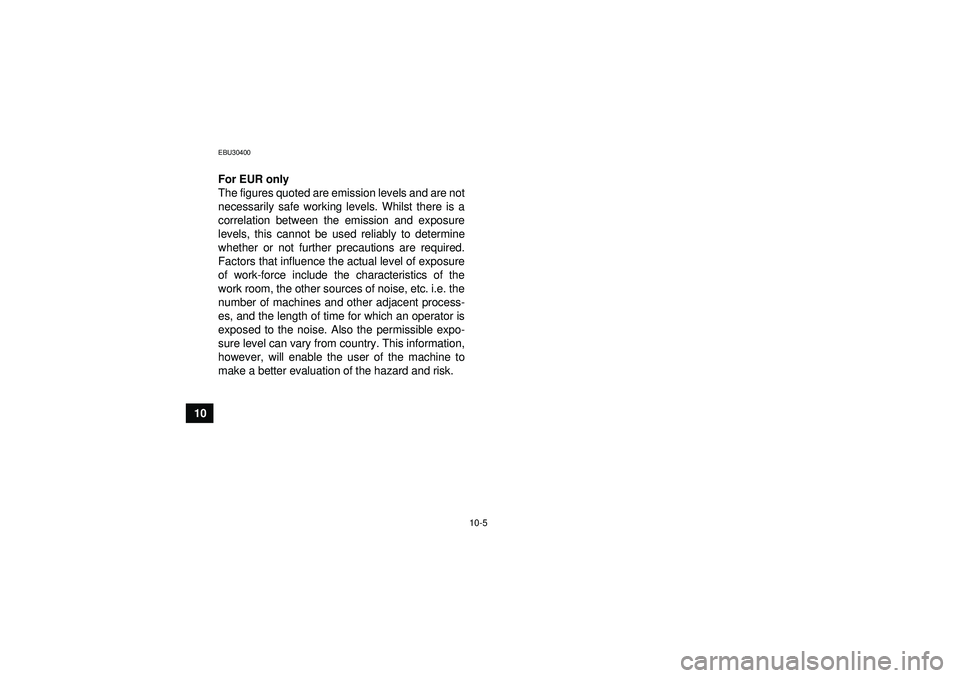

10-5
10
EBU30400For EUR only
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.U1BS62E0.book Page 5 Monday, April 18, 2011 6:43 PM

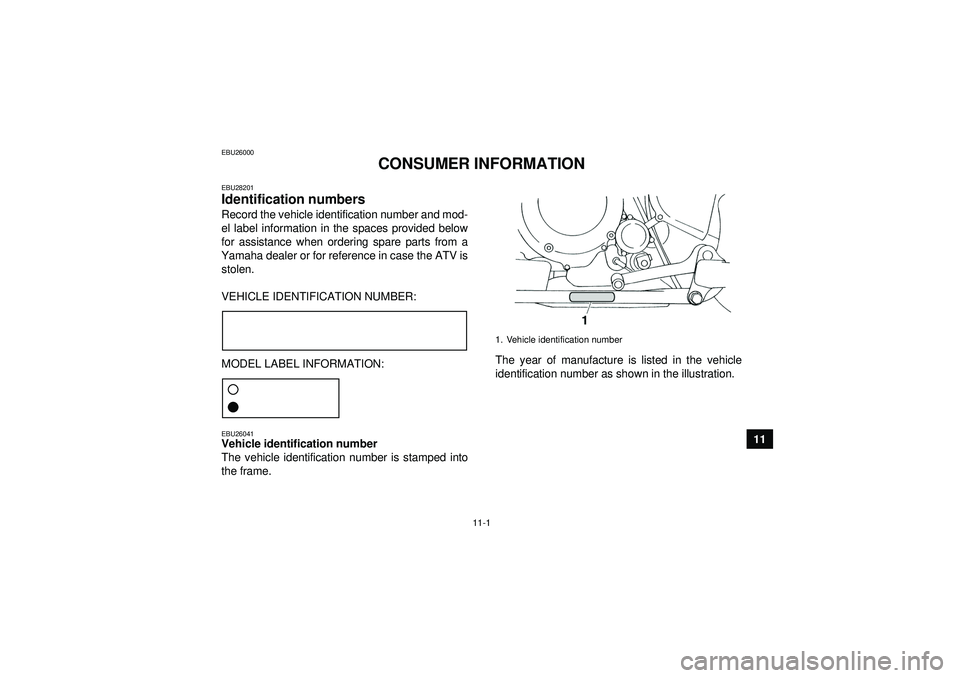

11-1
11
EBU26000
CONSUMER INFORMATION
EBU28201Identification numbers Record the vehicle identification number and mod-
el label information in the spaces provided below
for assistance when ordering spare parts from a
Yamaha dealer or for reference in case the ATV is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26041Vehicle identification number
The vehicle identification number is stamped into
the frame. The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
1. Vehicle identification number
U1BS62E0.book Page 1 Monday, April 18, 2011 6:43 PM

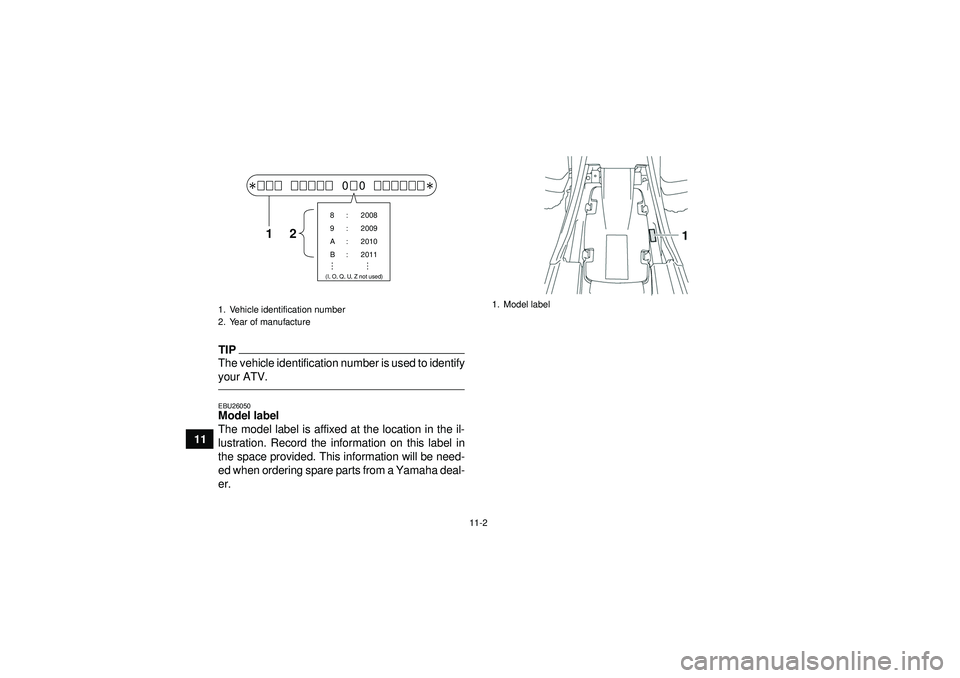

11-2
11
TIPThe vehicle identification number is used to identify
your ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.1. Vehicle identification number
2. Year of manufacture
00
8 : 2008
9 : 2009
A : 2010
B : 2011(I, O, Q, U, Z not used)
12
1. Model label
U1BS62E0.book Page 2 Monday, April 18, 2011 6:43 PM

INDEX
AAccessories and loading ................................................ 6-8
Air filter element, cleaning ............................................ 8-15BBattery .......................................................................... 8-37
Brake and clutch levers, checking and lubricating ....... 8-33
Brake and shift pedals, checking and lubricating ......... 8-33
Brake fluid, changing ................................................... 8-25
Brake fluid level, checking ........................................... 8-23
Brake lever ..................................................................... 4-5
Brake lever free play, checking the front ...................... 8-25
Brake light switches ..................................................... 8-27
Brake pads, checking the front and rear ...................... 8-22
Brake pedal .................................................................... 4-5
Brake pedal height, checking ....................................... 8-25
Brakes .......................................................................... 8-22
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-32
Carburetor, adjusting ................................................... 8-20
Chassis fasteners .......................................................... 5-6
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-4
Clutch lever free play, adjusting ................................... 8-28DDrive chain ..................................................................... 5-4
Drive chain, lubricating ................................................. 8-31
Drive chain slack .......................................................... 8-29Drive select lever ........................................................... 4-7
Drive select lever and driving in reverse ........................ 6-3
EEngine break-in .............................................................. 6-6
Engine, cold start ........................................................... 6-1
Engine idling speed ..................................................... 8-20
Engine oil ....................................................................... 5-3
Engine oil and oil filter element .................................... 8-11
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-2FFuel ......................................................................... 4-8, 5-3
Fuel cock ..................................................................... 4-10
Fuel tank cap ................................................................. 4-8
Fuse, replacing ............................................................ 8-40HHandlebar switches ....................................................... 4-2
Headlight beam, adjusting ........................................... 8-42
Headlight bulb, replacing ............................................. 8-40IIdentification numbers .................................................. 11-1
Indicator lights ................................................................ 4-2
Instruments, lights and switches .................................... 5-6LLabel locations ............................................................... 1-1
Light switch .................................................................... 4-3MMain switch .................................................................... 4-1
U1BS62E0.book Page 1 Monday, April 18, 2011 6:43 PM

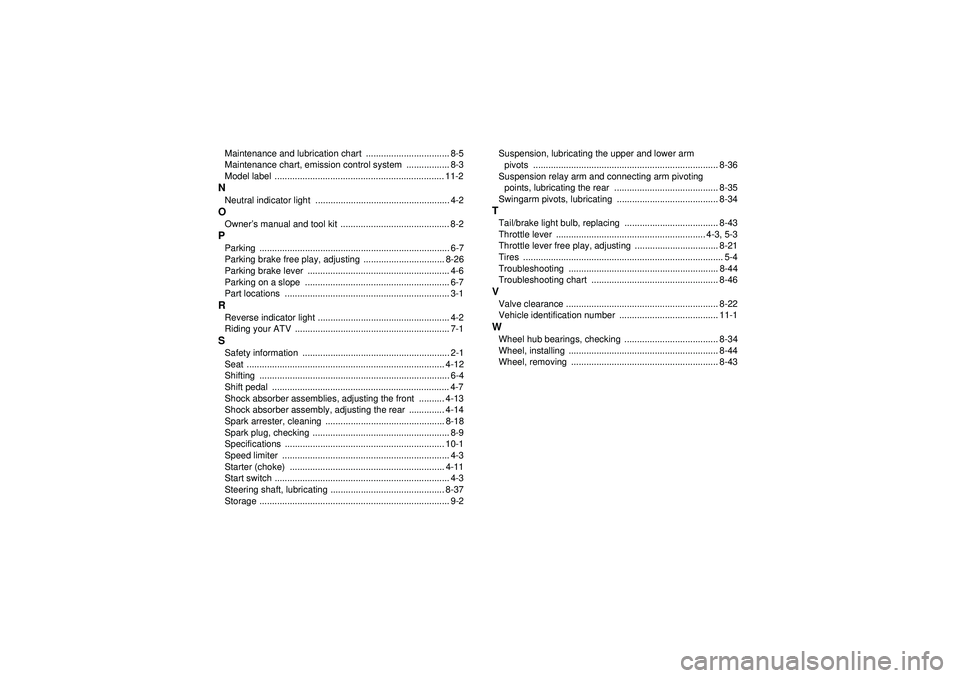

Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2NNeutral indicator light ..................................................... 4-2OOwner’s manual and tool kit ........................................... 8-2PParking ........................................................................... 6-7
Parking brake free play, adjusting ................................ 8-26
Parking brake lever ........................................................ 4-6
Parking on a slope ......................................................... 6-7
Part locations ................................................................. 3-1RReverse indicator light .................................................... 4-2
Riding your ATV ............................................................. 7-1SSafety information .......................................................... 2-1
Seat .............................................................................. 4-12
Shifting ........................................................................... 6-4
Shift pedal ...................................................................... 4-7
Shock absorber assemblies, adjusting the front .......... 4-13
Shock absorber assembly, adjusting the rear .............. 4-14
Spark arrester, cleaning ............................................... 8-18
Spark plug, checking ...................................................... 8-9
Specifications ............................................................... 10-1
Speed limiter .................................................................. 4-3
Starter (choke) ............................................................. 4-11
Start switch ..................................................................... 4-3
Steering shaft, lubricating ............................................. 8-37
Storage ........................................................................... 9-2 Suspension, lubricating the upper and lower arm
pivots ......................................................................... 8-36
Suspension relay arm and connecting arm pivoting points, lubricating the rear ......................................... 8-35
Swingarm pivots, lubricating ........................................ 8-34
TTail/brake light bulb, replacing ..................................... 8-43
Throttle lever ........................................................... 4-3, 5-3
Throttle lever free play, adjusting ................................. 8-21
Tires ............................................................................... 5-4
Troubleshooting ........................................................... 8-44
Troubleshooting chart .................................................. 8-46VValve clearance ............................................................ 8-22
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-34
Wheel, installing ........................................................... 8-44
Wheel, removing .......................................................... 8-43
U1BS62E0.book Page 2 Monday, April 18, 2011 6:43 PM

U1BS62E0.book Page 3 Monday, April 18, 2011 6:43 PM

PRINTED ON RECYCLED PAPERPRINTED IN JAPAN
2011.05-0.5 ×1 CR
