YAMAHA YFM350R 2012 Service Manual

4-16
4

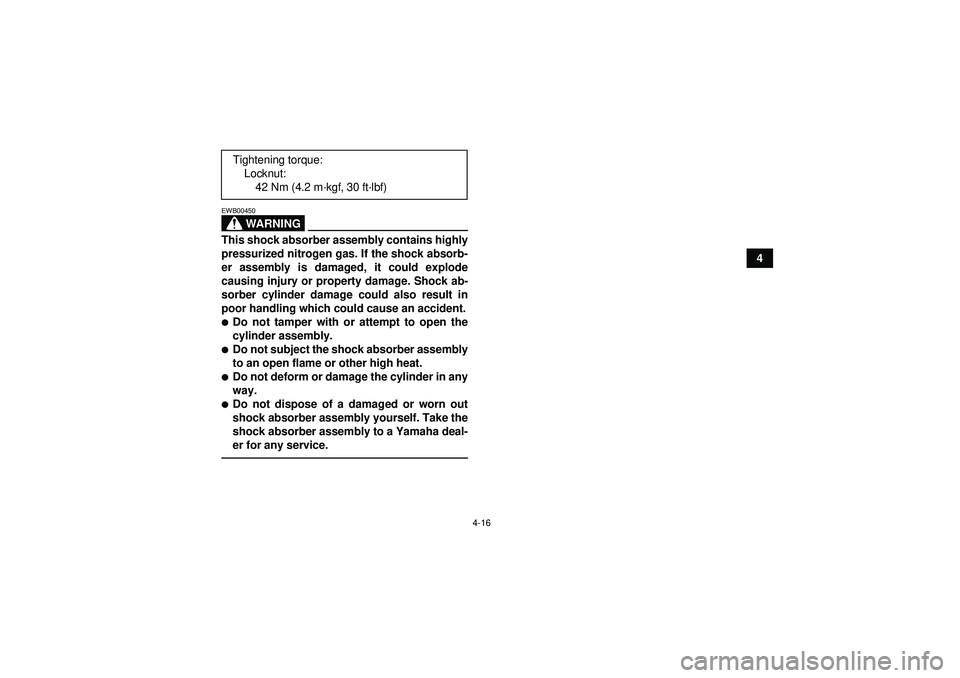

WARNING
EWB00450This shock absorber assembly contains highly
pressurized nitrogen gas. If the shock absorb-
er assembly is damaged, it could explode
causing injury or property damage. Shock ab-
sorber cylinder damage could also result in
poor handling which could cause an accident.
Do not tamper with or attempt to open the
cylinder assembly.
Do not subject the shock absorber assembly
to an open flame or other high heat.
Do not deform or damage the cylinder in any
way.
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.Tightening torque:Locknut:42 Nm (4.2 m ·kgf, 30 ft ·lbf)
U1BS62E0.book Page 16 Monday, April 18, 2011 6:43 PM

5-1
5
EBU19201

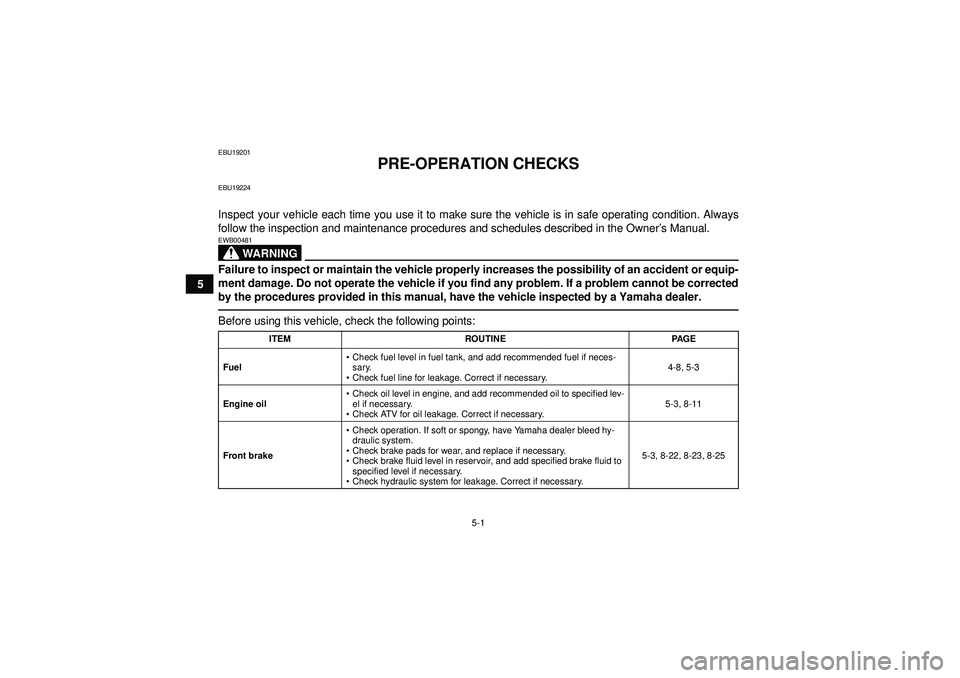

PRE-OPERATION CHECKS
EBU19224Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00481Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
Fuel
Check fuel level in fuel tank, and add recommended fuel if neces-
sary.
 Check fuel line for leakage. Correct if necessary. 4-8, 5-3
Engine oil
Check oil level in engine, and add recommended oil to specified lev-
el if necessary.
 Check ATV for oil leakage. Correct if necessary. 5-3, 8-11
Front brake
Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
 Check brake pads for wear, and replace if necessary.
 Check brake fluid level in reservoir, and add specified brake fluid to
specified level if necessary.
 Check hydraulic system for leakage. Correct if necessary. 5-3, 8-22, 8-23, 8-25
U1BS62E0.book Page 1 Monday, April 18, 2011 6:43 PM

5-2
5

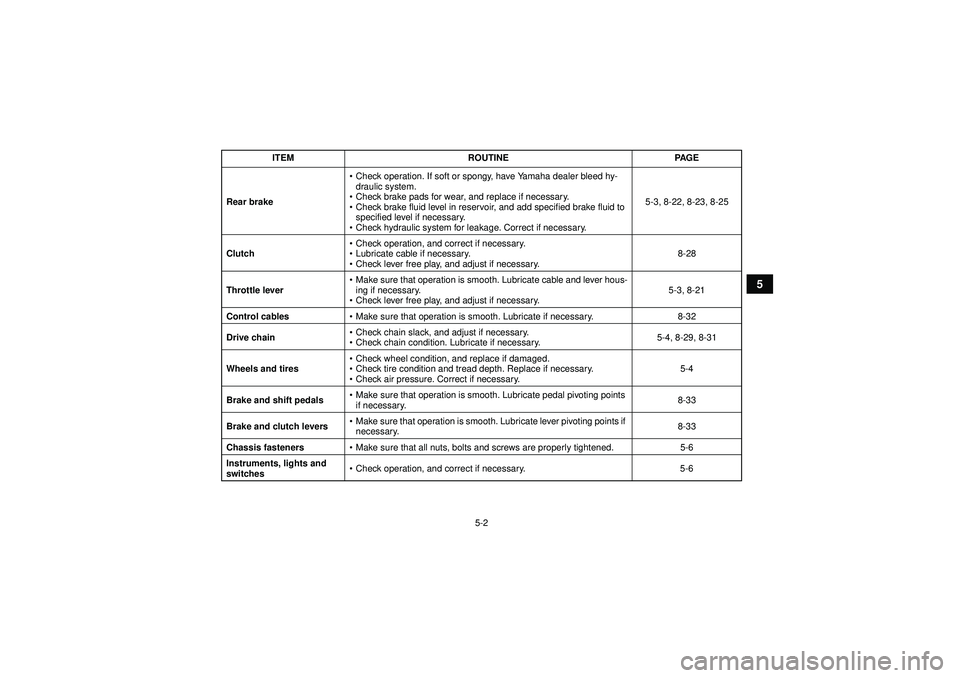

Rear brake
Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
 Check brake pads for wear, and replace if necessary.
 Check brake fluid level in reservoir, and add specified brake fluid to
specified level if necessary.
 Check hydraulic system for leakage. Correct if necessary. 5-3, 8-22, 8-23, 8-25
Clutch
Check operation, and correct if necessary.
 Lubricate cable if necessary.
 Check lever free play, and adjust if necessary. 8-28
Throttle lever
Make sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
 Check lever free play, and adjust if necessary. 5-3, 8-21
Control cables Make sure that operation is smooth. Lubricate if necessary. 8-32
Drive chain
Check chain slack, and adjust if necessary.
 Check chain condition. Lubricate if necessary. 5-4, 8-29, 8-31
Wheels and tires
Check wheel condition, and replace if damaged.
 Check tire condition and tread depth. Replace if necessary.
 Check air pressure. Correct if necessary. 5-4
Brake and shift pedals
Make sure that operation is smooth. Lubricate pedal pivoting points
if necessary. 8-33
Brake and clutch levers
Make sure that operation is smooth. Lubricate lever pivoting points if
necessary. 8-33
Chassis fasteners Make sure that all nuts, bolts and screws are properly tightened. 5-6
Instruments, lights and
switches
Check operation, and correct if necessary. 5-6
ITEM ROUTINE PAGE
U1BS62E0.book Page 2 Monday, April 18, 2011 6:43 PM

5-3
5

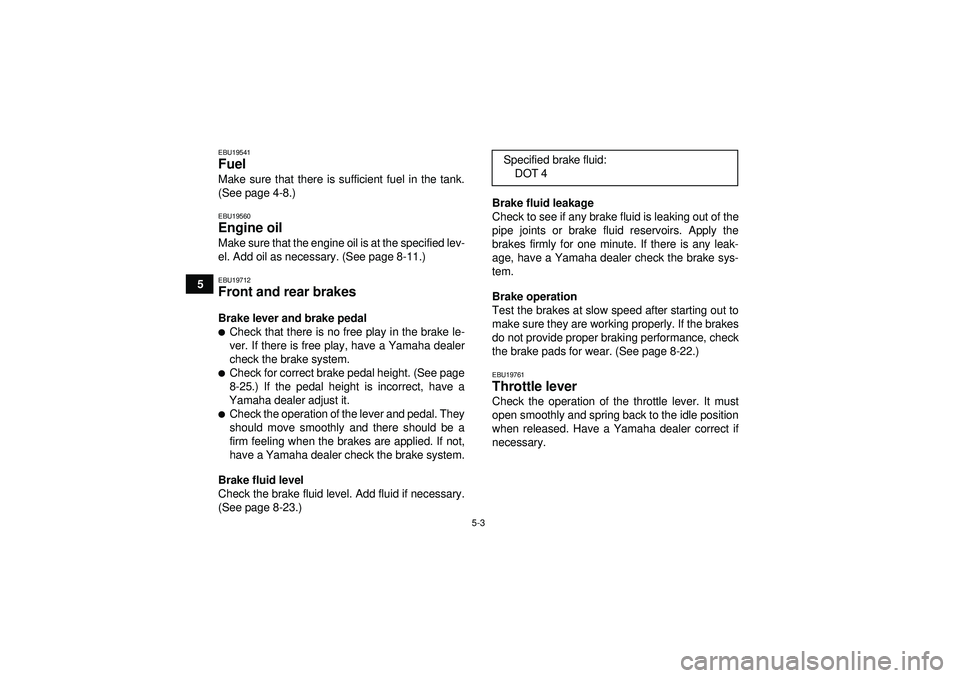

EBU19541Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-8.)EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-11.)EBU19712Front and rear brakes Brake lever and brake pedal
Check that there is no free play in the brake le-
ver. If there is free play, have a Yamaha dealer
check the brake system.
Check for correct brake pedal height. (See page
8-25.) If the pedal height is incorrect, have a
Yamaha dealer adjust it.
Check the operation of the lever and pedal. They
should move smoothly and there should be a
firm feeling when the brakes are applied. If not,
have a Yamaha dealer check the brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 8-23.) Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leak-
age, have a Yamaha dealer check the brake sys-
tem.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake pads for wear. (See page 8-22.)
EBU19761Throttle lever Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.
Specified brake fluid:
DOT 4
U1BS62E0.book Page 3 Monday, April 18, 2011 6:43 PM

5-4
5

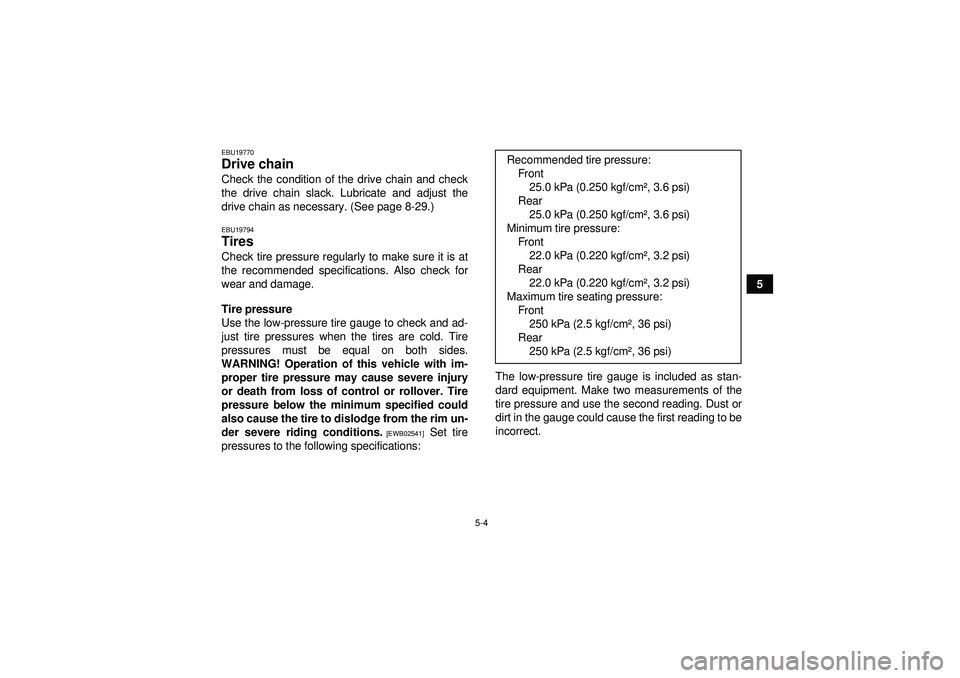

EBU19770Drive chain Check the condition of the drive chain and check
the drive chain slack. Lubricate and adjust the
drive chain as necessary. (See page 8-29.)EBU19794Tires Check tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
Tire pressure
Use the low-pressure tire gauge to check and ad-
just tire pressures when the tires are cold. Tire
pressures must be equal on both sides.
WARNING! Operation of this vehicle with im- proper tire pressure may cause severe injury
or death from loss of control or rollover. Tire
pressure below the minimum specified could
also cause the tire to dislodge from the rim un-
der severe riding conditions.
[EWB02541]
Set tire
pressures to the following specifications: The low-pressure tire gauge is included as stan-
dard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to be
incorrect.Recommended tire pressure:
Fron t25.0 kPa (0.250 kgf/cm ², 3.6 psi)
Rear 25.0 kPa (0.250 kgf/cm ², 3.6 psi)
Minimum tire pressure: Fron t22.0 kPa (0.220 kgf/cm ², 3.2 psi)
Rear 22.0 kPa (0.220 kgf/cm ², 3.2 psi)
Maximum tire seating pressure: Fron t250 kPa (2.5 kgf/cm² , 36 psi)
Rear 250 kPa (2.5 kgf/cm² , 36 psi)
U1BS62E0.book Page 4 Monday, April 18, 2011 6:43 PM

5-5

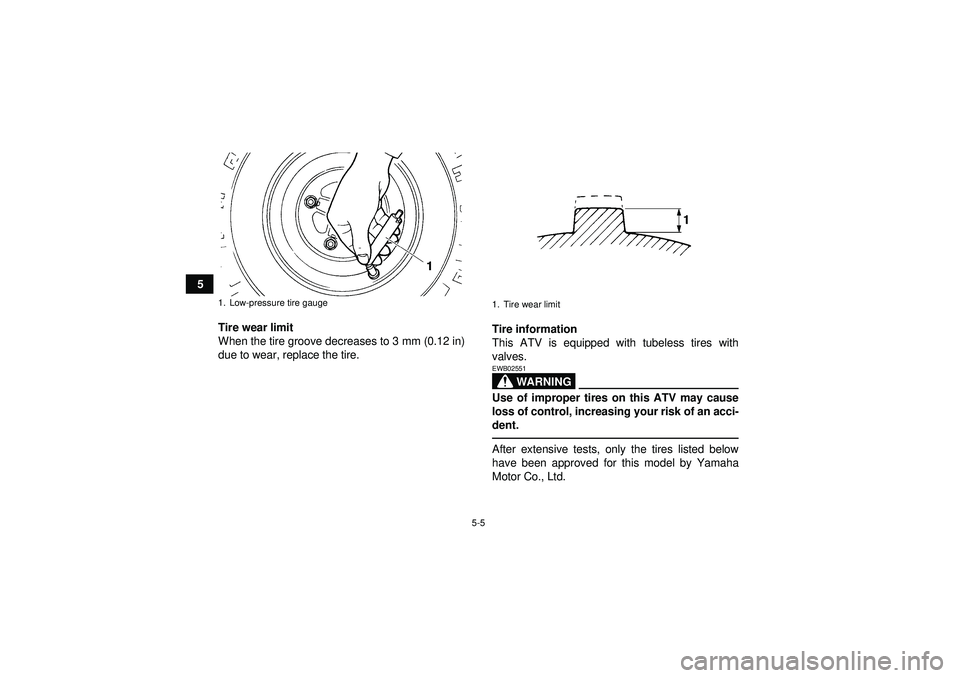

5Tire wear limit
When the tire groove decreases to 3 mm (0.12 in)
due to wear, replace the tire. Tire information
This ATV is equipped with tubeless tires with
valves.
WARNING
EWB02551Use of improper tires on this ATV may cause
loss of control, increasing your risk of an acci-
dent.After extensive tests, only the tires listed below
have been approved for this model by Yamaha
Motor Co., Ltd.
1. Low-pressure tire gauge
1. Tire wear limit
U1BS62E0.book Page 5 Monday, April 18, 2011 6:43 PM

5-6
5

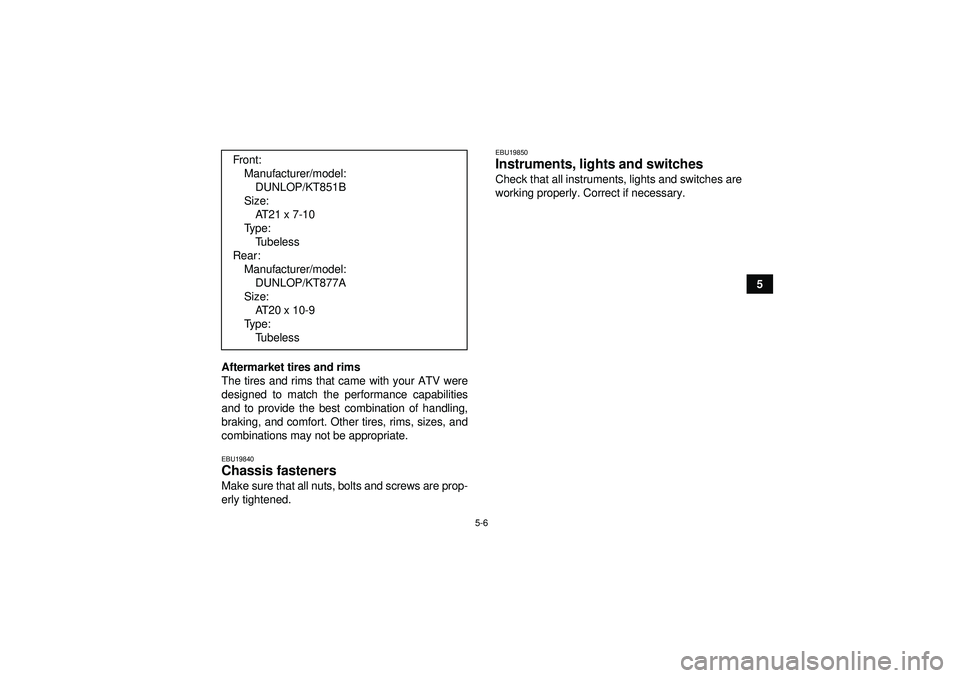

Aftermarket tires and rims
The tires and rims that came with your ATV were
designed to match the performance capabilities
and to provide the best combination of handling,
braking, and comfort. Other tires, rims, sizes, and
combinations may not be appropriate.
EBU19840Chassis fasteners Make sure that all nuts, bolts and screws are prop-
erly tightened.
EBU19850Instruments, lights and switches Check that all instruments, lights and switches are
working properly. Correct if necessary.
Fro nt:
Manufacturer/model:DUNLOP/KT851B
Size: AT21 x 7-10
Ty p e : Tu b e l e s s
Rear: Manufacturer/model:DUNLOP/KT877A
Size: AT20 x 10-9
Ty p e : Tu b e l e s s
U1BS62E0.book Page 6 Monday, April 18, 2011 6:43 PM

6-1
6
EBU19881

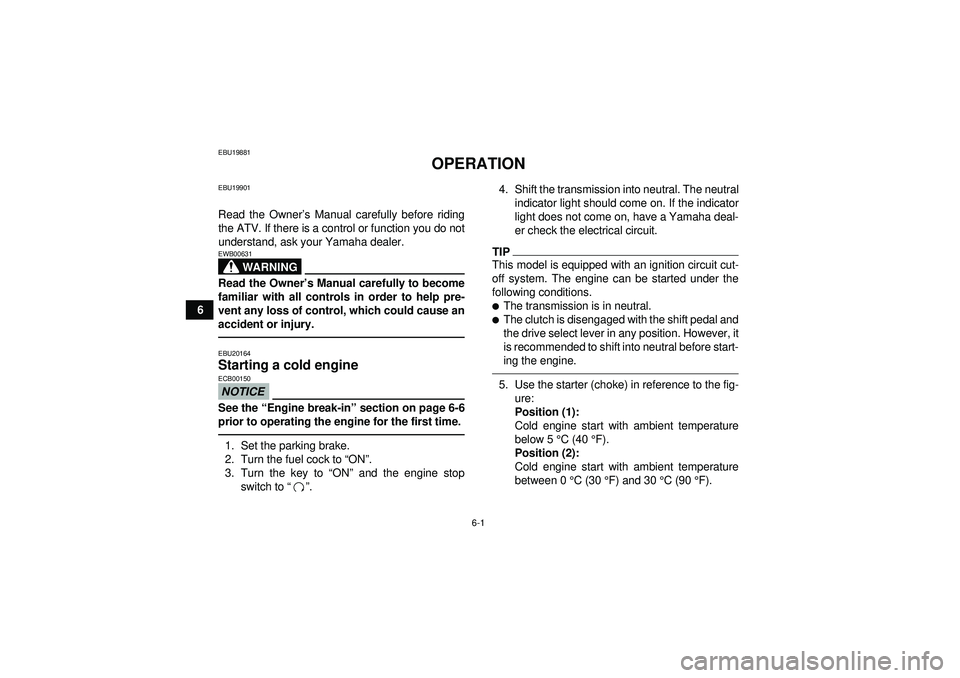

OPERATION
EBU19901Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWB00631Read the Owner ’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.EBU20164Starting a cold engine NOTICEECB00150See the “Engine break-in ” section on page 6-6
prior to operating the engine for the first time.1. Set the parking brake.
2. Turn the fuel cock to “ON ”.
3. Turn the key to “ON ” and the engine stop
switch to “”. 4. Shift the transmission into neutral. The neutral
indicator light should come on. If the indicator
light does not come on, have a Yamaha deal-
er check the electrical circuit.
TIPThis model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.
The transmission is in neutral.
The clutch is disengaged with the shift pedal and
the drive select lever in any position. However, it
is recommended to shift into neutral before start-
ing the engine.5. Use the starter (choke) in reference to the fig-ure:
Position (1):
Cold engine start with ambient temperature
below 5 ° C (40 °F).
Position (2):
Cold engine start with ambient temperature
between 0 ° C (30 °F) and 30 ° C (90 °F).
U1BS62E0.book Page 1 Monday, April 18, 2011 6:43 PM

6-2
6
Position (3):
Cold engine start with ambient temperature
above 25 °
C (80 °F).

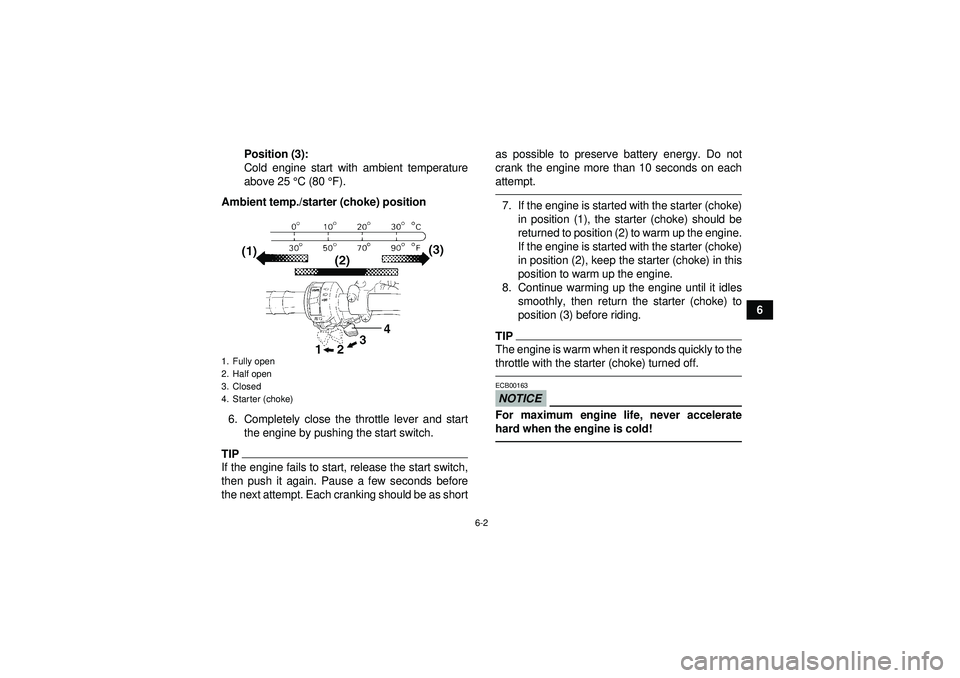

Ambient temp./starter (choke) position
6. Completely close the throttle lever and start the engine by pushing the start switch.
TIPIf the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as short as possible to preserve battery energy. Do not
crank the engine more than 10 seconds on each
attempt.
7. If the engine is started with the starter (choke)
in position (1), the starter (choke) should be
returned to position (2) to warm up the engine.
If the engine is started with the starter (choke)
in position (2), keep the starter (choke) in this
position to warm up the engine.
8. Continue warming up the engine until it idles smoothly, then return the starter (choke) to
position (3) before riding.TIPThe engine is warm when it responds quickly to the
throttle with the starter (choke) turned off.NOTICEECB00163For maximum engine life, never accelerate
hard when the engine is cold!
1. Fully open
2. Half open
3. Closed
4. Starter (choke)U1BS62E0.book Page 2 Monday, April 18, 2011 6:43 PM

6-3
6

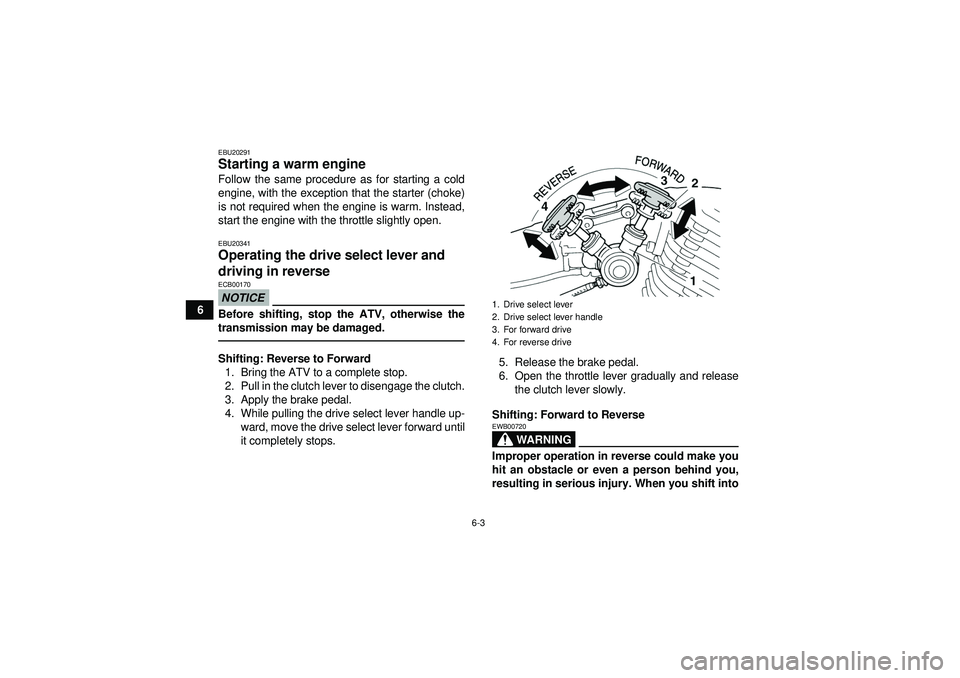

EBU20291Starting a warm engine Follow the same procedure as for starting a cold
engine, with the exception that the starter (choke)
is not required when the engine is warm. Instead,
start the engine with the throttle slightly open.EBU20341Operating the drive select lever and
driving in reverse NOTICEECB00170Before shifting, stop the ATV, otherwise the
transmission may be damaged.Shifting: Reverse to Forward1. Bring the ATV to a complete stop.
2. Pull in the clutch lever to disengage the clutch.
3. Apply the brake pedal.
4. While pulling the drive select lever handle up- ward, move the drive select lever forward until
it completely stops. 5. Release the brake pedal.
6. Open the throttle lever gradually and release
the clutch lever slowly.
Shifting: Forward to Reverse
WARNING
EWB00720Improper operation in reverse could make you
hit an obstacle or even a person behind you,
resulting in serious injury. When you shift into1. Drive select lever
2. Drive select lever handle
3. For forward drive
4. For reverse drive
U1BS62E0.book Page 3 Monday, April 18, 2011 6:43 PM
