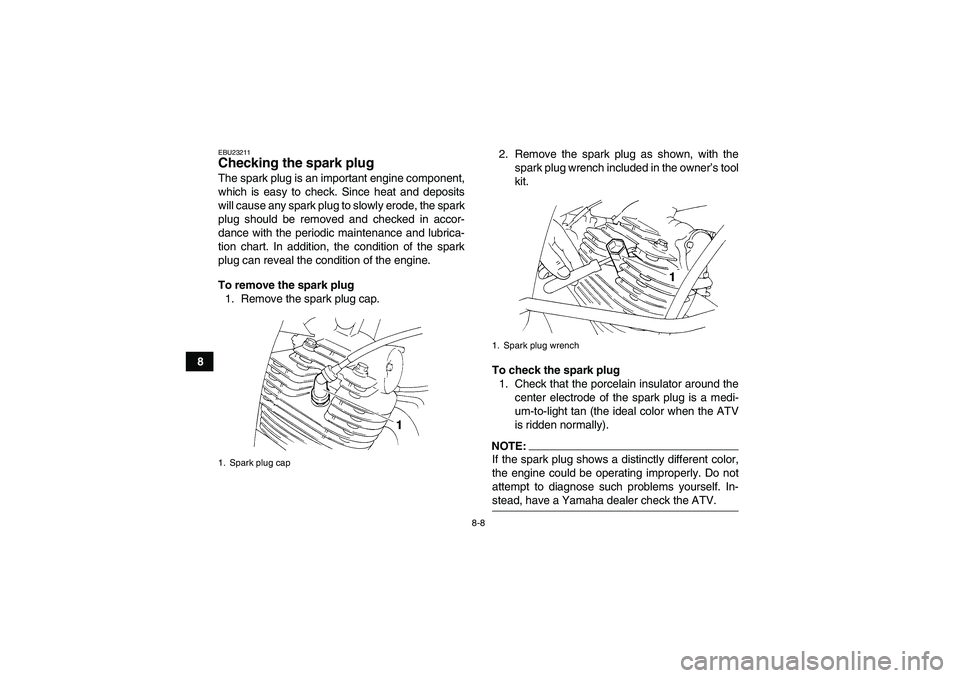

EBU23211Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1. Spark plug wrench
U10P60E0.book Page 8 Thursday, June 15, 2006 4:19 PM

8-10
8
NOTE:If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.EBU23273Engine oil and oil filter element The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element cleaned at the intervals speci-
fied in the periodic maintenance and lubrication
chart.

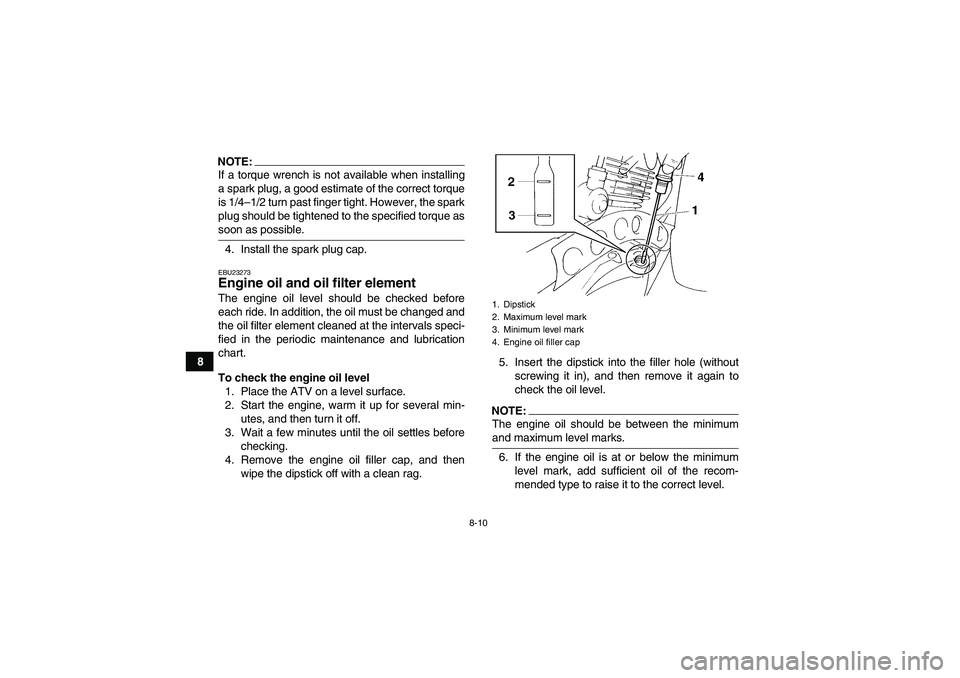

To check the engine oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Wait a few minutes until the oil settles before
checking.
4. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag.5. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.
NOTE:The engine oil should be between the minimumand maximum level marks.
6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.1. Dipstick
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler cap
U10P60E0.book Page 10 Thursday, June 15, 2006 4:19 PM

8-12

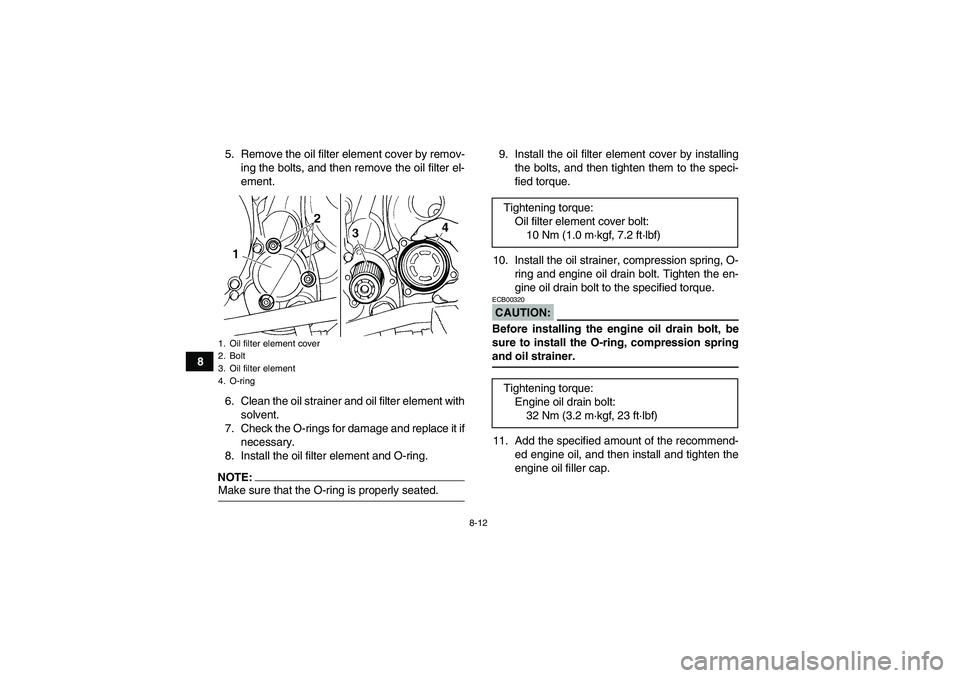

85. Remove the oil filter element cover by remov-
ing the bolts, and then remove the oil filter el-
ement.
6. Clean the oil strainer and oil filter element with
solvent.
7. Check the O-rings for damage and replace it if
necessary.
8. Install the oil filter element and O-ring.
NOTE:Make sure that the O-ring is properly seated.9. Install the oil filter element cover by installing
the bolts, and then tighten them to the speci-
fied torque.
10. Install the oil strainer, compression spring, O-
ring and engine oil drain bolt. Tighten the en-
gine oil drain bolt to the specified torque.
CAUTION:ECB00320Before installing the engine oil drain bolt, be
sure to install the O-ring, compression springand oil strainer.
11. Add the specified amount of the recommend-
ed engine oil, and then install and tighten the
engine oil filler cap.
1. Oil filter element cover
2. Bolt
3. Oil filter element
4. O-ring
Tightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torque:
Engine oil drain bolt:
32 Nm (3.2 m·kgf, 23 ft·lbf)
U10P60E0.book Page 12 Thursday, June 15, 2006 4:19 PM

8-13
8
CAUTION:ECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
Make sure that no foreign material enters thecrankcase.
12. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
13. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
EBU23740Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dusty
areas.NOTE:There is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-ter case.
1. Remove the seat. (See page 4-14.) Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter element replacement:
2.50 L (2.64 US qt) (2.20 Imp.qt)
With oil filter element replacement:
2.60 L (2.75 US qt) (2.29 Imp.qt)1. Air filter case check hose
U10P60E0.book Page 13 Thursday, June 15, 2006 4:19 PM

8-15
8
5. Wash the sponge material gently but thor-
oughly in solvent.
WARNING
EWB01940Always use parts cleaning solvent to clean the
sponge material. Never use low-flash-point
solvents or gasoline to clean the sponge mate-
rial because the engine could catch fire or ex-plode.
6. Squeeze the excess solvent out of the sponge
material and let it dry.
CAUTION:ECB00440Do not twist the sponge material when squeez-ing it.
7. Check the sponge material and replace it if
damaged.
8. Apply a quality foam air filter oil to the sponge
material.NOTE:The sponge material should be wet but not drip-ping.
9. Pull the sponge material over the air filter ele-
ment frame.
10. Apply all-purpose grease to the air filter ele-
ment seat.
11. Insert the air filter element into the air filter
case, and then install the air filter case cover
by hooking the holders onto the air filter case.
12. Install the seat.NOTE:The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
1. Air filter element retaining plate
2. Air filter element frame
3. Sponge material
4. Air filter element seatU10P60E0.book Page 15 Thursday, June 15, 2006 4:19 PM

8-16
8for obstructions. Check the air filter case rubber
joint to the carburetor fittings and the rubber joint
manifold fittings for an air-tight seal. Tighten all fit-
tings securely to avoid the possibility of unfiltered
air entering the engine.CAUTION:ECB00460
Make sure that the air filter element is prop-
erly seated in the air filter case.
Never operate the engine with the air filter el-
ement removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addition-
ally, operation without the air filter element
will affect carburetor jetting with subsequent
poor performance and possible engine over-heating.EBU27490Cleaning the spark arrester Be sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.

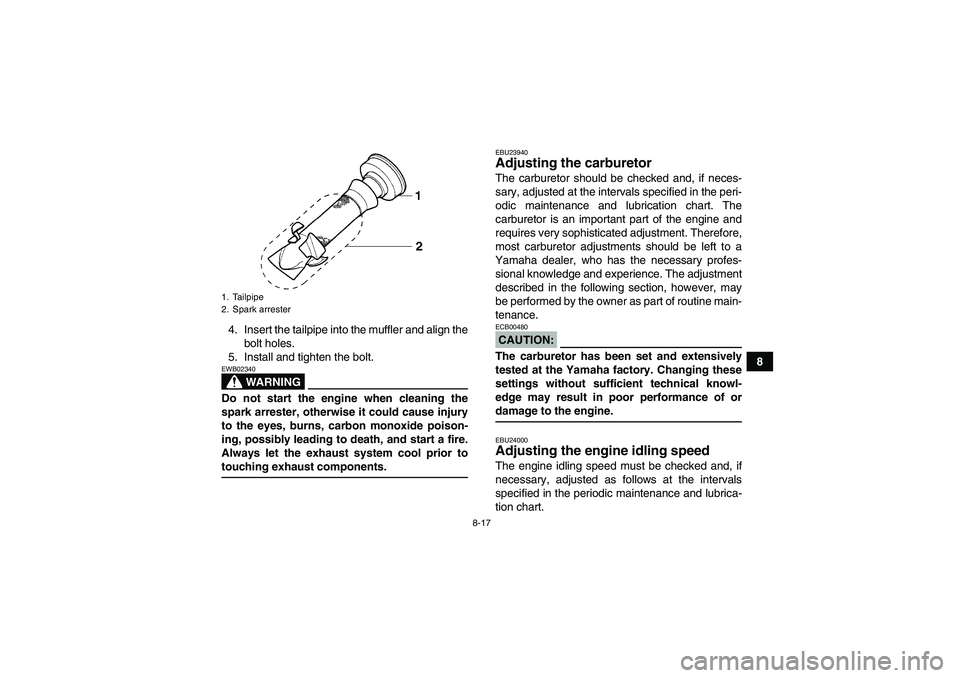

1. Remove the bolt.2. Remove the tailpipe by pulling it out of the
muffler.
3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from the
spark arrester portion of the tailpipe and inside
of the tailpipe housing.
1. Bolt
U10P60E0.book Page 16 Thursday, June 15, 2006 4:19 PM

8-17
8 4. Insert the tailpipe into the muffler and align the
bolt holes.
5. Install and tighten the bolt.
WARNING
EWB02340Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior totouching exhaust components.
EBU23940Adjusting the carburetor The carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. Therefore,
most carburetor adjustments should be left to a
Yamaha dealer, who has the necessary profes-
sional knowledge and experience. The adjustment
described in the following section, however, may
be performed by the owner as part of routine main-
tenance.CAUTION:ECB00480The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowl-
edge may result in poor performance of ordamage to the engine.EBU24000Adjusting the engine idling speed The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
1. Tailpipe
2. Spark arresterU10P60E0.book Page 17 Thursday, June 15, 2006 4:19 PM

8-18
8
NOTE:A diagnostic tachometer is needed to make thisadjustment.
1. Start the engine and warm it up.NOTE:The engine is warm when it quickly responds to thethrottle.
2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces-
sary, adjust it to specification by turning the
throttle stop screw at the carburetor. To in-
crease the engine idling speed, turn the throt-
tle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).
NOTE:If the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make theadjustment.1. Throttle stop screwEngine idling speed:
1450–1550 r/min
U10P60E0.book Page 18 Thursday, June 15, 2006 4:19 PM

8-19
8

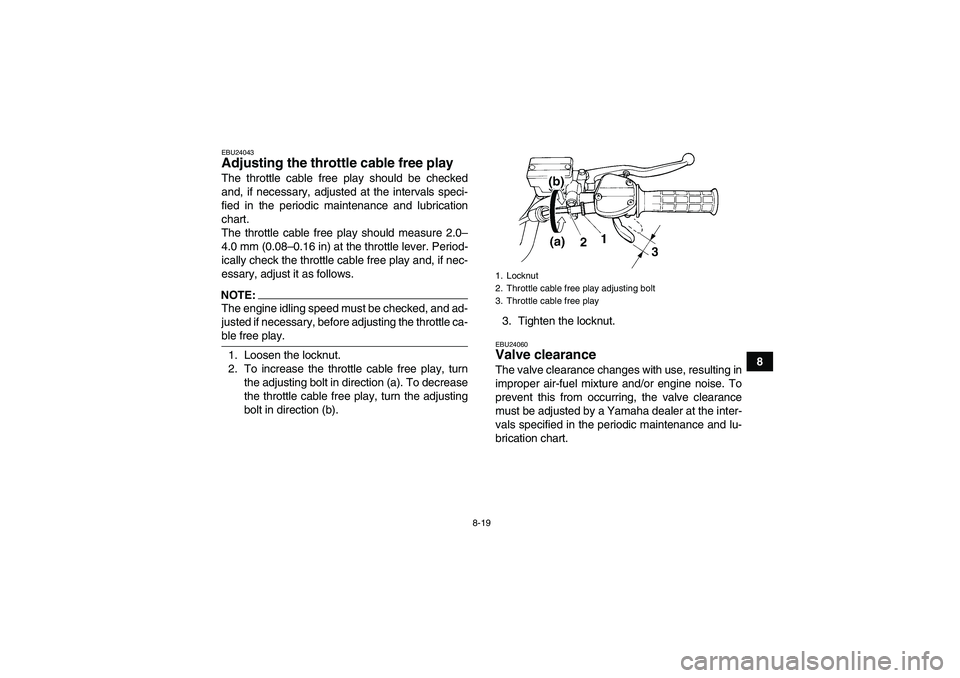

EBU24043Adjusting the throttle cable free play The throttle cable free play should be checked
and, if necessary, adjusted at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
The throttle cable free play should measure 2.0–
4.0 mm (0.08–0.16 in) at the throttle lever. Period-
ically check the throttle cable free play and, if nec-
essary, adjust it as follows.NOTE:The engine idling speed must be checked, and ad-
justed if necessary, before adjusting the throttle ca-ble free play.
1. Loosen the locknut.
2. To increase the throttle cable free play, turn
the adjusting bolt in direction (a). To decrease
the throttle cable free play, turn the adjusting
bolt in direction (b).3. Tighten the locknut.
EBU24060Valve clearance The valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.1. Locknut
2. Throttle cable free play adjusting bolt
3. Throttle cable free play
U10P60E0.book Page 19 Thursday, June 15, 2006 4:19 PM

8-30
8
EBU24880Lubricating the drive chain The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.
CAUTION:ECB00560The drive chain must be lubricated after wash-ing the ATV or riding in the rain.
1. Clean the drive chain with kerosene and a
small soft brush.CAUTION:ECB00570To prevent damaging the O-rings, do not clean
the drive chain with steam cleaners, high-pres-sure washers or inappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant.CAUTION:ECB00580Do not use engine oil or any other lubricants
for the drive chain, as they may contain sub-stances that could damage the O-rings.EBU24900Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec- Tightening torques:
Locknut:
16 Nm (1.6 m·kgf, 11 ft·lbf)
Axle holding nut (upper):
120 Nm (12.0 m·kgf, 85 ft·lbf)
Axle holding nut (lower):
73 Nm (7.3 m·kgf, 53 ft·lbf)
1. O-ringU10P60E0.book Page 30 Thursday, June 15, 2006 4:19 PM
