8-31

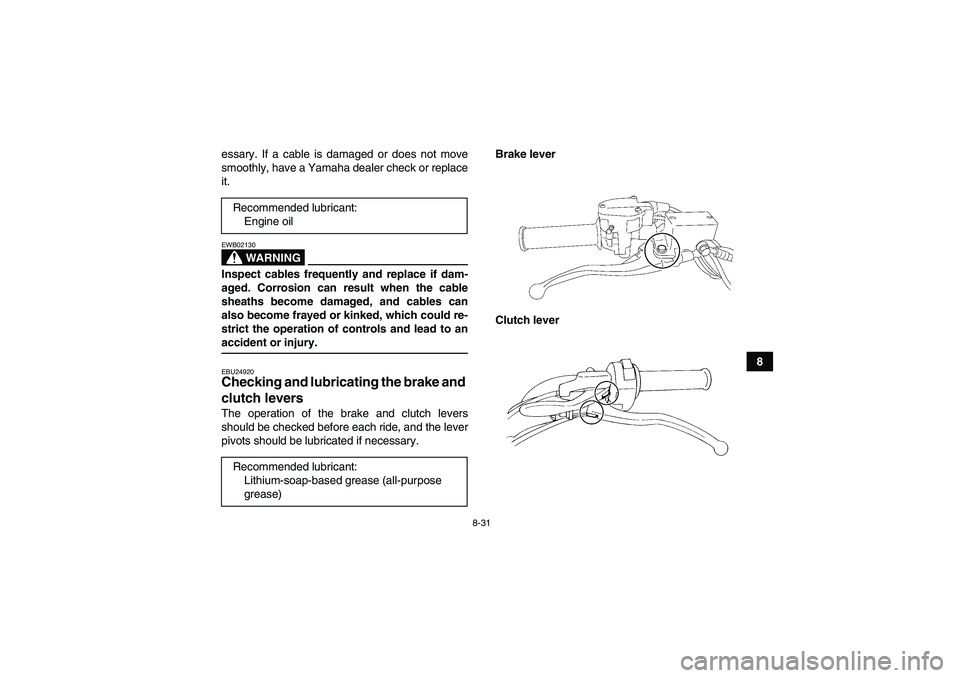

8 essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02130Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to anaccident or injury.EBU24920Checking and lubricating the brake and
clutch levers The operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.Brake lever
Clutch lever Recommended lubricant:
Engine oil
Recommended lubricant:
Lithium-soap-based grease (all-purpose
grease)U10P60E0.book Page 31 Thursday, June 15, 2006 4:19 PM

8-43
8

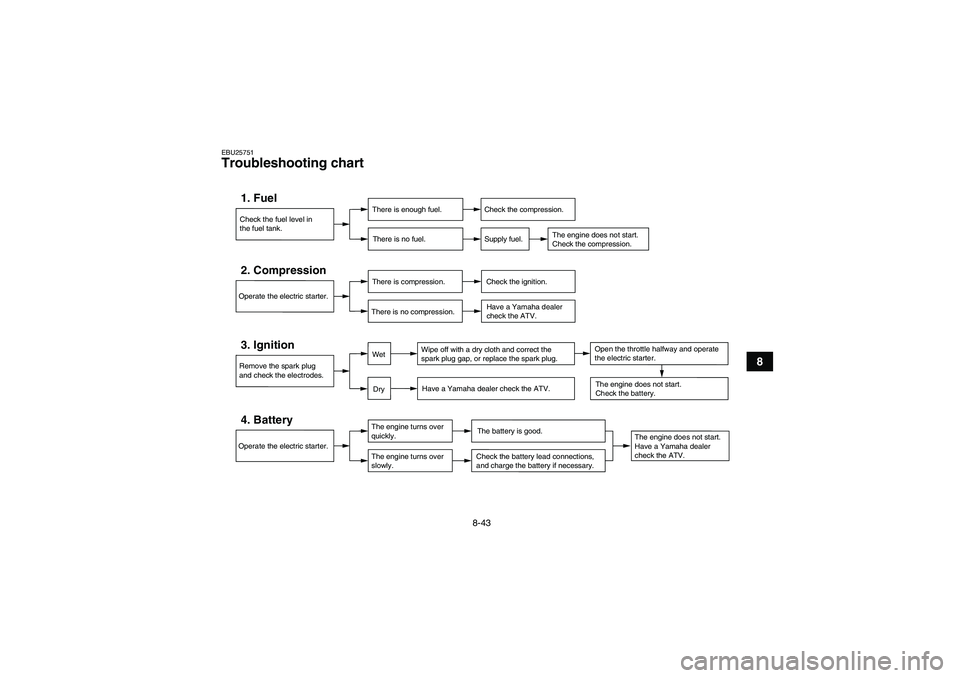

EBU25751Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Have a Yamaha dealer
check the ATV.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U10P60E0.book Page 43 Thursday, June 15, 2006 4:19 PM

9-3

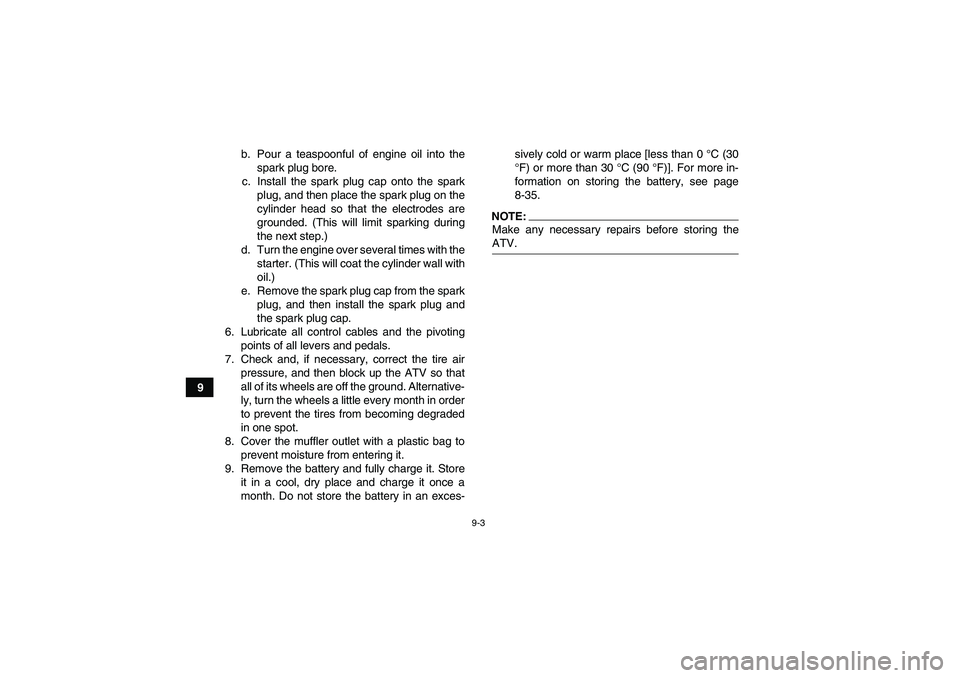

9b. Pour a teaspoonful of engine oil into the
spark plug bore.
c. Install the spark plug cap onto the spark
plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the
starter. (This will coat the cylinder wall with
oil.)
e. Remove the spark plug cap from the spark
plug, and then install the spark plug and
the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
9. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-sively cold or warm place [less than 0 °C (30
°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page
8-35.
NOTE:Make any necessary repairs before storing theATV.
U10P60E0.book Page 3 Thursday, June 15, 2006 4:19 PM

INDEX
AAccessories and loading ................................................ 6-9
Air filter element, cleaning ............................................ 8-13
Auxiliary light bulb ........................................................ 8-40BBattery .......................................................................... 8-35
Brake and clutch levers, checking and lubricating ....... 8-31
Brake and shift pedals, checking and lubricating ......... 8-32
Brake fluid, changing ................................................... 8-22
Brake fluid level, checking ........................................... 8-21
Brake lever ..................................................................... 4-6
Brake lever free play, checking the front ...................... 8-22
Brake light switches ..................................................... 8-25
Brake pads, checking the front and rear ...................... 8-20
Brake pedal .................................................................... 4-7
Brake pedal position, checking .................................... 8-23
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-30
Carburetor, adjusting ................................................... 8-17
Chassis fasteners .......................................................... 5-7
Cleaning ......................................................................... 9-1
Clutch lever .................................................................... 4-6
Clutch lever free play, adjusting ................................... 8-26DDrive chain ..................................................................... 5-4
Drive chain, lubricating ................................................. 8-30
Drive chain slack .......................................................... 8-27Drive select lever ........................................................... 4-9
Drive select lever and driving in reverse ........................ 6-3
EEngine break-in .............................................................. 6-6
Engine, cold start ........................................................... 6-1
Engine idling speed ..................................................... 8-17
Engine oil ....................................................................... 5-3
Engine oil and oil filter element .................................... 8-10
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-3FFuel ....................................................................... 4-10, 5-3
Fuel cock ..................................................................... 4-11
Fuel tank cap ................................................................. 4-9
Fuses, replacing .......................................................... 8-37HHandlebar switches ....................................................... 4-3
Hazard switch ................................................................ 4-4
Headlight beam ............................................................ 8-38
Headlight bulb .............................................................. 8-38
High beam indicator light ............................................... 4-2
Horn switch .................................................................... 4-4IIdentification numbers .................................................. 11-1
Indicator lights ................................................................ 4-2
Instruments, lights and switches .................................... 5-7LLabel locations ............................................................... 2-1
