4-1
4
EBU17733
INSTRUMENT AND CONTROL FUNCTIONS
EBU28040Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
auxiliary light, taillight and license plate light come
on, and the engine can be started. The key cannot
be removed.TIPThe headlight comes on when the light switch is
set to“” or“”.OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U10P70E0.book Page 1 Thursday, July 21, 2011 8:51 AM
Page 22 of 136
4-2
4
EBU17793Indicator lights EBU27970Turn signal indicator light“”
This indicator light flashes when the turn signal
switch is pushed to the left or right.EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.
EBU17830Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.EBU27980High beam indicator light“”
This indicator light comes on when the high beam
of the headlight is switched on.EBU28051Speedometer This speedometer is equipped with an odometer.
The odometer shows the total distance traveled.
1. High beam indicator light“”
2. Turn signal indicator light“”
3. Reverse indicator light “R”
4. Neutral indicator light “N”
12
1. Speedometer
2. Odometer
1 2
U10P70E0.book Page 2 Thursday, July 21, 2011 8:51 AM
Page 23 of 136
4-3
4
EBU18061Handlebar switches
EBU18080Engine stop switch“/”
Set this switch to“” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to“”.EBU18101Start switch“”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.
1. Light switch“//”
2. Hazard switch“”
3. Turn signal switch“/”
4. Horn switch“”
5. Start switch“”
1. Engine stop switch“/”
U10P70E0.book Page 3 Thursday, July 21, 2011 8:51 AM
Page 24 of 136
4-4
4
EBU28063Light switch“//”
Set the switch to“” to turn on the high beam.
Set this switch to“” to turn on the low beam.
Set the switch to“” to turn off the headlight.NOTICEECB00033Do not use the headlight with the engine turned
off for an extended period of time, otherwise
the battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. (See page 8-38.)EBU27990Turn signal switch“/”
To signal a right-hand turn, push this switch
to“”. To signal a left-hand turn, push this switch
to“”. When released, the switch returns to the
center position. To cancel the turn signal lights,
push the switch in after it has returned to the center
position.EBU18170Horn switch“”
Press the switch to sound the horn.
EBU28001Hazard switch“”
With the key in the “ON” position, use this switch to
turn on the hazard lights (simultaneous flashing of
all turn signal lights).
The hazard lights are used in case of an emergen-
cy or to warn other drivers when your vehicle is
stopped where it might be a traffic hazard.NOTICEECB00860Do not use the hazard lights for an extended
length of time with the engine not running, oth-
erwise the battery may discharge.EBU18282Throttle lever Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
U10P70E0.book Page 4 Thursday, July 21, 2011 8:51 AM
Page 25 of 136
4-5
4
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18323Speed limiter Your ATV is equipped with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turnthe adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 2.0–4.0 mm (0.08–0.16 in).
(See page 8-21.) WARNING! Improper ad-
justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]
3. Tighten the locknut.
1. Throttle lever
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
U10P70E0.book Page 5 Thursday, July 21, 2011 8:51 AM
Page 26 of 136
4-6
4

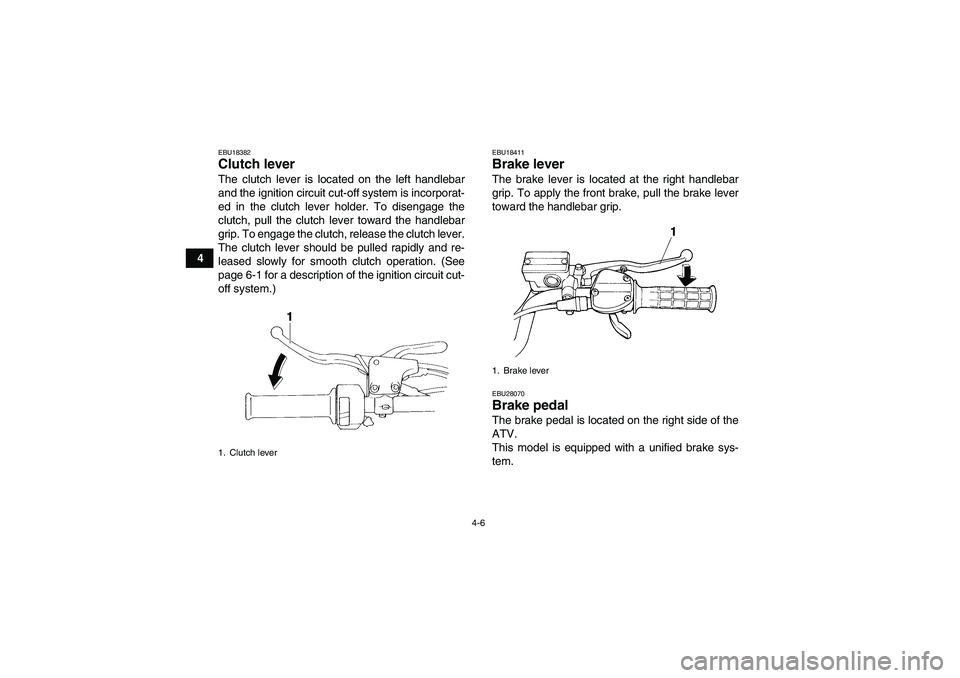

EBU18382Clutch lever The clutch lever is located on the left handlebar
and the ignition circuit cut-off system is incorporat-
ed in the clutch lever holder. To disengage the
clutch, pull the clutch lever toward the handlebar
grip. To engage the clutch, release the clutch lever.
The clutch lever should be pulled rapidly and re-
leased slowly for smooth clutch operation. (See
page 6-1 for a description of the ignition circuit cut-
off system.)
EBU18411Brake lever The brake lever is located at the right handlebar
grip. To apply the front brake, pull the brake lever
toward the handlebar grip.EBU28070Brake pedal The brake pedal is located on the right side of the
ATV.
This model is equipped with a unified brake sys-
tem.
1. Clutch lever
1. Brake lever
U10P70E0.book Page 6 Thursday, July 21, 2011 8:51 AM
Page 27 of 136
4-7
4 When pressing down on the brake pedal, the brak-
ing force is applied to the rear brake and a portion
of the front brakes. For full braking performance,
apply both the brake lever and the brake pedal si-
multaneously.
EBU18520Parking brake lever Use the parking brake before starting the engine or
parking the ATV, especially on a slope. To apply
the parking brake, move the parking brake lever in
direction (a). To release the parking brake, move
the parking brake lever in direction (b).1. Brake pedal
1. Parking brake lever (locked position)
1. Parking brake lever (unlocked position)
U10P70E0.book Page 7 Thursday, July 21, 2011 8:51 AM
Page 28 of 136
4-8
4
WARNING
EWB00220Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakes
prematurely.EBU18530Shift pedal This ATV is equipped with a constant-mesh 6-
speed transmission. The shift pedal is located on
the left side of the engine and is used in combina-
tion with the clutch when shifting.
EBU18571Drive select lever The drive select lever is used for driving the ATV
either forward or in reverse. See the “Operating the
drive select lever and driving in reverse” section on
page 6-3 for the drive select lever operation.1. Shift pedal
U10P70E0.book Page 8 Thursday, July 21, 2011 8:51 AM
Page 29 of 136
4-9
4
EBU18720Fuel tank cap Remove the fuel tank cap by turning it counter-
clockwise.
EBU28942Fuel Make sure there is sufficient gasoline in the tank.
WARNING
EWB02521Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions.1. Before refueling, turn off the engine and be
sure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity
1. Drive select lever
1. Fuel tank cap
U10P70E0.book Page 9 Thursday, July 21, 2011 8:51 AM
Page 30 of 136
4-10
4of sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling,
be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel reach-
es the bottom of the filler tube. Because fuel
expands when it heats up, heat from the en-
gine or the sun can cause fuel to spill out of
the fuel tank.3. Wipe up any spilled fuel immediately.
NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00981]
4. Turn the fuel tank cap fully clockwise to make
sure it is securely closed.
WARNING
EWB02531Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow
some gasoline or inhale a lot of gasoline vapor,
or get some gasoline in your eyes, see your
doctor immediately. If gasoline spills on your
skin, wash with soap and water. If gasoline
spills on your clothing, change your clothes.
1. Fuel tank filler tube
2. Maximum fuel level
Recommended fuel:
Regular unleaded gasoline only with a re-
search octane number of 91 or higher
Fuel tank capacity:
9.0 L (2.38 US gal, 1.98 Imp.gal)
Fuel reserve amount:
2.7 L (0.71 US gal, 0.59 Imp.gal)
