YAMAHA YFM350R-W 2012 Owner's Guide

4-11
4
NOTICEECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system.Your Yamaha engine has been designed to use
regular unleaded gasoline with a research octane
number of 91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand. Use of un-
leaded fuel will extend spark plug life and reduce
maintenance costs.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
1. Arrow mark pointing to “OFF”
U10P70E0.book Page 11 Thursday, July 21, 2011 8:51 AM

4-12
4ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850Starter (choke)“” Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).
1. Arrow mark pointing to “ON”
1. Arrow mark pointing to “RES”
U10P70E0.book Page 12 Thursday, July 21, 2011 8:51 AM

4-13
4 Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU28010Steering lock To lock the steering
1. Turn the handlebar all the way to either side.
2. Open the steering lock cap, and then insert
the steering lock key.
3. Turn the key 1/8 turn counterclockwise, push
it in, and then turn the key 1/8 turn clockwise.
4. Check that the steering is locked, remove the
key, and then close the steering lock cap.
1. Starter (choke)“”
1. Steering lock cap
2. Steering lock
U10P70E0.book Page 13 Thursday, July 21, 2011 8:51 AM

4-14
4To unlock the steering
1. Open the steering lock cap, and then insert
the key.
2. Turn the key 1/8 turn counterclockwise to re-
lease the lock.
3. Remove the key, and then close the steering
lock cap.
EBU18881Seat To remove the seat
Pull the seat lock lever upward and pull up the seat
at the rear.To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the
rear. Make sure that the seat is securely fitted.
EBU18993Adjusting the front shock absorber as-
semblies The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
1. Seat lock lever
1. Projection
2. Seat holder
U10P70E0.book Page 14 Thursday, July 21, 2011 8:51 AM

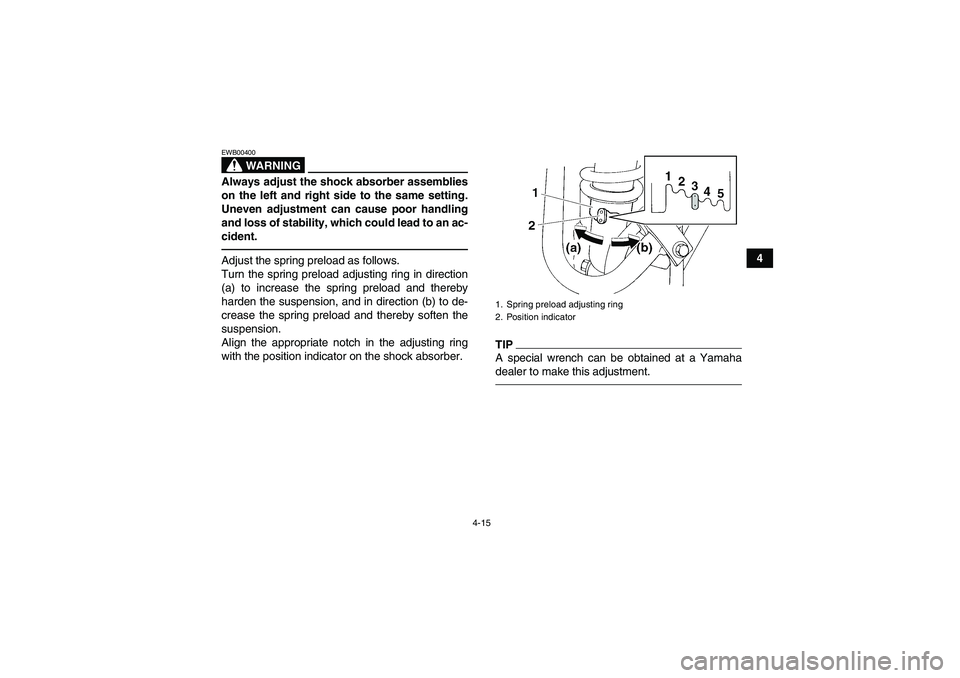

4-15
4
WARNING
EWB00400Always adjust the shock absorber assemblies
on the left and right side to the same setting.
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an ac-
cident.Adjust the spring preload as follows.
Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
Align the appropriate notch in the adjusting ring
with the position indicator on the shock absorber.
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment.1. Spring preload adjusting ring
2. Position indicator
U10P70E0.book Page 15 Thursday, July 21, 2011 8:51 AM

4-16
4
EBU19044Adjusting the rear shock absorber as-
sembly The spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.
NOTICEECB01090Never turn the adjusting mechanism beyond
the minimum and maximum settings.Adjust the spring preload as follows.
1. Loosen the locknut.
2. Turn the spring preload adjusting nut in direc-
tion (a) to increase the spring preload and
thereby harden the suspension, and in direc-
tion (b) to decrease the spring preload and
thereby soften the suspension.
1. Special wrenchSpring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
5
1. Locknut
2. Spring preload adjusting nut
U10P70E0.book Page 16 Thursday, July 21, 2011 8:51 AM

4-17
4
TIP
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.5 mm
(0.06 in).
3. Tighten the locknut to the specified torque.
NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00081]
1. Special wrench
Spring preload setting:
Minimum (soft):
Distance A = 233.5 mm (9.19 in)
Standard:
Distance A = 228.5 mm (9.00 in)
Maximum (hard):
Distance A = 218.5 mm (8.60 in)1. Distance A
1
U10P70E0.book Page 17 Thursday, July 21, 2011 8:51 AM

4-18
4
WARNING
EWB00450This shock absorber assembly contains highly
pressurized nitrogen gas. If the shock absorb-
er assembly is damaged, it could explode
causing injury or property damage. Shock ab-
sorber cylinder damage could also result in
poor handling which could cause an accident.
Do not tamper with or attempt to open the
cylinder assembly.
Do not subject the shock absorber assembly
to an open flame or other high heat.
Do not deform or damage the cylinder in any
way.
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.Tightening torque:
Locknut:
42 Nm (4.2 m·kgf, 30 ft·lbf)
U10P70E0.book Page 18 Thursday, July 21, 2011 8:51 AM

5-1
5
EBU19201
PRE-OPERATION CHECKS
EBU19224Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00481Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
FuelCheck fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-9, 5-3
Engine oilCheck oil level in engine, and add recommended oil to specified lev-
el if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-11
Front brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add specified brake fluid to
specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-3, 8-22, 8-23, 8-25
U10P70E0.book Page 1 Thursday, July 21, 2011 8:51 AM

5-2
5
Rear brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add specified brake fluid to
specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-3, 8-22, 8-23, 8-25
ClutchCheck operation, and correct if necessary.
Lubricate cable if necessary.
Check lever free play, and adjust if necessary.8-28
Throttle leverMake sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
Check lever free play, and adjust if necessary.5-3, 8-21
Control cablesMake sure that operation is smooth. Lubricate if necessary. 8-32
Drive chainCheck chain slack, and adjust if necessary.
Check chain condition. Lubricate if necessary.5-4, 8-29, 8-32
Wheels and tiresCheck wheel condition, and replace if damaged.
Check tire condition and tread depth. Replace if necessary.
Check air pressure. Correct if necessary.5-4
Brake and shift pedalsMake sure that operation is smooth. Lubricate pedal pivoting points
if necessary.8-34
Brake and clutch leversMake sure that operation is smooth. Lubricate lever pivoting points if
necessary.8-33
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened. 5-6
Instruments, lights and
switchesCheck operation, and correct if necessary. 5-6 ITEM ROUTINE PAGEU10P70E0.book Page 2 Thursday, July 21, 2011 8:51 AM
