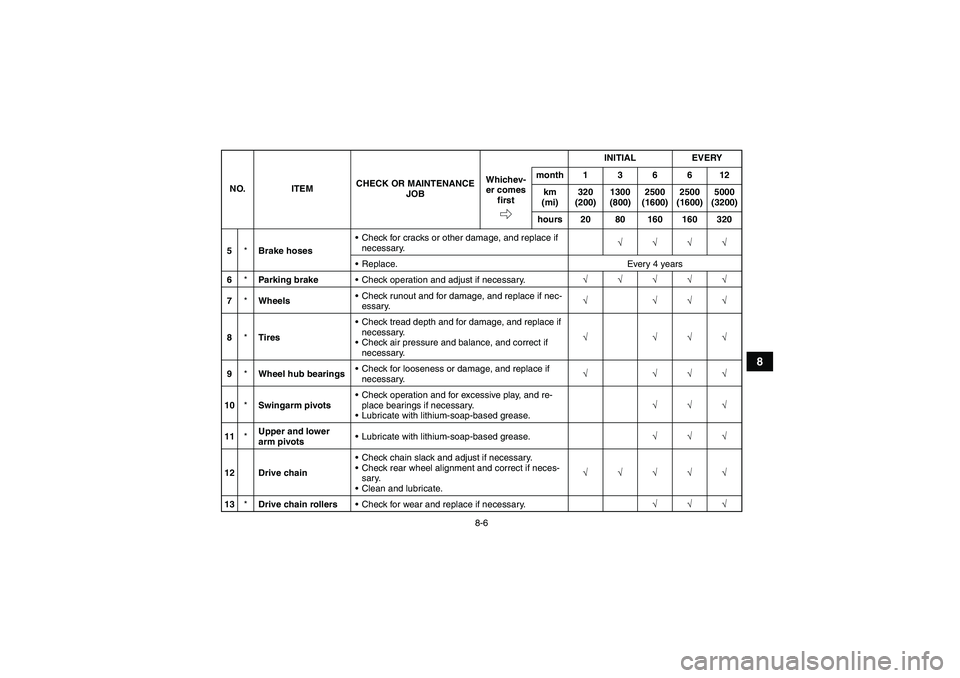

8-6
8
5*Brake hosesCheck for cracks or other damage, and replace if
necessary.√√√√
Replace. Every 4 years
6*Parking brakeCheck operation and adjust if necessary.√√√√√
7*WheelsCheck runout and for damage, and replace if nec-
essary.√ √√√
8*TiresCheck tread depth and for damage, and replace if
necessary.
Check air pressure and balance, and correct if
necessary.√ √√√
9*Wheel hub bearingsCheck for looseness or damage, and replace if
necessary.√ √√√
10*Swingarm pivotsCheck operation and for excessive play, and re-
place bearings if necessary.
Lubricate with lithium-soap-based grease.√√√
11*Upper and lower
arm pivotsLubricate with lithium-soap-based grease.√√√
12 Drive chainCheck chain slack and adjust if necessary.
Check rear wheel alignment and correct if neces-
sary.
Clean and lubricate.√√√√√
13*Drive chain rollersCheck for wear and replace if necessary.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U10P70E0.book Page 6 Thursday, July 21, 2011 8:51 AM

8-30
8
3. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack
1. Place the ATV on a level surface.
2. Loosen the axle holding nuts.3. Loosen the locknut on each side of the swing-
arm. To tighten the drive chain, turn the ad-
justing bolts in direction (a). To loosen the
drive chain, turn the adjusting bolts in direction
(b) and push the wheels forward. Turn each
adjusting bolt exactly the same amount to
maintain correct axle alignment. NOTICE: Im-
proper drive chain slack will overload the
engine as well as other vital parts of the
ATV and can lead to drive chain slippage
or breakage. To prevent this from occur-
ring, keep the drive chain slack within the
specified limits.
[ECB00542]
Drive chain slack:
25.0–35.0 mm (0.98–1.38 in)1. Drive chain slack
1. Axle holding bolt (upper)
2. Axle holding bolt (lower)
U10P70E0.book Page 30 Thursday, July 21, 2011 8:51 AM

8-31
8
TIPThere are alignment marks on both drive chain
pullers and an alignment mark on each side of the
swingarm. Make sure to align the same alignment
mark on both drive chain pullers with the alignment
mark on either side of the swingarm for proper
wheel alignment.4. Tighten the locknuts and the axle holding nuts
to the specified torques.
TIPMake sure that the curved edge of the speed sen-
sor bracket touches the rear wheel hub when tight-
ening the axle holding nuts.
1. Locknut
2. Drive chain slack adjusting bolt
3. Alignment marks
1. Speed sensor bracket
2. Rear wheel hub
3. Curved edge
