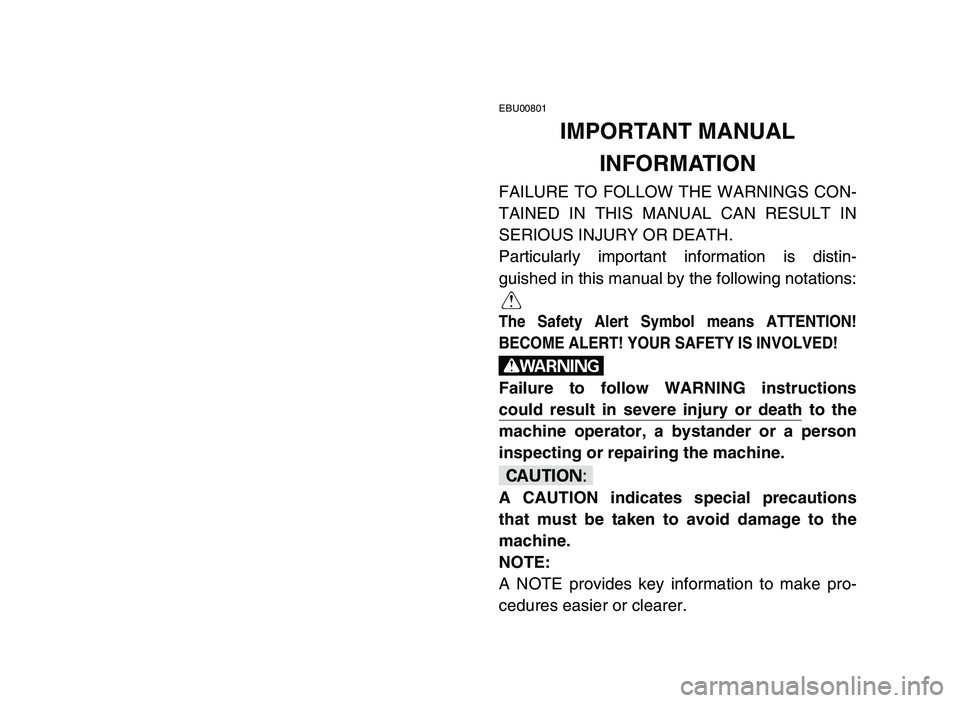

IMPORTANT MANUAL
INFORMATION
FAILURE TO FOLLOW THE WARNINGS CON-
TAINED IN THIS MANUAL CAN RESULT IN
SERIOUS INJURY OR DEATH.
Particularly important information is distin-
guished in this manual by the following notations:
Q
The Safety Alert Symbol means ATTENTION!
BECOME ALERT! YOUR SAFETY IS INVOLVED!
w
Failure to follow WARNING instructions
could result in severe injury or death to the
machine operator, a bystander or a person
inspecting or repairing the machine.
cC
A CAUTION indicates special precautions
that must be taken to avoid damage to the
machine.
NOTE:
A NOTE provides key information to make pro-
cedures easier or clearer.
5YF-9-62 ~3 3/4/05 9:55 PM Page 8

LOCATION OF THE WARNING AND
SPECIFICATION LABELS .......................1-1
SAFETY INFORMATION .........................2-1
DESCRIPTION AND MACHINE
IDENTIFICATION.....................................3-1
Identification number records ...............3-3
Key identification number .....................3-5
Vehicle identification number ...............3-7
Model label ...........................................3-9
CONTROL FUNCTIONS..........................4-1
Main switch ...........................................4-1
Indicator lights ......................................4-3
Handlebar switches ..............................4-3
Engine stop switch with cord (lanyard) .....4-7
Throttle lever ......................................4-11
Speed limiter ......................................4-13
Front brake lever ................................4-17Rear brake lever .................................4-17
Parking brake .....................................4-19
Shift lever ...........................................4-21
Fuel tank cap ......................................4-21
Fuel cock ............................................4-23
Choke lever ........................................4-25
Seat ....................................................4-27
PRE-OPERATION CHECKS ...................5-1
Front and rear brakes ...........................5-5
Fuel ......................................................5-9
Engine oil ............................................5-11
Final gear oil .......................................5-15
Throttle lever ......................................5-17
Tires ...................................................5-19
How to measure tire pressure ............5-23
Tire wear limit .....................................5-25
Fittings and fasteners .........................5-25
Switches .............................................5-25
Battery ................................................5-25
EBU00015

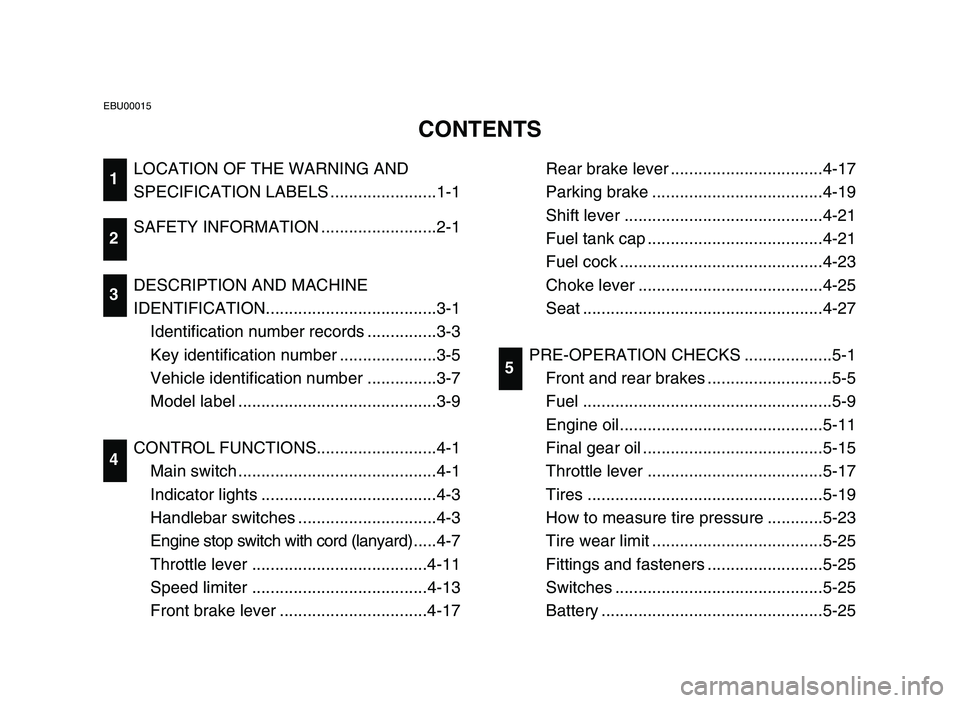

CONTENTS
1
2
3
4
5
5YF-9-62 ~3 3/4/05 9:55 PM Page 14

3-3
EBU00600

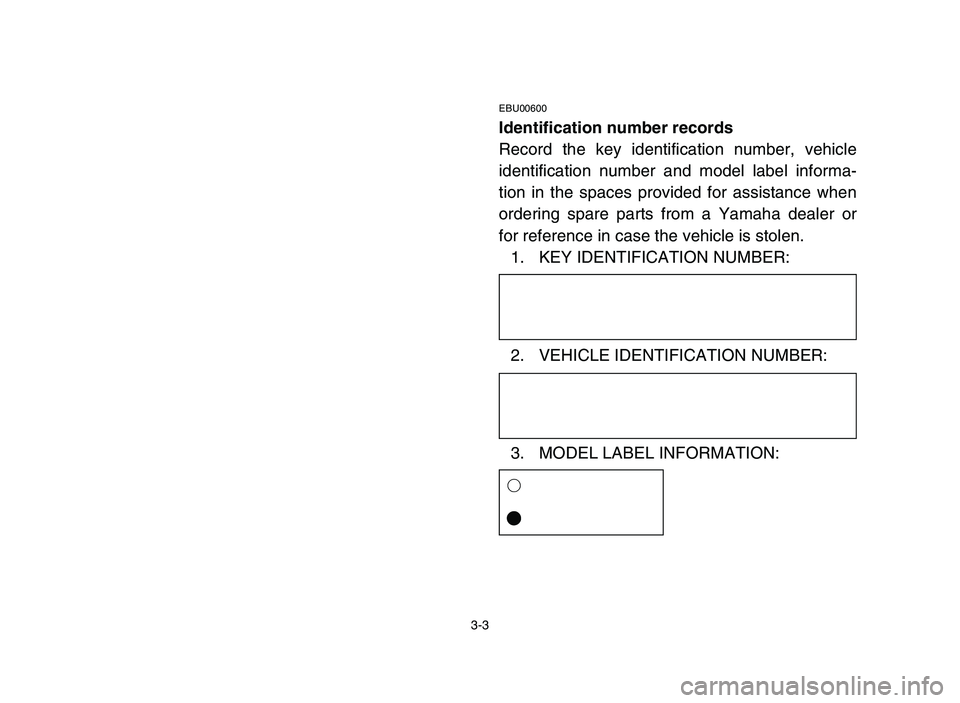

Identification number records
Record the key identification number, vehicle
identification number and model label informa-
tion in the spaces provided for assistance when
ordering spare parts from a Yamaha dealer or
for reference in case the vehicle is stolen.
1. KEY IDENTIFICATION NUMBER:
2. VEHICLE IDENTIFICATION NUMBER:
3. MODEL LABEL INFORMATION:
1
6
5YF-9-62 ~3 3/4/05 9:55 PM Page 68

3-5
EBU00035

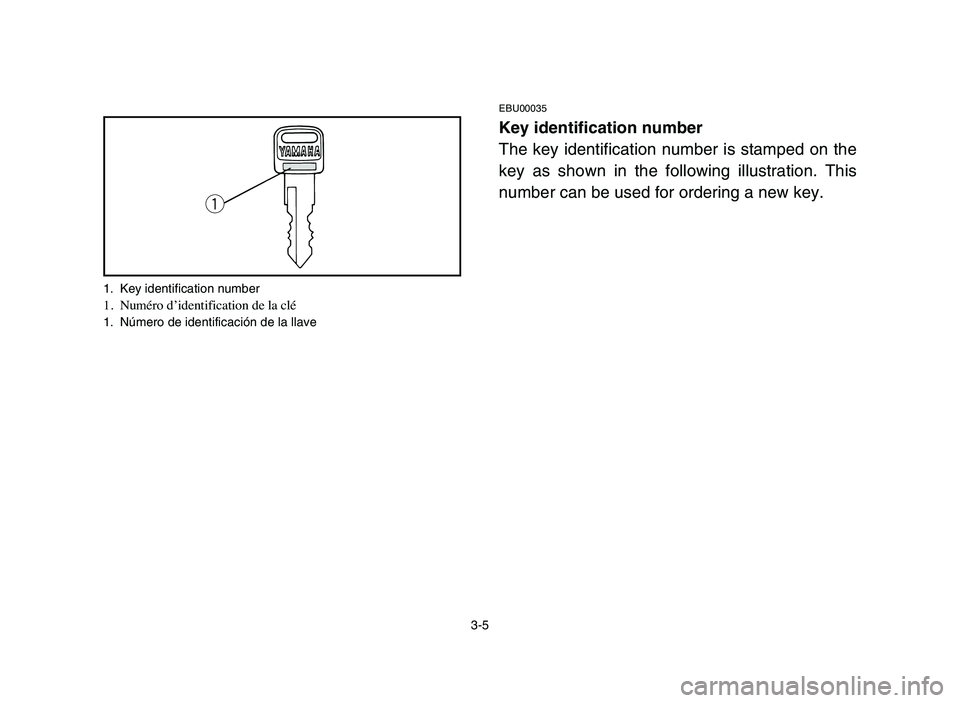

Key identification number
The key identification number is stamped on the
key as shown in the following illustration. This
number can be used for ordering a new key.
q
1. Key identification number1. Numéro d’identification de la clé1. Número de identificación de la llave
5YF-9-62 ~3 3/4/05 9:55 PM Page 70

4-1
EBU00040

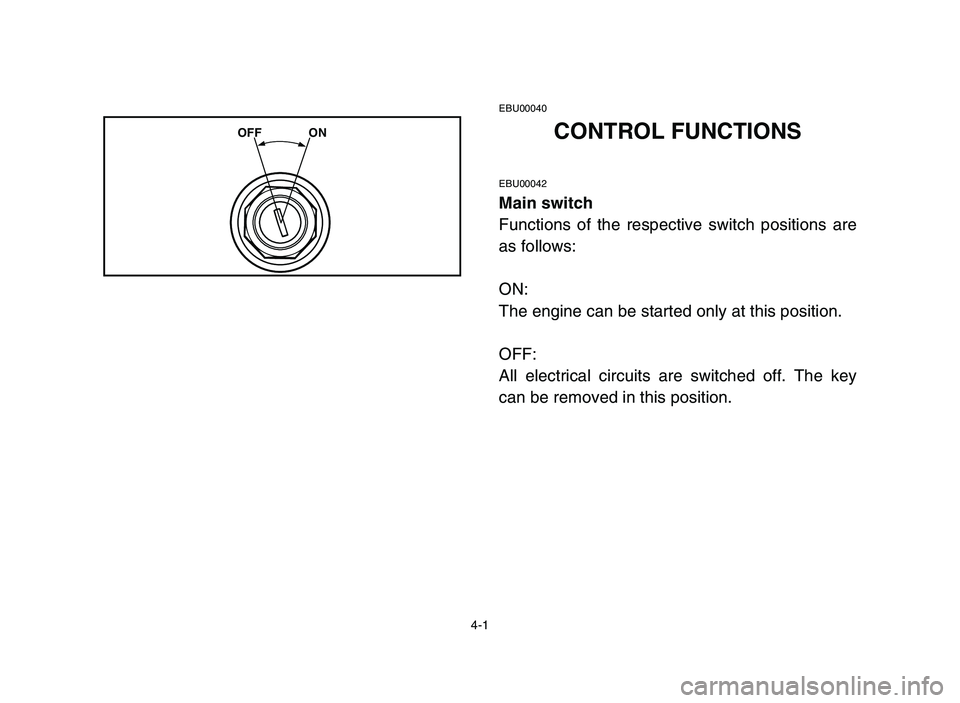

CONTROL FUNCTIONS
EBU00042
Main switch
Functions of the respective switch positions are
as follows:
ON:
The engine can be started only at this position.
OFF:
All electrical circuits are switched off. The key
can be removed in this position.
OFF ON
5YF-9-62 ~3 3/4/05 9:55 PM Page 76
