Rear brake lever adjustment ..............8-47
Cable inspection and lubrication ........8-51
Brake lever lubrication ........................8-53
Knuckle shaft and steering shaft
lubrication .........................................8-53
Wheel removal ...................................8-55
Wheel installation ...............................8-55
Battery ................................................8-57
Replenishing the battery fluid .............8-61
Fuse replacement ...............................8-65
Troubleshooting ..................................8-67
Troubleshooting chart .........................8-71
CLEANING AND STORAGE....................9-1
A. Cleaning ...........................................9-1
B. Storage ............................................9-7SPECIFICATIONS .................................10-1
Conversion Table ...................................11-1
9
10
11
5YF-9-62 ~3 3/4/05 9:55 PM Page 16

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION
1. Seat 8. Rear brake lever
2. Front cover 9. Parking brake
3. Fuel cock 10. Neutral indicator light
4. Fuse 11. Front brake lever
5. Engine stop switch with 12. Throttle lever
cord (lanyard) 13. Main switch
6. Footrest 14. Fuel tank cap
7. Shift lever 15. Handlebar switches
NOTE:
The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
1
2
6
89
0q
w e r t
3
5
6 74
5YF-9-62 ~3 3/4/05 9:55 PM Page 66

8-65
EBU00391

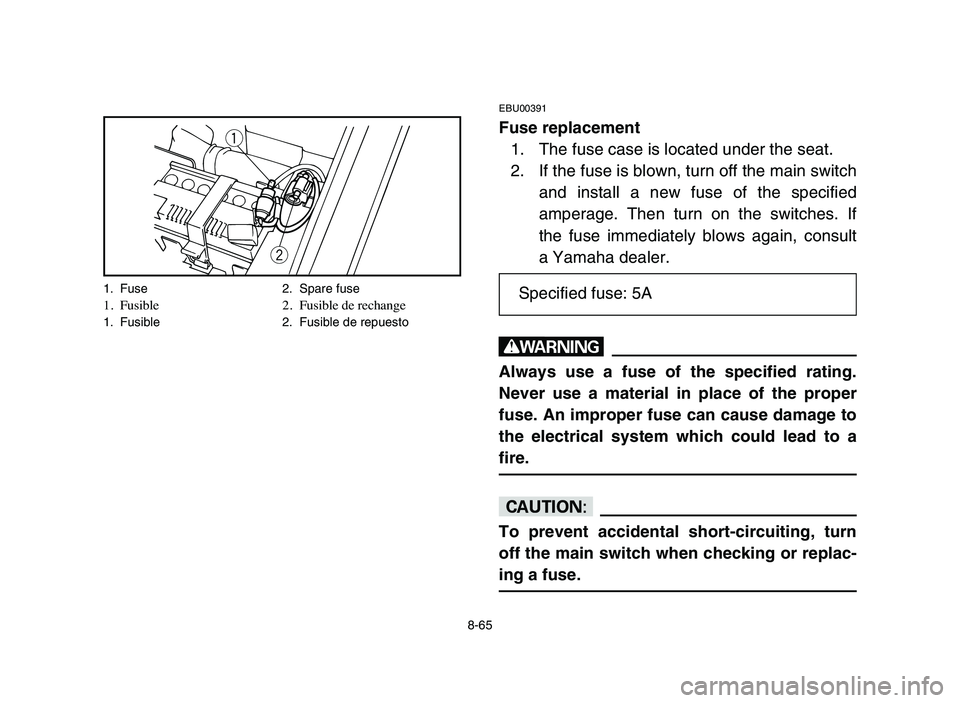

Fuse replacement
1. The fuse case is located under the seat.
2. If the fuse is blown, turn off the main switch
and install a new fuse of the specified
amperage. Then turn on the switches. If
the fuse immediately blows again, consult
a Yamaha dealer.
w
Always use a fuse of the specified rating.
Never use a material in place of the proper
fuse. An improper fuse can cause damage to
the electrical system which could lead to a
fire.
cC
To prevent accidental short-circuiting, turn
off the main switch when checking or replac-
ing a fuse.
w
q
1. Fuse 2. Spare fuse1. Fusible 2. Fusible de rechange1. Fusible 2. Fusible de repuesto
Specified fuse: 5A
5YF-9-62 8 2/23/05 6:56 PM Page 8-65

10-5

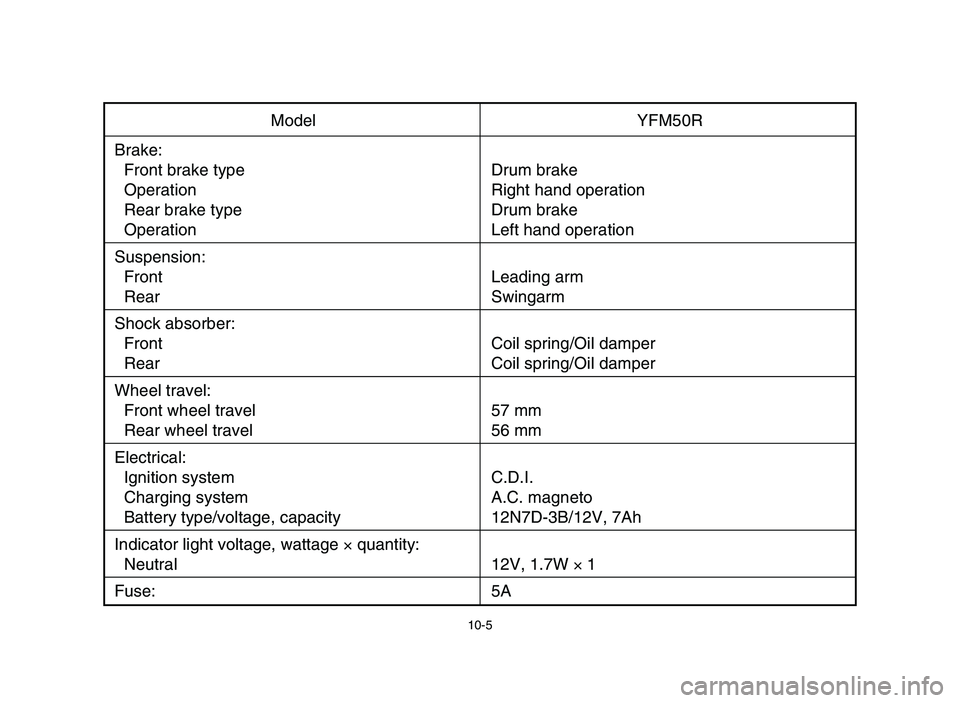

Model YFM50R
Brake:
Front brake type Drum brake
Operation Right hand operation
Rear brake type Drum brake
Operation Left hand operation
Suspension:
Front Leading arm
Rear Swingarm
Shock absorber:
Front Coil spring/Oil damper
Rear Coil spring/Oil damper
Wheel travel:
Front wheel travel 57 mm
Rear wheel travel 56 mm
Electrical:
Ignition system C.D.I.
Charging system A.C. magneto
Battery type/voltage, capacity 12N7D-3B/12V, 7Ah
Indicator light voltage, wattage ×quantity:
Neutral 12V, 1.7W ×1
Fuse: 5A
