4-17
EBU00070

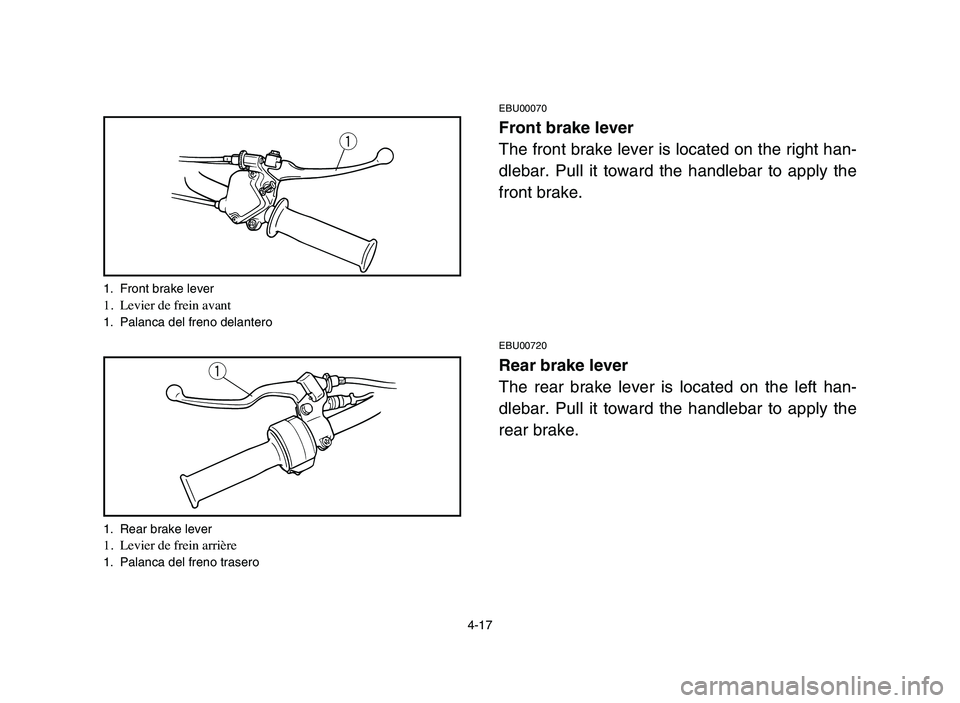

Front brake lever
The front brake lever is located on the right han-
dlebar. Pull it toward the handlebar to apply the
front brake.
EBU00720
Rear brake lever
The rear brake lever is located on the left han-
dlebar. Pull it toward the handlebar to apply the
rear brake.
q
q
1. Front brake lever1. Levier de frein avant1. Palanca del freno delantero
1. Rear brake lever
1. Levier de frein arrière1. Palanca del freno trasero
5YF-9-62 4~5 3/4/05 9:58 PM Page 16

1. Lean towards inside of turn.
2. Support your weight on the outer footrest.
1. Se pencher vers l’intérieur du virage.
2. S’appuyer sur le repose-pied externe.
1. Inclínese hacia el interior del giro.
2. Descanse su peso en el descansapie externo.
7-41
As you approach a curve, slow down and begin
to turn the handlebars in the desired direction.
As you do so, put your weight on the footboard
to the outside of the turn (opposite your desired
direction) and lean your upper body into the
turn. Use the throttle to maintain an even speed
through the turn. This maneuver will let the
wheel on the inside of the turn slip slightly,
allowing the ATV to make the turn properly.
This procedure should be practiced at slow
speed many times in a large off-road area with
no obstacles. If an incorrect technique is used,
your ATV may continue to go straight. If the ATV
doesn’t turn, come to a stop and then practice
the procedure again. If the riding surface is slip-
pery or loose, it may help to position more of
your weight over the front wheels by moving for-
ward on the seat.
Once you have learned this technique you
should be able to perform it at higher speeds or
in tighter curves.1
2
