ENGINE STOP SWITCH CORD
This model has an engine stop switch cord (lan-
yard) designed for use by an adult supervising the
child operating the ATV. When using the engine
stop switch cord, be sure the speed limiter on the
handlebar is adjusted to limit the ATV to a walking
speed. (See page 4-5.)
1. Push the clip on the end of the engine stop
switch cord under the engine shut-off switch
(black button).
2. Put your fingers in the loop at the other end of
the cord.
3. As your child is riding, walk behind the ATV,
closely watching his or her actions as well as
the path ahead.
4. If there is a potential hazard ahead or if your
child is not riding correctly, pull firmly on the
cord (lanyard) to stop the engine. Because the
ATV will continue to roll for some distance, al-
low extra time and distance to pull the cord be-
fore a potentially hazardous situation might be
encountered.
When your child has developed sufficient skill to no
longer need you to follow with the cord, the cord
can be stowed under the seat of the ATV. Howev-
er, you must still closely supervise your child at alltimes during ATV operation.NOTE:
The ATV will not start without the clip in place. Be
sure to remove the cord and store it in a safe place
to prevent operation of the ATV when you are not
around to supervise.WARNING
EWB00061
Always turn off the engine when refueling.
Do not refuel right after the engine has been
running and is still very hot.
Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never re-
fuel while smoking, or in the vicinity of
sparks, open flames, or other sources of ig-
nition such as the pilot lights of water heat-
ers and clothes dryers. Gasoline can catch
fire and you could be burned.
When transporting the ATV in another vehi-
cle, be sure it is kept upright and that the fuel
cock is in the “OFF” position. Otherwise, fuel
may leak out of the carburetor or fuel tank.
Gasoline is poisonous. If you should swal-
low some gasoline or inhale a lot of gasoline
vapor, or get some gasoline in your eyes,
Page 29 of 116
4-6
1
2
34
5
6
7
8
9
10
11
mm (0.47 in) or the throttle cable could be dam-
aged.
EBU18391
Front brake lever
The front brake lever is located on the right handle-
bar. To apply the front brake, pull the brake lever
toward the handlebar grip.
EBU18401
Rear brake lever
The rear brake lever is located on the left handle-
bar. To apply the rear brake, pull the brake lever to-
ward the handlebar grip.
EBU18460
Parking brake
Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Apply the
rear brake lever and push down the lock plate to
apply the parking brake. Squeeze the rear brake
lever to release the parking brake.
1. Front brake lever
1
1. Rear brake lever1
Page 48 of 116
6-7
1
2
3
4
56
7
8
9
10
11
EBU20910

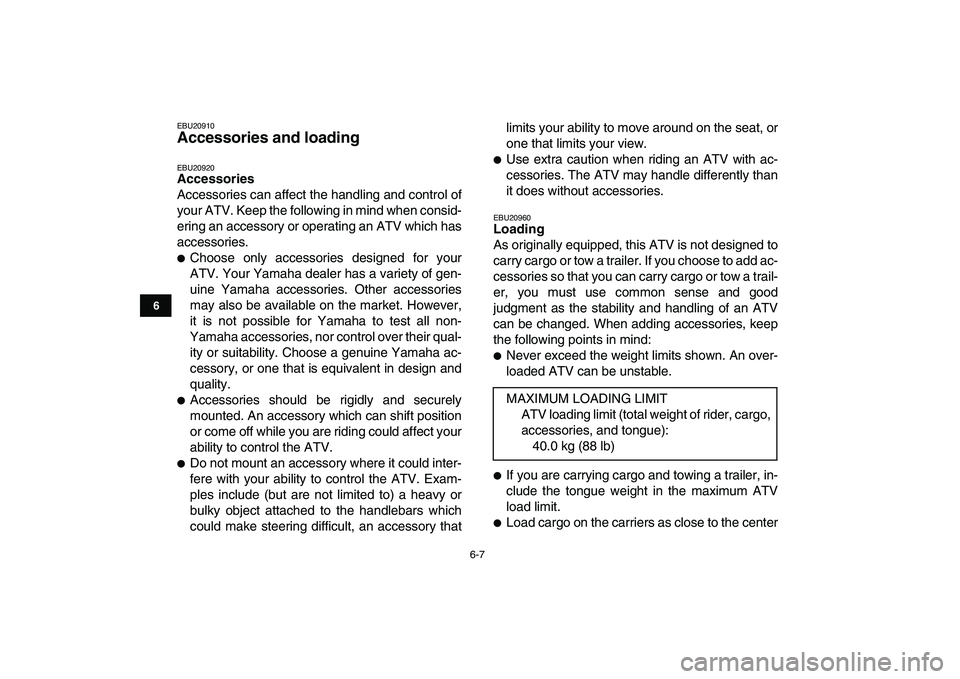

Accessories and loading
EBU20920
Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when consid-
ering an accessory or operating an ATV which has
accessories.
Choose only accessories designed for your
ATV. Your Yamaha dealer has a variety of gen-
uine Yamaha accessories. Other accessories
may also be available on the market. However,
it is not possible for Yamaha to test all non-
Yamaha accessories, nor control over their qual-
ity or suitability. Choose a genuine Yamaha ac-
cessory, or one that is equivalent in design and
quality.
Accessories should be rigidly and securely
mounted. An accessory which can shift position
or come off while you are riding could affect your
ability to control the ATV.
Do not mount an accessory where it could inter-
fere with your ability to control the ATV. Exam-
ples include (but are not limited to) a heavy or
bulky object attached to the handlebars which
could make steering difficult, an accessory thatlimits your ability to move around on the seat, or
one that limits your view.
Use extra caution when riding an ATV with ac-
cessories. The ATV may handle differently than
it does without accessories.
EBU20960
Loading
As originally equipped, this ATV is not designed to
carry cargo or tow a trailer. If you choose to add ac-
cessories so that you can carry cargo or tow a trail-
er, you must use common sense and good
judgment as the stability and handling of an ATV
can be changed. When adding accessories, keep
the following points in mind:
Never exceed the weight limits shown. An over-
loaded ATV can be unstable.
If you are carrying cargo and towing a trailer, in-
clude the tongue weight in the maximum ATV
load limit.
Load cargo on the carriers as close to the center MAXIMUM LOADING LIMIT
ATV loading limit (total weight of rider, cargo,
accessories, and tongue):
40.0 kg (88 lb)
