stop start YAMAHA YFM50R 2009 User Guide

8-18
1
2
3
4
5
6
78
9
10
11

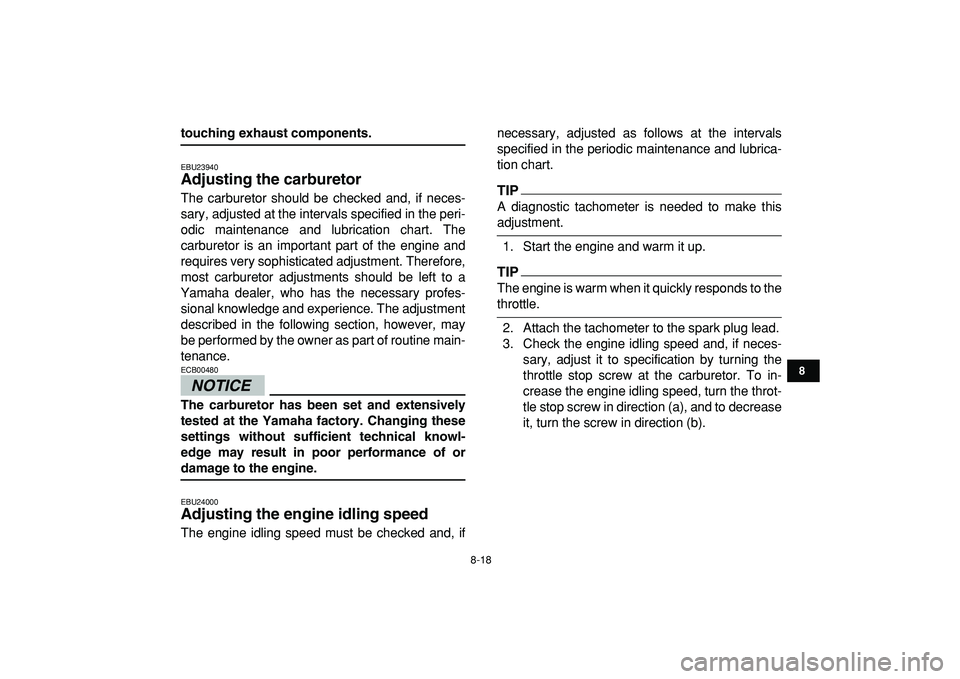

touching exhaust components.
EBU23940
Adjusting the carburetor
The carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. Therefore,
most carburetor adjustments should be left to a
Yamaha dealer, who has the necessary profes-
sional knowledge and experience. The adjustment
described in the following section, however, may
be performed by the owner as part of routine main-
tenance.
NOTICE

ECB00480
The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowl-
edge may result in poor performance of or
damage to the engine.
EBU24000
Adjusting the engine idling speed
The engine idling speed must be checked and, ifnecessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
TIP

A diagnostic tachometer is needed to make this
adjustment.
1. Start the engine and warm it up.
TIP

The engine is warm when it quickly responds to the
throttle.
2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces-
sary, adjust it to specification by turning the
throttle stop screw at the carburetor. To in-
crease the engine idling speed, turn the throt-
tle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).

9-1
1
2
3
4
5
6
7
89
10
11

EBU25860

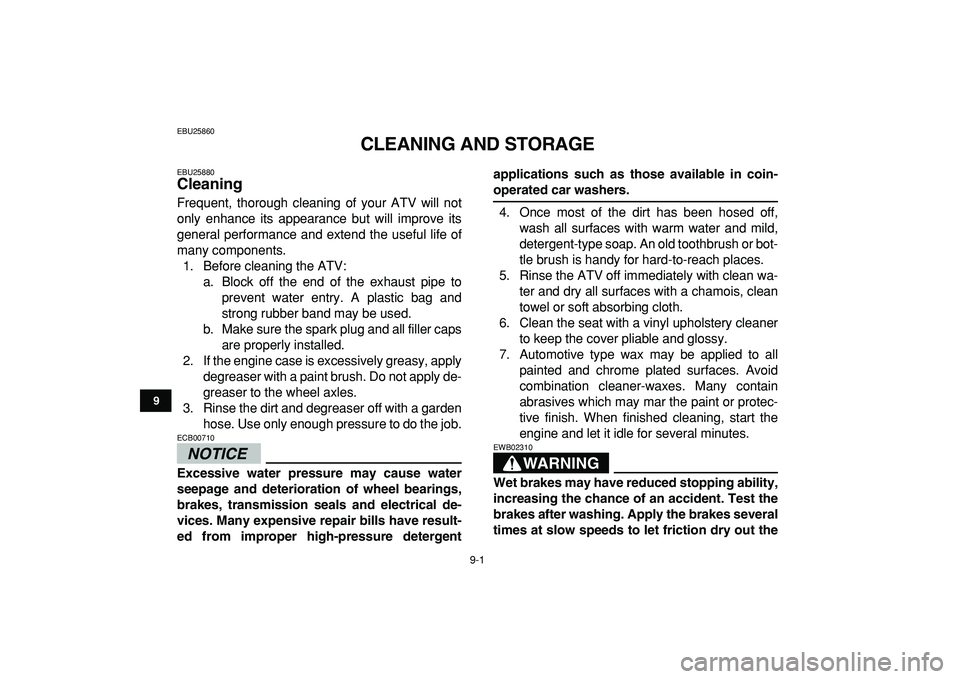

CLEANING AND STORAGE
EBU25880
Cleaning
Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.
1. Before cleaning the ATV:
a. Block off the end of the exhaust pipe to
prevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, apply
degreaser with a paint brush. Do not apply de-
greaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden
hose. Use only enough pressure to do the job.
NOTICE

ECB00710
Excessive water pressure may cause water
seepage and deterioration of wheel bearings,
brakes, transmission seals and electrical de-
vices. Many expensive repair bills have result-
ed from improper high-pressure detergentapplications such as those available in coin-
operated car washers.
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or bot-
tle brush is handy for hard-to-reach places.
5. Rinse the ATV off immediately with clean wa-
ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Clean the seat with a vinyl upholstery cleaner
to keep the cover pliable and glossy.
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.
WARNING
EWB02310
Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out the

INDEX
A
Accessories and loading ................................................ 6-7
Air filter element, cleaning ............................................ 8-13
B
Battery .................................................................. 5-6
,
8-26
Brake lever free play, adjusting the front...................... 8-21
Brake lever free play (rear), adjusting .......................... 8-23
Brake lever, front ............................................................ 4-6
Brake lever, rear............................................................. 4-6
Brake levers, checking and lubricating......................... 8-25
Brakes, front and rear .................................................... 5-3
Brake shoes, checking the front and rear .................... 8-20
C
Cables, checking and lubricating ................................. 8-24
Carburetor, adjusting.................................................... 8-18
Chassis fasteners........................................................... 5-6
Choke ........................................................................... 4-10
Cleaning ......................................................................... 9-1
D
Drive select lever............................................................ 4-7
E
Engine break-in .............................................................. 6-5
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-18
Engine oil ............................................................... 5-3
,
8-9
Engine, starting a warm ................................................. 6-3Engine stop switch ......................................................... 4-2
Engine stop switch with lanyard ..................................... 4-2
F
Final gear oil......................................................... 5-3
,
8-12
Front knuckle pivots, lubricating ................................... 8-25
Fuel ........................................................................ 4-8
,
5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap.................................................................. 4-7
Fuse, replacing............................................................. 8-28
H
Handlebar switches ........................................................ 4-2
I
Identification numbers .................................................. 11-1
Indicator light .................................................................. 4-1
Instruments, lights and switches .................................... 5-6
K
Key identification number ............................................. 11-1
L
Label locations ............................................................... 2-1
M
Main switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2
N
Neutral indicator light ..................................................... 4-1
