YAMAHA YFM50R 2009 Owners Manual

This A
MANUAL DEL PROPIETARIO
5YF-28199-65
YFM50RY
MANUEL DU PROPRIÉTAIREOWNER’S MANUALREAD THIS MANUAL CAREFULLY!
It contains important safety information.LIRE ATTENTIVEMENT CE MANUEL!
Il comprend d’importantes informations de sécurité.¡LEA ESTE MANUAL ATENTAMENTE!
Contiene indicaciones importantes acerca de la seguridad.

PRINTED IN JAPAN
2008.05-0.2x2 !
(E,F,S)
YAMAHA MOTOR CO., LTD.

This A
5YF-28199-65-E0
YFM50RY
OWNER’S MANUAL
READ THIS MANUAL CAREFULLY!
It contains important safety information.

EBU29090
Read this manual carefully before operating this vehicle. This manual should stay with this ve-
hicle if it is sold.
EC Declaration of Conformityconforming to Directive
98/37/EC
(
Make, model)
to which this declaration applies, conforms to the essential health
and safety requirements of Directive 98
/37/EC,
and to the other relevant Directives of EEC
89/336/EEC or 2004
/108/EC
(
Title and
/or number and date of issue of the other Directives of EEC)
(
If applicable)
(
If applicable)To e
ffect correct
application
of the
essential
health
and safety
requirements
stated in the Directives of EEC, the
following-standards and
/or technical
specifications were consulted:
EN292 ANSI
/SVIA 1-2007
(
Title and
/or number and date of issue of standards and
/or specifications)
General Manager
RV Engineering Division
RV Company Signature
Date of Issue
Shinya Shimada2 March, 2008
YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119NC Schiphol-Rijk, The Netherlands
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
Authorized Representativedeclare in sole responsibility, that the product
YFM50 (
YFM50R) (
JY4AA01W080004151
~ )

EBU17170

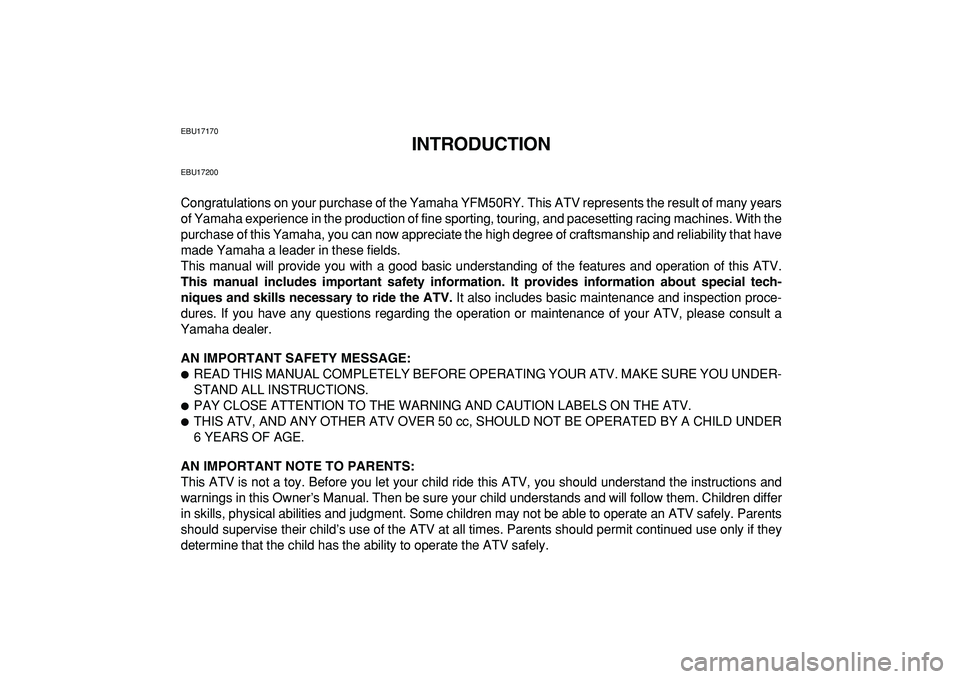

INTRODUCTION
EBU17200
Congratulations on your purchase of the Yamaha YFM50RY. This ATV represents the result of many years
of Yamaha experience in the production of fine sporting, touring, and pacesetting racing machines. With the
purchase of this Yamaha, you can now appreciate the high degree of craftsmanship and reliability that have
made Yamaha a leader in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special tech-
niques and skills necessary to ride the ATV.
It also includes basic maintenance and inspection proce-
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:


READ THIS MANUAL COMPLETELY BEFORE OPERATING YOUR ATV. MAKE SURE YOU UNDER-
STAND ALL INSTRUCTIONS.

PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE ATV.

THIS ATV, AND ANY OTHER ATV OVER 50 cc, SHOULD NOT BE OPERATED BY A CHILD UNDER
6 YEARS OF AGE.
AN IMPORTANT NOTE TO PARENTS:
This ATV is not a toy. Before you let your child ride this ATV, you should understand the instructions and
warnings in this Owner’s Manual. Then be sure your child understands and will follow them. Children differ
in skills, physical abilities and judgment. Some children may not be able to operate an ATV safely. Parents
should supervise their child’s use of the ATV at all times. Parents should permit continued use only if they
determine that the child has the ability to operate the ATV safely.

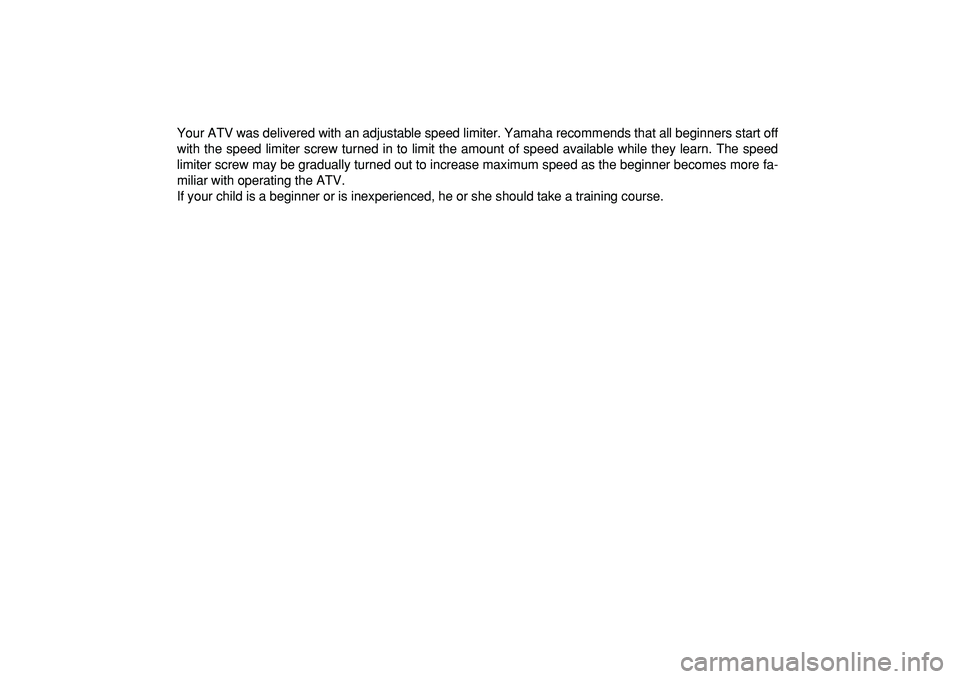

Your ATV was delivered with an adjustable speed limiter. Yamaha recommends that all beginners start off
with the speed limiter screw turned in to limit the amount of speed available while they learn. The speed
limiter screw may be gradually turned out to increase maximum speed as the beginner becomes more fa-
miliar with operating the ATV.
If your child is a beginner or is inexperienced, he or she should take a training course.

EBU17330

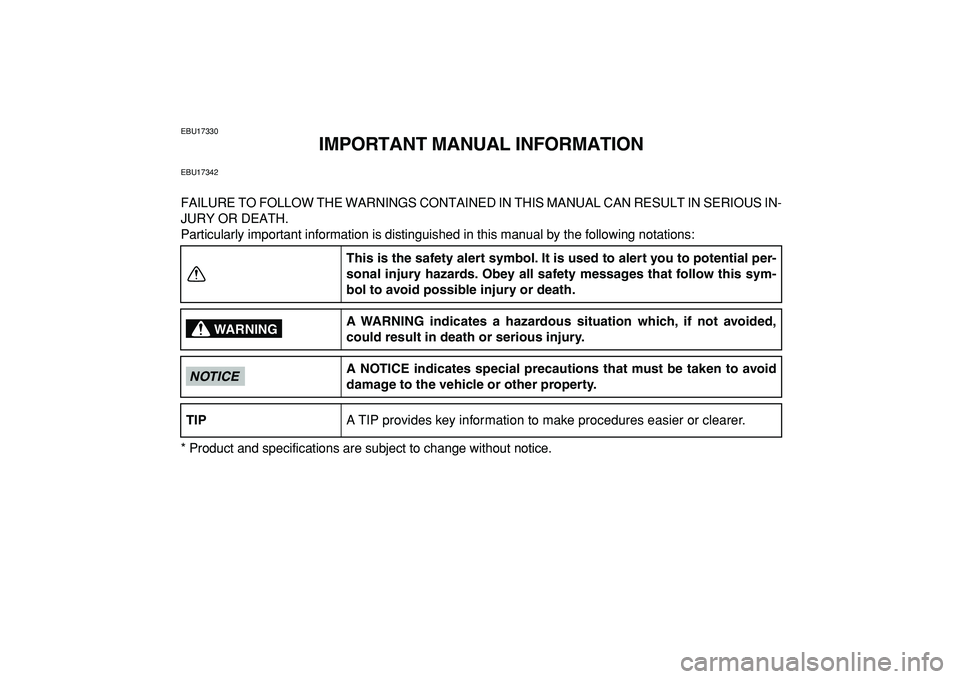

IMPORTANT MANUAL INFORMATION
EBU17342
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.
This is the safety alert symbol. It is used to alert you to potential per-
sonal injury hazards. Obey all safety messages that follow this sym-
bol to avoid possible injury or death.
A WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICETIP

EBU17350

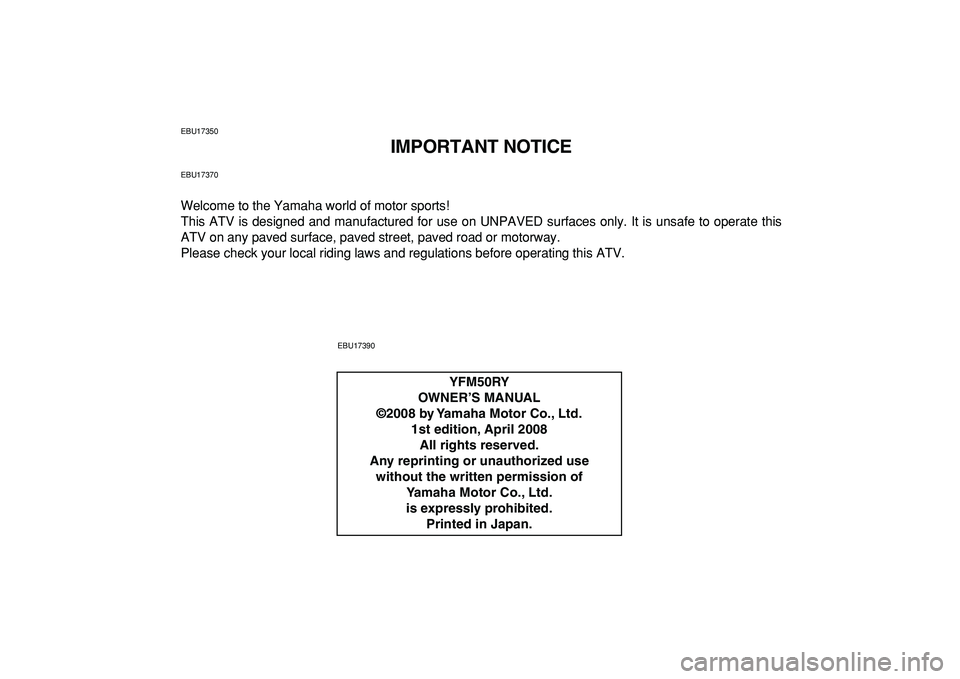

IMPORTANT NOTICE
EBU17370
Welcome to the Yamaha world of motor sports!
This ATV is designed and manufactured for use on UNPAVED surfaces only. It is unsafe to operate this
ATV on any paved surface, paved street, paved road or motorway.
Please check your local riding laws and regulations before operating this ATV.
EBU17390
YFM50RY
OWNER’S MANUAL
©2008 by Yamaha Motor Co., Ltd.
1st edition, April 2008
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.

EBU17420
TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1
Left view ..................................................... 3-1
Right view................................................... 3-1
Controls and instruments ........................... 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ............................................... 4-1
Indicator light ............................................. 4-1
Handlebar switches ................................... 4-2
Engine stop switch with lanyard ................ 4-2
Throttle lever ............................................. 4-4
Speed limiter ............................................. 4-5
Front brake lever ....................................... 4-6
Rear brake lever ........................................ 4-6
Parking brake ............................................ 4-6
Drive select lever ....................................... 4-7
Fuel tank cap ............................................. 4-7
Fuel ........................................................... 4-8
Fuel cock ................................................... 4-9Choke ...................................................... 4-10
Seat ......................................................... 4-11
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ............................. 5-1
Fuel ............................................................ 5-3
Engine oil ................................................... 5-3
Final gear oil .............................................. 5-3
Front and rear brakes ................................ 5-3
Throttle lever .............................................. 5-4
Tires ........................................................... 5-4
Measuring the tire pressure ....................... 5-5
Tire wear limit ............................................ 5-6
Chassis fasteners ...................................... 5-6
Instruments, lights and switches ................ 5-6
Battery ....................................................... 5-6
OPERATION...................................................6-1
Starting a cold engine ................................ 6-1
Starting a warm engine .............................. 6-3
Shifting ....................................................... 6-3
Engine break-in .......................................... 6-5
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-6
Accessories and loading ............................ 6-7

RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV.............. 7-2
RIDE WITH CARE AND GOOD
JUDGEMENT ...........................................7-2
BE CAREFUL WHERE YOU RIDE ............ 7-9
TURNING YOUR ATV ............................. 7-12
CLIMBING UPHILL .................................. 7-14
RIDING DOWNHILL................................. 7-16
CROSSING A SLOPE.............................. 7-17
CROSSING THROUGH SHALLOW
WATER ..................................................7-18
RIDING OVER ROUGH TERRAIN .......... 7-20
SLIDING AND SKIDDING ........................ 7-20
WHAT TO DO IF... ................................... 7-21
WHAT TO DO... ....................................... 7-21
PERIODIC MAINTENANCE AND MINOR
REPAIR .......................................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance chart for the
emission control system .......................... 8-3
General maintenance and lubrication
chart ........................................................ 8-5
Checking the spark plug ............................ 8-8
Engine oil .................................................. 8-9
Final gear oil ............................................ 8-12
Cleaning the air filter element ................. 8-13
Cleaning the spark arrester ..................... 8-17
Adjusting the carburetor .......................... 8-18Adjusting the engine idling speed ............ 8-18
Checking the throttle cable free play ....... 8-19
Valve clearance ....................................... 8-19
Checking the front and rear brake
shoes .....................................................8-20
Adjusting the front brake lever free play .. 8-21
Adjusting the rear brake lever free play ... 8-23
Checking and lubricating the cables ........ 8-24
Checking and lubricating the front and
rear brake levers ....................................8-25
Checking the wheel hub bearings ............ 8-25
Lubricating the front knuckle pivots ......... 8-25
Lubricating the steering shaft ................... 8-26
Battery ..................................................... 8-26
Replacing the fuse ................................... 8-28
Removing a wheel ................................... 8-29
Installing a wheel ..................................... 8-30
Troubleshooting ....................................... 8-31
Troubleshooting chart .............................. 8-32
CLEANING AND STORAGE ..........................9-1
Cleaning ..................................................... 9-1
Storage ...................................................... 9-2
SPECIFICATIONS .......................................10-1
CONSUMER INFORMATION.......................11-1
Identification numbers .............................. 11-1
