YAMAHA YFM700R 2011 Owners Manual

8-44

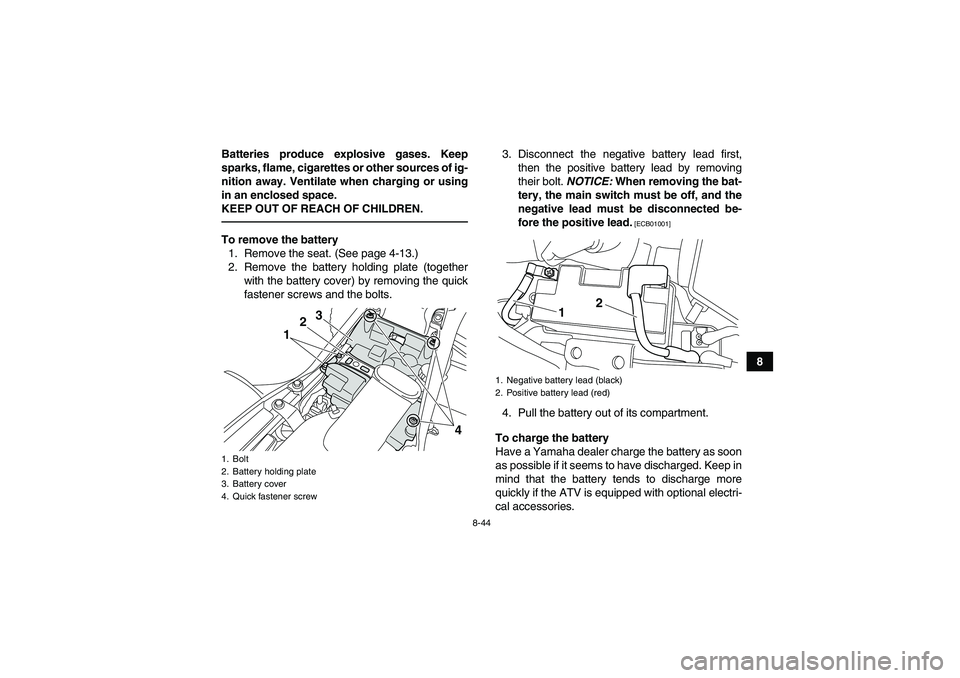

8 Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN.
To remove the battery
1. Remove the seat. (See page 4-13.)
2. Remove the battery holding plate (together
with the battery cover) by removing the quick
fastener screws and the bolts.3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01001]
4. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.
1. Bolt
2. Battery holding plate
3. Battery cover
4. Quick fastener screw
12
4
3
1. Negative battery lead (black)
2. Positive battery lead (red)
12
U1AS61E0.book Page 44 Thursday, February 11, 2010 2:17 PM

8-45
8

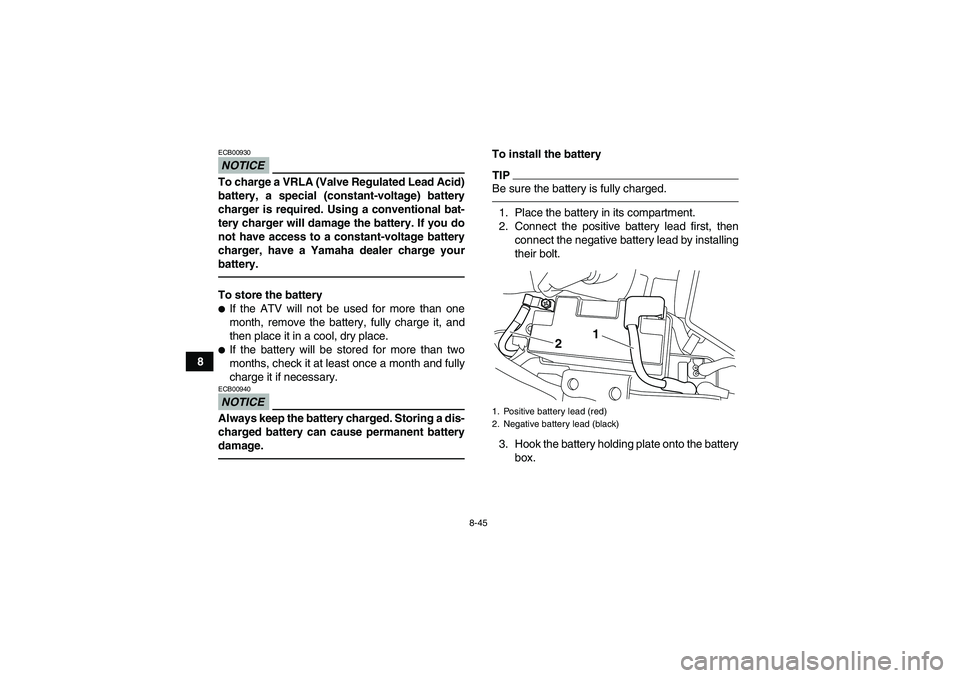

NOTICEECB00930To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery. If you do
not have access to a constant-voltage battery
charger, have a Yamaha dealer charge your
battery.To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00940Always keep the battery charged. Storing a dis-
charged battery can cause permanent battery
damage.
To install the batteryTIPBe sure the battery is fully charged.1. Place the battery in its compartment.
2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt.
3. Hook the battery holding plate onto the battery
box.1. Positive battery lead (red)
2. Negative battery lead (black)
21
U1AS61E0.book Page 45 Thursday, February 11, 2010 2:17 PM

8-46
8 4. Install the battery holding plate with the bat-
tery cover by installing the bolts and the quick
fastener screws.
5. Install the seat. (See page 4-13.)
EBU25326Replacing a fuse The main fuse and the fuse box are located under
the seat. (See page 4-13.)1. Battery holding plate
2. Battery box
2
1
1. Main fuse
2. Spare main fuse
1
2
U1AS61E0.book Page 46 Thursday, February 11, 2010 2:17 PM

8-47
8

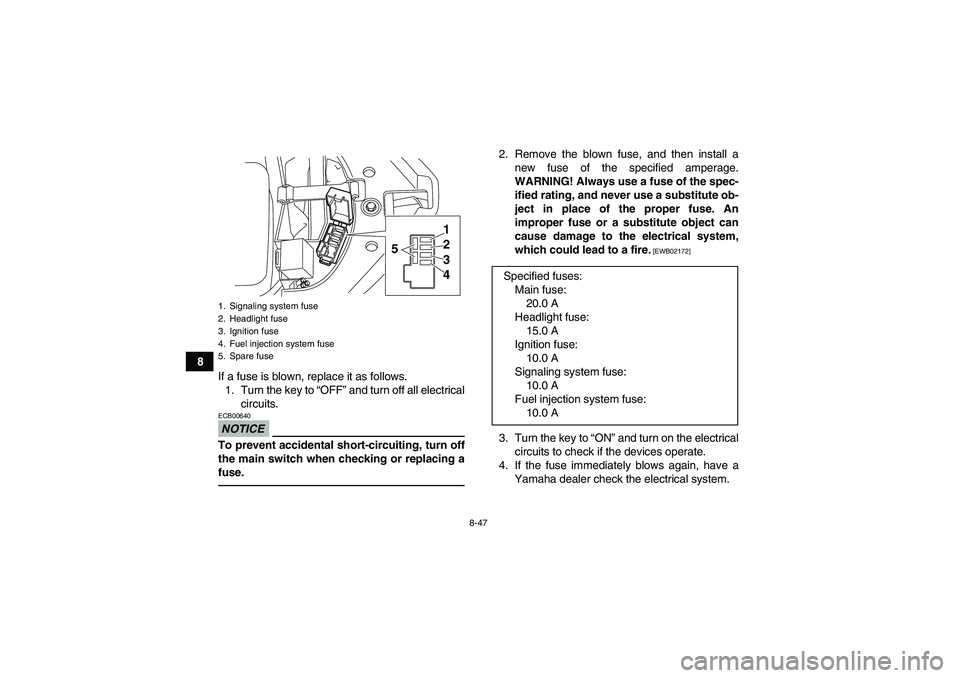

If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.
NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02172]
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.
1. Signaling system fuse
2. Headlight fuse
3. Ignition fuse
4. Fuel injection system fuse
5. Spare fuse
1
2
3
4 5
Specified fuses:
Main fuse:
20.0 A
Headlight fuse:
15.0 A
Ignition fuse:
10.0 A
Signaling system fuse:
10.0 A
Fuel injection system fuse:
10.0 A
U1AS61E0.book Page 47 Thursday, February 11, 2010 2:17 PM

8-48
8

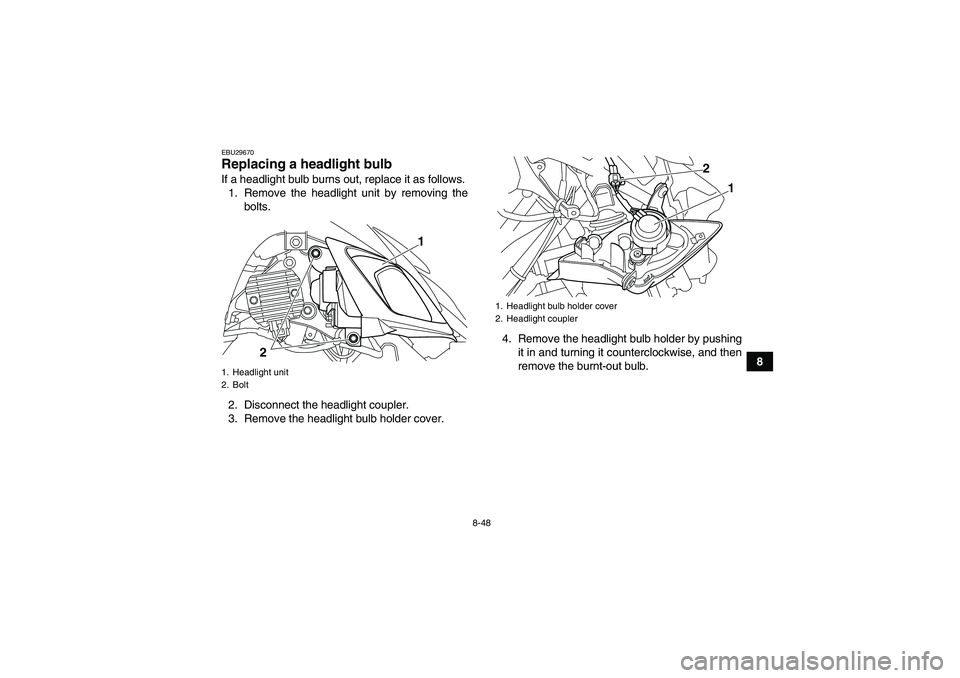

EBU29670Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the headlight unit by removing the
bolts.
2. Disconnect the headlight coupler.
3. Remove the headlight bulb holder cover.4. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise, and then
remove the burnt-out bulb.1. Headlight unit
2. Bolt
1
2
1. Headlight bulb holder cover
2. Headlight coupler
1 2
U1AS61E0.book Page 48 Thursday, February 11, 2010 2:17 PM

8-49

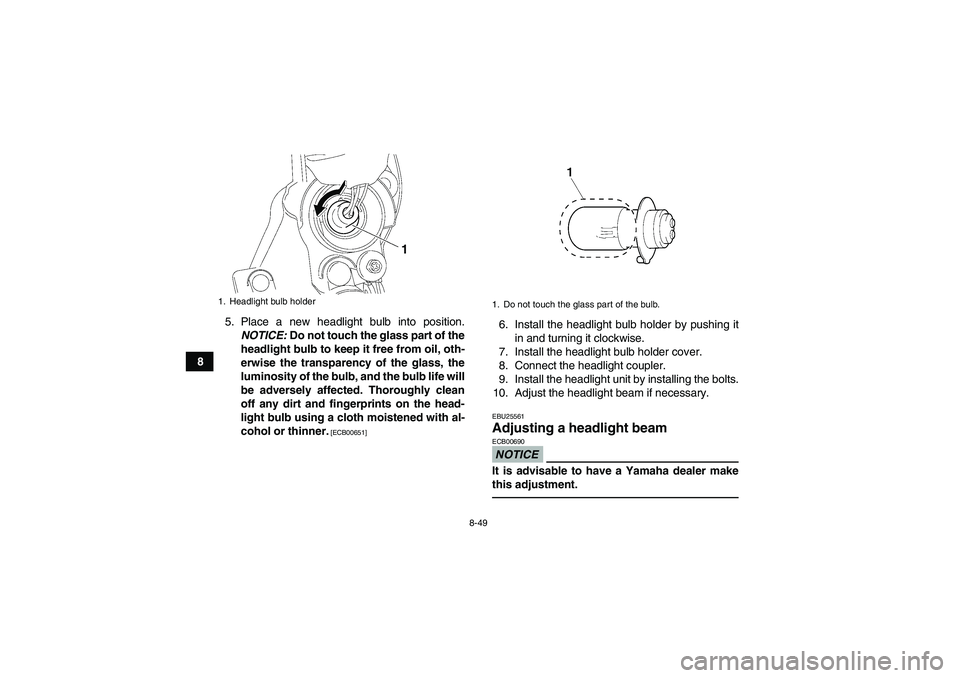

85. Place a new headlight bulb into position.
NOTICE: Do not touch the glass part of the
headlight bulb to keep it free from oil, oth-
erwise the transparency of the glass, the
luminosity of the bulb, and the bulb life will
be adversely affected. Thoroughly clean
off any dirt and fingerprints on the head-
light bulb using a cloth moistened with al-
cohol or thinner.
[ECB00651]
6. Install the headlight bulb holder by pushing it
in and turning it clockwise.
7. Install the headlight bulb holder cover.
8. Connect the headlight coupler.
9. Install the headlight unit by installing the bolts.
10. Adjust the headlight beam if necessary.EBU25561Adjusting a headlight beam NOTICEECB00690It is advisable to have a Yamaha dealer make
this adjustment.
1. Headlight bulb holder
1
1. Do not touch the glass part of the bulb.
U1AS61E0.book Page 49 Thursday, February 11, 2010 2:17 PM

8-50

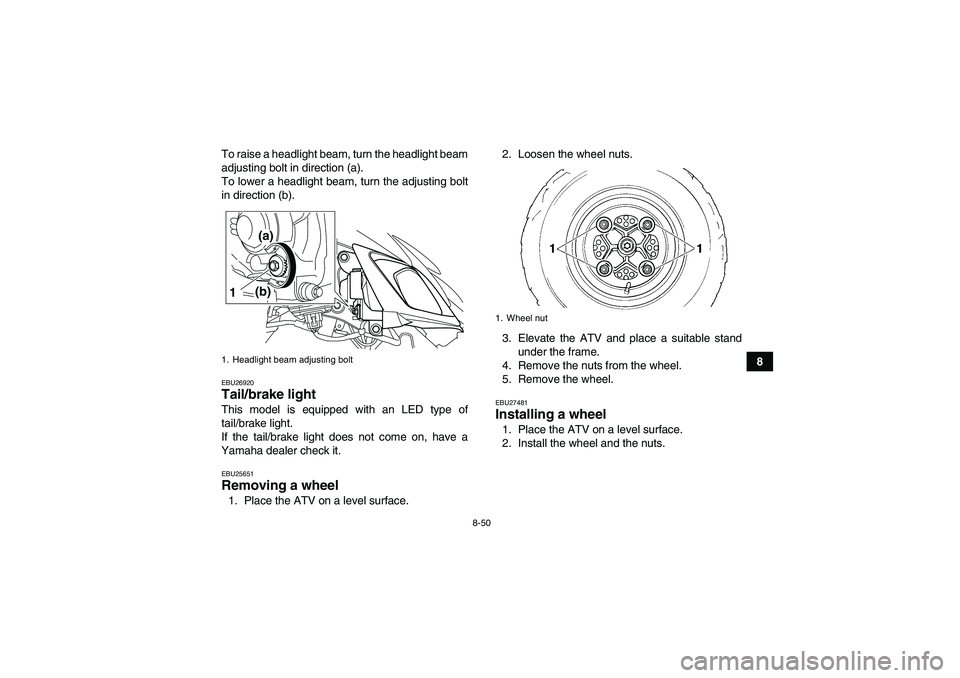

8 To raise a headlight beam, turn the headlight beam
adjusting bolt in direction (a).
To lower a headlight beam, turn the adjusting bolt
in direction (b).
EBU26920Tail/brake light This model is equipped with an LED type of
tail/brake light.
If the tail/brake light does not come on, have a
Yamaha dealer check it.EBU25651Removing a wheel 1. Place the ATV on a level surface.2. Loosen the wheel nuts.
3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU27481Installing a wheel 1. Place the ATV on a level surface.
2. Install the wheel and the nuts.
1. Headlight beam adjusting bolt1
(a)(b)
1. Wheel nut
U1AS61E0.book Page 50 Thursday, February 11, 2010 2:17 PM

8-51
8
TIPWhen installing the wheel, make sure its arrow
mark points toward the rotating direction of the
wheel.3. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified
torques.
EBU25740Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
1. Arrow markTightening torques:
Front wheel nut:
45 Nm (4.5 m·kgf, 33 ft·lbf)
Rear wheel nut:
45 Nm (4.5 m·kgf, 33 ft·lbf)
U1AS61E0.book Page 51 Thursday, February 11, 2010 2:17 PM

8-52
8
EBU27691Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Have a Yamaha dealer
check the ATV.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U1AS61E0.book Page 52 Thursday, February 11, 2010 2:17 PM

8-53
8Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-
ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U1AS61E0.book Page 53 Thursday, February 11, 2010 2:17 PM
