EC Declaration of Conformity
conforming to Directive 2006/42/EC
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

EBU17420
TABLE OF CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 1-1
SAFETY INFORMATION .............................. 2-1
DESCRIPTION .............................................. 3-1
Left view ...................................................... 3-1
Right view.................................................... 3-2
Controls and instruments ............................ 3-3
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ................................................ 4-1
Indicator lights and warning lights .............. 4-2
Multi-function display .................................. 4-3
Handlebar switches .................................... 4-5
Throttle lever .............................................. 4-6
Speed limiter .............................................. 4-7
Clutch lever ................................................ 4-7
Brake lever ................................................. 4-8
Brake pedal ................................................ 4-8
Parking brake lever .................................... 4-9
Shift pedal ................................................ 4-10
Reverse knob “REV” ................................ 4-10Fuel tank cap ............................................4-11
Fuel ...........................................................4-11
Seat ..........................................................4-13
Adjusting the front shock absorber
assemblies ..............................................4-14
Adjusting the rear shock absorber
assembly .................................................4-19
PRE-OPERATION CHECKS ..........................5-1
Fuel .............................................................5-4
Engine oil ....................................................5-4
Coolant .......................................................5-4
Front and rear brakes .................................5-4
Throttle lever ...............................................5-5
Drive chain ..................................................5-5
Tires ............................................................5-5
Chassis fasteners .......................................5-7
Instruments, lights and switches .................5-7
OPERATION...................................................6-1
Starting the engine ......................................6-1
Shifting ........................................................6-2
Operating the reverse knob and driving
in reverse ..................................................6-4U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

Engine break-in .......................................... 6-5
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-6
Accessories and loading ............................ 6-7
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGMENT .............................................. 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-12
CLIMBING UPHILL ................................... 7-13
RIDING DOWNHILL.................................. 7-16
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH SHALLOW
WATER ................................................... 7-19
RIDING OVER ROUGH TERRAIN ........... 7-20
SLIDING AND SKIDDING ......................... 7-21
WHAT TO DO IF... .................................... 7-22
WHAT TO DO... ........................................ 7-22
PERIODIC MAINTENANCE AND
ADJUSTMENT ............................................... 8-1
Owner’s manual and tool kit ....................... 8-2
Periodic maintenance chart for
the emission control system ..................... 8-3General maintenance and lubrication
chart ..........................................................8-5
Removing and installing the panel ..............8-9
Checking the spark plug .............................8-9
Engine oil and oil filter element .................8-12
Coolant .....................................................8-16
Cleaning the air filter element ...................8-20
Cleaning the spark arrester ......................8-24
Adjusting the engine idling speed .............8-26
Adjusting the throttle cable free play .........8-27
Valve clearance ........................................8-28
Adjusting the reverse lock release
cable .......................................................8-28
Brakes .......................................................8-28
Checking the front and rear brake pads ...8-29
Checking the brake fluid level ...................8-30
Changing the brake fluid ...........................8-32
Checking the front brake lever free play ...8-32
Checking the brake pedal position ............8-32
Adjusting the parking brake free play .......8-33
Brake light switches ..................................8-34
Adjusting the clutch lever free play ...........8-35
Drive chain slack .......................................8-36
Lubricating the drive chain ........................8-38
Checking and lubricating the cables .........8-39
Checking and lubricating the brake and
clutch levers ............................................8-40
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

2-1
2
EBU17431

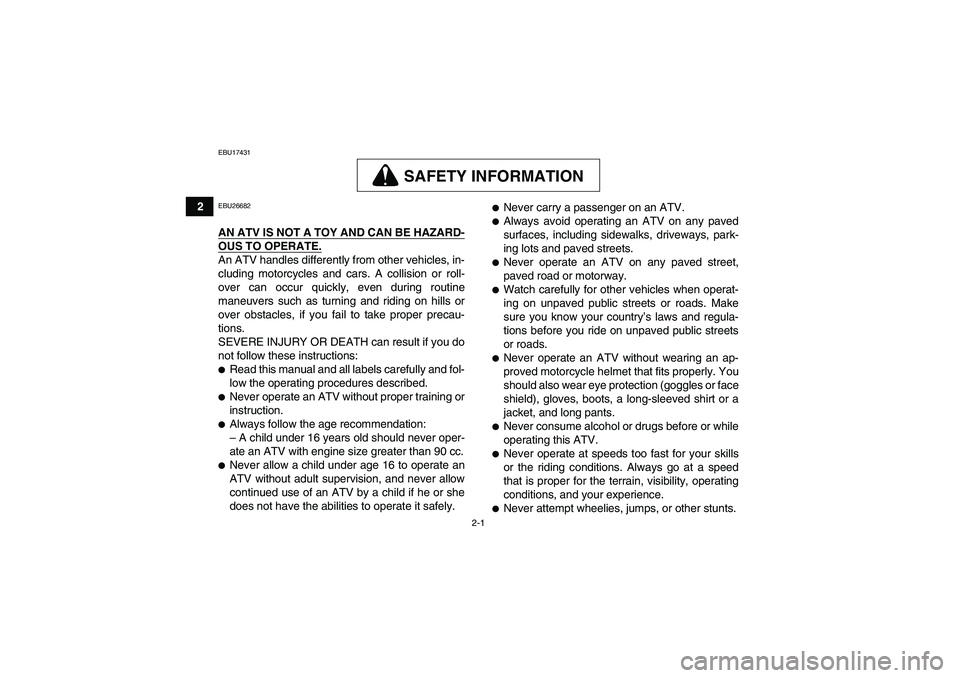

SAFETY INFORMATION
EBU26682AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.An ATV handles differently from other vehicles, in-
cluding motorcycles and cars. A collision or roll-
over can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precau-
tions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:
Read this manual and all labels carefully and fol-
low the operating procedures described.
Never operate an ATV without proper training or
instruction.
Always follow the age recommendation:
– A child under 16 years old should never oper-
ate an ATV with engine size greater than 90 cc.
Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.

Never carry a passenger on an ATV.
Always avoid operating an ATV on any paved
surfaces, including sidewalks, driveways, park-
ing lots and paved streets.
Never operate an ATV on any paved street,
paved road or motorway.
Watch carefully for other vehicles when operat-
ing on unpaved public streets or roads. Make
sure you know your country’s laws and regula-
tions before you ride on unpaved public streets
or roads.
Never operate an ATV without wearing an ap-
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.
Never consume alcohol or drugs before or while
operating this ATV.
Never operate at speeds too fast for your skills
or the riding conditions. Always go at a speed
that is proper for the terrain, visibility, operating
conditions, and your experience.
Never attempt wheelies, jumps, or other stunts.
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

2-3
2speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight up-
hill. Turn the ATV around and remount, following
the procedure described in this manual.

Always check for obstacles before operating in a
new area.
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obsta-
cles as described in this manual.
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of con-
trol.
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.

Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
Always use the size and type of tires specified in
this manual.
Always maintain proper tire pressure as de-
scribed in this manual.
Never modify an ATV through improper installa-
tion or use of accessories.
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow in-
structions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for brak-
ing.
WARNING

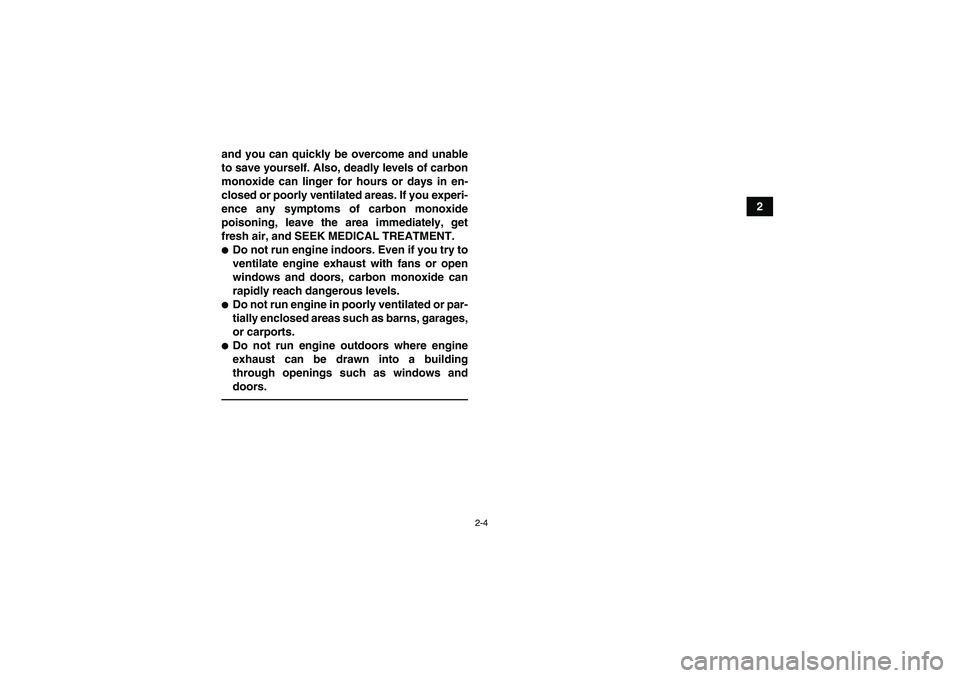

EWB00071Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon monoxide,
a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nau-
sea, confusion, and eventually death.
Carbon Monoxide is a colorless, odorless,
tasteless gas which may be present even if you
do not see or smell any engine exhaust. Deadly
levels of carbon monoxide can collect rapidly
U1AS61E0.book Page 3 Thursday, February 11, 2010 2:17 PM

2-4
2 and you can quickly be overcome and unable
to save yourself. Also, deadly levels of carbon
monoxide can linger for hours or days in en-
closed or poorly ventilated areas. If you experi-
ence any symptoms of carbon monoxide
poisoning, leave the area immediately, get
fresh air, and SEEK MEDICAL TREATMENT.

Do not run engine indoors. Even if you try to
ventilate engine exhaust with fans or open
windows and doors, carbon monoxide can
rapidly reach dangerous levels.
Do not run engine in poorly ventilated or par-
tially enclosed areas such as barns, garages,
or carports.
Do not run engine outdoors where engine
exhaust can be drawn into a building
through openings such as windows and
doors.
U1AS61E0.book Page 4 Thursday, February 11, 2010 2:17 PM

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view1. Engine oil tank filler cap
2. Coolant reservoir
3. Idle adjusting screw
4. Fuses
5. Rear shock absorber assembly rebound damping force
adjusting screw
6. Rear shock absorber assembly compression damping
force adjusting bolt (for fast compression damping)
7. Rear shock absorber assembly compression damping
force adjusting screw (for slow compression damping)
8. Rear shock absorber assembly spring preload adjusting
nut
9. Shift pedal
12
3
4
4
6,7
8
9
5
10
10.Engine oil tank drain bolt
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

3-2
3

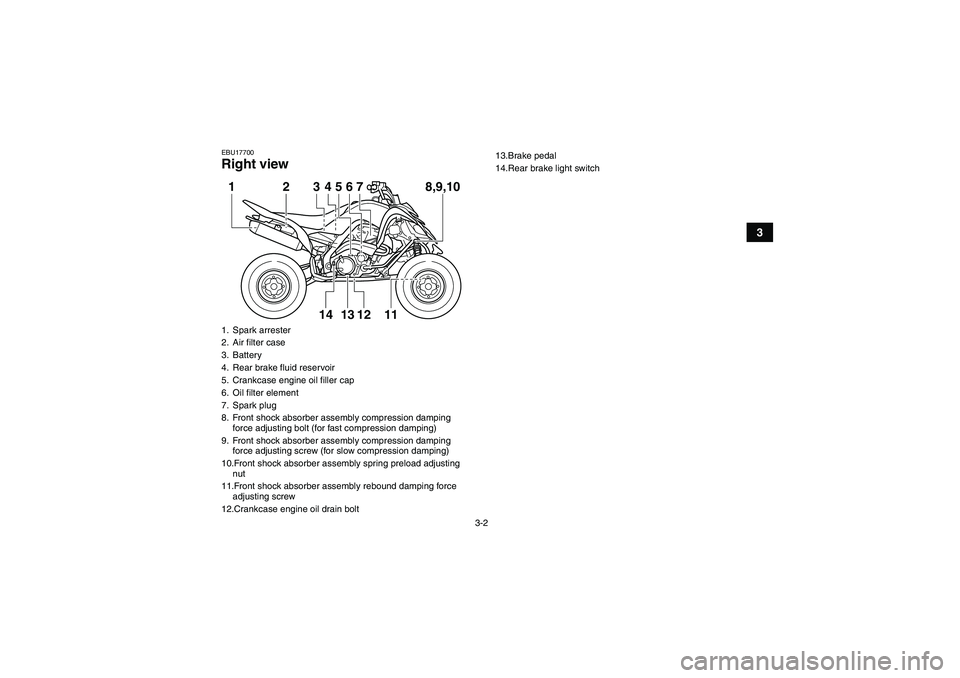

EBU17700Right view1. Spark arrester
2. Air filter case
3. Battery
4. Rear brake fluid reservoir
5. Crankcase engine oil filler cap
6. Oil filter element
7. Spark plug
8. Front shock absorber assembly compression damping
force adjusting bolt (for fast compression damping)
9. Front shock absorber assembly compression damping
force adjusting screw (for slow compression damping)
10.Front shock absorber assembly spring preload adjusting
nut
11.Front shock absorber assembly rebound damping force
adjusting screw
12.Crankcase engine oil drain bolt1
24
3
567 8,9,10
1312
14
11
13.Brake pedal
14.Rear brake light switch
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM

4-1
4
EBU17733
INSTRUMENT AND CONTROL FUNCTIONS

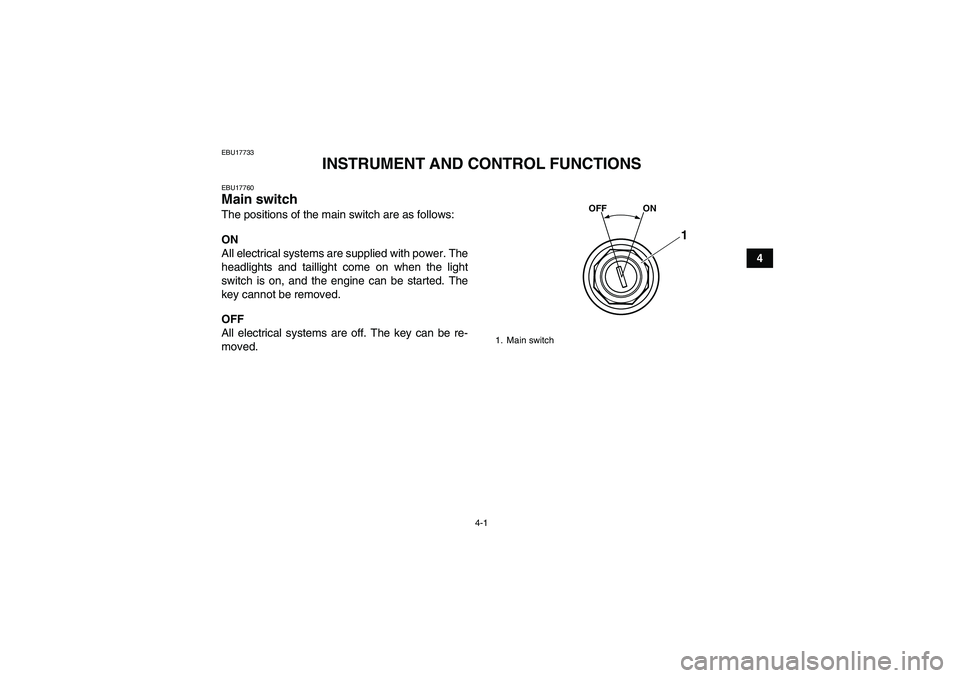

EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
OFF ON
1
U1AS61E0.book Page 1 Thursday, February 11, 2010 2:17 PM

4-2
4
EBU26694Indicator lights and warning lights EBU17860Neutral indicator light“”
This indicator light comes on when the transmis-
sion is in the neutral position.EBU17830Reverse indicator light“”
This indicator light comes on when the transmis-
sion is in the reverse position.
EBU26702Coolant temperature warning light“”
This warning light comes on when the engine over-
heats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. The warning
light should come on for a few seconds, and then
go off.
If the warning light does not come on initially when
the key is turned to “ON”, or if the warning light re-
mains on, have a Yamaha dealer check the electri-
cal circuit.NOTICEECB00010
The engine may overheat if the ATV is over-
loaded. In this case, reduce the load to spec-
ification.
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
1. Neutral indicator light “N”
2. Reverse indicator light “R”
3. Coolant temperature warning light“”
4. Engine trouble warning light“”
5. Fuel level warning light“”5
412
3
U1AS61E0.book Page 2 Thursday, February 11, 2010 2:17 PM
