YAMAHA YFM700R 2019 Owners Manual

8-26
8
TIPIf the recommended oil is not available, SAE 80W-
90 API GL-5 Hypoid gear oil may be used instead.However, when using this oil, noise from the final
gear case may occur when applying the rear
brake.
7. Check the oil filler bolt gasket for damage,
and replace it if necessary.
8. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
9. Check the final gear case for oil leakage. If oil is leaking, check for the cause.
10. Install the final gear case guard by installing the bolts, and then tightening them to the
specified torque.

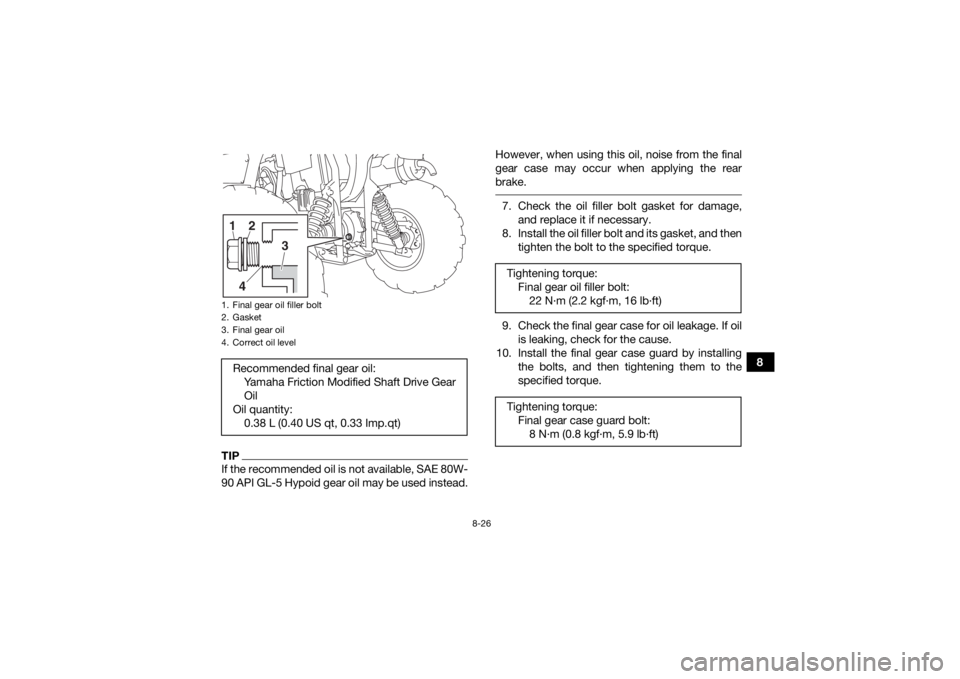

1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:Yamaha Friction Modified Shaft Drive Gear Oil
Oil quantity: 0.38 L (0.40 US qt, 0.33 Imp.qt)1
2
3
4
Tightening torque: Final gear oil filler bolt:22 N·m (2.2 kgf·m, 16 lb·ft)
Tightening torque: Final gear case guard bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
UBB561E0.book Page 26 Monday, March 26, 2018 11:15 AM

8-27
8
EBU23439Changing the differential gear oilThe differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil must be
changed as follows at the intervals specified in the
periodic maintenance and lubrication chart.1. Park the ATV on a level surface.
2. Place an oil pan under the differential gear case to collect the used oil.
3. Remove the differential gear oil filler bolt, the differential gear oil drain bolt and their gasket
to drain the oil from the differential gear case. 4. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
5. Refill with the specified amount of the recom- mended differential gear oil. NOTICE: Be
sure no foreign material enters the differ-
ential gear case.
[ECB00412]

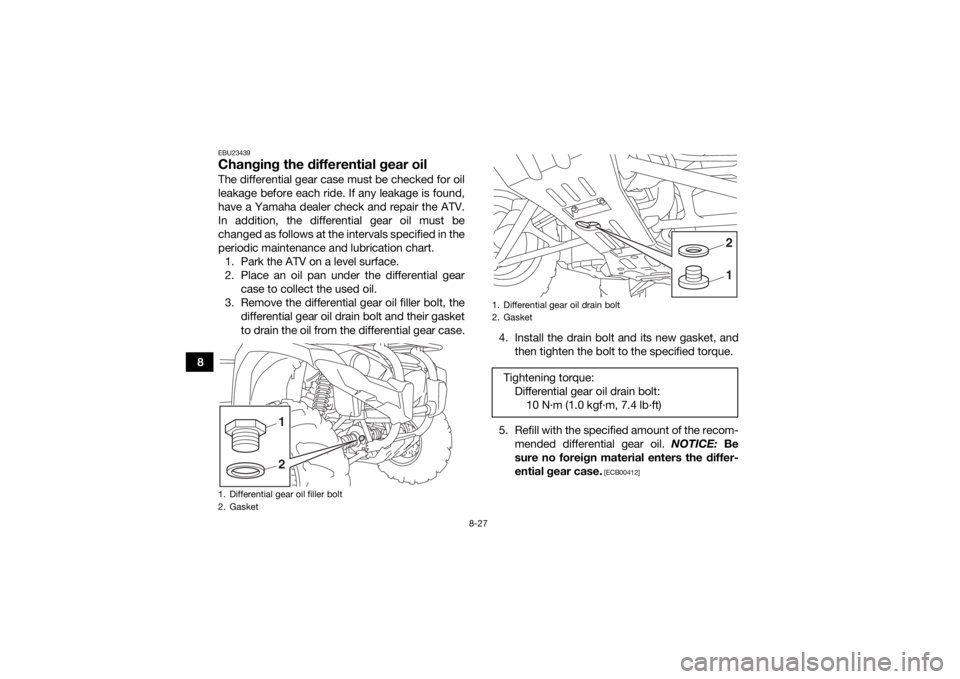

1. Differential gear oil filler bolt
2. Gasket
21
1. Differential gear oil drain bolt
2. GasketTightening torque: Differential gear oil drain bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
12
UBB561E0.book Page 27 Monday, March 26, 2018 11:15 AM

8-28
8
TIPDo not exceed the specified differential gear oil
quantity when filling. Overfilling will cause the oil
to seep out of the breather hose during and af-
ter riding.
 The differential gear case capacity is greater
than the recommended oil quantity, therefore
the oil level cannot be accurately checked from
the oil filler hole. 6. Check the oil filler bolt gasket for damage,
and replace it if necessary.
7. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque. 8. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23472CoolantThe coolant level should be checked regularly. In
addition, the coolant must be changed at the in-
tervals specified in the periodic maintenance and
lubrication chart.TIPIf genuine Yamaha coolant is not available, use an
ethylene glycol antifreeze containing corrosion in-
hibitors for aluminum engines and mix with dis-
tilled water at a 1:1 ratio.
Recommended differential gear oil:Yamaha Friction Modified Shaft Drive Gear Oil or SAE 80 API GL-4 Hypoid gear oil
Oil quantity: 0.35 L (0.37 US qt, 0.31 Imp.qt)
Tightening torque: Differential gear oil filler bolt:23 N·m (2.3 kgf·m, 17 lb·ft)
Recommended coolant:YAMALUBE coolant
Coolant quantity: Coolant reservoir (up to full level):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.32 L (1.40 US qt, 1.16 Imp.qt)
UBB561E0.book Page 28 Monday, March 26, 2018 11:15 AM

8-29
8
NOTICEECB02190Mix antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft water
may be used for refilling. Do not use hard water
or salt water since they are harmful to the en-
gine. EBU2712ATo check the coolant level1. Park the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. 2. Check the coolant level in the coolant reser- voir.TIPThe coolant should be between the minimum and
maximum level marks.
3. If the coolant is at or below the minimum levelmark, remove panel C to access the coolant
reservoir. (See page 8-10.)
4. Remove the coolant reservoir cap. WARNING! Remove only the coolant res-
ervoir cap. Never attempt to remove the
radiator cap when the engine is hot.
[EWB02672]

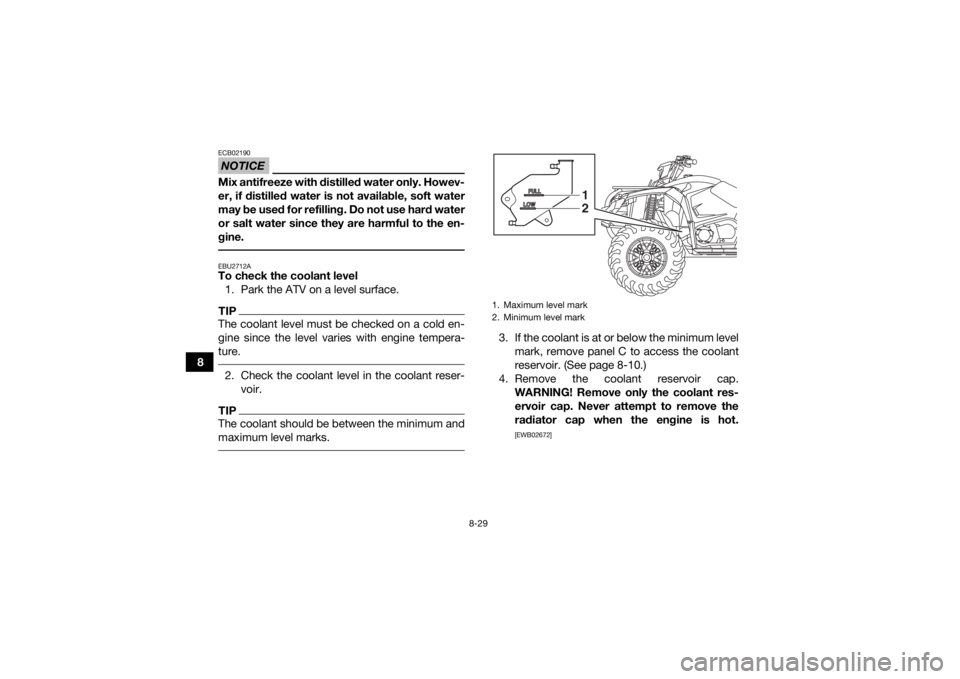

1. Maximum level mark
2. Minimum level mark
1
2
UBB561E0.book Page 29 Monday, March 26, 2018 11:15 AM

8-30
8
5. Add coolant to the maximum level mark, in-
stall the reservoir cap, and then install the
panel. NOTICE: If coolant is not available,
use distilled water or soft tap water in-
stead. Do not use hard water or salt water
since they are harmful to the engine. If wa-
ter has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be
protected against frost and corrosion. If
water has been added to the coolant, have
a Yamaha dealer check the antifreeze con- tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]
EBU37131
To change the coolant
WARNING
EWB01891Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. 1. Park the ATV on a level surface.
2. Remove the front carrier and panel F. (See page 8-10.)
3. Remove the radiator cap.

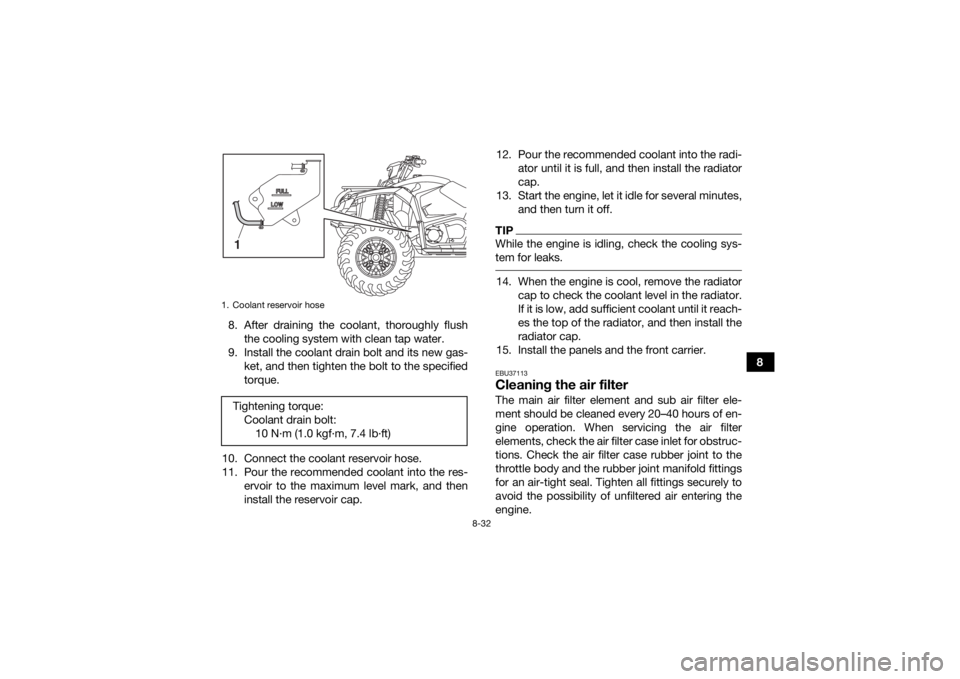

1. Coolant reservoir cap
1
UBB561E0.book Page 30 Monday, March 26, 2018 11:15 AM

8-31
84. Remove panels D and E. (See page 8-10.)
5. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the footrest.) 6. Remove the coolant reservoir cap.
7. Disconnect the coolant reservoir hose on the
coolant reservoir side, and then drain the
coolant from the coolant reservoir.

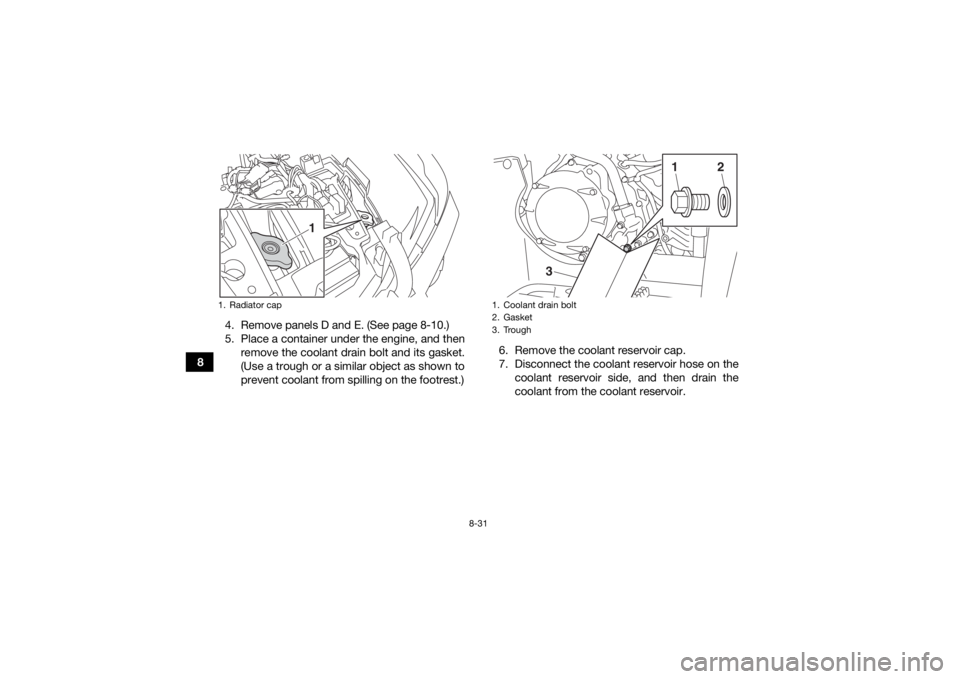

1. Radiator cap
1
1. Coolant drain bolt
2. Gasket
3. Trough
2
1
3
UBB561E0.book Page 31 Monday, March 26, 2018 11:15 AM

8-32
8
8. After draining the coolant, thoroughly flush
the cooling system with clean tap water.
9. Install the coolant drain bolt and its new gas- ket, and then tighten the bolt to the specified
torque.
10. Connect the coolant reservoir hose.
11. Pour the recommended coolant into the res- ervoir to the maximum level mark, and then
install the reservoir cap. 12. Pour the recommended coolant into the radi-
ator until it is full, and then install the radiator
cap.
13. Start the engine, let it idle for several minutes, and then turn it off.
TIPWhile the engine is idling, check the cooling sys-
tem for leaks. 14. When the engine is cool, remove the radiatorcap to check the coolant level in the radiator.
If it is low, add sufficient coolant until it reach-
es the top of the radiator, and then install the
radiator cap.
15. Install the panels and the front carrier.EBU37113Cleaning the air filterThe main air filter element and sub air filter ele-
ment should be cleaned every 20–40 hours of en-
gine operation. When servicing the air filter
elements, check the air filter case inlet for obstruc-
tions. Check the air filter case rubber joint to the
throttle body and the rubber joint manifold fittings
for an air-tight seal. Tighten all fittings securely to
avoid the possibility of unfiltered air entering the
engine.
1. Coolant reservoir hoseTightening torque: Coolant drain bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)1
UBB561E0.book Page 32 Monday, March 26, 2018 11:15 AM

8-33
8
TIPReplace the air filter elements if damaged.
 Service the air filter more frequently if you often
ride in wet or dusty areas.
 There is a check hose at the bottom of the air fil-
ter case. If dust or water collects in this hose,
empty the hose and clean the air filter case and
air filter elements. 1. Park the ATV on a level surface.
2. Remove the seat. (See page 4-13.)
3. Remove the air filter case cover by unhooking

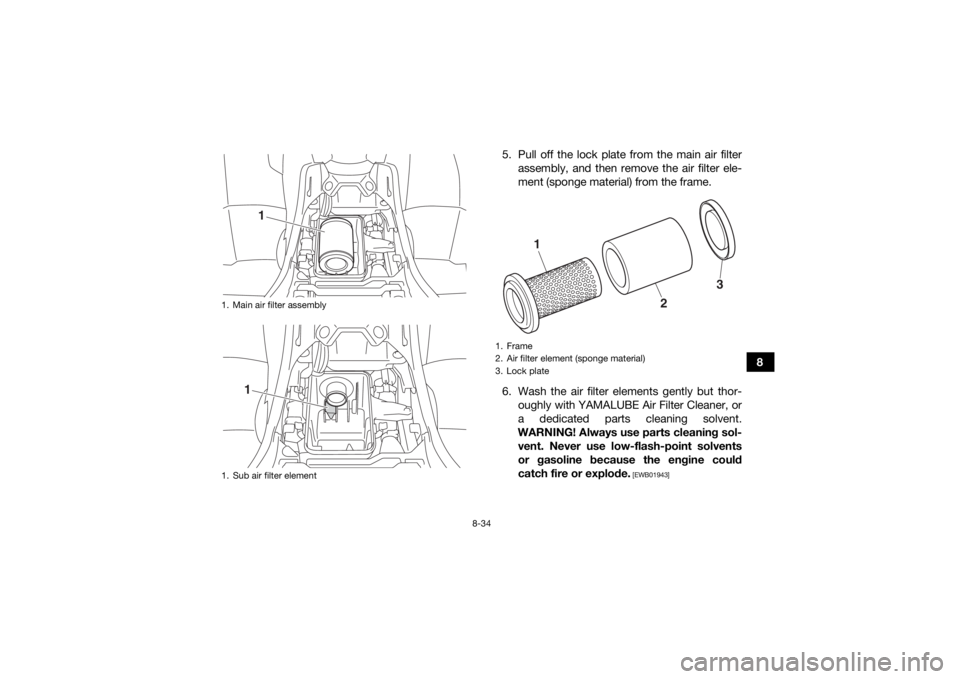

the air filter case cover holders. 4. Pull out the main air filter assembly and sub

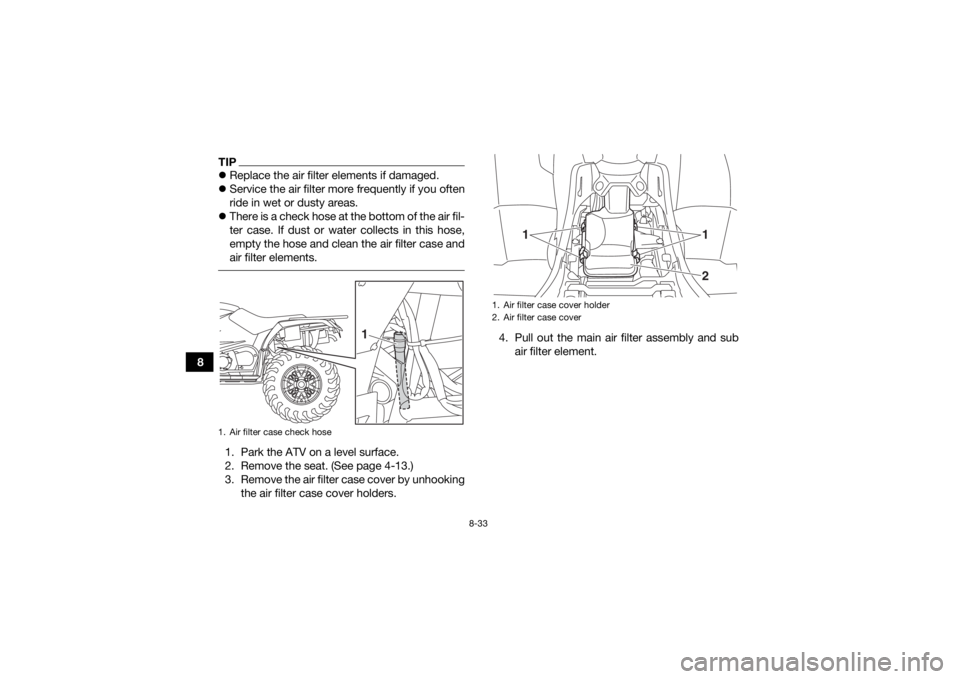

air filter element.1. Air filter case check hose
1
1. Air filter case cover holder
2. Air filter case cover
1
12
UBB561E0.book Page 33 Monday, March 26, 2018 11:15 AM

8-34
8
5. Pull off the lock plate from the main air filter
assembly, and then remove the air filter ele-
ment (sponge material) from the frame.
6. Wash the air filter elements gently but thor- oughly with YAMALUBE Air Filter Cleaner, or
a dedicated parts cleaning solvent.
WARNING! Always use parts cleaning sol- vent. Never use low-flash-point solvents
or gasoline because the engine could
catch fire or explode.
[EWB01943]
1. Main air filter assembly
1. Sub air filter element
1
1
1. Frame
2. Air filter element (sponge material)
3. Lock plate
1
2
3
UBB561E0.book Page 34 Monday, March 26, 2018 11:15 AM

8-35

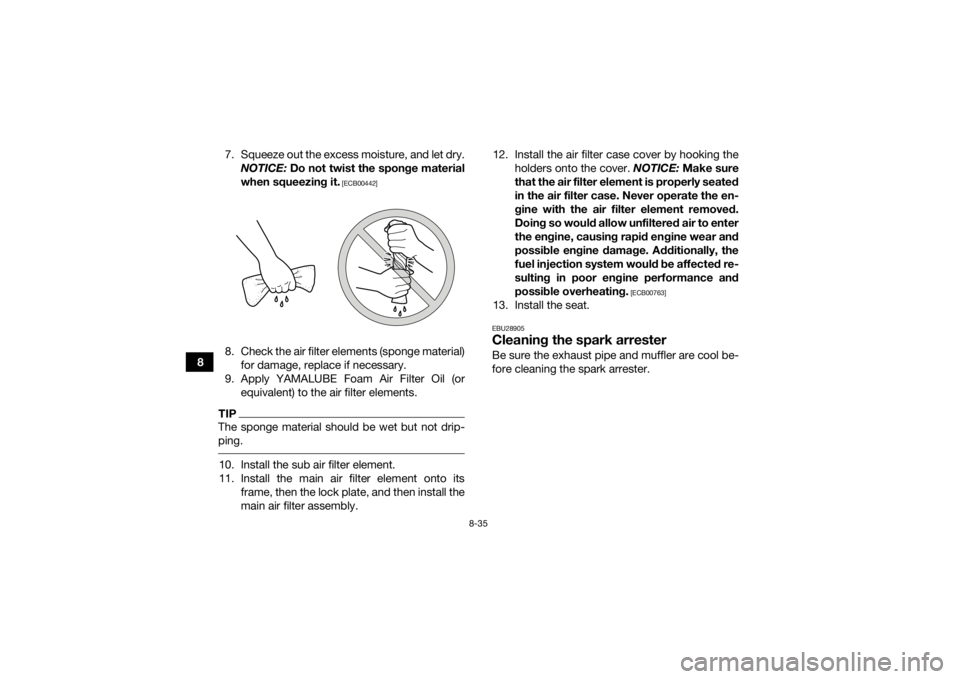

87. Squeeze out the excess moisture, and let dry.
NOTICE: Do not twist the sponge material
when squeezing it.
[ECB00442]
8. Check the air filter elements (sponge material) for damage, replace if necessary.
9. Apply YAMALUBE Foam Air Filter Oil (or equivalent) to the air filter elements.TIPThe sponge material should be wet but not drip-
ping. 10. Install the sub air filter element.
11. Install the main air filter element onto its frame, then the lock plate, and then install the
main air filter assembly. 12. Install the air filter case cover by hooking the
holders onto the cover. NOTICE: Make sure
that the air filter element is properly seated
in the air filter case. Never operate the en-
gine with the air filter element removed.
Doing so would allow unfiltered air to enter
the engine, causing rapid engine wear and
possible engine damage. Additionally, the
fuel injection system would be affected re-
sulting in poor engine performance and
possible overheating.
[ECB00763]
13. Install the seat.EBU28905Cleaning the spark arresterBe sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
