YAMAHA YFM700R 2019 Owners Manual

8-56
8
For EPS models

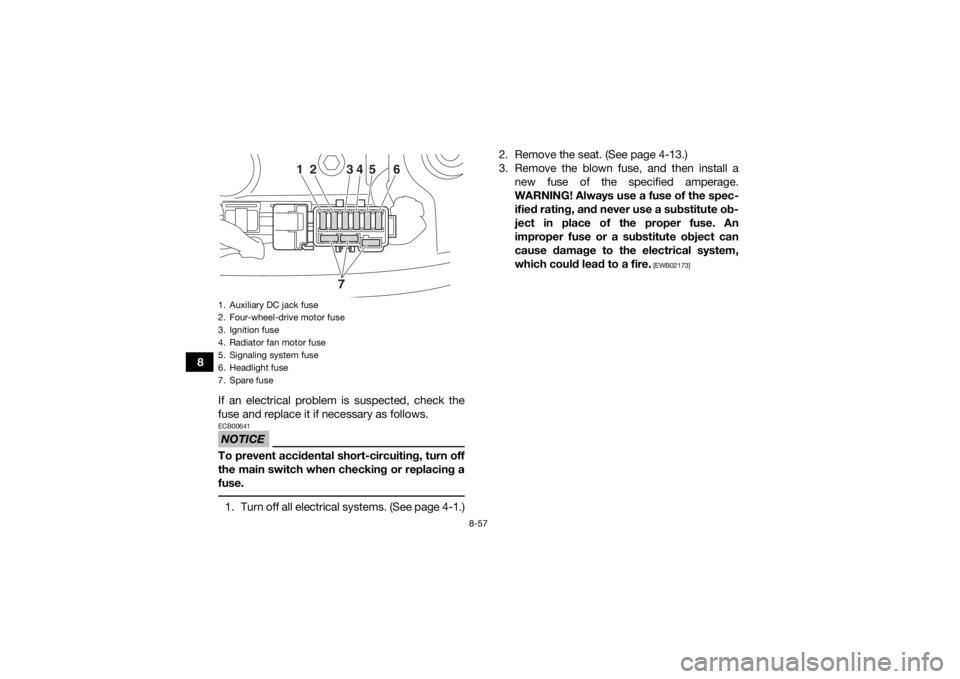

1. Auxiliary DC jack fuse
2. Four-wheel-drive motor fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
1
2
34
5
6
7
1. Fuel injection system spare fuse
2. Fuel injection system fuse
3. Main fuse
4. EPS fuse
5. Fuse box
1
2
3
4
5
UBB561E0.book Page 56 Monday, March 26, 2018 11:15 AM

8-57
8If an electrical problem is suspected, check the
fuse and replace it if necessary as follows.
NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse. 1. Turn off all electrical systems. (See page 4-1.) 2. Remove the seat. (See page 4-13.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
1. Auxiliary DC jack fuse
2. Four-wheel-drive motor fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
1
2
34
5
6
7
UBB561E0.book Page 57 Monday, March 26, 2018 11:15 AM

8-58
8
4. Turn on the main switch, start the engine, and then turn on the circuit in question.
5. If the fuse immediately blows again, have a Yamaha dealer check the vehicle.
EBU34223Replacing a headlight bulbIf a headlight bulb burns out, replace it with the
specified bulb as follows.
Left and right headlight bulbs1. Remove the cover at the rear of the headlight by pulling it off.
2. Remove the bulb cover by pulling it off.
Specified fuses:
Main fuse:40.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 3.0 A
Signaling system fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Auxiliary DC jack fuse: 10.0 A
Fuel injection system fuse: 10.0 A
EPS fuse: 40.0 A (YFM45KPHK, YFM45KPLK,

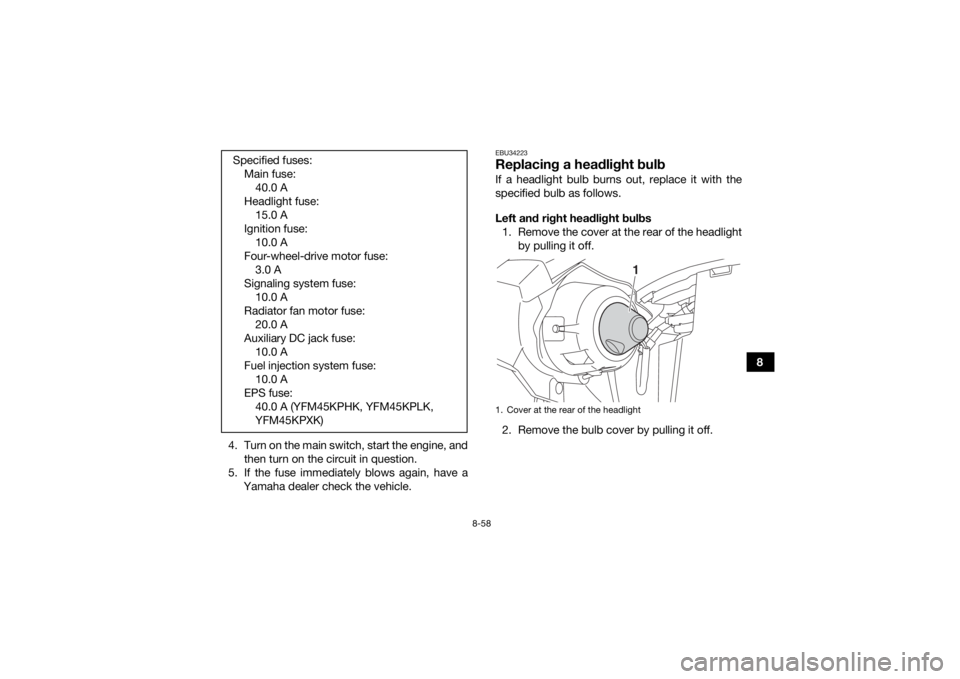

YFM45KPXK)1. Cover at the rear of the headlight
1
UBB561E0.book Page 58 Monday, March 26, 2018 11:15 AM

8-59
83. Remove the socket by pushing it in and turn-
ing it counterclockwise. 4. Remove the burnt-out bulb.
5. Place a new bulb into position.
NOTICE: Do
not touch the glass part of the bulb. Oil
from your fingers or other contamination
will adversely affect the transparency of
the glass, luminosity of the bulb, and bulb
life. Thoroughly clean off any dirt and fin-
gerprints using a cloth moistened with al-
cohol or thinner.
[ECB00653]
6. Install the socket by pushing it in and turning it clockwise.

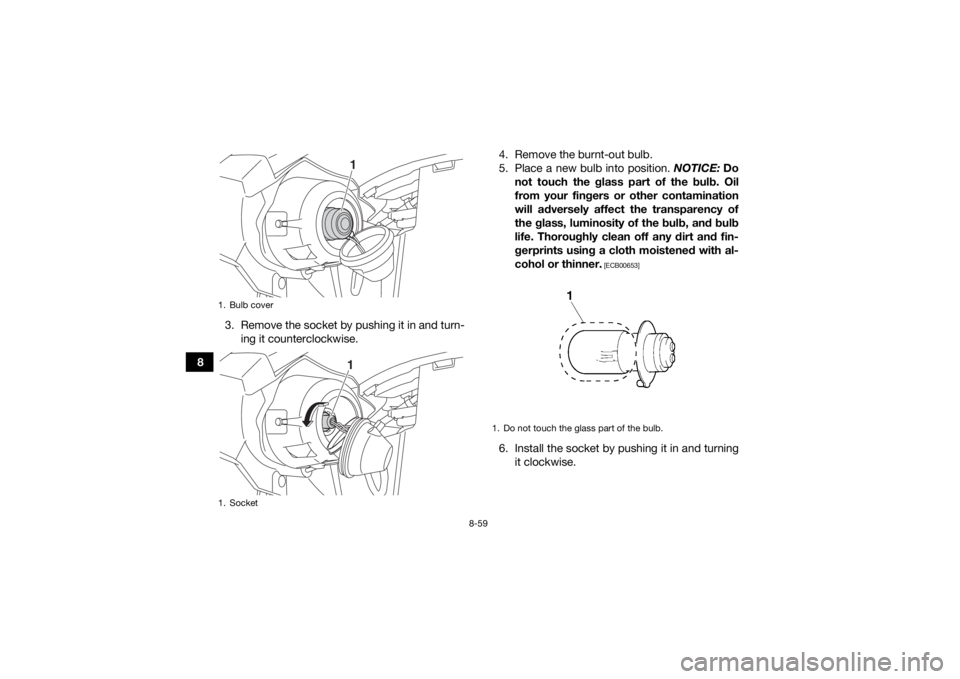

1. Bulb cover
1. Socket
11
1. Do not touch the glass part of the bulb.
UBB561E0.book Page 59 Monday, March 26, 2018 11:15 AM

8-60
8
7. Install the bulb cover and the cover at the rear
of the headlight. NOTICE: Make sure the
bulb cover is securely fitted over the sock-
et and seated properly.
[ECB03320]
8. Adjust the headlight beam if necessary.
Handlebar-mounted light bulb (YFM45KPXK /
YFM45KPHK / YFM45KPLK) 1. Remove the handlebar-mounted light cover by removing the quick fasteners.
2. Remove the bulb cover by pulling it off. 3. Remove the socket by pushing it in and turn-

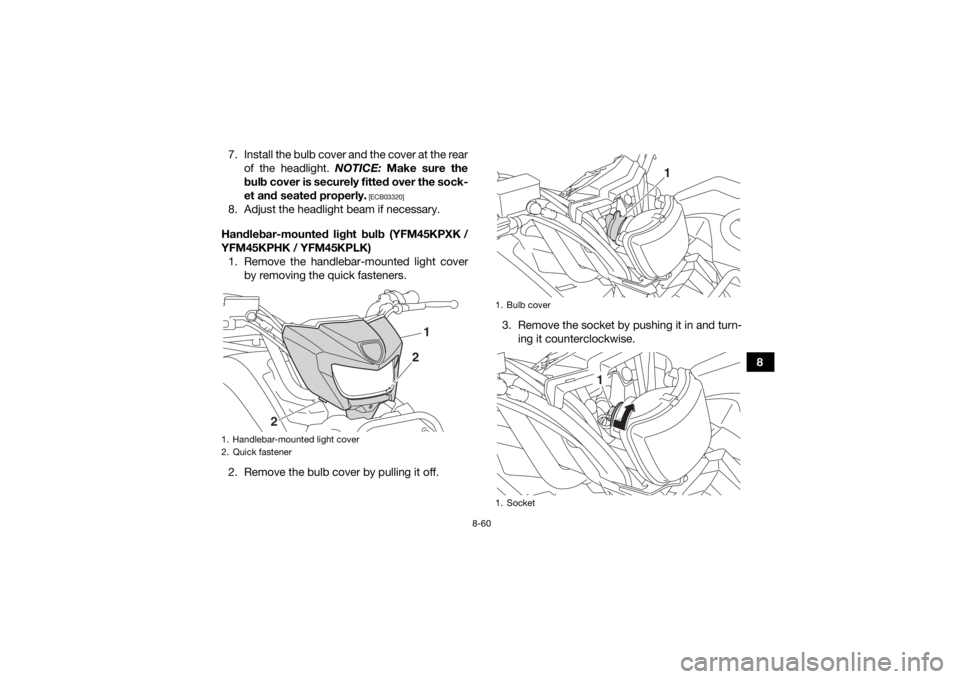

ing it counterclockwise.1. Handlebar-mounted light cover
2. Quick fastener
1
2
2
1. Bulb cover
1. Socket
1
1
UBB561E0.book Page 60 Monday, March 26, 2018 11:15 AM

8-61
84. Remove the burnt-out bulb.
5. Place a new bulb into position.
NOTICE: Do
not touch the glass part of the bulb. Oil
from your fingers or other contamination
will adversely affect the transparency of
the glass, luminosity of the bulb, and bulb
life. Thoroughly clean off any dirt and fin-
gerprints using a cloth moistened with al-
cohol or thinner.
[ECB00653]
6. Install the socket by pushing it in and turning it clockwise.
7. Install the bulb cover. NOTICE: Make sure
the bulb cover is securely fitted over the
socket and seated properly.
[ECB03320]
8. Install the handlebar-mounted light cover as shown, and then install the quick fasteners.
9. Adjust the handlebar-mounted light beam if necessary.EBU25553Adjusting a headlight beamNOTICEECB00691It is advisable to have a Yamaha dealer make
this adjustment. To raise a headlight beam, turn the headlight
beam adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).

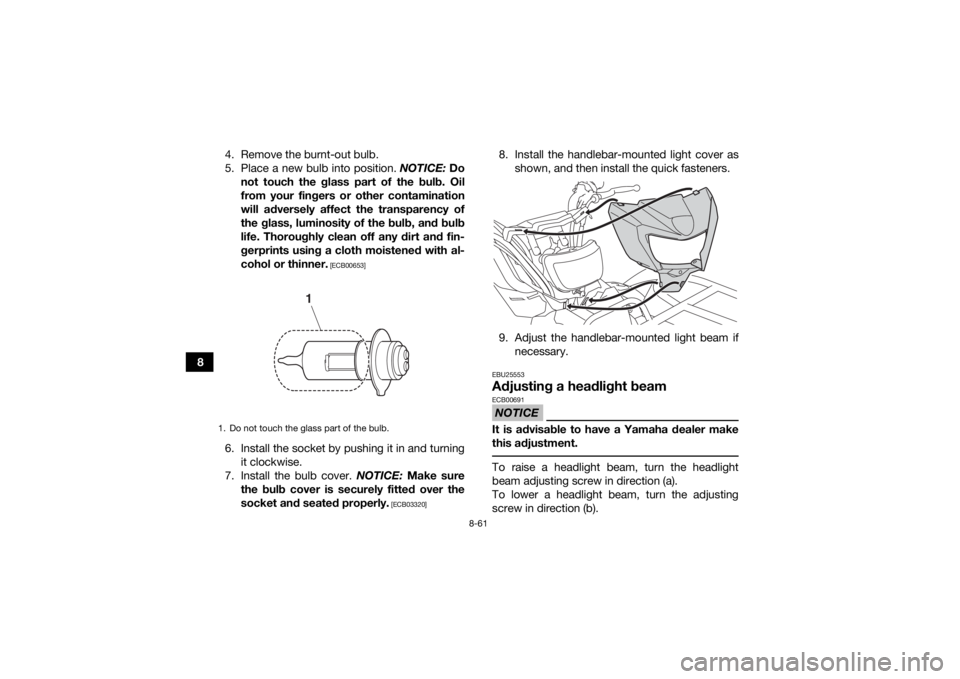

1. Do not touch the glass part of the bulb.
1
UBB561E0.book Page 61 Monday, March 26, 2018 11:15 AM

8-62
8
YFM45KPXK / YFM45KPHK / YFM45KPLK
EBU25615Replacing the brake/tail light bulbIf the brake/tail light bulb burns out, replace it as
follows.
1. Remove the brake/tail light bulb holder (to- gether with the bulb) by turning it counter-
clockwise.
2. Remove the burnt-out bulb by pushing it in and turning it counterclockwise.

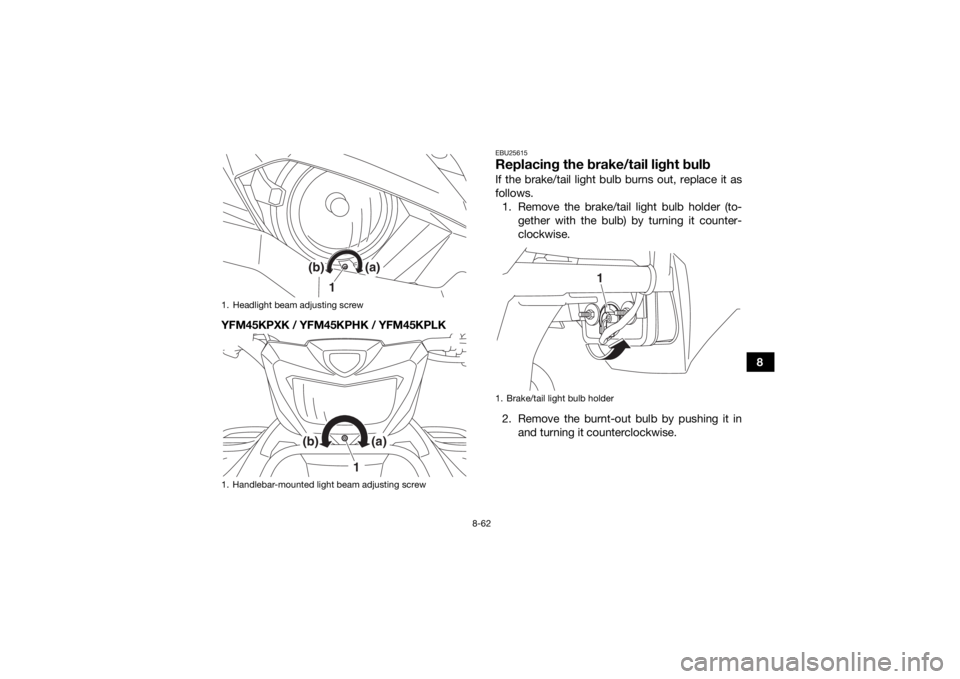

1. Headlight beam adjusting screw
1. Handlebar-mounted light beam adjusting screw
(a)
(b)
1
1
(a)
(b)
1. Brake/tail light bulb holder
1
UBB561E0.book Page 62 Monday, March 26, 2018 11:15 AM

8-63
83. Insert a new bulb into the bulb holder, push it
in, and then turn it clockwise until it stops.
4. Install the bulb holder (together with the bulb) by turning it clockwise.
EBU25653Removing a wheel1. Park the ATV on a level surface.
2. Loosen the wheel nuts. 3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU36243Installing a wheel1. Install the wheel with the arrow mark pointing in the forward rotating direction of the wheel,
and then install the wheel nuts.
1. Brake/tail light bulb
1
1. Wheel nut
1
1
UBB561E0.book Page 63 Monday, March 26, 2018 11:15 AM

8-64
8
TIPFor YFM45KDXK / YFM45KDHK / YFM45KPXK /
YFM45KPHK: be sure to install the nuts with their
tapered side towards the wheel.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specifiedtorques.
1. Arrow mark
2. Forward rotating direction
3. Wheel nut
1
2
3
1. Tapered nutTightening torques:Front wheel nut:55 N·m (5.5 kgf·m, 41 lb·ft)
Rear wheel nut: 55 N·m (5.5 kgf·m, 41 lb·ft)1
UBB561E0.book Page 64 Monday, March 26, 2018 11:15 AM

8-65
8
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02281Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces. UBB561E0.book Page 65 Monday, March 26, 2018 11:15 AM
