EBU20840
Parking on a slope
WARNING

EWB00850
Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, shift into first gear, stop the engine, ap-
ply the parking brake, and then block the front
and rear wheels with rocks or other objects.
Do not park the ATV at all on hills that are so
steep you could not walk up them easily.
1. Bring the ATV to a stop by applying the brakes
in first gear.
2. Stop the engine.
3. With the rear brake lever and brake pedal ap-
plied, apply the parking brake and slowly re-
lease the brake pedal.
EBU20910
Accessories and loading
EBU20920
Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when consid-
ering an accessory or operating an ATV which has
accessories.

Choose only accessories designed for your
ATV. Your Yamaha dealer has a variety of gen-
uine Yamaha accessories. Other accessories
may also be available on the market. However,
it is not possible for Yamaha to test all non-

7-3
1
2
3
4
5
67
8
9
10
11

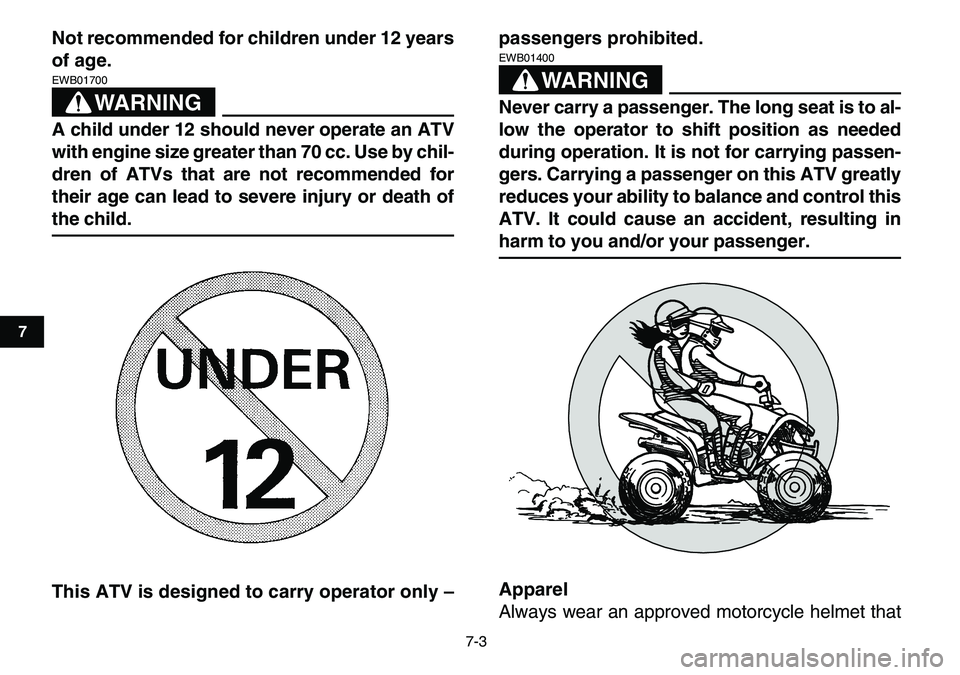

Not recommended for children under 12 years
of age.
WARNING

EWB01700
A child under 12 should never operate an ATV
with engine size greater than 70 cc. Use by chil-
dren of ATVs that are not recommended for
their age can lead to severe injury or death of
the child.
This ATV is designed to carry operator only –passengers prohibited.
WARNING
EWB01400
Never carry a passenger. The long seat is to al-
low the operator to shift position as needed
during operation. It is not for carrying passen-
gers. Carrying a passenger on this ATV greatly
reduces your ability to balance and control this
ATV. It could cause an accident, resulting in
harm to you and/or your passenger.
Apparel
Always wear an approved motorcycle helmet that

7-5
1
2
3
4
5
67
8
9
10
11
WARNING

EWB01420
Never consume alcohol or drugs before or
while driving this ATV.
Pre-operation checks
Always perform the pre-operation checks listed on
page 5-1 before riding for proper care of the ATV
and to ensure safety.
WARNING

EWB01430
Always inspect your ATV each time you use it
to make sure the ATV is in safe operating con-
dition. Always follow the inspection and main-
tenance procedures and schedules described
in the Owner’s Manual. Failure to inspect the
ATV before operating or failure to properly
maintain the ATV increases the possibility of
an accident or equipment damage.
WARNING

EWB01440
Always use the size and type tires specified in
the Owner’s Manual for this ATV on page 5-4.
Always maintain proper tire pressure as de-
scribed in the Owner’s Manual on page 5-5.Use of improper tires on this ATV, or operation
of this ATV with improper or uneven tire pres-
sure, may cause loss of control, increasing
your risk of an accident.
Do not operate at speeds too fast for your
skills or the conditions.WARNING

EWB01450
Always go at a speed that is proper for the ter-
rain, visibility and operating conditions, and
your experience. Operating this ATV at speeds
too fast for your skills or the conditions in-
creases your chances of losing control of the
ATV, which can result in an accident.
Speed limiter
For riders less experienced with this model, the
throttle lever housing is equipped with a speed lim-
iter. The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. Turning in the adjusting screw limits
the maximum engine power available and de-
creases the maximum speed of the ATV. Turning
in the adjusting screw decreases top speed, and
turning it out increases top speed. (See page 4-3.)

7-6
1
2
3
4
5
67
8
9
10
11

This model also has an air intake restrictor plate to
limit the amount of engine power available.
Yamaha recommends that all beginning riders
start off with the speed limiter turned in and the air
intake restrictor plate installed to limit the amount
of speed available while they learn. The limiter may
be gradually adjusted to increase maximum speed
as the beginner becomes more familiar with oper-
ating the ATV. Parents should decide when to ad-
just the ATV for more power as their youngster’s
riding skills improve. Once the ATV rider can oper-
ate with skill at the top speed permitted by adjust-
ing the speed limiter alone, the air intake restrictor
plate can be removed. Since removal of this plate
will result in a significant increase in power, turn
the speed limiter back in again; adjust it out in stag-
es as you did before.
Adjusting for maximum throttle lever movement
without removing the air intake restrictor plate will
cause the engine to run roughly at higher speeds.
For air intake restrictor plate removal instructions,
see page 8-15.
Loading and accessories
Use extra caution when riding the ATV with addi-
tional loads, such as accessories or cargo. The
ATV’s handling may be adversely affected. Re-
duce your speed when adding additional loads.
1. Locknut
2. Adjusting screw
MAXIMUM LOADING LIMIT
ATV loading limit (total weight of cargo, rider,
accessories, and tongue):
95.0 kg (209 lb)
1
2

7-12
1
2
3
4
5
67
8
9
10
11

Select a large, flat, unpaved area to become famil-
iar with your ATV. Make sure that this area is free
of obstacles and other riders. You should practice
control of the throttle, brakes, shifting procedures,
and turning techniques in this area before trying
more difficult terrain. Always avoid riding on paved
surfaces: the ATV is designed for use on unpaved
surfaces only, and handling maneuvers are more
difficult to perform on pavement.
Set the parking brake and follow the instruction on
page 6-1 to start the engine. Once it has warmed
up you are ready to begin riding your ATV. As you
get on the ATV, be sure not to accidentally move
the shift pedal. Remember that the engine and ex-
haust pipe will be hot when riding and afterwards;
do not allow skin or clothing to come in contact withthese components.
With the engine idling, lift the shift pedal to the 1st
gear position and then release the parking brake.
Apply the throttle slowly and smoothly. The centrif-
ugal clutch will engage and you will start to accel-
erate. Once the ATV has attained adequate
speed, release the throttle and lift the shift pedal to
the 2nd gear position. Release the shift pedal and
apply the throttle smoothly. Use this same proce-
dure as you move into the higher gears. Be sure to
coordinate the use of the throttle and shift pedal
properly. If the throttle is applied too abruptly or if
the throttle is not released during shifting, or if the
shift pedal is not released before applying the
throttle, the front wheels may lift off the ground, re-
sulting in a loss of directional control. Avoid higher
speeds until you are thoroughly familiar with the
operation of your ATV.CAUTION:
ECB00230
Do not shift gears without releasing the throt-
tle. Damage to the engine or drive train may oc-
cur.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that

7-13
1
2
3
4
5
67
8
9
10
11

the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing con-
trol and increasing the possibility of an accident.
WARNING

EWB01560
Make sure the engine has sufficiently slowed
before shifting to a lower gear. Engaging a low-
er gear when the engine speed is too high
could cause the wheels to stop rotating.
TURNING YOUR ATV
To achieve maximum traction on unpaved surfac-
es, the two rear wheels are mounted solidly on one
axle and turn together at the same speed. There-
fore, unless the wheel on the inside of the turn is al-
lowed to slip or lose some traction, the ATV will
resist turning. A special turning technique must be
used to allow the ATV to make turns quickly and
easily. It is essential that this skill be learned first at
low speed.
WARNING

EWB01570
Always follow proper procedures for turning
as described in this Owner’s Manual. Practice
turning at low speeds before attempting to turnat faster speeds. Do not turn at speeds too fast
for your skills or the conditions.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As you
do so, put your weight on the footboard to the out-
side of the turn (opposite your desired direction)
and lean your upper body into the turn. Use the
throttle to maintain an even speed through the
turn. This maneuver will let the wheel on the inside
of the turn slip slightly, allowing the ATV to make
the turn properly.
1. Lean towards inside of turn.
2. Support your weight on the outer footrest.
1
2

8-1
1
2
3
4
5
6
78
9
10
11

EBU21652
PERIODIC MAINTENANCE AND MINOR REPAIR
EBU21670
Safety is an obligation of the owner. Periodic in-
spection, adjustment and lubrication will keep your
ATV in the safest and best operating condition
possible. The most important points of inspection,
adjustment, and lubrication are explained on the
following pages.
The intervals given in the periodic maintenance
and lubrication chart should be considered as a
general guide under normal riding conditions.
However, DEPENDING ON THE WEATHER,
TERRAIN, GEOGRAPHICAL LOCATION, AND
INDIVIDUAL USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORTENED.
WARNING

EWB01840
Never service an engine while it is running.
Moving parts can catch clothing or parts of the
body, causing injury. Electrical components
can cause shocks or start fires. Turn off the en-
gine when performing maintenance unless
otherwise specified. Have a Yamaha dealer
perform the service if you are not familiar with
maintenance work.
EBU27110
Owner’s manual and tool kit
Be sure to put this owner’s manual in the plastic
bag and to always carry it as well as the owner’s
tool kit and the low-pressure tire gauge in their re-
spective compartments under the seat.
1. Owner’s manual
2. Low-pressure tire gauge
3. Owner’s tool kit
3
1
2

8-4
1
2
3
4
5
6
78
9
10
11

7
*
Rear brake

Check operation and correct if necessary.

Check brake lever and pedal free play, and adjust
if necessary.
√√√√√

Replace brake shoes. Whenever worn to the limit
8
*
Wheels

Check runout and for damage, and replace if nec-
essary.
√ √√√
9
*
Tires


Check tread depth and for damage, and replace if
necessary.

Check air pressure and balance, and correct if
necessary.
√ √√√
10
*
Wheel bearings

Check for looseness or damage, and replace if
necessary.
√ √√√
11
*
Drive shaft univer-
sal joint

Lubricate with lithium-soap-based grease.
√√√
12
*
Chassis fasteners

Make sure that all nuts, bolts, and screws are
properly tightened.
√√√√√
13
*
Shock absorber
assemblies

Check operation and correct if necessary.

Check for oil leakage and replace if necessary.
√√√
14
*
Knuckle shafts


Lubricate with lithium-soap-based grease.
√√√
15
*
Steering shaft


Lubricate with lithium-soap-based grease.
√√√
16
*
Steering system


Check operation and repair or replace if damaged.

Check toe-in and adjust if necessary.
√√√√√
17
*
Carburetor


Check choke operation and correct if necessary.

Check engine idling speed and adjust if neces-
sary.
√√√√
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth 1 3 6 6 12
km
(mi)320
(200)1200
(750)2400
(1500)2400
(1500)4800
(3000)
hours 20 75 150 150 300

8-5
1
2
3
4
5
6
78
9
10
11

18
*
Crankcase breather
system

Check breather hose for cracks or other damage,
and replace if necessary.
√√√
19 Engine oil

Change.

Check ATV for oil leakage, and correct if neces-
sary.
√ √√√
20 Final gear oil

Change.

Check ATV for oil leakage, and correct if neces-
sary.
√√
21
*
Moving parts and
cables


Lubricate.
√√√√
22
*
Throttle lever hous-
ing and cable


Check operation and correct if necessary.

Check throttle cable free play and have a Yamaha
dealer adjust if necessary.

Lubricate throttle lever housing and cable.
√√√√√
23
*
Exhaust system


Check for leakage and replace gasket(s) if neces-
sary.

Check for looseness and tighten all screw clamps
and joints if necessary.
√√√
24 Spark arrester

Clean.
√√√
25
*
Front and rear brake
switches


Check operation and correct if necessary.
√√√√√
26
*
Battery


Check electrolyte level and specific gravity, and
correct if necessary.

Make sure that the breather hose is properly
routed.
√√√√√
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1200
(750)2400
(1500)2400
(1500)4800
(3000)
hours 20 75 150 150 300

8-7
1
2
3
4
5
6
78
9
10
11

EBU23211
Checking the spark plug
The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown, with thespark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).NOTE:

If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1

1. Spark plug wrench
1
