YAMAHA YFM90 2016 Owners Manual

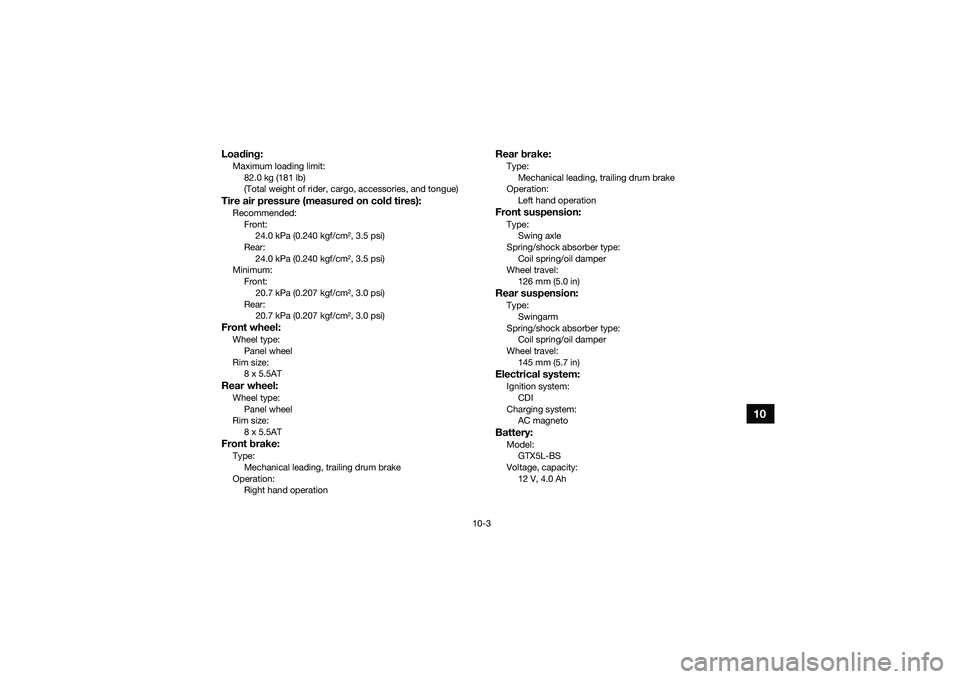

10-3
10
Loading:Maximum loading limit:82.0 kg (181 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:24.0 kPa (0.240 kgf/cm², 3.5 psi)
Rear:
24.0 kPa (0.240 kgf/cm², 3.5 psi)
Minimum: Front:
20.7 kPa (0.207 kgf/cm², 3.0 psi)
Rear: 20.7 kPa (0.207 kgf/cm², 3.0 psi)Front wheel:Wheel type:
Panel wheel
Rim size: 8 x 5.5ATRear wheel:Wheel type:
Panel wheel
Rim size: 8 x 5.5ATFront brake:Type:
Mechanical leading, trailing drum brake
Operation: Right hand operation
Rear brake:Type:Mechanical leading, trailing drum brake
Operation:
Left hand operationFront suspension:Type:Swing axle
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 126 mm (5.0 in)Rear suspension:Type:
Swingarm
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 145 mm (5.7 in)Electrical system:Ignition system:CDI
Charging system: AC magnetoBattery:Model:GTX5L-BS
Voltage, capacity: 12 V, 4.0 Ah
UBD360E0.book Page 3 Wednesd ay, February 25, 2015 2:41 PM

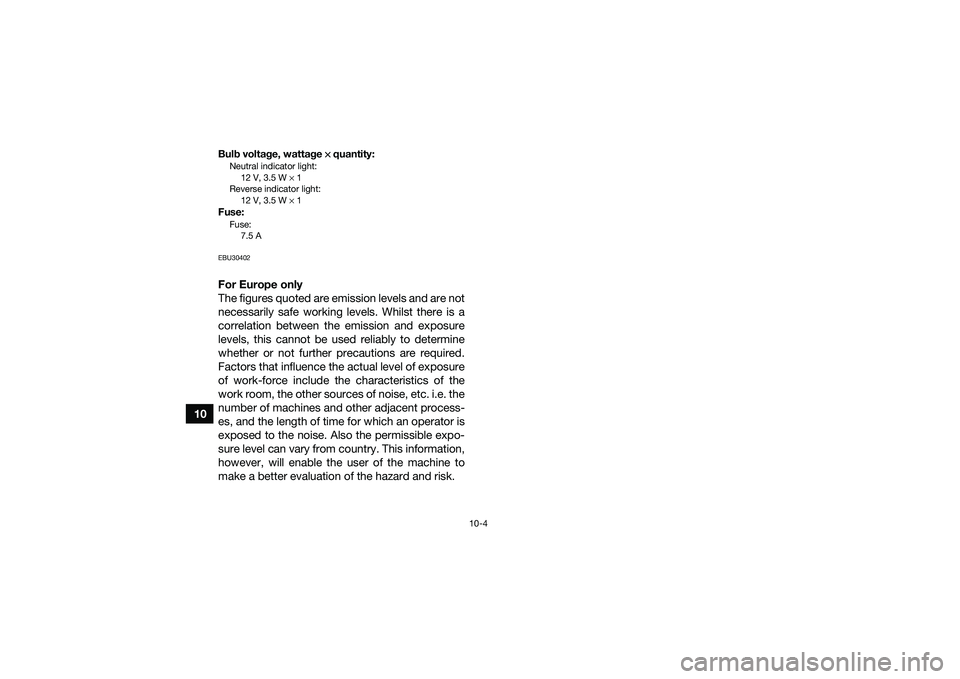

10-4
10
Bulb voltage, wattage × quantity:Neutral indicator light:
12 V, 3.5 W × 1
Reverse indicator light:
12 V, 3.5 W × 1Fuse:Fuse:
7.5 AEBU30402For Europe only
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.UBD360E0.book Page 4 Wednesd ay, February 25, 2015 2:41 PM

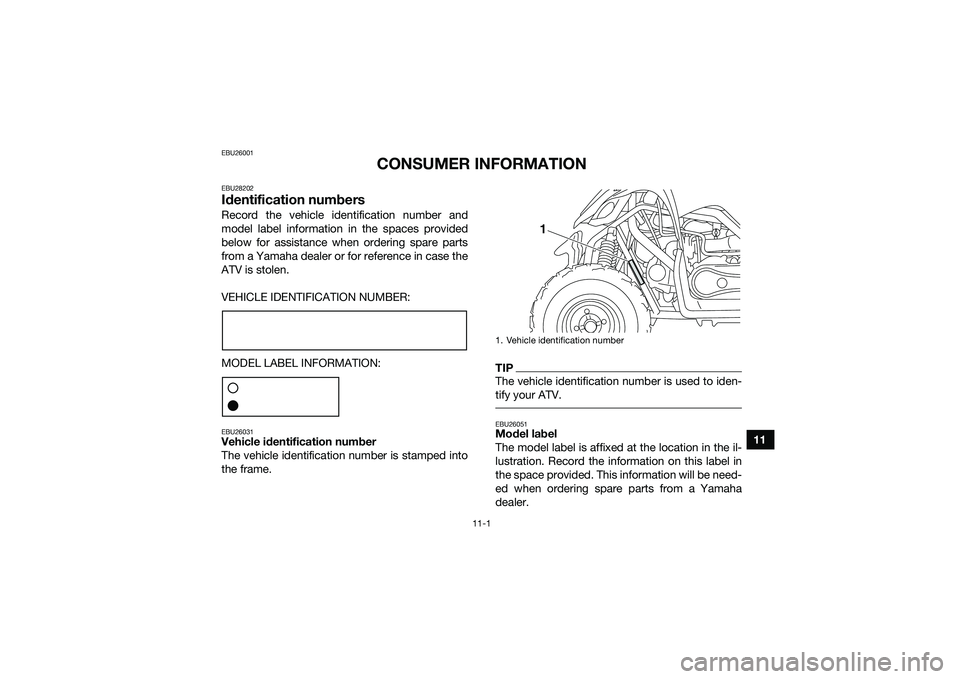

11-1
11
EBU26001
CONSUMER INFORMATION
EBU28202Identification numbersRecord the vehicle identification number and
model label information in the spaces provided
below for assistance when ordering spare parts
from a Yamaha dealer or for reference in case the
ATV is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU26031Vehicle identification number
The vehicle identification number is stamped into
the frame.
TIPThe vehicle identification number is used to iden-
tify your ATV. EBU26051Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha
dealer.1. Vehicle identification number
1
UBD360E0.book Page 1 Wednesday, February 25, 2015 2:41 PM

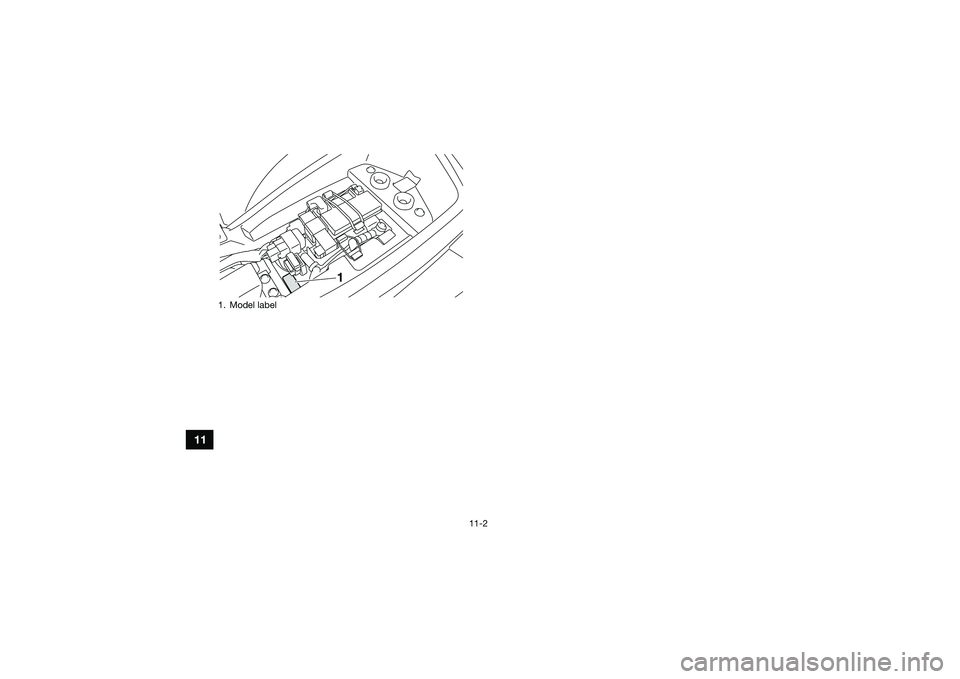

11-2
11
1. Model label
1
UBD360E0.book Page 2 Wednesday, February 25, 2015 2:41 PM

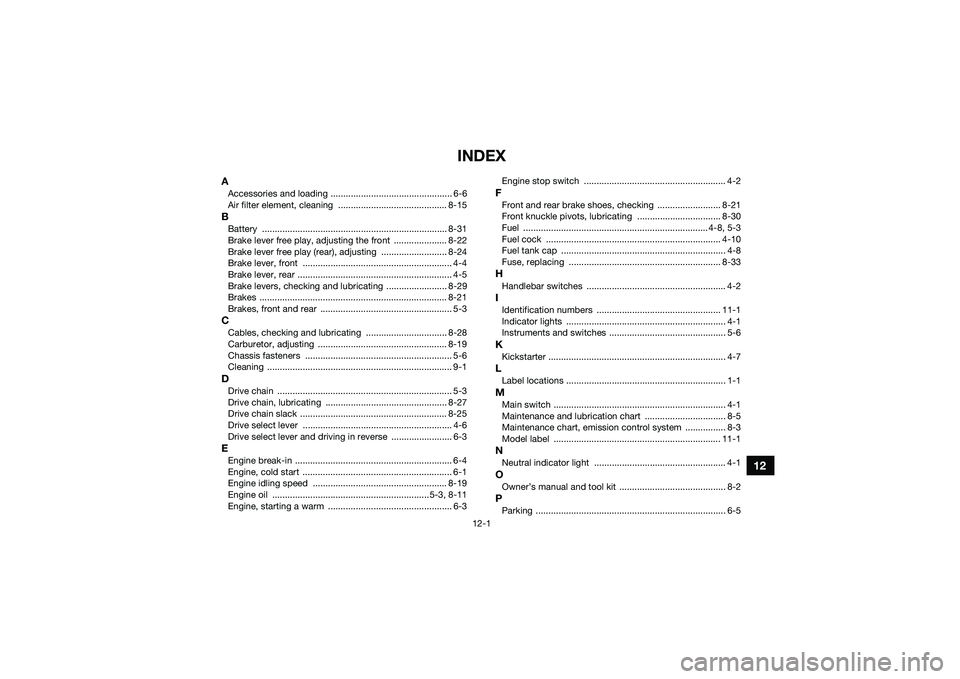

12-1
12
INDEX
AAccessories and loading ................................................ 6-6
Air filter element, cleaning ........................................... 8-15BBattery ......................................................................... 8-31
Brake lever free play, adjusting the front ..................... 8-22
Brake lever free play (rear), adjusting .......................... 8-24
Brake lever, front ........................................................... 4-4
Brake lever, rear ............................................................. 4-5
Brake levers, checking and lubricating ........................ 8-29
Brakes .......................................................................... 8-21
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................ 8-28
Carburetor, adjusting ................................................... 8-19
Chassis fasteners .......................................................... 5-6
Cleaning ......................................................................... 9-1DDrive chain ..................................................................... 5-3
Drive chain, lubricating ................................................ 8-27
Drive chain slack .......................................................... 8-25
Drive select lever ........................................................... 4-6
Drive select lever and driving in reverse ........................ 6-3EEngine break-in .............................................................. 6-4
Engine, cold start ........................................................... 6-1
Engine idling speed ..................................................... 8-19
Engine oil ..............................................................5-3, 8-11
Engine, starting a warm ................................................. 6-3Engine stop switch ........................................................ 4-2
FFront and rear brake shoes, checking ......................... 8-21
Front knuckle pivots, lubricating ................................. 8-30
Fuel ......................................................................... 4-8, 5-3
Fuel cock ..................................................................... 4-10
Fuel tank cap ................................................................. 4-8
Fuse, replacing ............................................................ 8-33HHandlebar switches ....................................................... 4-2IIdentification numbers ................................................. 11-1
Indicator lights ............................................................... 4-1
Instruments and switches .............................................. 5-6KKickstarter ...................................................................... 4-7LLabel locations ............................................................... 1-1MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................ 8-5
Maintenance chart, emission control system ................ 8-3
Model label .................................................................. 11-1NNeutral indicator light .................................................... 4-1OOwner’s manual and tool kit .......................................... 8-2PParking ........................................................................... 6-5
UBD360E0.book Page 1 Wednesd
ay, February 25, 2015 2:41 PM

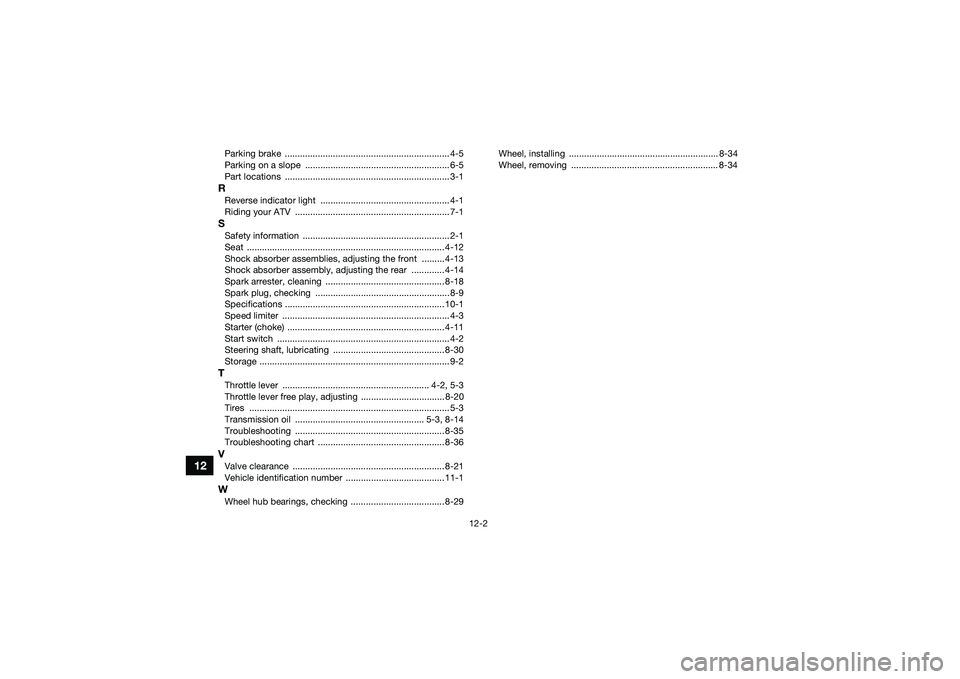

12-2
12
Parking brake ................................................................. 4-5
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1RReverse indicator light ................................................... 4-1
Riding your ATV ............................................................. 7-1SSafety information .......................................................... 2-1
Seat .............................................................................. 4-12
Shock absorber assemblies, adjusting the front .........4-13
Shock absorber assembly, adjusting the rear ............. 4-14
Spark arrester, cleaning ............................................... 8-18
Spark plug, checking .....................................................8-9
Specifications ............................................................... 10-1
Speed limiter .................................................................. 4-3
Starter (choke) .............................................................. 4-11
Start switch .................................................................... 4-2
Steering shaft, lubricating ............................................ 8-30
Storage ........................................................................... 9-2TThrottle lever .......................................................... 4-2, 5-3
Throttle lever free play, adjusting ................................. 8-20
Tires ............................................................................... 5-3
Transmission oil ................................................... 5-3, 8-14
Troubleshooting ........................................................... 8-35
Troubleshooting chart .................................................. 8-36VValve clearance ............................................................ 8-21
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-29Wheel, installing ........................................................... 8-34
Wheel, removing .......................................................... 8-34UBD360E0.book Page 2 Wednesd
ay, February 25, 2015 2:41 PM

UBD360E0.book Page 3 Wednesday, February 25, 2015 2:41 PM

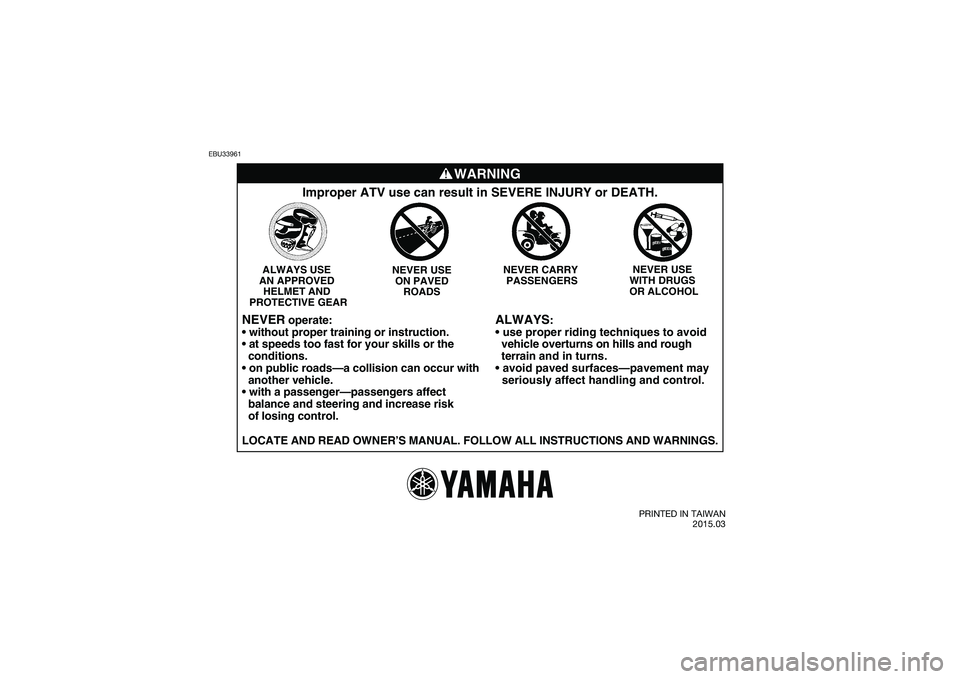

EBU33961
WARNING
ALWAYS
:

vehicle overturns on hills and rough
terrain and in turns.

seriously affect handling and control.
Improper ATV use can result in SEVERE INJURY or DEATH.
NEVER USE
WITH DRUGS
OR ALCOHOL
ALWAYS USE
AN APPROVED HELMET AND
PROTECTIVE GEAR NEVER USE
ON PAVED ROADS NEVER CARRY
PASSENGERS
NEVER
operate:


conditions.

another vehicle.

balance and steering and increase risk
of losing control.
LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.\
PRINTED IN TAIWAN 2015.03
