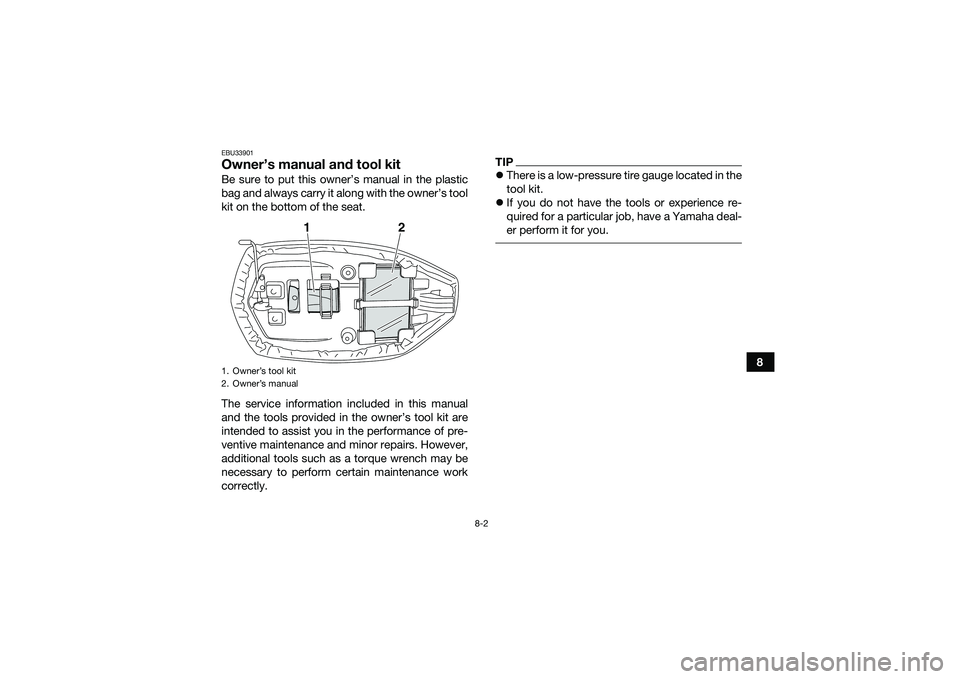

8-2
8
EBU33901Owner’s manual and tool kitBe sure to put this owner’s manual in the plastic
bag and always carry it along with the owner’s tool
kit on the bottom of the seat.
The service information included in this manual
and the tools provided in the owner’s tool kit are
intended to assist you in the performance of pre-
ventive maintenance and minor repairs. However,
additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPThere is a low-pressure tire gauge located in the
tool kit.
 If you do not have the tools or experience re-
quired for a particular job, have a Yamaha deal-
er perform it for you.
1. Owner’s tool kit
2. Owner’s manual
1
2
UBD360E0.book Page 2 Wednesd ay, February 25, 2015 2:41 PM

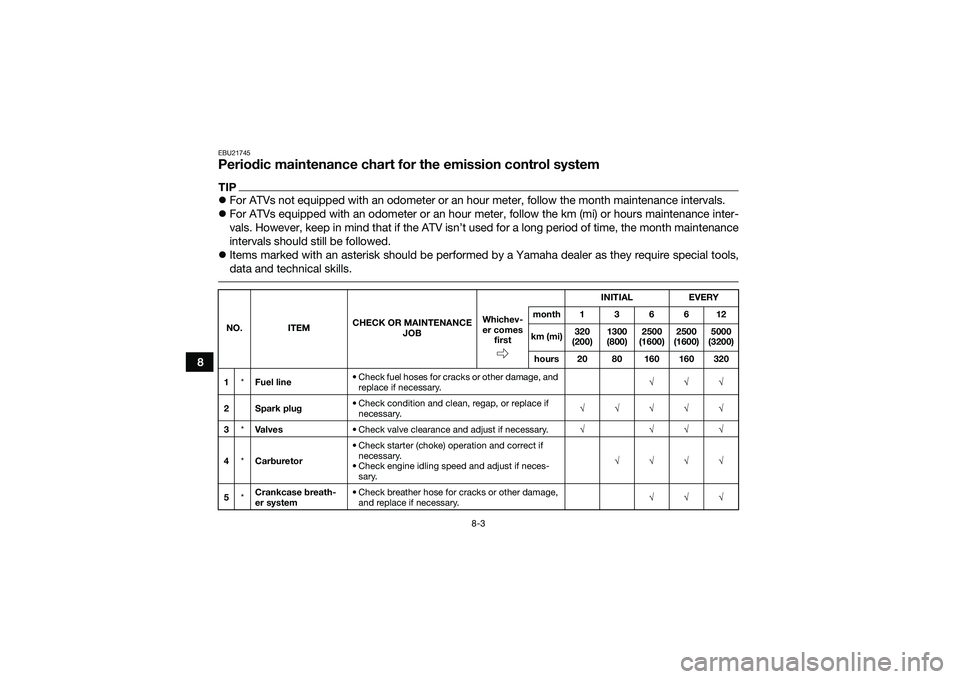

8-3
8
EBU21745Periodic maintenance chart for the emission control systemTIPFor ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
 For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should still be followed.
 Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills. NO. ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev-
er comes first month136612
km (mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 *Fuel line • Check fuel hoses for cracks or other damage, and
replace if necessary. √√√
2 Spark plug • Check condition and clean, regap, or replace if
necessary. √√√√√
3 *Va l ve s • Check valve clearance and adjust if necessary. √ √√√
4 *Carburetor • Check starter (choke) operation and correct if
necessary.
• Check engine idling speed and adjust if neces- sary. √√√√
5 *Crankcase breath-
er system • Check breather hose for cracks or other damage,
and replace if necessary. √√√
UBD360E0.book Page 3 Wednesd
ay, February 25, 2015 2:41 PM

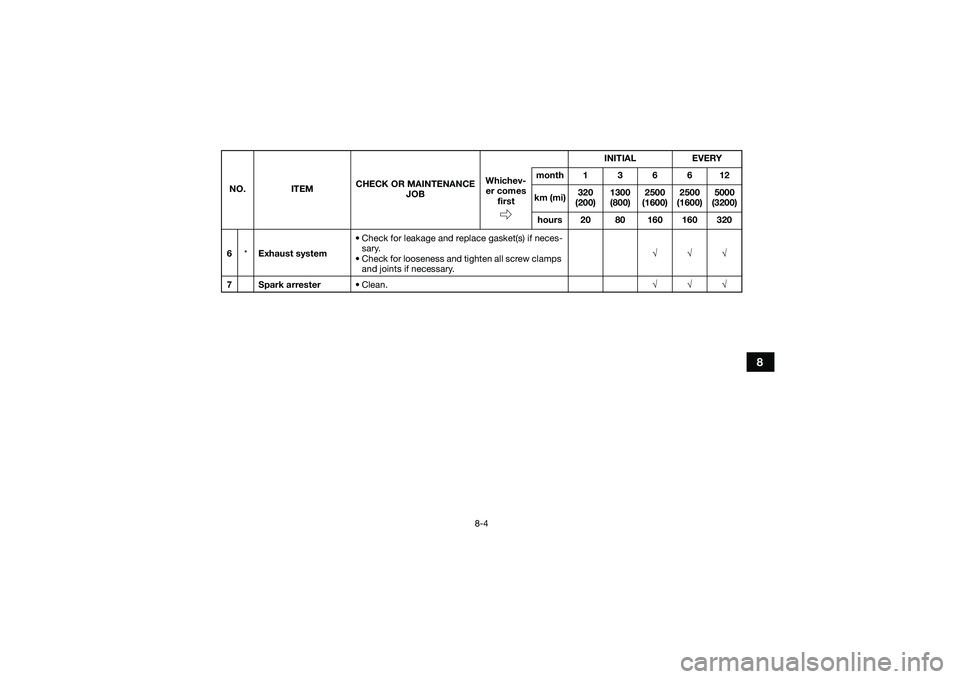

8-4
8
6*Exhaust system • Check for leakage and replace gasket(s) if neces-
sary.
• Check for looseness and tighten all screw clamps and joints if necessary. √√√
7Spark arrester • Clean. √√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km (mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
UBD360E0.book Page 4 Wednesd ay, February 25, 2015 2:41 PM

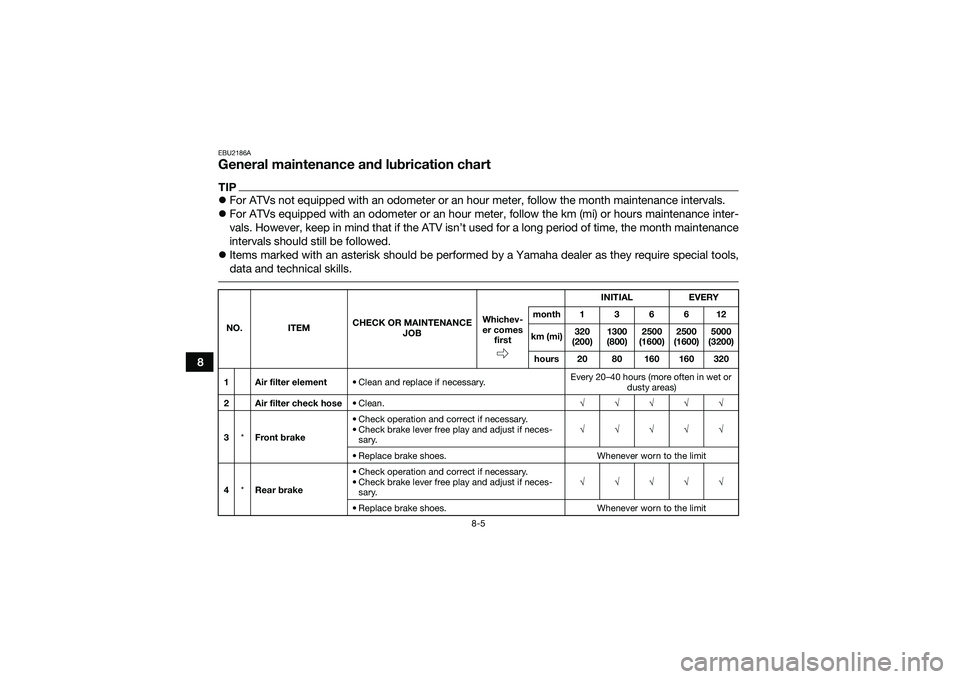

8-5
8
EBU2186AGeneral maintenance and lubrication chartTIPFor ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
 For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should still be followed.
 Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills. NO. ITEM CHECK OR MAINTENANCE
JOB INITIAL
EVERY
Whichev-
er comes first month136612
km (mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 Air filter element • Clean and replace if necessary. Every 20–40 hours (more often in wet or
dusty areas)
2 Air filter check hose • Clean. √√√√√
3 *Front brake • Check operation and correct if necessary.
• Check brake lever free play and adjust if neces-
sary. √√√√√
• Replace brake shoes. Whenever worn to the limit
4 *Rear brake • Check operation and correct if necessary.
• Check brake lever free play and adjust if neces-
sary. √√√√√
• Replace brake shoes. Whenever worn to the limit
UBD360E0.book Page 5 Wednesday, February 25, 2015 2:41 PM

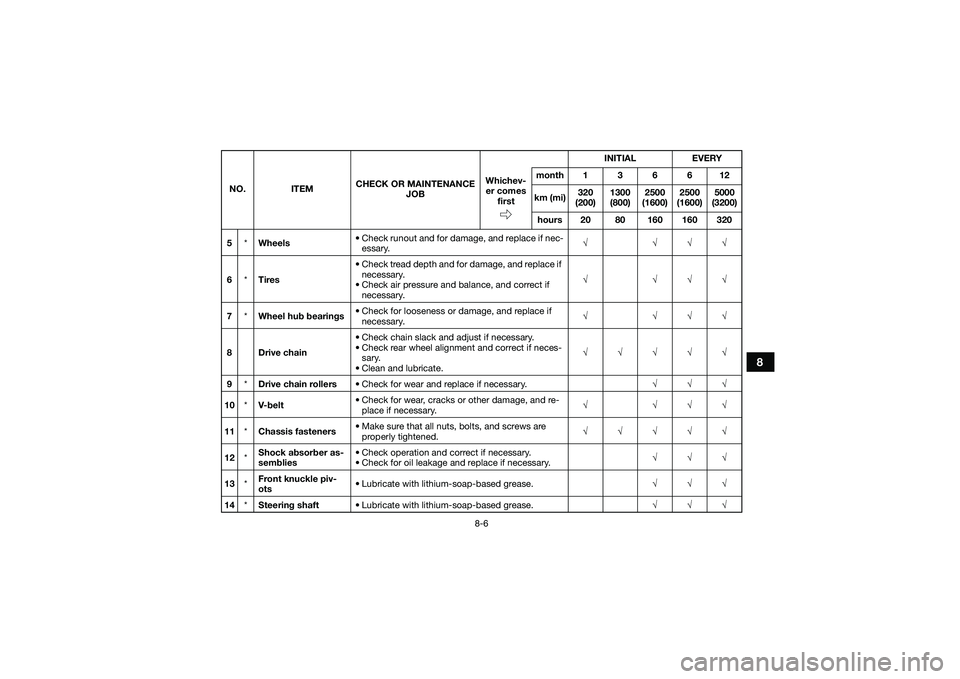

8-6
8
5*Wheels • Check runout and for damage, and replace if nec-
essary. √ √√√
6 *Tires • Check tread depth and for damage, and replace if
necessary.
• Check air pressure and balance, and correct if necessary. √ √√√
7 *Wheel hub bearings • Check for looseness or damage, and replace if
necessary. √ √√√
8 Drive chain • Check chain slack and adjust if necessary.
• Check rear wheel alignment and correct if neces-
sary.
• Clean and lubricate. √√√√√
9 *Drive chain rollers • Check for wear and replace if necessary. √√√
10 *V- b e l t • Check for wear, cracks or other damage, and re-
place if necessary. √ √√√
11 *Chassis fasteners • Make sure that all nuts, bolts, and screws are
properly tightened. √√√√√
12 *Shock absorber as-
semblies • Check operation and correct if necessary.
• Check for oil leakage and replace if necessary.
√√√
13 *Front knuckle piv-
ots • Lubricate with lithium-soap-based grease.
√√√
14 *Steering shaft • Lubricate with lithium-soap-based grease. √√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km (mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
UBD360E0.book Page 6 Wednesd ay, February 25, 2015 2:41 PM

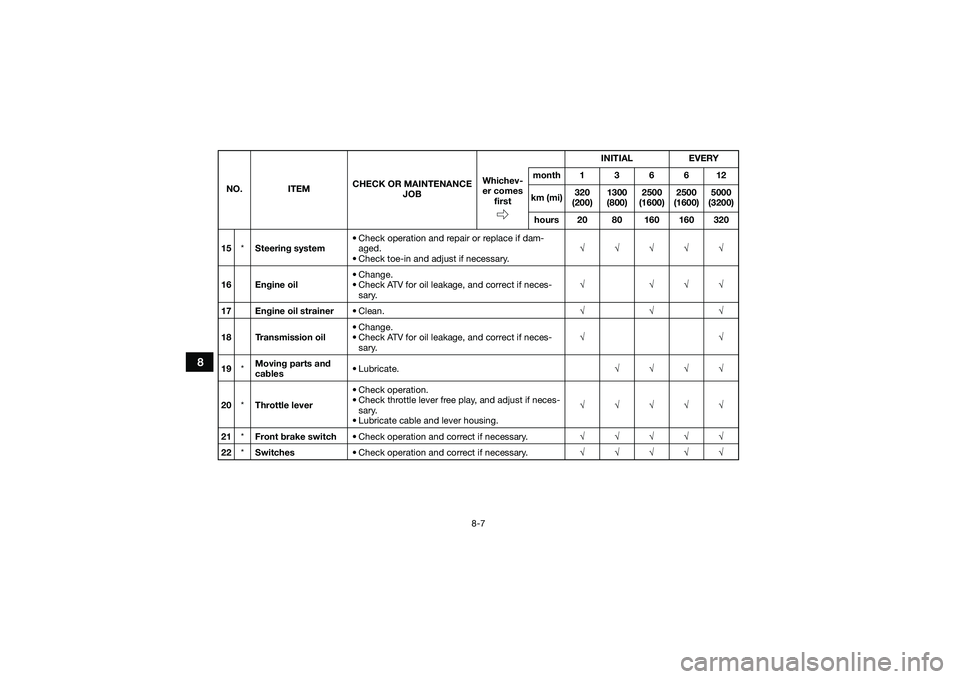

8-7
8
15*Steering system • Check operation and repair or replace if dam-
aged.
• Check toe-in and adjust if necessary. √√√√√
16 Engine oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √ √√√
17 Engine oil strainer • Clean. √√√
18 Transmission oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √√
19 *Moving parts and
cables
• Lubricate.
√√√√
20 *Throttle lever • Check operation.
• Check throttle lever free play, and adjust if neces-
sary.
• Lubricate cable and lever housing. √√√√√
21 *Front brake switch • Check operation and correct if necessary. √√√√√
22 *Switches • Check operation and correct if necessary. √√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev-
er comes first month136612
km (mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320UBD360E0.book Page 7 Wednesd ay, February 25, 2015 2:41 PM

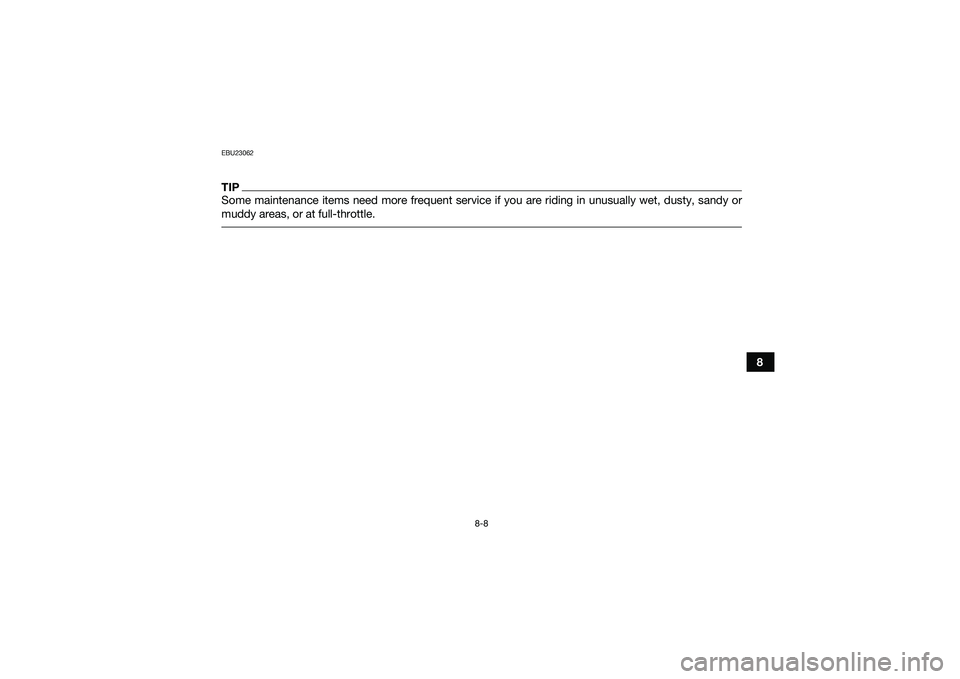

8-8
8
EBU23062TIPSome maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle. UBD360E0.book Page 8 Wednesday, February 25, 2015 2:41 PM

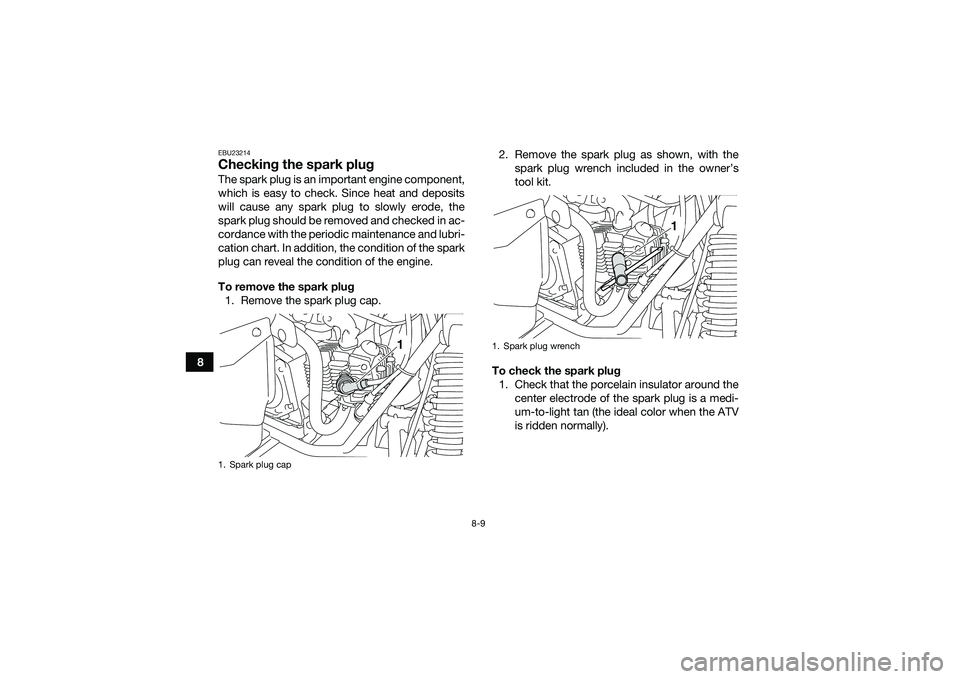

8-9
8
EBU23214Checking the spark plugThe spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the
spark plug should be removed and checked in ac-
cordance with the periodic maintenance and lubri-
cation chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug1. Remove the spark plug cap. 2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s
tool kit.
To check the spark plug 1. Check that the porcelain insulator around the center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap
1
1. Spark plug wrench
1
UBD360E0.book Page 9 Wednesd ay, February 25, 2015 2:41 PM

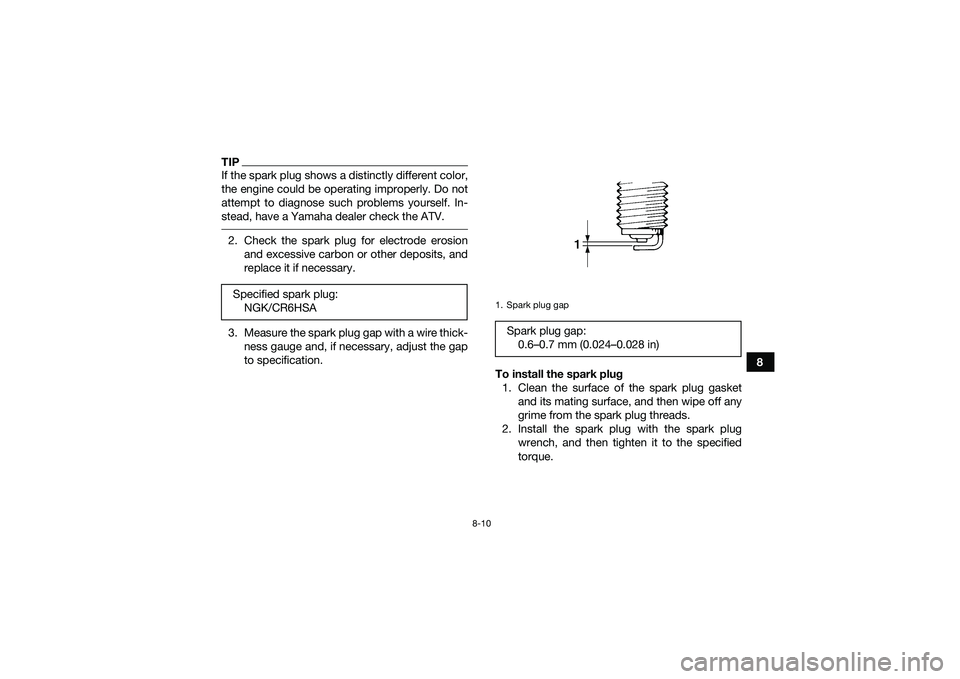

8-10
8
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV. 2. Check the spark plug for electrode erosionand excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
Specified spark plug:
NGK/CR6HSA
1. Spark plug gapSpark plug gap:0.6–0.7 mm (0.024–0.028 in)
UBD360E0.book Page 10 Wednesd ay, February 25, 2015 2:41 PM

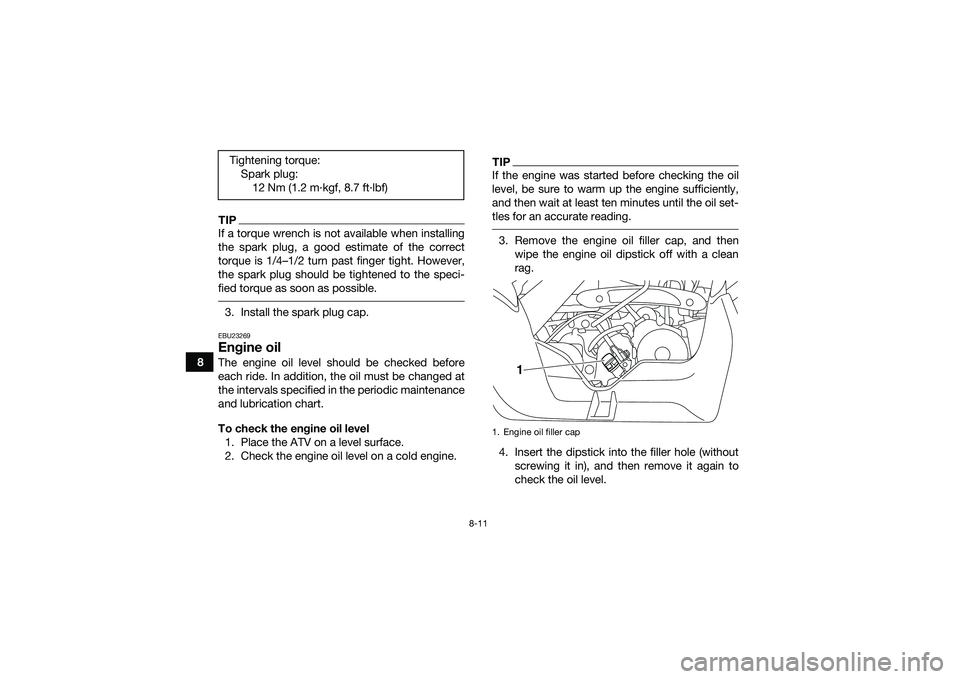

8-11
8
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the speci-
fied torque as soon as possible. 3. Install the spark plug cap.EBU23269Engine oilThe engine oil level should be checked before
each ride. In addition, the oil must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.
To check the engine oil level1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading. 3. Remove the engine oil filler cap, and then wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without screwing it in), and then remove it again to
check the oil level.
Tightening torque:
Spark plug:12 Nm (1.2 m·kgf, 8.7 ft·lbf)1. Engine oil filler cap
1
UBD360E0.book Page 11 Wednesd ay, February 25, 2015 2:41 PM
